FMG-400
FMG-400
The Gateway to Versatile Media Workflows
FMG-400 Media Gateway Card is an all-in-one solution designed for Media Center RF02. It supports seamless transcoding and streaming, delivering exceptional performance and revolutionizing media management. It efficiently handles video formats like H.264, H.265, and SpeedHQ, supporting protocols such as NDI, NDI HX, SRT, RTMP, RTSP, RTP, UDP, WebRTC, and HLS. With the ability to manage up to 1*4K P60 or 4*1080P P60 video transcoding, it enables flexible media adaptability for different workflows.
When integrated with the RF02, the FMG-400 streamlines operations through the KiloLink Server Pro unified interface, empowering applications such as live streaming, video conferencing, and digital campuses with a “smart engine” for enhanced efficiency and control.
FMG-400 Media Gateway Card is an all-in-one solution designed for Media Center RF02. It supports seamless transcoding and streaming, delivering exceptional performance and revolutionizing media management. It efficiently handles video formats like H.264, H.265, and SpeedHQ, supporting protocols such as NDI, NDI HX, SRT, RTMP, RTSP, RTP, UDP, WebRTC, and HLS. With the ability to manage up to 1*4K P60 or 4*1080P P60 video transcoding, it enables flexible media adaptability for different workflows.
When integrated with the RF02, the FMG-400 streamlines operations through the KiloLink Server Pro unified interface, empowering applications such as live streaming, video conferencing, and digital campuses with a “smart engine” for enhanced efficiency and control.

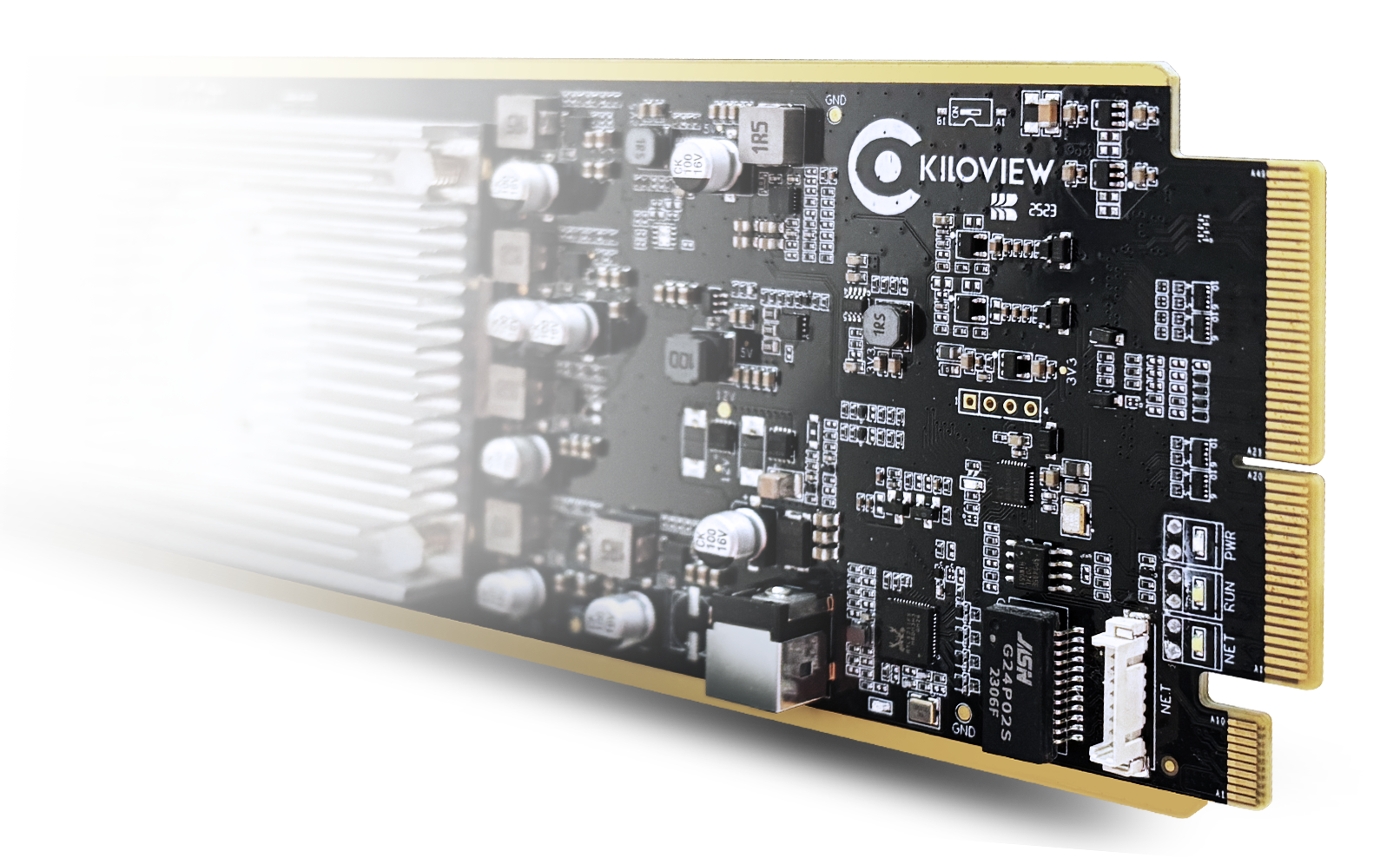

FMG-400 is powered by a high-performance chip, making it effortless to convert 1*4KP60/4*1080P60 video streams in H.264, H.265 and SpeedHQ formats. Whether you need stunning 4K visuals or multiple 1080P streams, it delivers exceptional quality with ease. It also supports a wide range of audio formats, including Dante, NDI, AAC, MP3, and PCM, covering all your audio needs.
With the ability to customize settings like encoding and resolution, the FMG-400 adapts flawlessly to any scenario, from live streaming to video conferencing. With its on-demand conversion feature, the FMG-400 maximizes efficiency, ensuring you only process what you need.

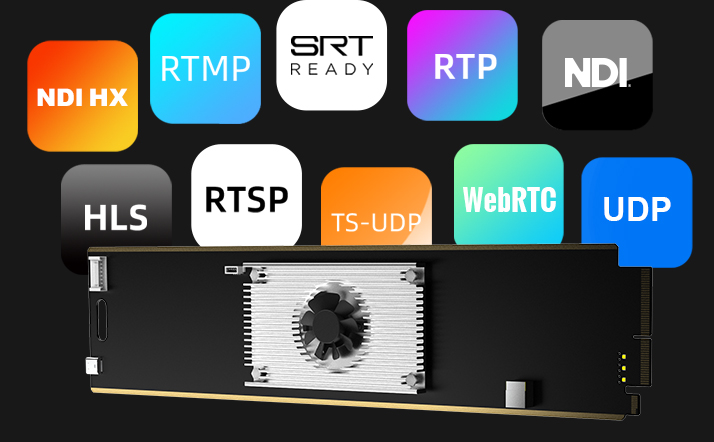

FMG-400 revolutionizes IP streaming with seamless support for protocols like NDI, SRT, RTMP, and HLS. Effortlessly switch between 1*4KP60 and 4*1080P60 streams, handling over 50 concurrent connections for smooth, high-quality performance. It offers push and pull modes, flexible unicast or multicast options, and can output multiple protocols from a single input.
FMG-400 revolutionizes IP streaming with seamless support for protocols like NDI, SRT, RTMP, and HLS. Effortlessly switch between 1*4KP60 and 4*1080P60 streams, handling over 50 concurrent connections for smooth, high-quality performance. It offers push and pull modes, flexible unicast or multicast options, and can output multiple protocols from a single input.
FMG-400 integrates powerful NDI Bridge Utility, enabling seamless remote streaming and protocol conversion between NDI High Bandwidth and NDI HX/NDI HX3. This feature ensures smooth and reliable connectivity, elevating your media workflow with enhanced flexibility and performance.
FMG-400 integrates powerful NDI Bridge Utility, enabling seamless remote streaming and protocol conversion between NDI High Bandwidth and NDI HX/NDI HX3. This feature ensures smooth and reliable connectivity, elevating your media workflow with enhanced flexibility and performance.

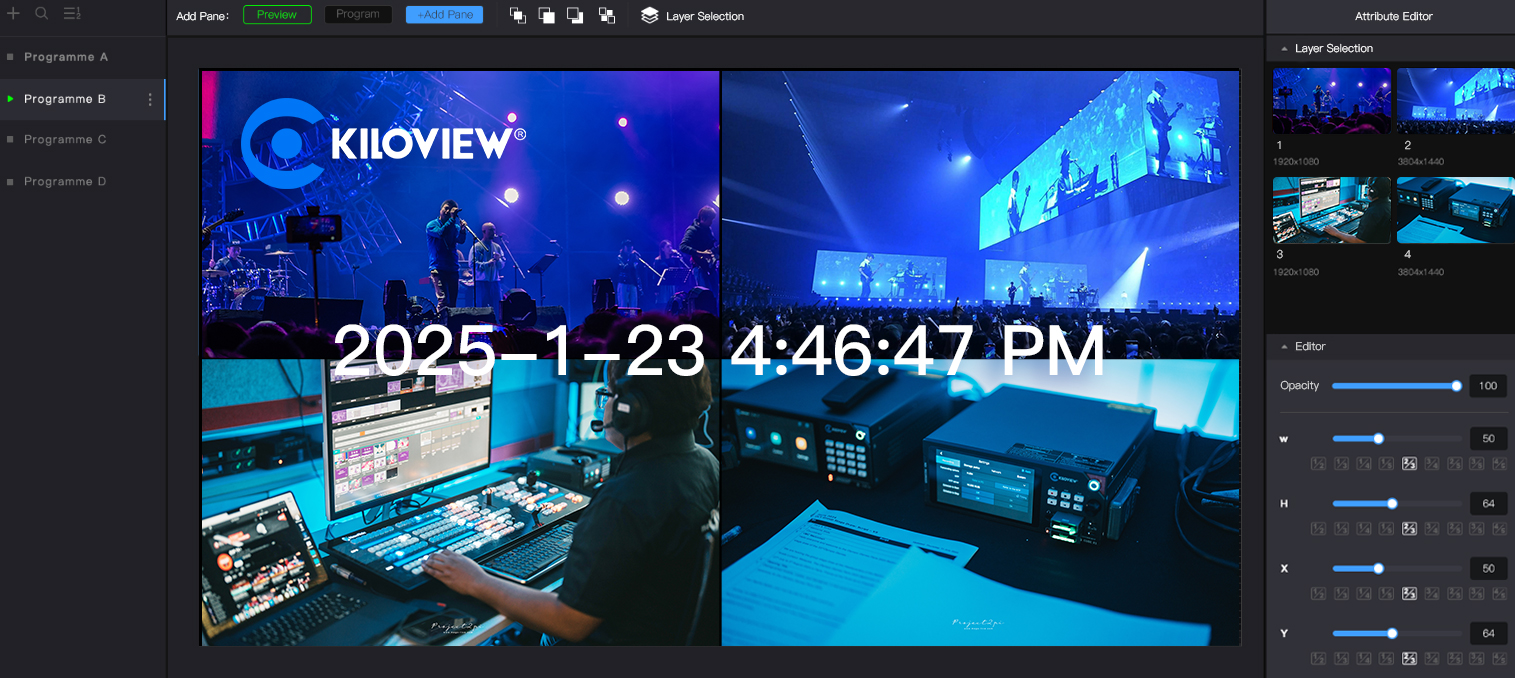

FMG-400 offers flexible multiview output, supporting up to 4 grid, allowing effortless integration of video sources from various protocols. With its powerful design tool, you can fully customize the layout, adding elements like logos, text, timestamps, and more, giving you complete control over your visual presentation and enabling dynamic, eye-catching content displays.

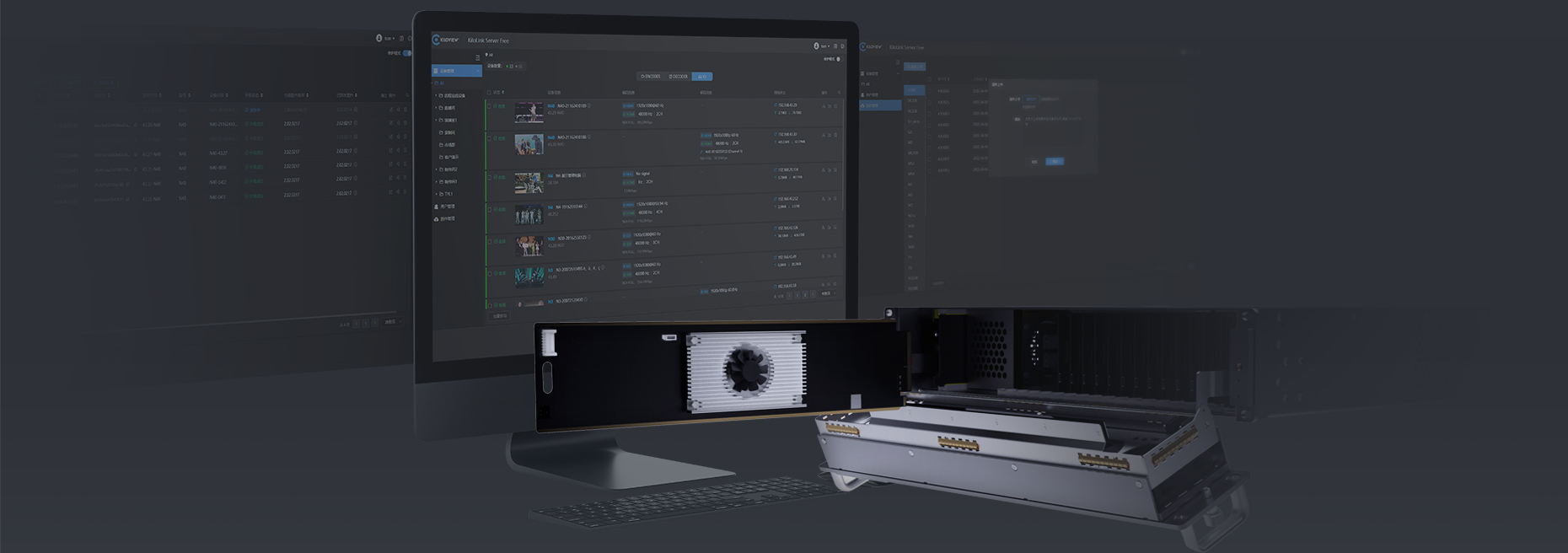

FMG-400 effortlessly integrates with Media Center RF02, powered by KiloLink Server Pro, to provide a unified, intuitive interface for managing all your video streaming needs. Whether it’s transcoding, protocol conversion, or monitoring input/output sources, everything is simplified for seamless operation. The built-in media control panel function makes switching audio and video sources fast and intuitive, improving both your productivity and experience.
FMG-400 effortlessly integrates with Media Center RF02, powered by KiloLink Server Pro, to provide a unified, intuitive interface for managing all your video streaming needs. Whether it’s transcoding, protocol conversion, or monitoring input/output sources, everything is simplified for seamless operation. The built-in media control panel function makes switching audio and video sources fast and intuitive, improving both your productivity and experience.
FMG-400 is equipped with an intelligent cooling system that adapts to your needs. With built-in sensors, it keeps track of the device’s temperature and automatically adjusts fan speed to match the workload, ensuring consistent performance even during demanding tasks. This advanced cooling technology prevents overheating, boosts reliability, and helps extend the device’s lifespan.
FMG-400 is equipped with an intelligent cooling system that adapts to your needs. With built-in sensors, it keeps track of the device’s temperature and automatically adjusts fan speed to match the workload, ensuring consistent performance even during demanding tasks. This advanced cooling technology prevents overheating, boosts reliability, and helps extend the device’s lifespan.
| Model | FMG-400 |
| Streaming Protocol Input/Output | NDI, NDI HX, SRT, RTMP, RTSP, RTP, UDP, WebRTC, HLS (More to come with customizable SIP/GB-T28281 protocol conversion) |
| Video Decoding Formats | H.264 / H.265 / SpeedHQ (NDI High-bandwidth) |
| Maximum Video Encoding Performance | H.264/H.265 Encoding: 4K@60Hz, 200Mbps @ Level 5.1 Main Tier ITU-T H.264 Encoding: High Profile/Main Profile/Baseline Profile @ Level 5.2 |
| Audio Decoding / Audio Bitrate Range | 8/16/24bit 8k~192kHz pcm |
| Split Display Styles | Up to 4 splits Supports re-encoding and publishing of multi-screen split video from a single source simultaneously) |
| Management | Web page/ KiloLink Server Pro |
| Processor | 8-core ARM64 high-performance processor (Cortex A73 @ 1.8GHz) |
| Memory | 12GB DDR4 |
| Storage | 16GB eMMC |
| OS/Software | Linux 5.10 / KiloLink Server RF version |
| Management and Control | Web / HTTP API |

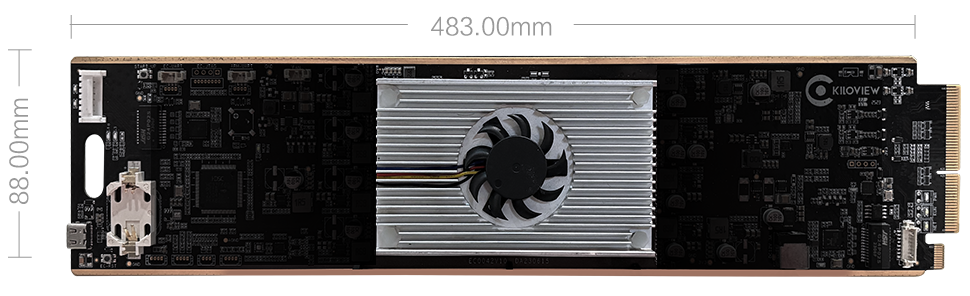

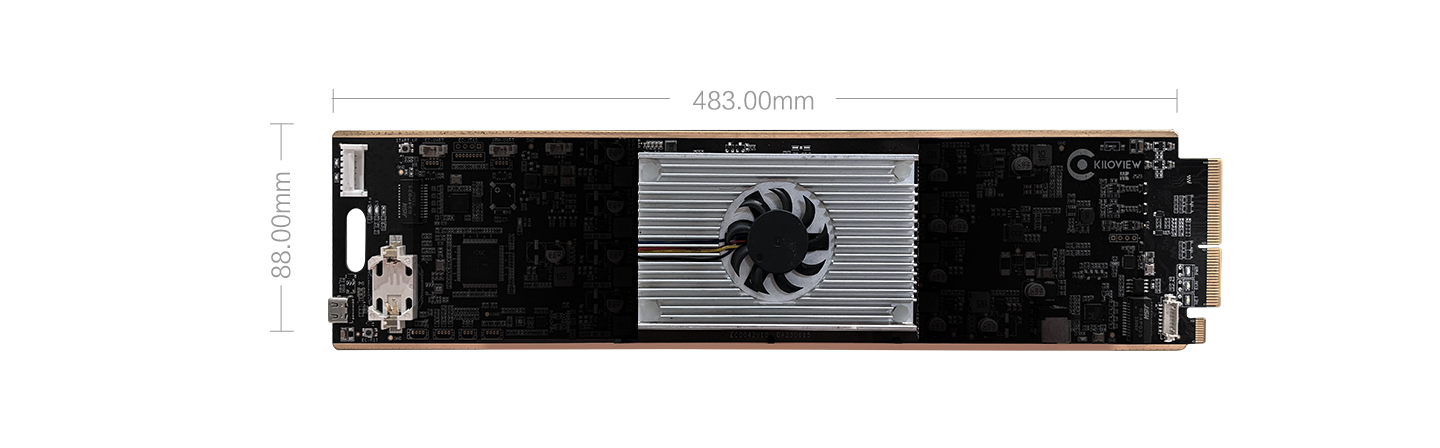

| Dimensions | 483mm x 487mm x 88mm [Standard 2RU] |
| Weight | 500g |
| Cooling | Active fan cooling / Automatic temperature control |
| Maximum Power Consumption | ≤ 6W |
