D260 H.265 Multi-Interface HD Decoder

3G-SDI + 2*HDMI Multi-Interface Output, Cost-Efficient Decoder

D260 8-channel HD HDMI & SDI Decoder

Professional and Powerful All-in-One HD Decoder

D260 is a cost-efficient video decoder with multi-interface output. It features 3G-SDI + 2*HDMI and can decode up to 4 audio and video streams simultaneously, while being compatible with decoding formats such as H.265/H.264. D260 supports multimedia protocols like NDI High Bandwidth, NDI HX, NDI HX3, SRT, RTMP, RTMPS, HLS, and TS over UDP, RTP, and RTSP, making it suitable for multi-service decoding and wall display splitting.

Its UI is meticulously designed and optimized, offering features like custom layouts, dynamic switching, and background/LOGO overlay. Additionally, D260 supports VU meter monitoring and reverse PTZ control, further enhancing the device’s practicality and flexibility. The device panel is equipped with an intuitive LCD screen that displays IP addresses and output status, allowing users to monitor the device’s status in real-time.

Outstanding AV Decoding Performance

Outstanding Video Decoding Performance

D260 supports simultaneous decoding of up to 4 video streams in H.264 (AVC) / H.265 (HEVC) format, each at 1080p60 (backward compatible). All 4 video outputs are available through both HDMI and SDI, ensuring a stable and reliable video decoding experience.

Exceptional Audio Decoding Performance

D260 supports decoding and output of various audio formats, including AAC, MPEG-4, MPEG-2, G.711, Opus, and LPCM. It features multi-channel audio mixing and gain control, allowing flexible audio output via HDMI, SDI, or 3.5mm Line-out, ensuring high-quality audio for video wall displays and audio mixing.

Comprehensive Protocol Support

D260 supports full protocol decoding, including NDI High Bandwidth, NDI HX, NDI HX3, SRT, RTMP, RTMPS, HLS, TS over UDP, RTP, and RTSP. With its comprehensive functionality, it can meet a wide range of streaming requirements.

Flexible Layout and OSD for Easy Output Customization

100% Customizable Layout

Users can fully customize the layout for 1/2/3/4 grids through the backend graphical interface, adjusting parameters such as position, size, and more. You can easily achieve real-time video preview and quick output switching. Additionally, you can save custom layout as a template for quick access and apply it to the current layout.

Personalized Template Creation for Custom Output

The new OSD feature in D260 provides users with an unprecedented personalized output experience. Users can freely create colorful OSD templates for output, incorporating elements such as images, text, colors, and more (e.g., logos, borders, image and text overlays). The designed templates can be directly applied to the corresponding output screens, making them more dynamic and personalized.

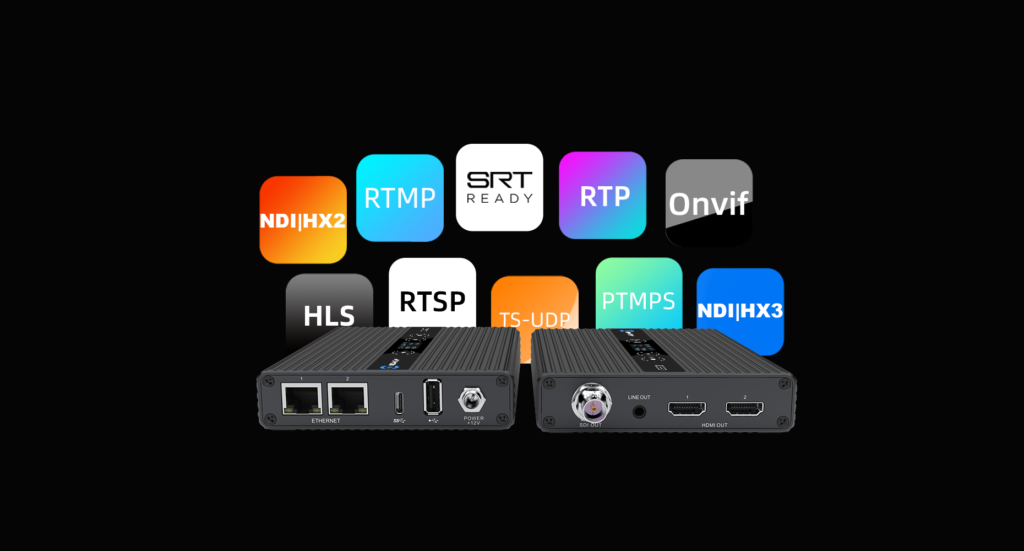

More protocols supported

For all IP-based video transmission process, D260 supports the latest NDI technology – NDI HX3. It also supports multiple decoding formats: H.264/H.265/NDI|HX2 and a wider range of streaming protocols including NDI HX2, NDI HX3, SRT, RTMP/RTMPS, HLS, TS over UDP, RTP/RTSP

Unlimited Preview + 4 Output with Dynamic Switching

D260 supports “preview + output” mode, allowing unlimited video streams (based on your hardware performance) to be previewed while selecting 4 streams for simultaneous display on the screen. This feature also supports monitoring (PVW/PGM) for dynamic and flexible output management.

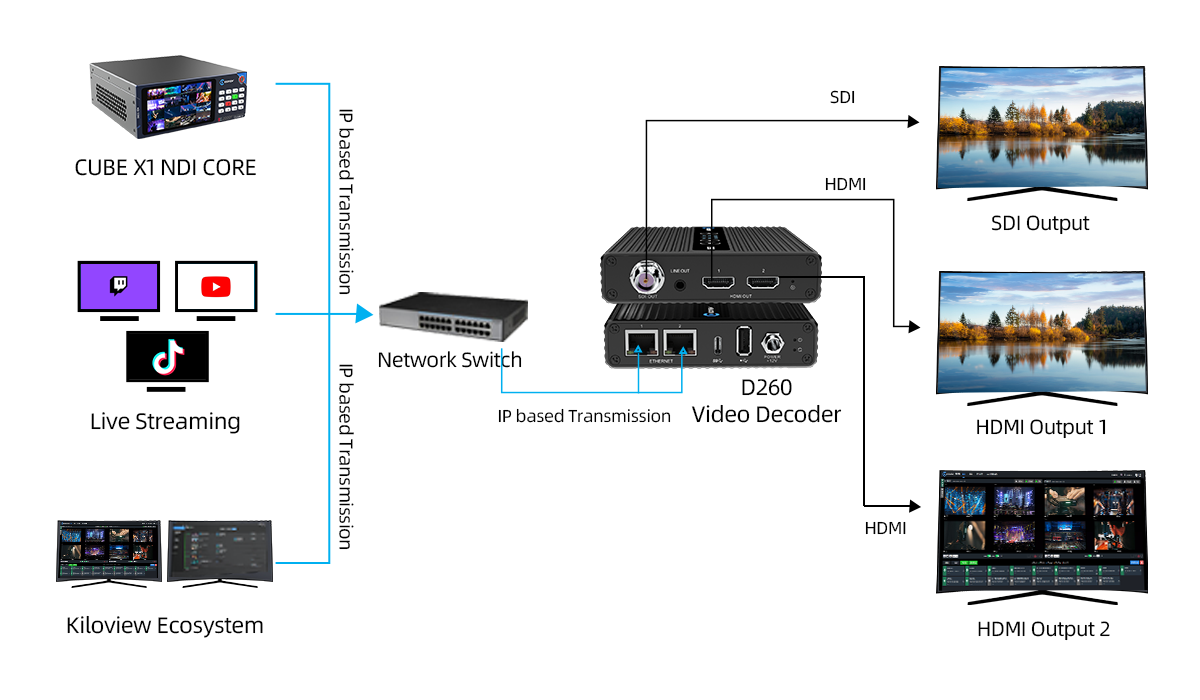

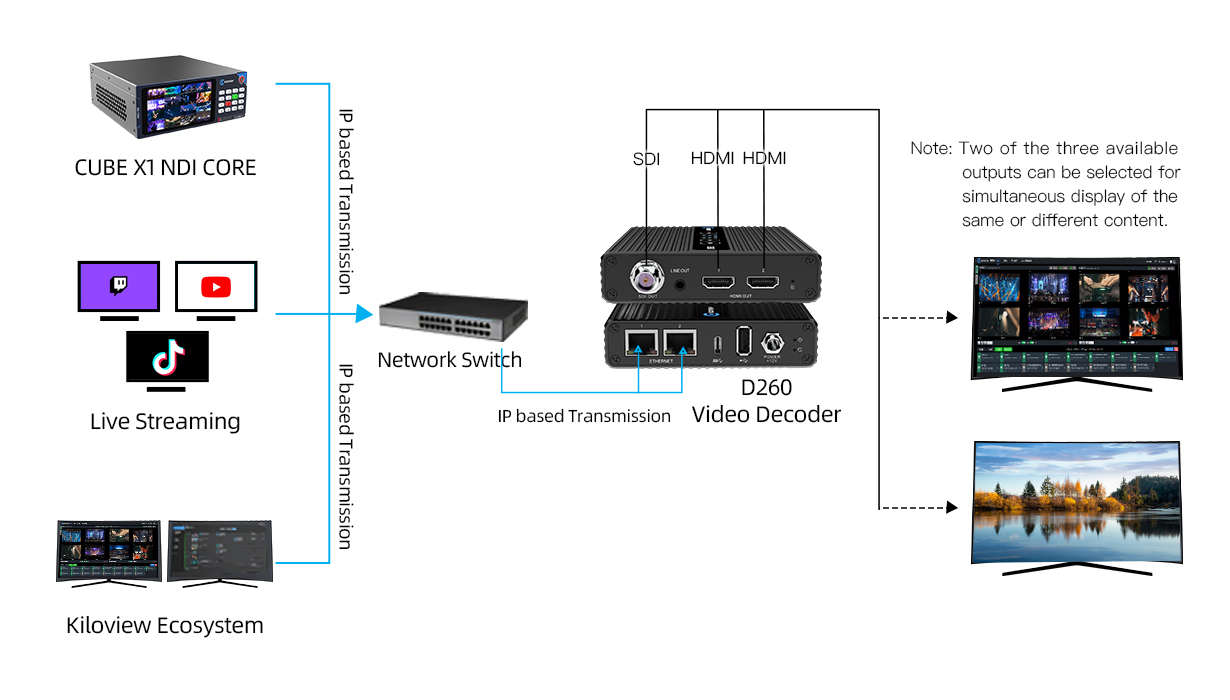

Extended Output Interfaces

D260 features 3G-SDI + 2*HDMI for simultaneous multi-interface output, with a maximum resolution of 1920×1080@60Hz. The multiple video outputs can be independently, combined, or simultaneously mirrored across 2 HDMI and 1 3G-SDI ports. Each interface allows dynamic selection of 1/2/3/4 video streams for display, with adjustable output resolution, scan mode (progressive/interlaced), and frame rate.

HDMI*2

3G-SDI

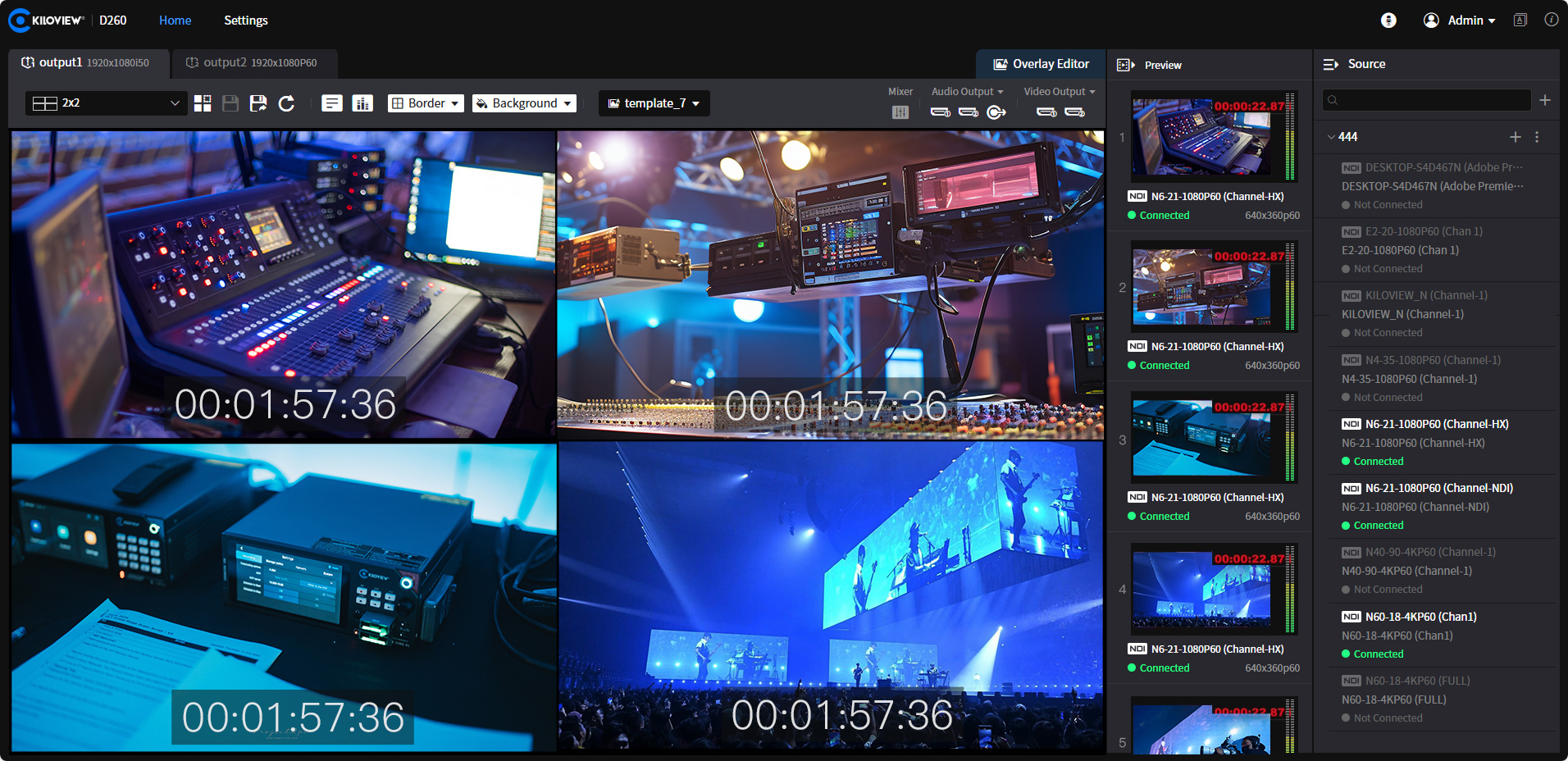

Brand New UI for Easy Operation

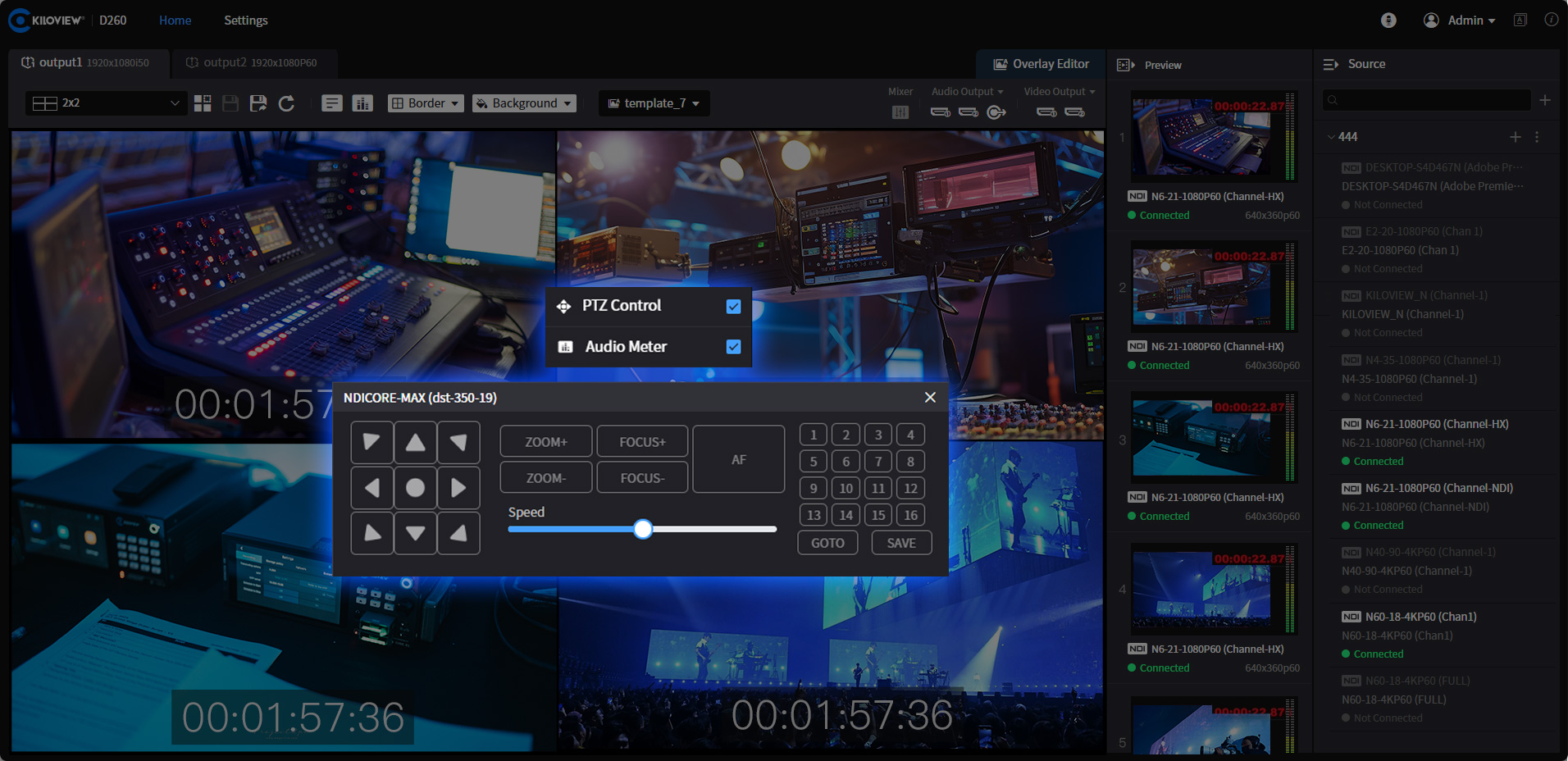

The new UI is intuitive, combining the main screen and sidebar preview for easy viewing of multiple video streams. Drag-and-drop functionality enables seamless real-time previews and output switching. All features are integrated into the web interface for clarity, with support for VU meter monitoring and reverse PTZ control for effortless management during monitoring.

LCD Display and Touch Button

D260 is equipped with an LCD screen with touch buttons for a better user experience. With the built-in LCD screen, users can easily check transmission status in real-time.

Low Latency and High Quality

D260 guarantees outstanding image quality and low transmission latency with a decoding delay of around 150 ms and a packet loss rate of less than 10%.

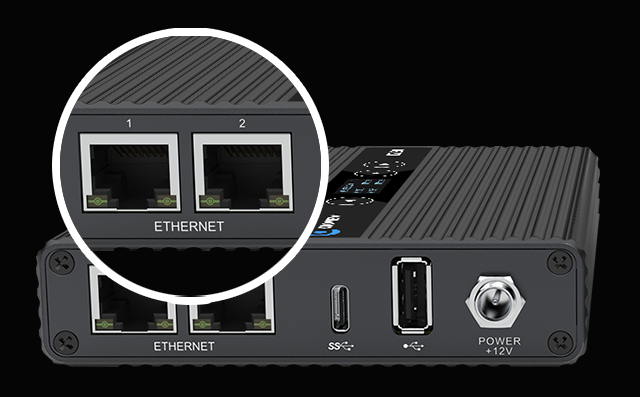

Dual Gigabit Ethernet Secure and Stable

D260 features dual gigabit Ethernet ports for seamless data transmission between internal and external networks, optimizing network efficiency. With dual-port redundancy, it guarantees uninterrupted network connectivity for reliable service.

More Features

Multi Outputs

Dual Ethernet Ports

RTMP Server

Intercom

OSD

Latency<100ms

Dual USB Ports

Centralized management

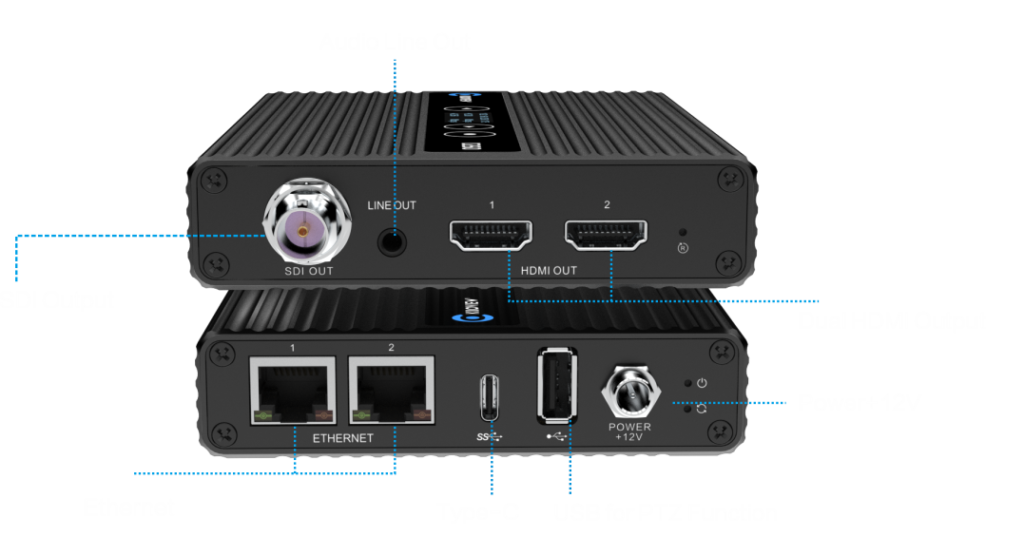

Appearance of D260

Appearance

Applications

Splicing Screen Wall

IPTV

Online Teaching

Video Conference

Tech Specs&Features

Model	D260
Video Output	2HDMI 13G-SDI
Audio Output	HDMI, SDI and 1*3.5mm Line out
Video Formats	H.264(AVC), Compatible with Baseline/Main/High Profile, up to Level 5.2； H.265(HEVC) Compatible with Main Profile, up to Level 5.1
Video Decoding	4 channels of 1080P60, 4 channels of 1080P30, 3 channels of 4K30P, 2 channels of4KP60 in H.264(AVC)/H.265(HEVC) 4 channels of 1080P60, 3 channels of 1080P30, 1 channel of 4K30P in SpeedHQ (NDI HB)
Audio Formats	AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM
Streaming protocols	NDI HB/NDI HX/NDI HX3/SRT/RTMP/RTMPS/ HLS/TS over UDP/RTP/ RTSP
Display	0.96” LCD with touch buttons
Layouts	Custom 1/2/3/4 layouts
Intercom	Yes
OSD	Yes
Network Connections	Ethernet Ports: 2*10/100M/1000M
USB Ports	1USB 2.0 Type-C 1USB 2.0 Type-A
Power Supply	DC 12V/1A
Management	WebUI/KiloLink Server
Power Consumption	8W(MAX)
Size	140104.0025.00mm
Weight	360g
Operating Temperature	-20℃~60℃
Support Download	Docs & Firmware

Quick Comparison of Our Decoders

Product Type	Product Model	Output Interface	Resolution	Decoding Performance
H.265 4K Video Decoder	D350	3G-SDI + HDMI 2.0*2	SDI: up to 1920×1080@60Hz; HDMI: up to 3840×2160@60Hz	Up to 12 Video Streams Simultaneously Decoding. 1/2/3/4/5/6 ~ 16 Splitting Screens and Dynamic Switching Supported.
4-Channel H.265 Video Decoder	D260	3G-SDI + HDMI 2.0*2	SDI: up to 1920×1080@60Hz; HDMI: up to 1920×1080@60Hz	Up to 4 Video Streams Simultaneously Decoding. 1/2/3/4 Splitting Screen and Dynamic Switching Supported.
