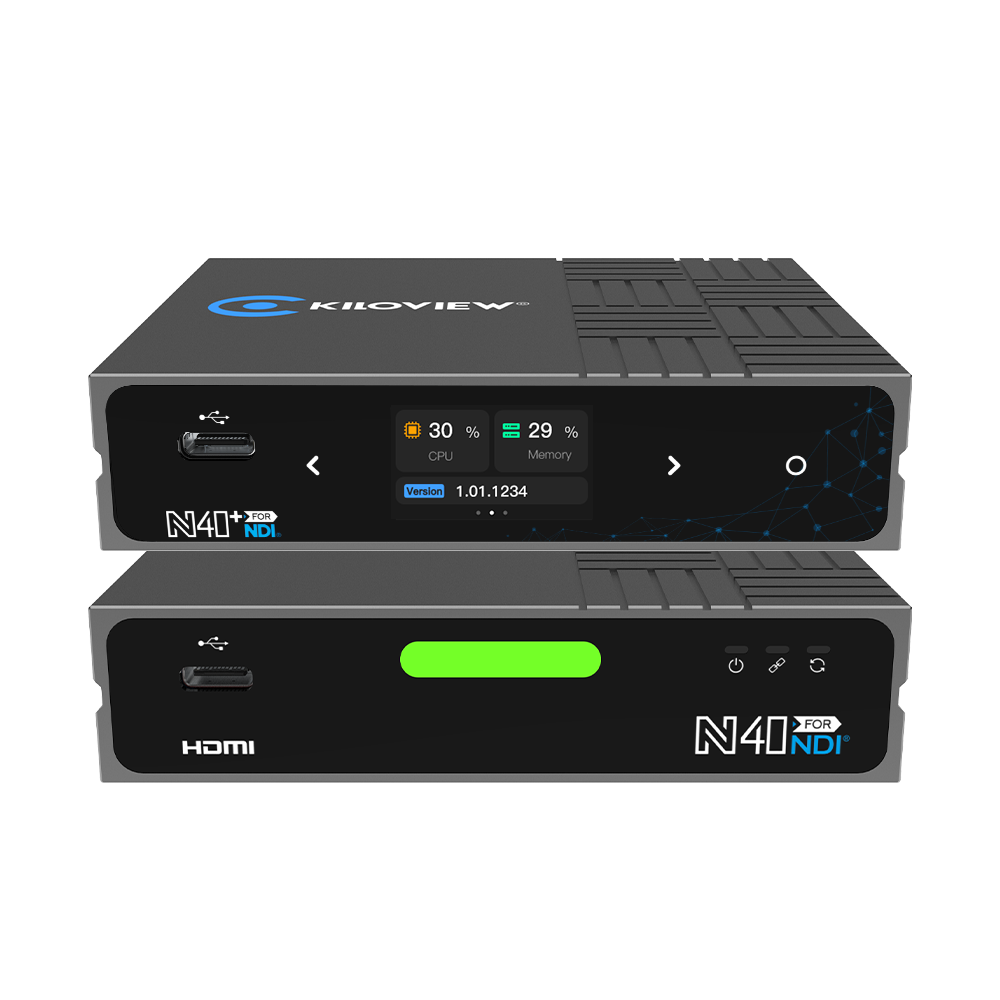

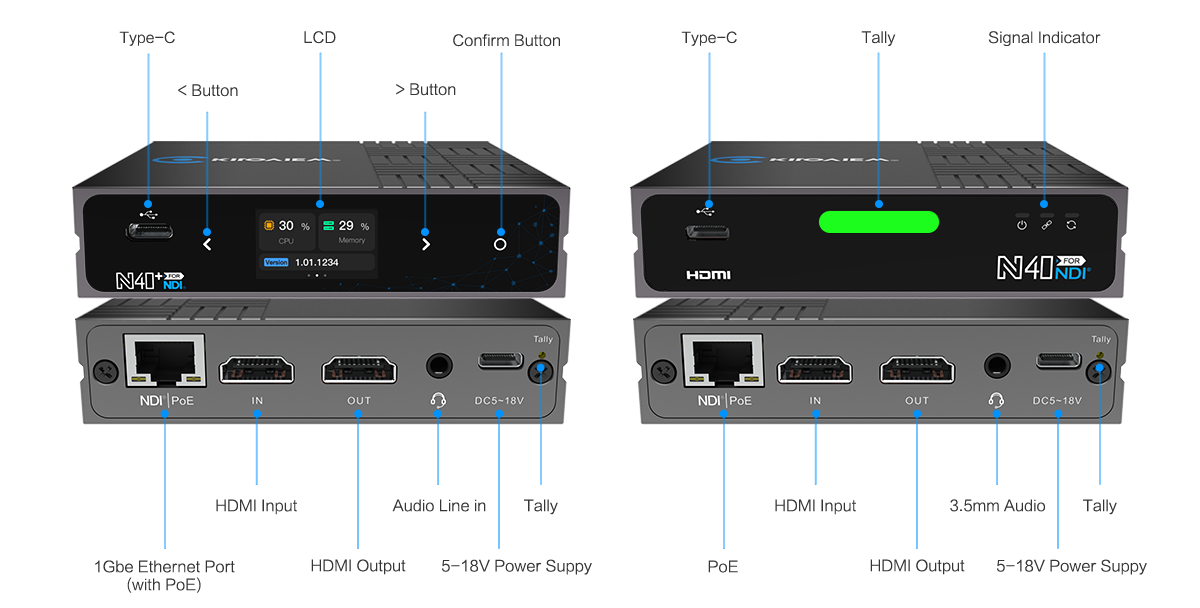

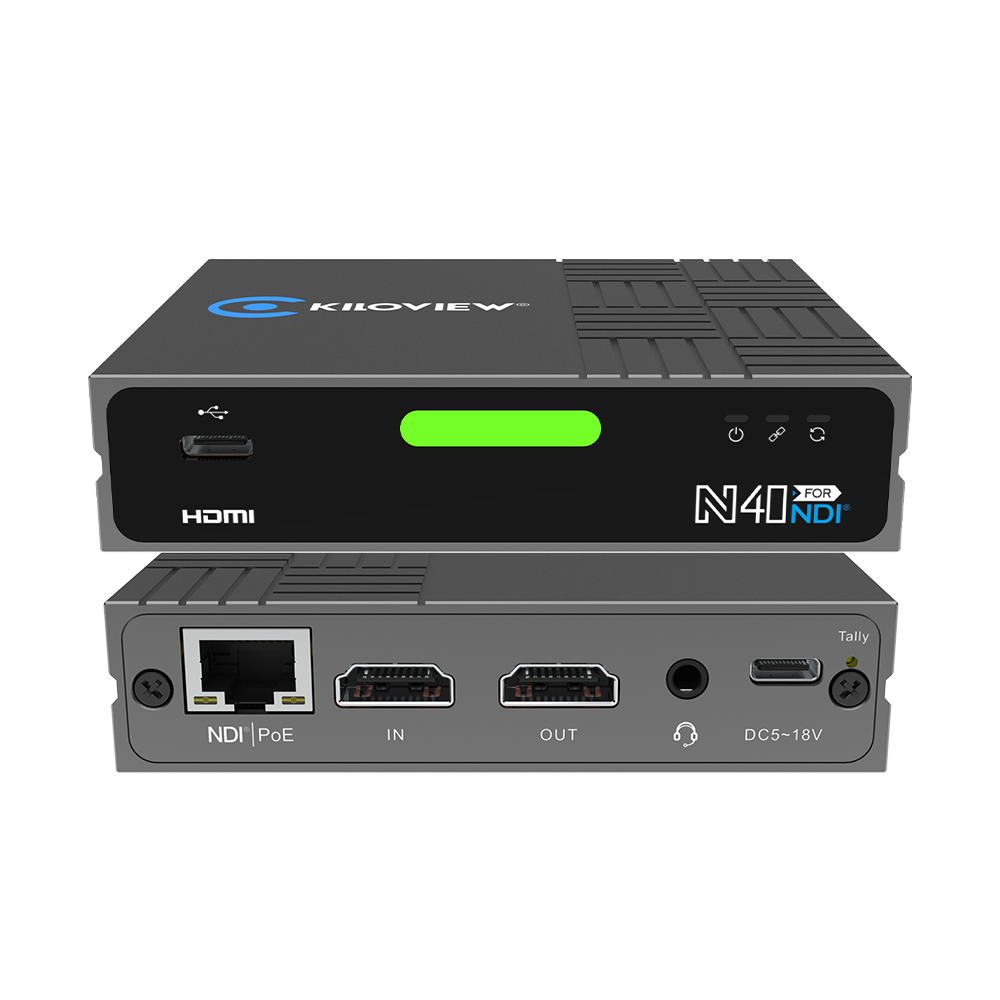

Kiloview N40 4K HDMI/NDI converter is a bi-directional converter that supports 4K HDMI video input (encoder) to NDI High Bandwidth with 4K HDMI loop-through for view on monitor, or 4K HDMI video output (decoder) from NDI High Bandwidth.
Featured with powerful functions such as PoE, built-in big tally light, PTZ control, 3.5mm audio mic in/out, multi-channel audio, intercom functions, the N40 is your best choice to get access to the fabulous NDI world!
The NDI protocol is a high-performance standard that enables anyone to use real-time, ultra-low-latency video on existing IP video networks.
Easily designate Kiloview NDI encoders as the video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, Teams and more using the free NDI® webcam input tool.
With HDMI2.0 interface, It supports real 4Kp60 video input and convert it to NDI High Bandwidth and loop through for monitoring, at the same time it supports NDI High Bandwidth to 4K HDMI output. It’s a real 4K NDI converter for high image quality.
*N40’s encoding and decoding functions are mutually exclusive, and cannot be used at the same time
*N40’s encoding and decoding functions are mutually exclusive, and cannot be used at the same time
Kiloview N40 supports 3.5mm analog audio mic in/out or embedded audio.
It also supports voice intercom by USB headset with Kiloview Intercom server.

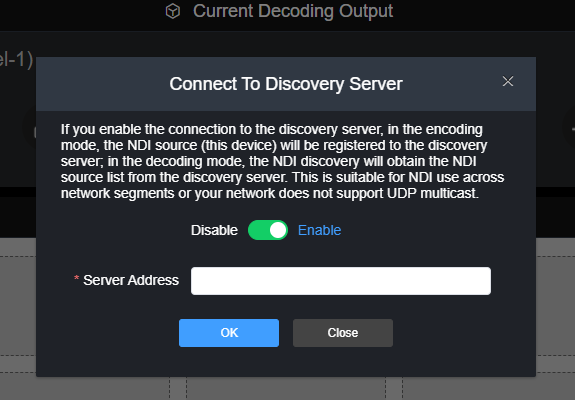

Thanks to the NDI discovery server, your video can be easily found and connected by users from another network when registered to the designated server.
In decoding mode, with Kiloview’s unique technology, there will be no lag when switching the output NDI videos.

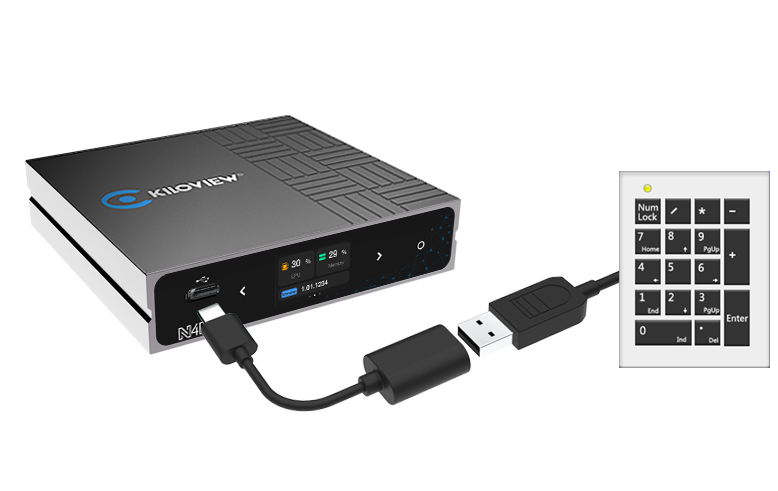

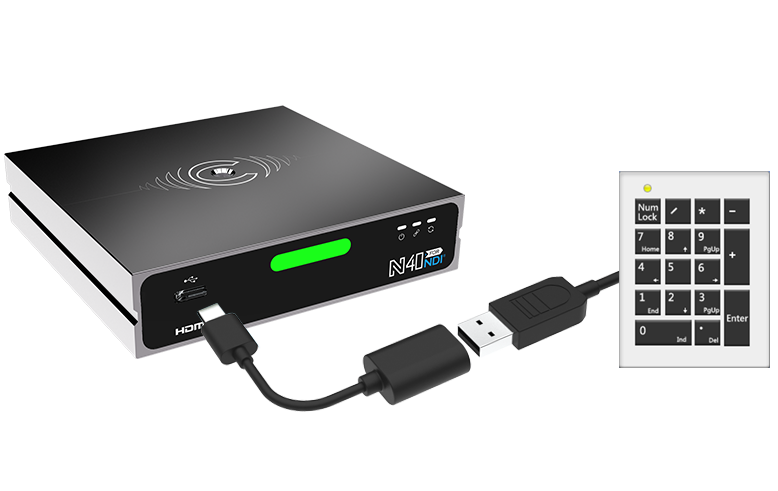

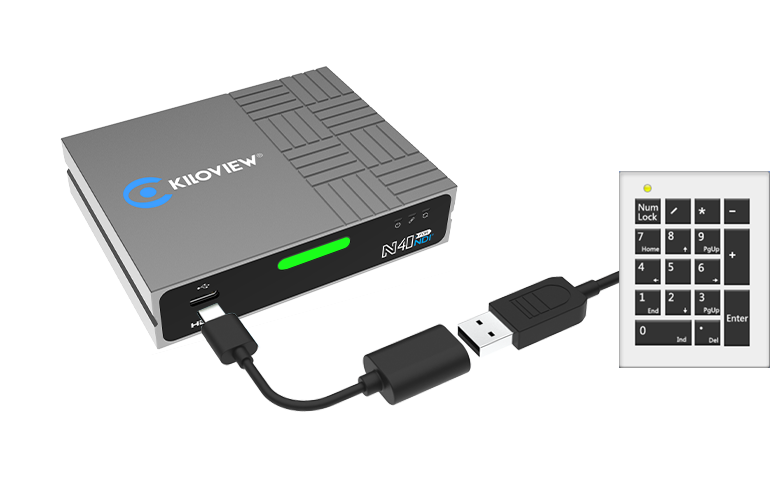

In decoder mode, you can preset the NDI sources from number 0-9. When your keypad is ready, you can easily choose the output source with a single press.
Or you can even use the USB Keypad to control a PTZ camera – the cheapest PTZ Keyboard you can get.
Kiloview N40 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP, no extra cable required

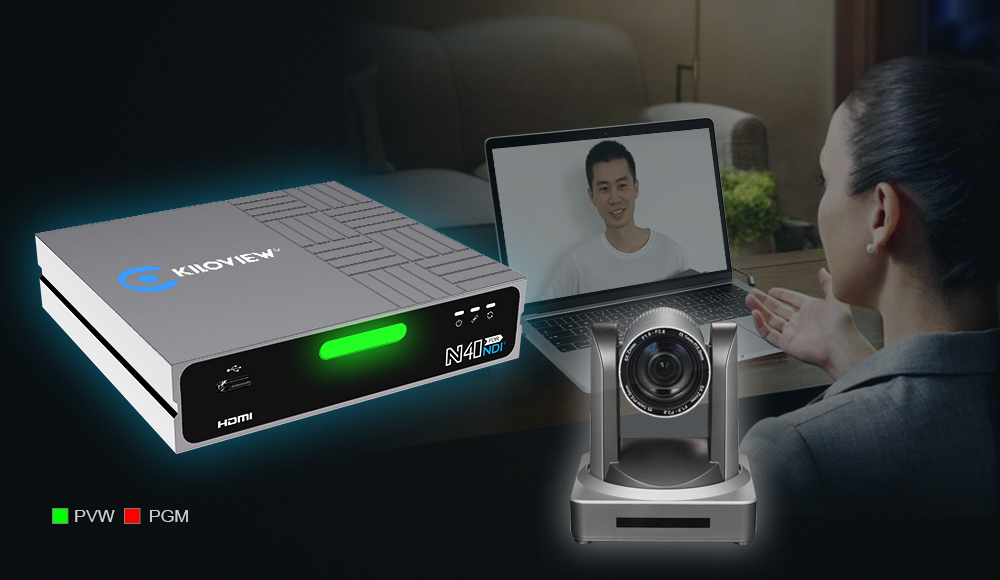

N40 has a big-sized while bright and distinct Tally for PVW/PGM indication – all is to make perfect cooperation for your team.

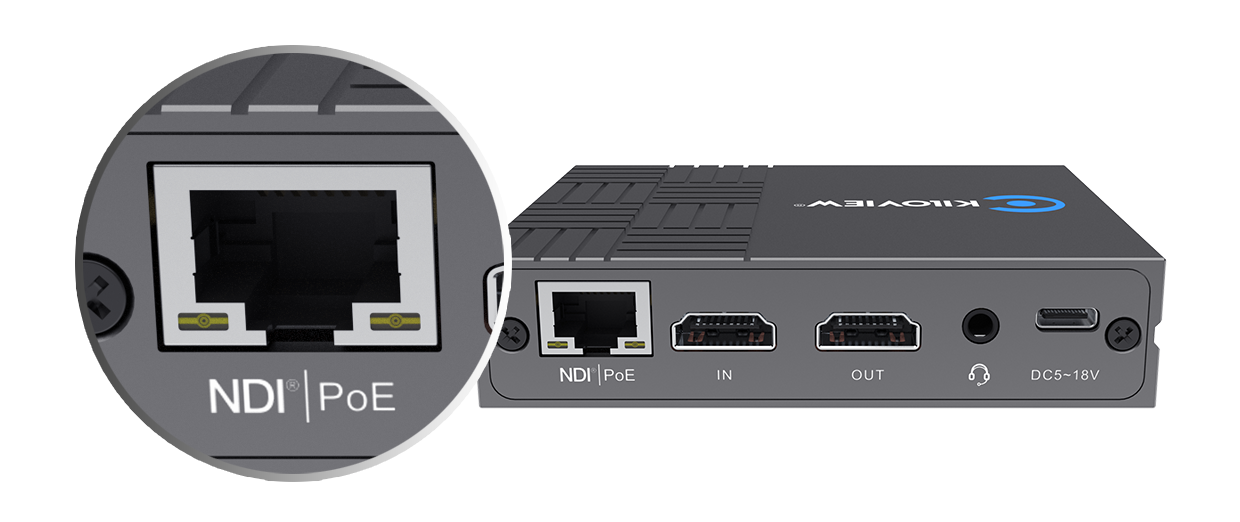

With PoE, the N40 can be powered with a single cable connection. With the design of wide DC input range from 5V to 18V, it can also be easily powered by USB power or camera battery.

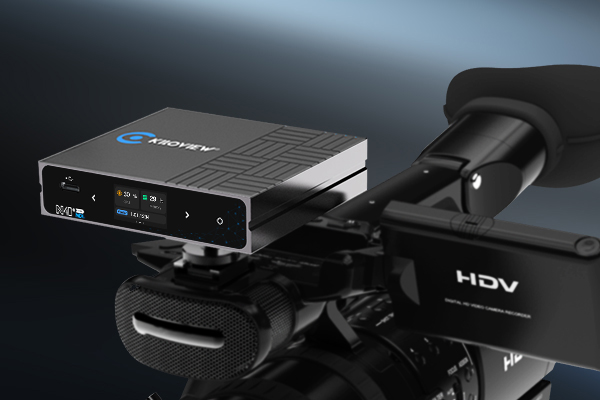

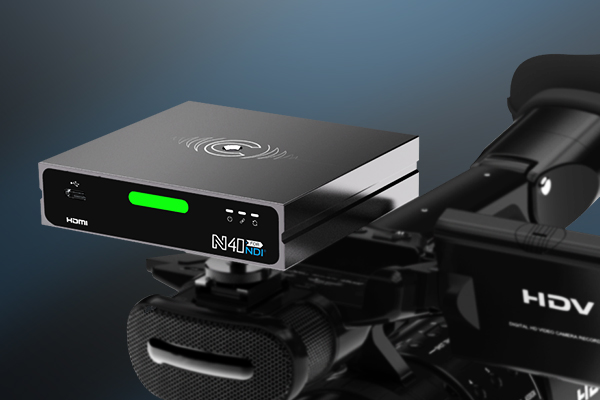

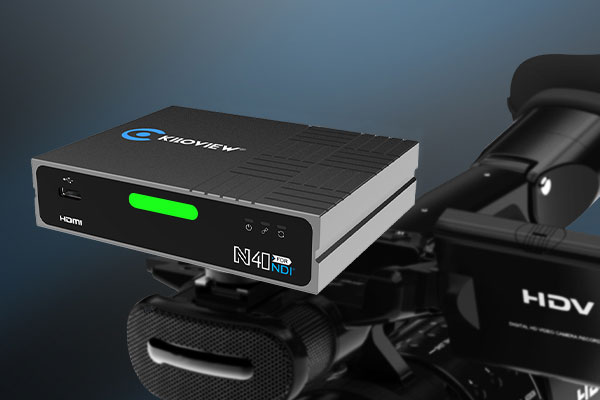

Exquisite design, small and light-weight, which can be easily attached to the camera by a threaded screw.

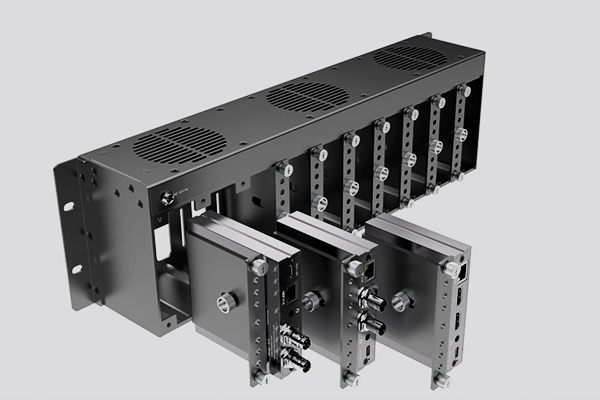

The groove design on both sides facilitates the rackmount installation in 1U/3U
| Resolution | 4KP60 | 4KP30 | 1080P60 | 720P60 |
|---|---|---|---|---|
| Default Bitrate | 250Mbps | 200Mbps | 125Mbps | 90Mbps |
| Model | N40 |
|---|---|
| Video input | 3840*2160p 60/59.94/50/30/29.97/25/24/23.98fps 1920*1080p 60/59.94/50/30/29.97/25/24/23.98fps 1920*1080i 60/59.94/50fps 1280*720p 60/59.94/50/30/29.97/25/24/23.98fps |
| Video output | 3840*2160p 60/59.94/50/30/29.97/25/24/23.98fps 1920*1080p 60/59.94/50/30/29.97/25/24/23.98fps 1920*1080i 60/59.94/50fps 1280*720p 60/59.94/50/30/29.97/25/24/23.98fps |

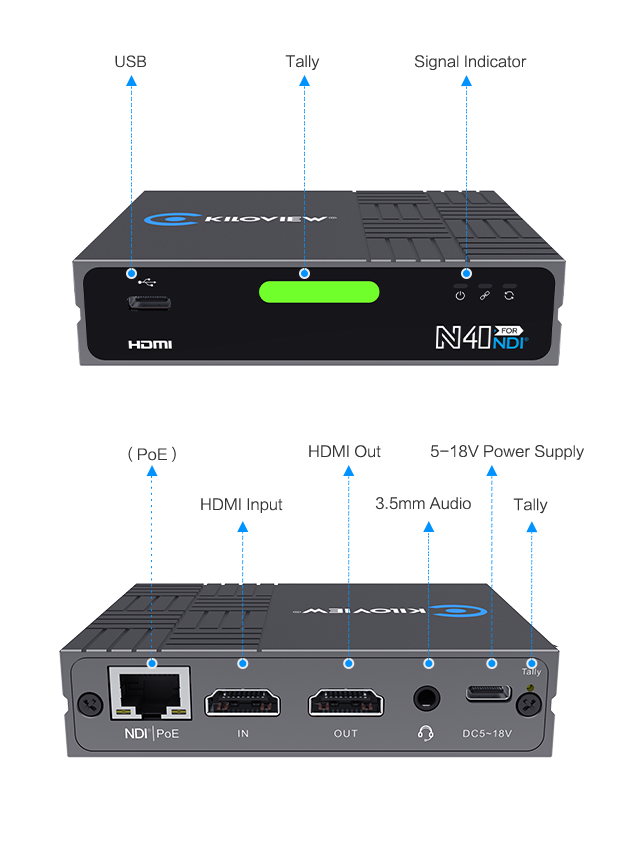

| Audio port | 1*3.5mm |
| Network | 1*RJ45 1000Mbps Ethernet port (with PoE) |
| Video resolution | Up to UHD 4K60 (backward compatible with SD/HD/VESA) |
| NDI® codec capacity | 1x NDI® encoding or 1x NDI® decoding |
| NDI® CODEC feature | NDI High Bandwidth HD encoding, typical bitrate: 250Mbps@4K60, 125Mbps@1080p60 |
| LED indicator | Tally light, power light and status connection light |
| Power | PoE, DC, D-Tap (camera) optional. 5-18V wide range supported |
| Voice intercom | Customization |
| PTZ control | Network PTZ and Serial Port |
| DHCP | Support |
| Management | Web UI and remote management with KILOVIEW KiloLink Server |
| Power consumption | 6w |
| Operating temperature | -20~45℃ (Storage temperature: -20~70℃) |
| Dimension | 100x80x24 mm |
| Support Downloads | Docs & Firmware |
*: N40 will add frames to NDI video streams below 8-bit 4Kp30 to achieve 10-bit video output.
| Product Type | Product No. | NDI Codec Capability | Video I/O Connectivity | Resolution | Notes |
|---|---|---|---|---|---|
| NDI Bi-Directional Converter | N6 | NDI High Bandwidth/NDI HX | HDMI | 1080P60 | |
| N5 | NDI High Bandwidth/NDI HX | 3G-SDI | 1080P60 | ||
| N50 | NDI High Bandwidth/NDI HX | 12G-SDI | 4KP60 | ||
| N60 | NDI High Bandwidth/NDI HX | HDMI | 4KP60 | SRT Support | |
| N3 | NDI High Bandwidth | 3G-SDI | 1080P60 | ||
| N30 | NDI High Bandwidth | 12G-SDI | 4KP60 | ||
| N40 | NDI High Bandwidth | HDMI | 4KP60 | ||
| NDI Wireless Encoder | N1 | NDI HX | SDI | 1080P60 | WiFi supported, Battery Builld-in |
| N2 | NDI HX | HDMI | 1080P60 | WiFi supported, Battery Builld-in | |
| NDI Encoder | E3 | NDI HX | SDI+HDMI | 4KP30 in HDMI, 1080P60 in SDI | |
| U40 | NDI High Bandwidth/NDI HX | HDMI | 4KP60 | ||
| E1 | NDI HX | SDI | 1080P60 | ||
| E2 | NDI HX | HDMI | 1080P60 | ||
| NDI Decoder | D350 | NDI High Bandwidth/NDI HX | SDI+HDMI | 4KP60 | |
| D260 | NDI HX | SDI+HDMI | 1080P60 |
