Installation

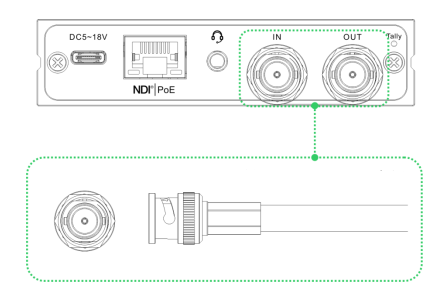

Connecting video signal

Connect the SDI signal from a source (such as a camera) to the SDI input port of the device through a cable.


NOTE: The output interface can be loop for encoding or output for decoding, but it cannot be used at the same time.

Connect Network

Connect the network cable to the Ethernet port of the device. The other end of the network cable is connected to the switch. You can also connect directly to the network port of the computer.

Connect to the switch or directly to the network port of the computer.


Connect audio

Using a 3.5mm interface headset with a microphone to connect to the device for voice intercom.


Connect power supply

After connected with the power adapter(DC 5v),the power light will be on and the device starts working.

It is packed with one USB charging cable, which can power the device by a DC5-18V power supply.


NOTE: When network switch provides PoE, there is no need to connect to the power supply.
