Description

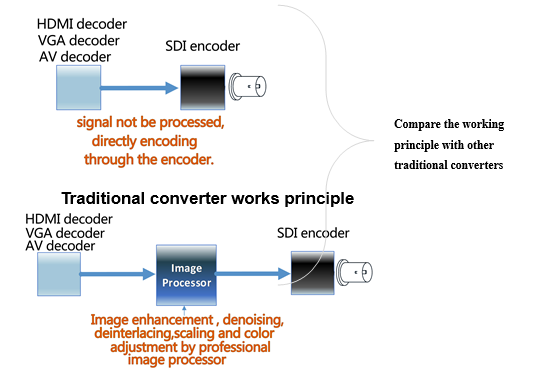

HDMI&VGA&CVBS-SD/HD/3G SDI video converter is a high-quality, high-performance video signal conversion products. It supports HDMI 1.3/HDCP 1.1, supporting HDMI, VGA and CVBS signal input and compatible with SD/HD/3G SDI signal. After professional design manufacturing craft, our converter is completely in conformity with SMPTE standard with broadcast grade quality, in the meantime, supporting transmission distance up to 200 m HD-SDI, 3G-SDI signals up to 120 meters [Note: Meets Belden 1694A cable standards, SDI standard signal indicators]. Unlike the traditional converter products in current market, our converter with built-in a professional image conversion processing chip, firstly it will process the image enhancement, noise reduction, de-interlacing (optional) function of SDI image before converting to. It supports image enhancement processing, denoising, deinterlacing (optional), smart resolution conversion and frame rate conversion, adjustable saturability/luminance/contrast ratio setting, through automatic scaling and frame rate conversion, converting any form video to standard SD/HD/3G-SDI signal, compatible with common HDMI, VGA and CVBS signal.

HDMI&VGA&CVBS-SD/HD/3G SDI Video converter features:

• Supporting transmission distance up to 200 m HD-SDI, 3G-SDI signals up to 120 meters (Test and verified by TEKTRONIX/PHABRIX, professional signal tester);
• Compatible with HDMI 1.3/HDCP 1.1, compatible with various VESA standard signal and up to 1920×1080@60Hz;
• Professional SDI lightning protection design;
• Support image enhancement processing, denoising, deinterlacing (optional), smart resolution conversion and frame rate conversion, compatible with various video signal formats.
• Supporting HDMI DDC and VGA DDC function;
• Choosing SDI output support and 3G-SDI not support;
• Supporting lock SDI output format to insure no black screen or splash screen during signal conversion;
• Color adjust like luminance/contrast ratio/saturation/hue are supported;
• Output blue screen/black screen signal when signal is lost;
• OSD display input/output signal format;
• Remote control, Chinese/English interface.
