NDI input

Click “Manage” in the right, dialog box will pop up after clicking “add input”

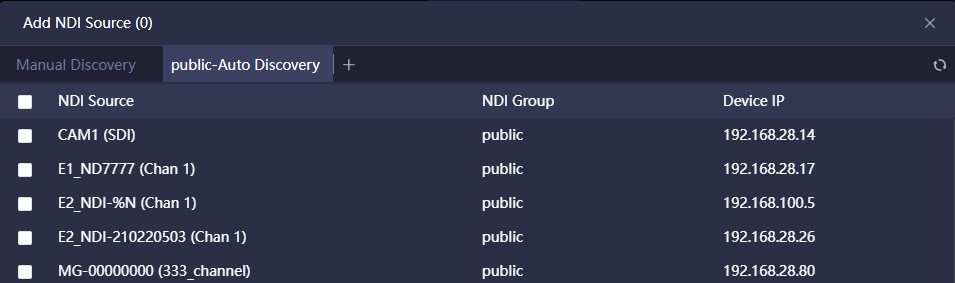

All NDI sources under the same network segment will be automatically discovered and displayed through “public auto discovery”. Select the NDI video source that needs to be added and saved

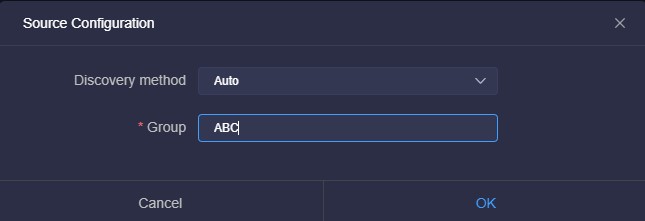

When the NDI source is in a different NDI group under the same network segment, click to enter the source configuration, and select "Auto ". It will automatically discover all the NDI sources of the current group after entering the name of the group

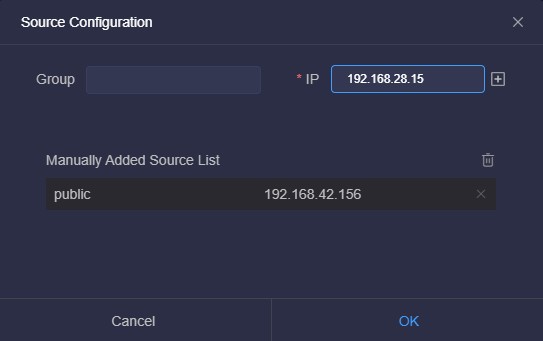

When the NDI source cannot be automatically discovered, such as the NDI source is in the same LAN but across network segments, the NDI source can be added manually by adding IP

Introduction
Group: The group name of the NDI video source. Default is public.
IP：Fill in the IP address of the NDI source, click “enter” or in the right to add the IP address to the address list.
Discovery server

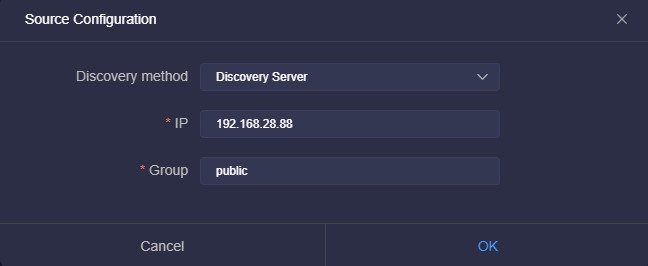

When the NDI source is registered to the discovery server and the automatic discovery is replaced, the addition at this time also needs to be registered to the discovery server. Enter the source configuration by the button, select "Discover server", and fill in the same discovery server address and group as the NDI source

Introduction
Group: The group name of the NDI video source. Default is public group.
IP: The IP address of the discovery server registered by NDI

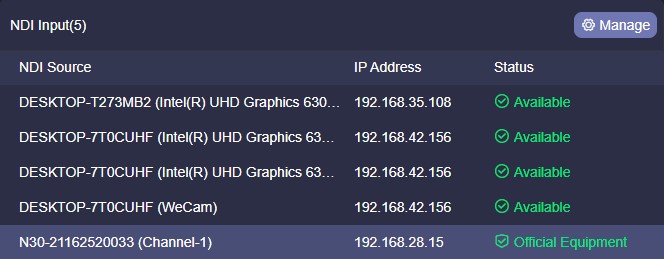

The NDI input source added and saved by the above method will be displayed on the left of the NDI input box, and the associated NDI output can be used in the cross pane

Introduction
Status: "Official equipment" means that the NDI video source comes from NewTek and Kiloview NDI equipment or software; "available" means unofficial equipment, which can be used to connect to NDI output; "exceeding authority" means unofficial equipment that exceeds the output of the highest video source, the basic version adds unofficial devices only to support 16 video sources, and those with more than 16 added will not be available

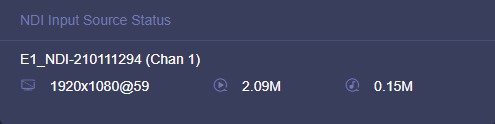

Select the corresponding NDI source and display the information status of the NDI input source at the bottom

Introduction
Display resolution and framerate of the NDI video source.
The real-time bit rate of the video encoding.
The real-time bit rate of the audio encoding.
