MG300 IP Video Media Gateway

Easily Bridges Most IP Protocols

Brief Introduction

Kiloview MG300 media gateway is a high-performance embedded multi-functional device. It integrates functions such as multi-channel video decoding between NDI|HX, SRT, RTMP, RTSP, TS-UDP, and HLS to SDI and HDMI. It can do so with the same or different content, multi-view output and streaming, video image segmentation, protocol cross conversion, stream media and distribution services.

It's a protocol converter

MG300 is compatible with NDI®|HX (2.0) , SRT , RTMP, RTMPS, RTSP, TS-UDP, and HLS, etc.It supports the decoding with all those different protocols, at the same time supports up to 9 protocols cross conversion. Each input stream is converted into 4 same or different protocols output.

kiloview-ip-video-media-gateway-mg300-IP-streaming

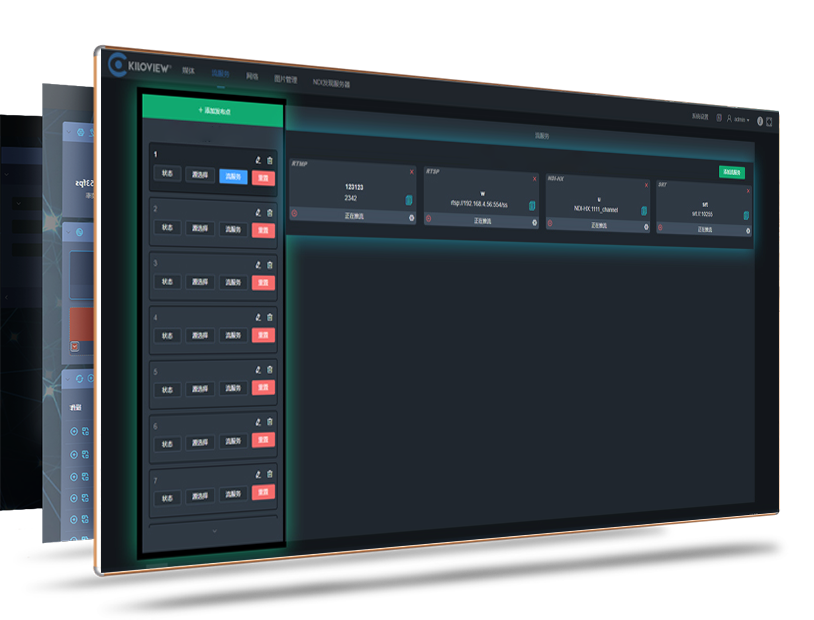

Powerful IP Stream Function

Multi-channel video streams can be re-published as a Multiview video source with free layout;

Up to 9 channels of IP streaming distribution (including the Multiview video source) and each stream can be pushed to up to 4 same or different targets simultaneously.

It’s a Media Server

It supports up to 50 concurrent access for streams distribution/live streaming;

(Note: The actual concurrent access capability depends on the specific network bandwidth, video format and other factors. The device transmission limit is 600Mbps).

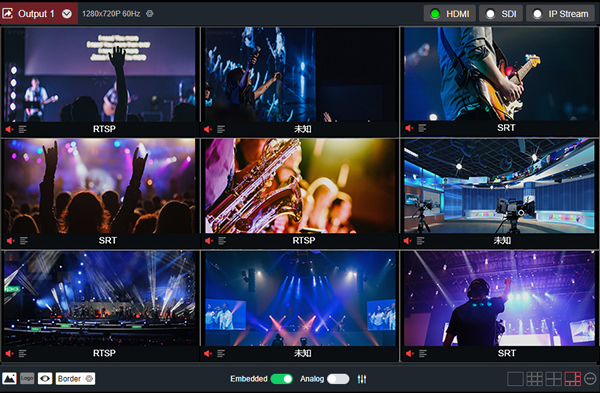

It’s a Transcoder

Kiloview MG300 highlights video transcoding between H.264 and H.265. It can also combine multiple video streams into a merged video and push it to the live broadcast platforms.

It’s Also a Decoder

It supports decoding up to 4K H.264/ H.265 IP streams and decode the streams to output 3G-SDI and 4k HDMI. It supports decoding up to 9 channels of videos simultaneous. Note: 9 channels with 1080P30, or 8 channels of 1080P60, or 4 channels of 4KP30.

Low Latency and High Quality

  • Intelligent delay control technology to achieve a less than 200ms decoding delay in network environment
  • Image enhancement and fault-tolerant technology for low code-encoded video, 10% of network packet loss video, etc., clear and distortion-free decoding output

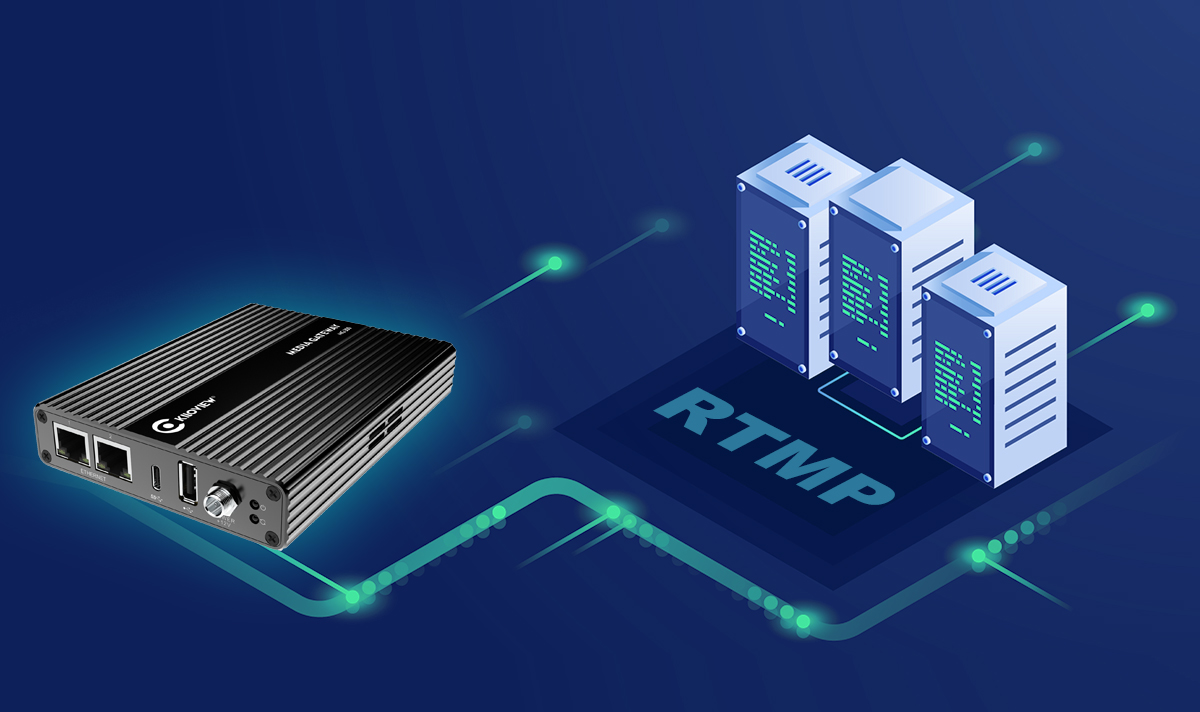

RTMP Server Supported

With RMTP server, the encoder can directly transmit the video to Kiloview decoder using RTMP protocol for decoding without a RTMP platform, to make it easy and convenient.

Dual Output, Same or Different

3G-SDI and 4K HDMI dual interface for outputting, output content can be either the same or different.

(Note:HDMI output up to 3840×[email protected], SDI up to 1920×[email protected])

HDMI

Up to 3840x2160 @ 60Hz

SDI

Up to 1920x1080 @ 60Hz

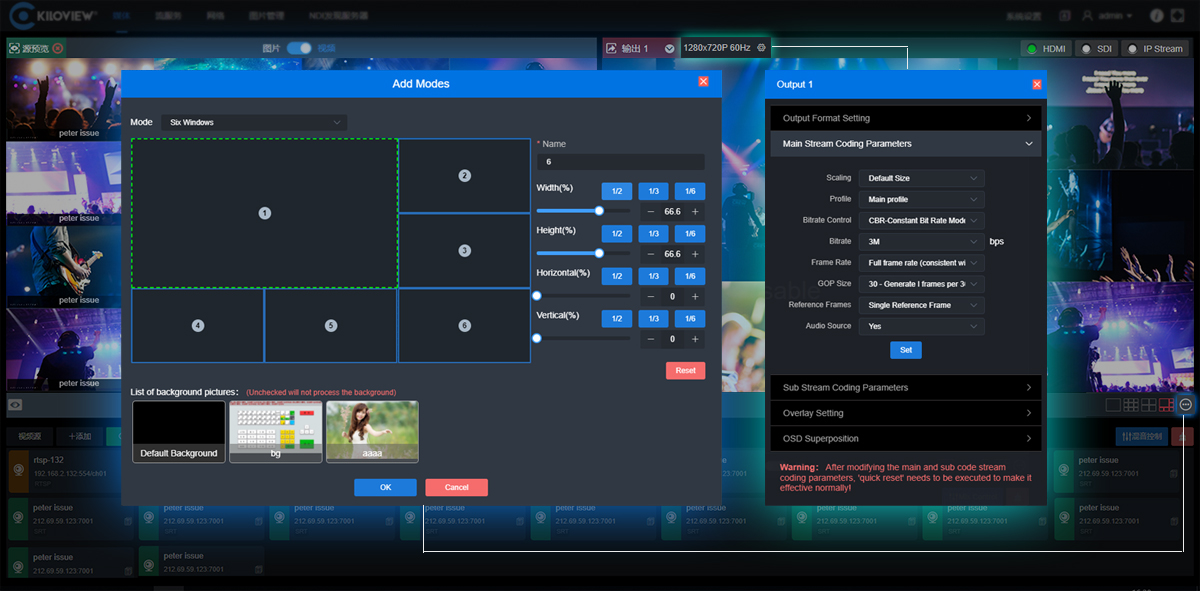

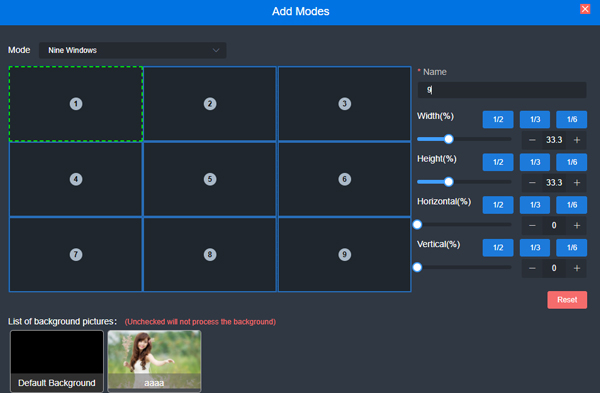

Customize Your Output Display

Free Layout: The output display can be either in grids or a free layout with customized de-sign, PIP, PBP, POP, all as you wish.

Free Resolution: The output resolution is adjustable, de-interlace, frame rate adjustable

Free output background and OSD

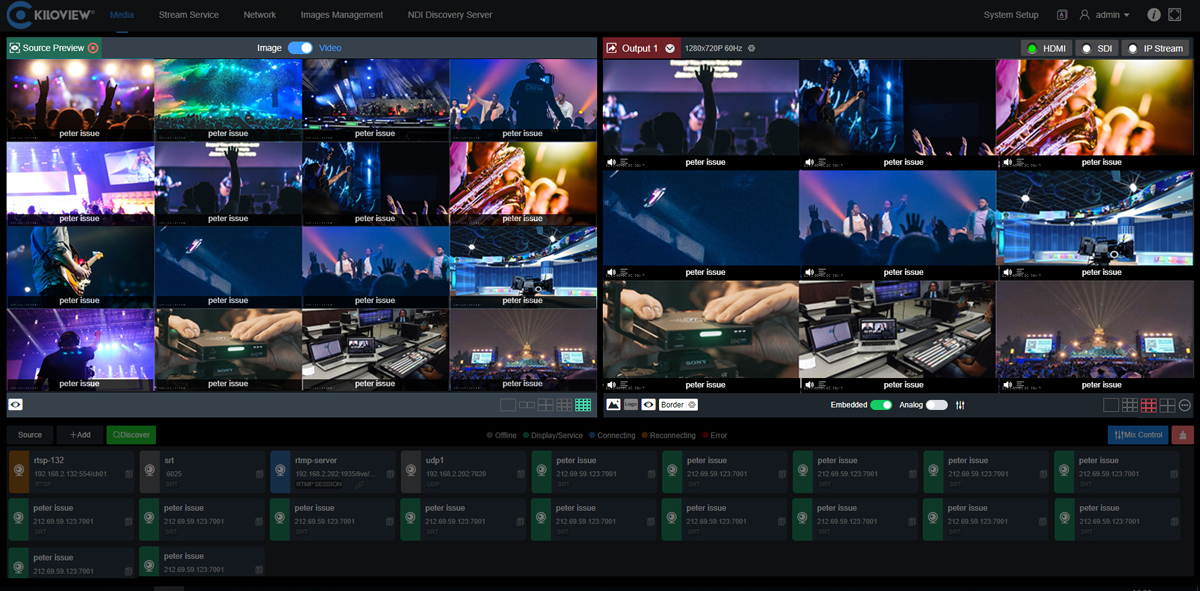

Video Previewing Function

With updated feature, you can preview 16 streams of real-time video streams or images on its web page, from which you can choose 9 of the streams for output on displaying screen.

kiloview-ip-video-media-gateway-mg300-product-portrait-bottom

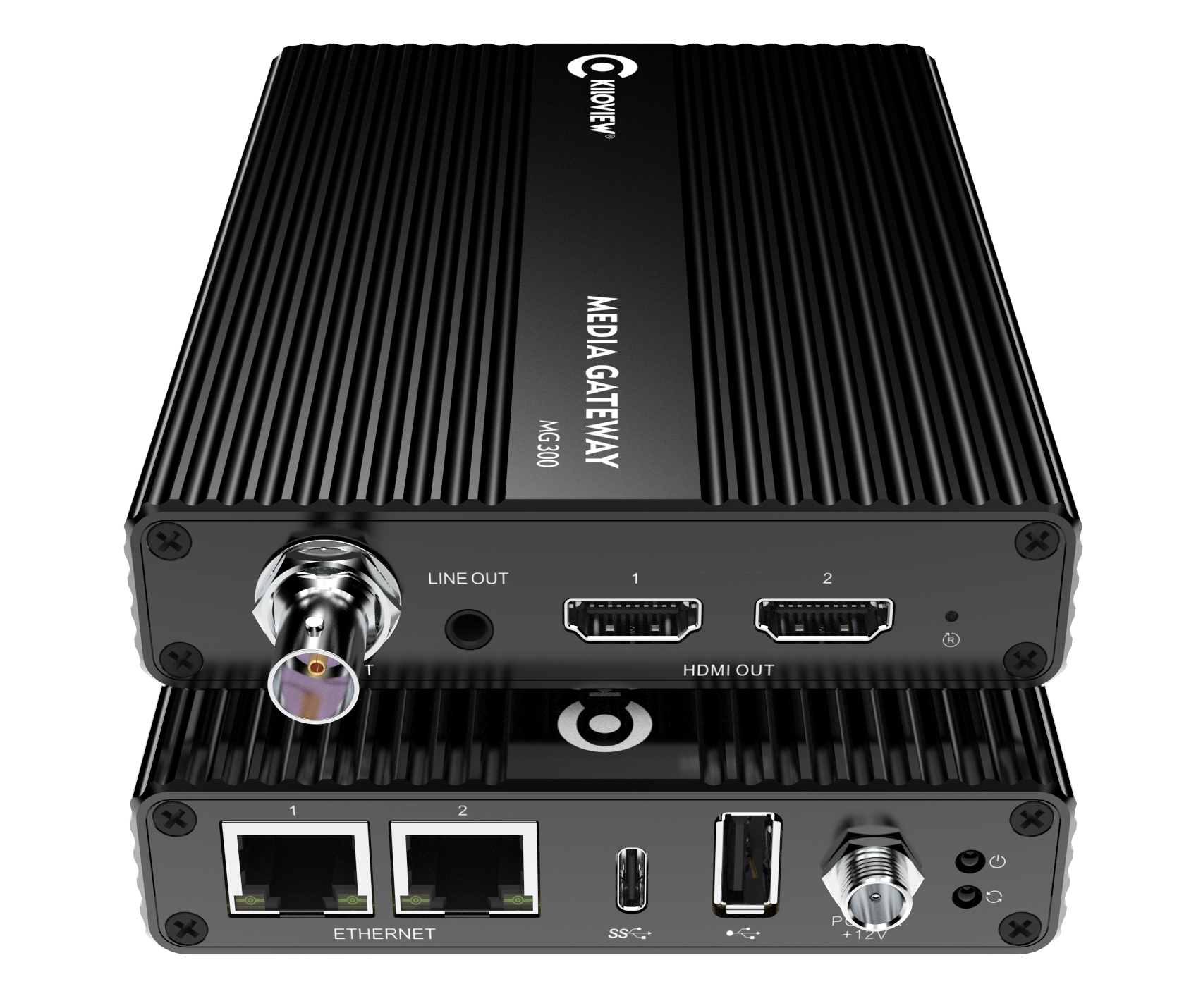

Other Functions

  • Support SDI/HDMI embedded audio or 3.5mm analog audio output;
  • Support audio mixing;
  • Dual network ports for multi-purpose management;

Parameters

ModelMG300
Network2*100M/1000M RJ45 adaptive Ethernets
Decoding output1*SD/HD/3G-SDI, up to 1080P 60Hz
1*HDMI, up to 3840*[email protected]
Analog audio output1*3.5mm Line out
Analog audio input1*3.5mm Line in
USB1*USB 3.0 Type-A
Access protocol NDI-HX/SRT/RTSP/RTMP/TS-UDP/HTTP, (NDI|HX means NDI|HX Version 2.0, SIP/ONVIF (customize)
Output protocolNDI|HX 2.0/SRT/RTSP/RTMP/TS-UDP
Protocol conversion9 channels1080P video conversion
Streaming distribution 50 channels of RTSP, 36 channels of RTMP/SRT
(Not more than 800Mbps)
Live streaming 9 channels*4 channel 1080P
Number of decoding4K 30Hz H.264/H.265: up to 4 simultaneous channels
1080P 50Hz/60Hz H.264/H.265: up to 8 simultaneous channels
1080P 30, 1080i 50/60Hz, 720P and below H.264/H.265:up to 9 channels simultaneously
Video decoding standardH.264, H.265
SDI output format1080P60/59.94/50,1080P30/29.97/25/24/23.98,1080i60/59.94/50.720P60/ 59.94/50, 576i50, 480i60
HDMI output format4K [email protected]/30, 1080p60/50, 1080p24/25/30, 1080i60/50, 720p60/50
Compatible with VESA standard format
Video rate range128Kbps ~ 40Mbps
Audio decodingAAC G.711 (aLaw/uLaw)
Audio rate rangeAAC: 8Kbps ~ 320Kbps G.711: 64Kbps
Decoding delay≤200ms
Split display styleSupport 1/2/3/4/5/6/7/8/9 splitting;
Support re-encoding the splitted and recombined video for live streaming/ transmission. The image supports up to 1080P60 H.264 encoding.
Management interfaceWeb
Remote managementSupport
Remote firmware upgradeSupport
Operating temperature-25 ~ 60°C
Dimension & weight140*105*28mm (5.5”*4.1”*1.1”/380g/13.4oz)
Power consumption≤6W
Power supply12V/1A
RemarkNDI|HX means NDI|HX Version 2.0
