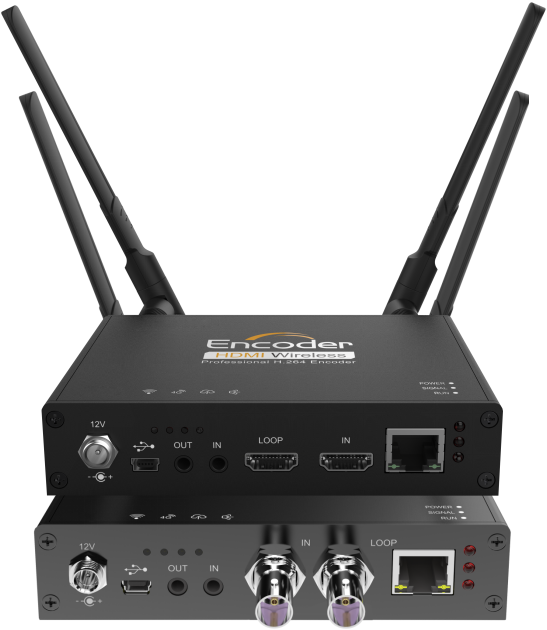

G series wireless video encoder

G series video encoder can encode SDI or HDMI video source and compress into IP stream, to realize long-distance HD transmission/live broadcast over WAN or LAN network.


Advantages

  • Built-in WIFI module, wireless video transmission/live broadcast supported.

  • Built-in dual-band (2.4G/5.0GHz) WIFI module, it supports wireless transmission/ live broadcast of mobile video sources in local space;

  • Built-in self-adaptive Ethernet interface, wired network transmission is also supported;

  • Low power consumption, 24 hours continuous working available.

  • Powerful streaming media service function, supports RTSP/RTMP/TS/Onvif/SIP/SRT and some other protocols.

  • Dual stream output, the main code rate up to 1080p60Hz, and the sub-stream supports 720p 60Hz video encoding.

  • Capable with customized text and image overlay function, which can be at any position on the screen;

  • Audio embedding encoding supported, with voice intercom function (need to deploy voice intercom software);

  • Supports NAS network storage;

  • With video real-time loop function, there is no delay and convenient for live monitoring.

  • High bandwidth adaptability makes it possible to transmit high-definition, low-latency, non-padding image under low bit network.

  • With branded chips solution together with video dynamic noise reduction and image enhancement technology, it can realize good encoding image under low bit transmission;

  • Good video image can be achieved at 1Mbps@720p, 1.5Mbps@1080p network;

  • Advanced video buffering technology and FEC technology ensures video encoding delay ≤67msand stable transmission;

  • Adjustable bit rate from 64kbit/s~40Mbit/s.

Note: (≤67ms) refers to the delay of the encoder end, and the end-to-end delay also relates to network, decoding, etc.

Parameters

Model No. G1,G2
Input 1BNC SDI(G1);1HDMI(G2)
Video Loop out 1BNC SDI(G1);1HDMI(G2)
Analog audio input 2*3.5mm
USB interface 2*USB 2.0 Type-A
Network Support Enhanced WIFI (Enhance 5.0GHz frequency), RJ-45 Ethernet
Media transmission protocols RTMP/HLS/TS over UDP/RTSP /Onvif/SRT
Video resolution Up to 1080P60Hz, resolutions supported:
G1:1080p23.98/24/25/29.97/30Hz;1080p50/59.94/60Hz;1080i50/59.94/60Hz;720p23.98/24/25/29.97/30Hz;720p50/59.94/60Hz.
G2:1080p23.98/24/25/29.97/30Hz;1080p50/59.94/60Hz;1080i50/59.94/60Hz;720p30/50/59.94/60Hz.
Video coding H264/AVC、Motion-JPEG
Audio coding AAC/G.711
Encoding latency ≤67ms
Image and text overlay Custom text, image overlay function, can be superimposed to any position on the screen
Recording Micro SD/TF card , local recording, NAS network storage
Management WEB/Android APP
Power supply/consumption DC 12V 1A / 4W
Size/Weight 1258928mm / 380g
Operating temperature -20℃~55℃
