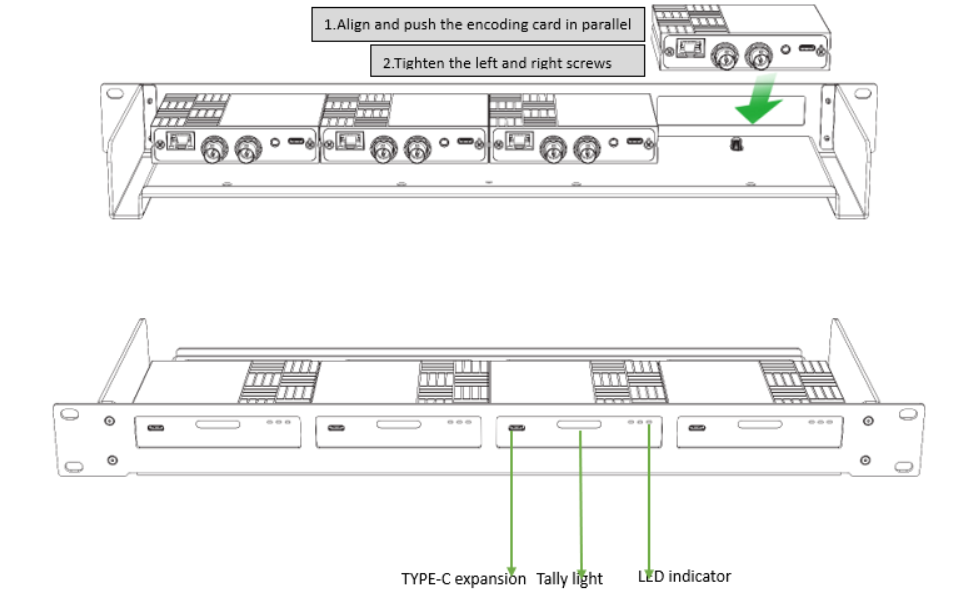

Align the device to the screw holes at the bottom of the chassis, and push in parallel, then tighten the double-sided screws. Reverse the process for removal.

Note

• The chassis is a plug-in structure, which can easily complete the replacement/mixing of N series codec, realizing the same chassis compatible with 1/2/3/4 channels and multi-interface, encoding/decoding mixed solutions. The chassis has no centralize power supply, and each module needs to be powered separately for normal operation.
• Tally-green light: indicates that the current video is in Preview state; red light: indicates that the current video is in Program state.
• LED indicator. Power: always white indicates that power is connected；LINK: white flashing indicates normal network access；Run: flashing white indicates normal work in progress.
