LinkDeck is an IP-based solution that delivers safe and stable transmission. All the control and management for the system is controlled by one PoE cable.
Menu

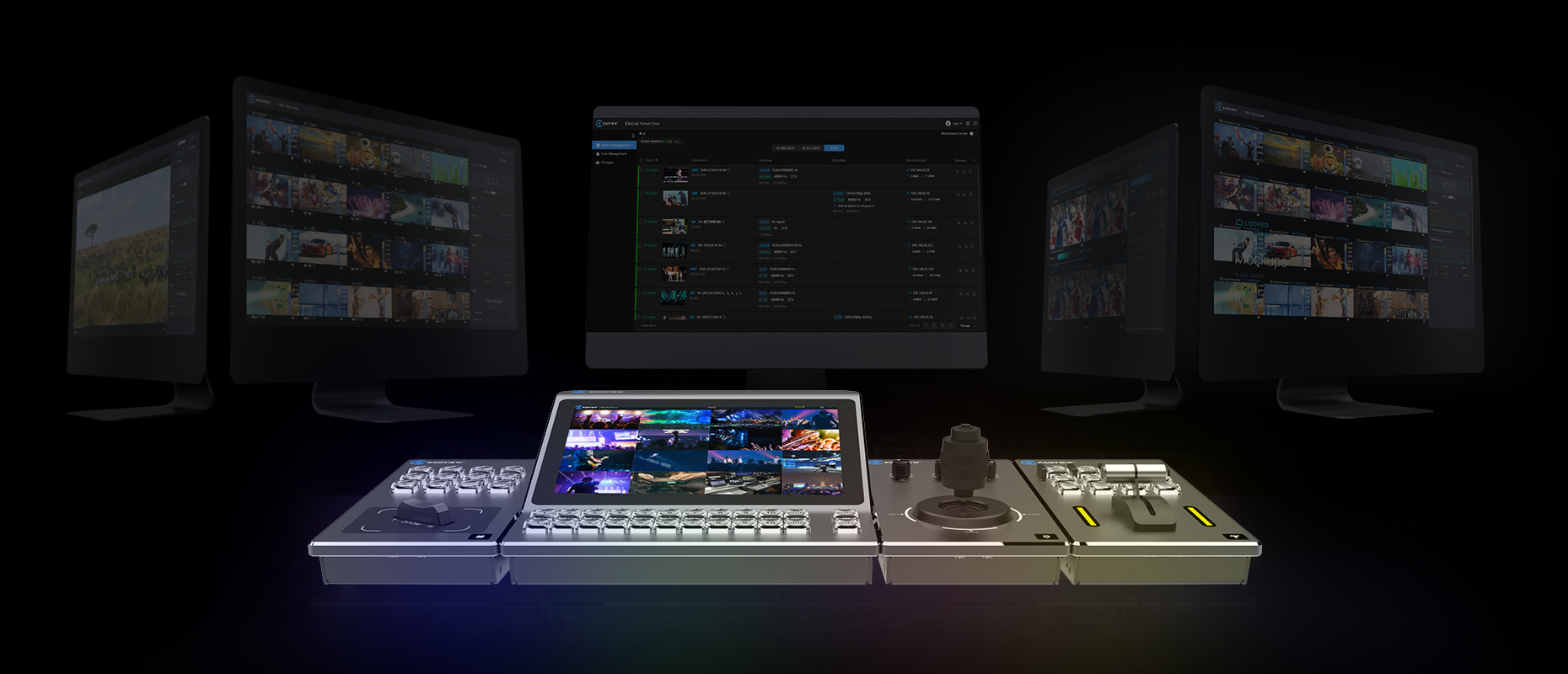

The Kiloview LinkDeck Series can control all aspects of Kiloview hardware and software based on RTC technology. LinkDeck enables users to manage the whole Kiloview ecosystem including NDI ONAIR / NDI CORE*/ KIS*/ NDI RECORDER* / NDI Encoder / NDI Decoder / Multiview / KiloLink Server*.
By developing a 3rd-party plug-in based on Python, Linkdeck even allows interaction with systems like TriCaster and vMix.
*: Support for managing NDI CORE/KIS/NDI RECORDER/KiloLink Server will be implemented in the later version.
LinkDeck is an IP-based solution that delivers safe and stable transmission. All the control and management for the system is controlled by one PoE cable.

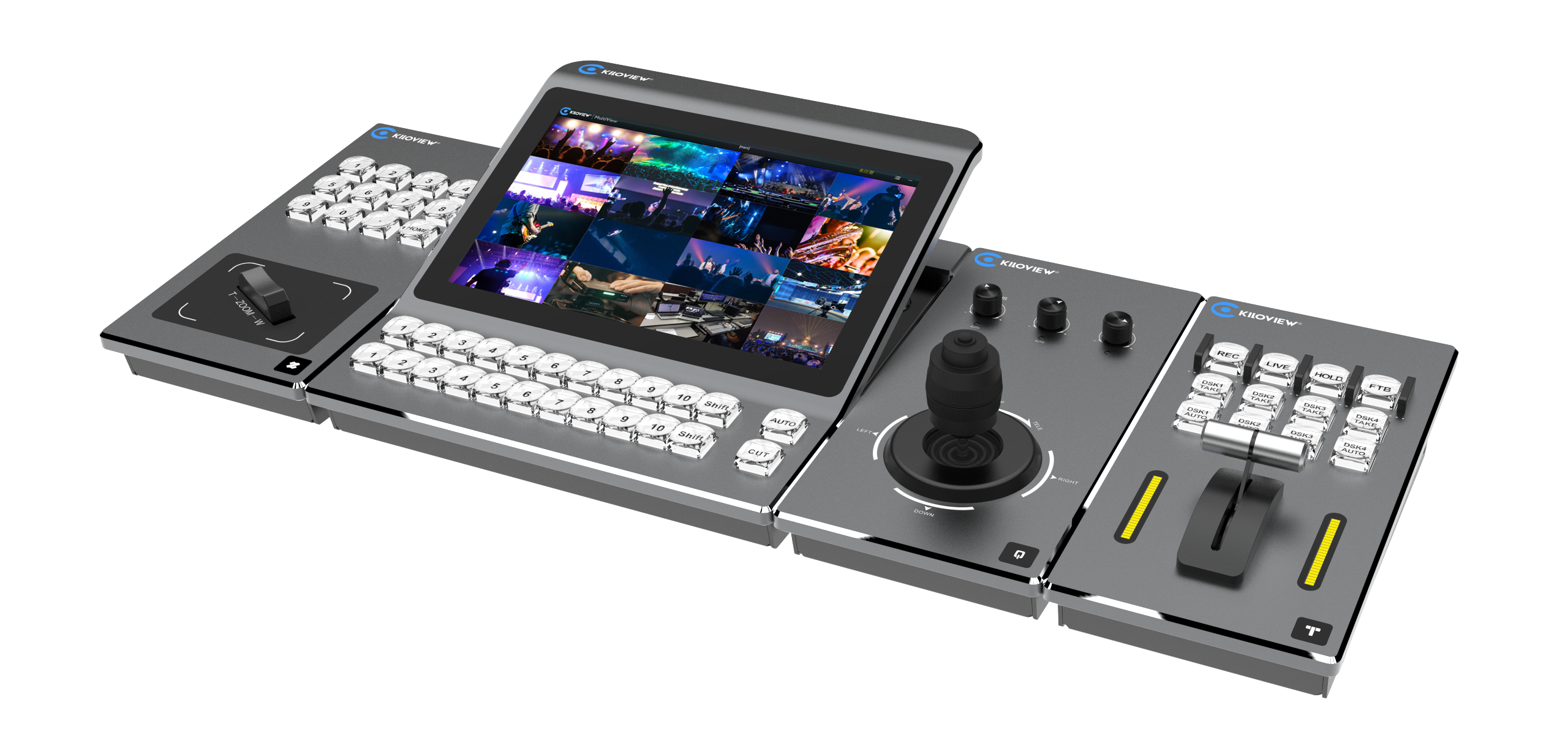

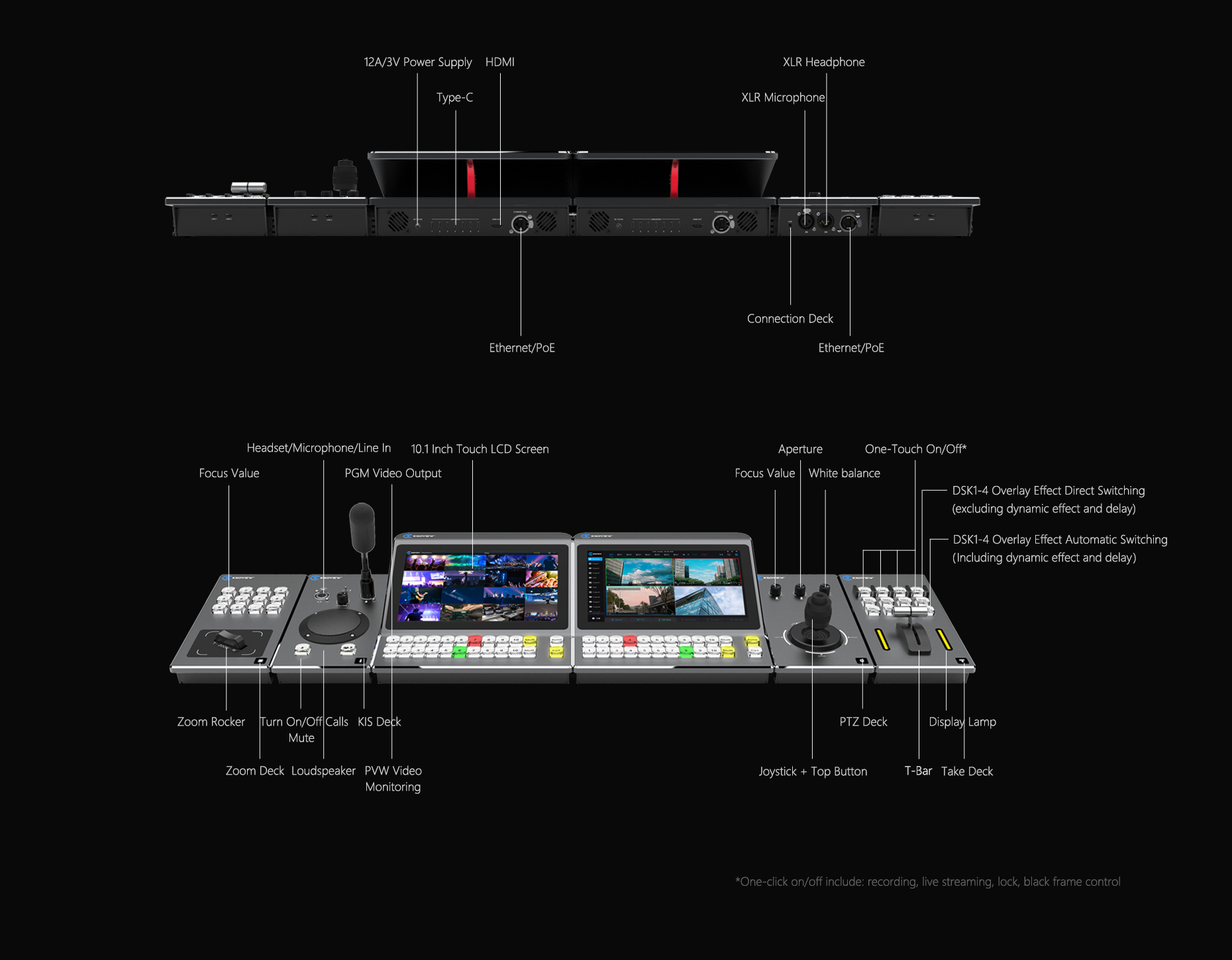

LinkDeck consists of five unique design decks including Panel Deck, Take Deck, Zoom deck, KIS Deck*, and the PTZ Deck. Each deck can be combined to your own specification to create an exclusive workbench with fully customised content. This unique design also offers easy assembly and installation for an optimised user experience.
*: KIS will be implemented in the later version.

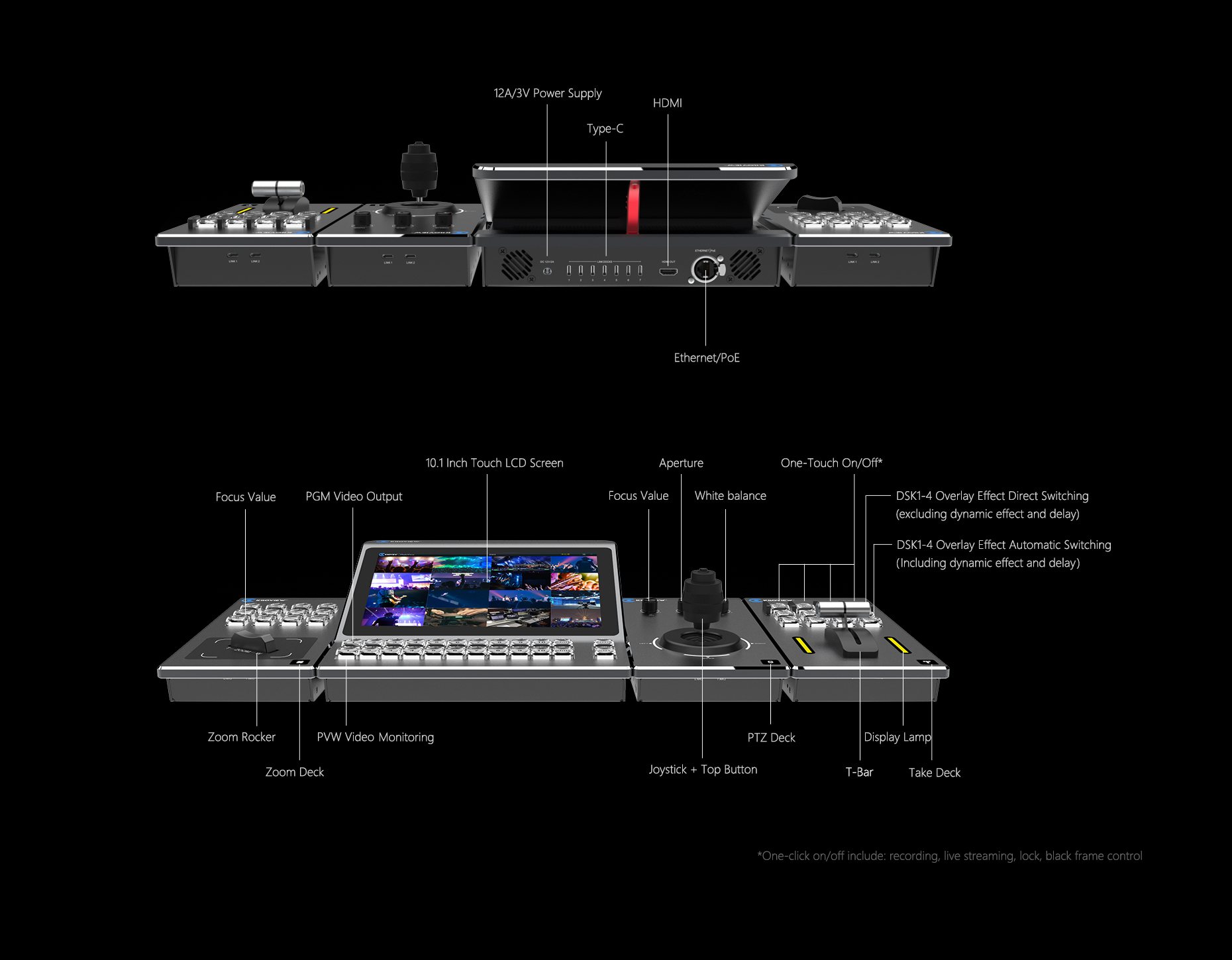

The Panel Deck, equipped with a 10.1” touch screen and a bi-color LED keyboard, provides the easy operation and an intuitive user experience. The 10.1” screen allows you to customize whatever product you want to control.
Both soft keys and physical keys control all aspects of your workflow, with DC and PoE providing the power source to your entire suite of Decks.
Take Deck helps you to switch like a pro with a “T” stick and dual LED displays. 12 buttons are available to control Switching / FTB* / Recording* / Live streaming / Lock screen with one single press, making every step of the process easy to operate.
*Coming soon with free future update.
The PTZ Deck offers single handed control of all your PTZ cameras, with the simple movement of the joystick and and switches to adjust focus, aperture and white balance.
With Zoom Deck’s rocker, you can simply zoom in / out whenever you want. It also has 11 soft buttons for all your personal customization.
KIS Deck Offers 3 sets of pro audio in / out: Mixer with canon plug amplifier / USB microphone / Speaker with a goose-neck microphone. It also has its own PoE port to work independently. This deck is all you need to operate audio intercom.
*: KIS will be implemented in the later version.

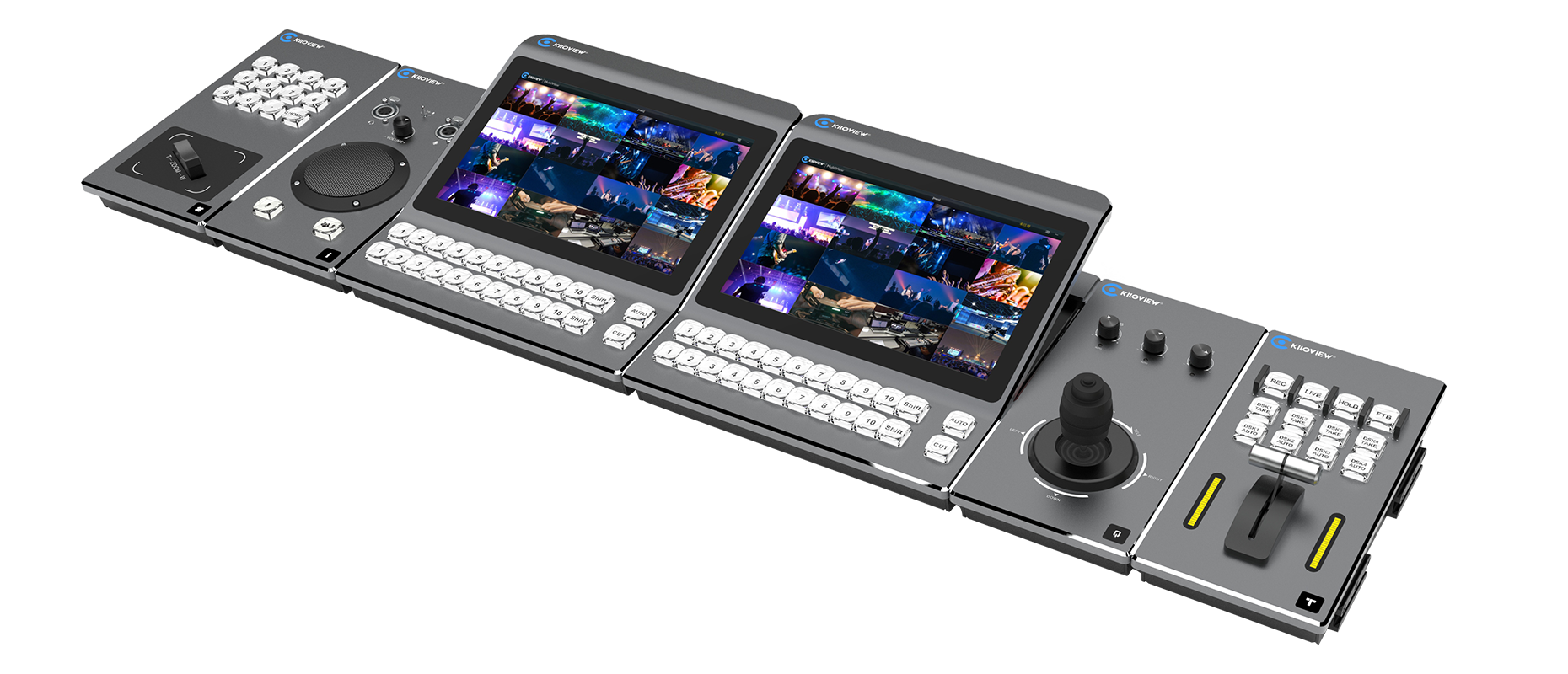

Panel Deck is made of robust aircraft-grade materials and designed for bringing the studio experience to you, wherever you are with its own whole set of pro-level joystick/buttons/switches/selectors and ports.
Flexible to apply to different scenes including Studio production, Production truck, Concert, Live streaming, Live event, Video conference, etc.

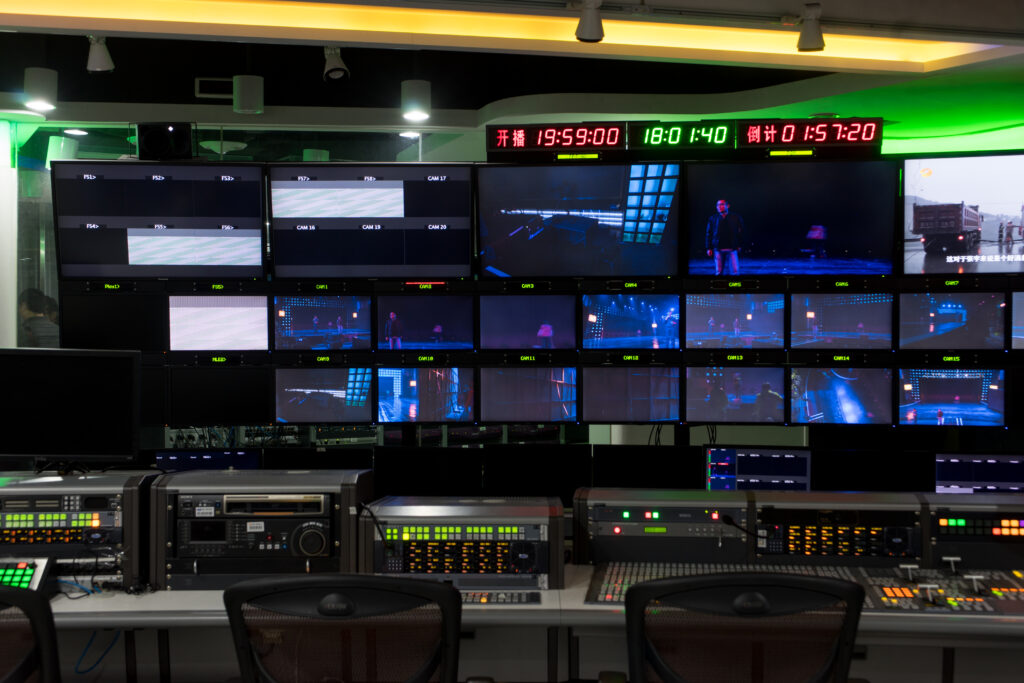

IP TV Production
Reality Show
Remote Video Conference
Live Broadcast
| Model No. | Tech Specs | |
|---|---|---|
| Panel Deck DP-01 | Display | 10.1" multitouch LCD screen |
| Resolution | 1920 x 1200 |
|
| Keyboard | 24 keys（Bi-color tally） |
|
| CPU | 8-core CPU |
|
| Memory | 2GB | |
| FLASH Storage | 16GB | |
| Video Output | 1 x HDMI output up to 1080P60 | |
| Intenet Input | 1GbE port with PoE | |
| Power Supply | DC5.5/2.5 12V |
|
| HDMI Port | 1 | |
| Key | 24, user-defined keys | |
| USB Port | 7×Type-C 2.0 |
|
| DC Port | Single DC5.5/2.1 |
|
| Dimension / Weight | 6.65lb/285.33*260.00*110.10mm(11.2"x10.2"x4.3") | |
| Operating Temperature | -20℃~45℃ |
|
| KIS Deck DK-01 | Audio | 1 × microphone（3 pin） |
| 1 × headphone（5 pin） | ||
| 2 × Line in/out（3 pin） | ||
| USB Port | 1 × Type-C 2.0 | |
| Intenet Input | 1 × RJ45 Gigabit Ethernet port，PoE supported | |
| Volume Wheel | 1 | |
| Keys | 3 | |
| Built-in Speaker | 1 | |
| Three-way Switch | 1 | |
| Dimension / Weight | 3.52lb / 260.00*130.00*59.54mm(10.2"x5.1"x2.3") | |
| PTZ Deck DQ-01 | USB | 2 × USB Type -C 2.0 |
| Key | 1 | |
| Control Knob | 3 | |
| Joystick | 1 | |
| Tally | 3（2 in white，1 in RGB based on settings) | |
| Dimension / Weight | 3.30lb/ 260.00*130.00*107.45mm(10.2"x5.1"x4.2") | |
| Zoom Deck DZ-01 | Keys | 13 |
| ZOOM Rocker | 1 | |
| USB | 2 ×Type-C 2.0 | |
| Dimension / Weight | 3.04lb/260.00*130.00*53.68mm (10.2"x5.1"x2.1") | |
| Take Deck DT-01 | USB | 2 × Type-C 2.0 |
| Keys | 13 | |
| T Stick | 1 | |
| Dimension / Weight | 3.22lb/ 260.00*130.00*74.00mm(10.2"x5.1"x2.9") |
|
| Product Type | Product No. | NDI Codec Capability | Video I/O Connectivity | Resolution | Notes |
|---|---|---|---|---|---|
| NDI Bi-Directional Converter | N6 | NDI High Bandwidth/NDI|HX | HDMI | 1080P60 | |
| N5 | NDI High Bandwidth/NDI|HX | 3G-SDI | 1080P60 | ||
| N50 | NDI High Bandwidth/NDI|HX | 12G-SDI | 4KP60 | ||
| N60 | NDI High Bandwidth/NDI|HX | HDMI | 4KP60 | ||
| N3 | NDI High Bandwidth | 3G-SDI | 1080P60 | ||
| N30 | NDI High Bandwidth | 12G-SDI | 4KP60 | ||
| N40 | NDI High Bandwidth | HDMI | 4KP60 | ||
| NDI Wireless Encoder | N1 | NDI|HX | SDI | 1080P60 | WiFi supported, Battery Builld-in |
| N2 | NDI|HX | HDMI | 1080P60 | WiFi supported, Battery Builld-in | |
| NDI Encoder | E3 | NDI|HX | SDI+HDMI | 4KP30 in HDMI, 1080P60 in SDI | |
| U40 | NDI High Bandwidth/NDI|HX | HDMI | 4KP60 | ||
| E1 | NDI|HX | SDI | 1080P60 | ||
| E2 | NDI|HX | HDMI | 1080P60 | ||
| NDI Decoder | D350 | NDI High Bandwidth/NDI|HX | SDI+HDMI | 4KP60 | |
| D260 | NDI|HX | SDI+HDMI | 1080P60 |
