Kiloview MG300v2 media gateway is a high-performance embedded multi-functional IP Media Gateway device. It integrates functions such as transcoding between H.265 and H.264, multi-channel video decoding to SDI and HDMI output and protocol conversion between NDI HX, SRT, RTMP, RTSP, TS-UDP, and HLS, as well as video combination streaming-all in one. Designed to interconnect systems and devices from different manufacturers and protocols, MG300v2 enables seamless IP video interoperability. It functions not only as a versatile converter, but also as a powerful streaming media server—ideal for building flexible IP video workflows.

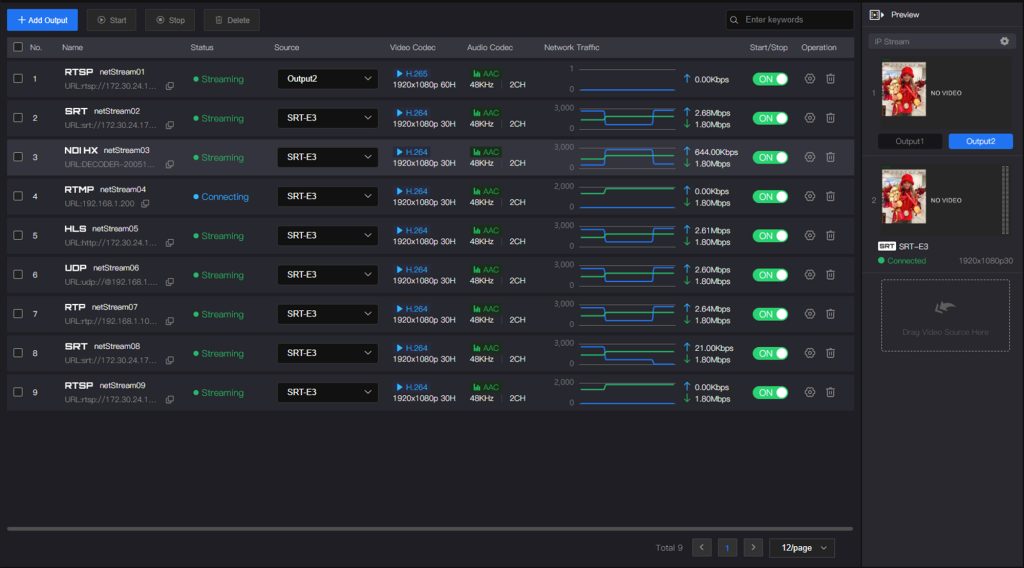

MG300v2 supports bidirectional conversion between a wide range of streaming protocols, including NDI HX, SRT , RTMP, RTMPS, RTSP, TS-UDP and HLS to NDI HX/SRT/RTSP/RTMP. Whether you’re converting RTSP to RTMP for security monitoring streaming or turning remote SRT streams into local NDI|HX sources for production, MG300 v2 is the perfect device to get the conversion done efficiently.
MG300v2 supports up to 9 input streams simultaneously for protocol conversion. Each IP stream can be converted and distributed into up to 4 same/different protocol outputs, enabling up to 36 protocol conversions in total. Sources can be dynamically switched to match different applications.
It supports up to 50 concurrent access for streams distribution/live streaming;
*Note: The actual concurrent access capability depends on the specific network bandwidth, video format and other factors. The device transmission limit is 600Mbps.
Kiloview MG300v2 highlights video transcoding between H.264 and H.265. It can also combine multiple video streams into a multiview layout and stream it to the live broadcast platforms.
*H.264/H.265 transcoding will be available in the upcoming firmware update.
It supports decoding 4K H.264/H.265 IP streams and output to 3G-SDI and 4K HDMI. It supports decoding up to 9 channels of videos simultaneous.
*Note: 9 channels with 1080P60, or 2 channels of 4KP60, or 4 channels of 4KP30.
*Note: 9 channels with 1080P30, or 8 channels of 1080P60, or 4 channels of 4KP30.

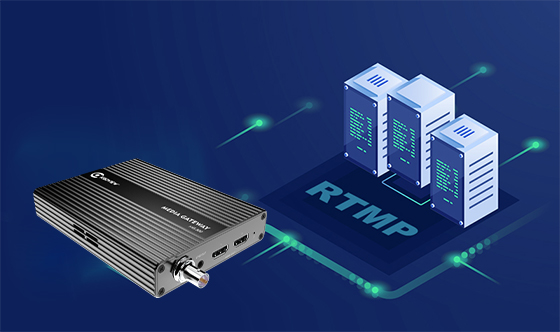

With RMTP server enabled, the encoder can directly transmit the video to MG300 V2 using RTMP protocol for decoding without a RTMP platform, to make it easy and convenient.
3G-SDI and 4K HDMI dual interface for outputting, output content can be either the same or different.
*Note：HDMI output up to 3840×2160@60Hz, SDI up to 1920×1080@60Hz.

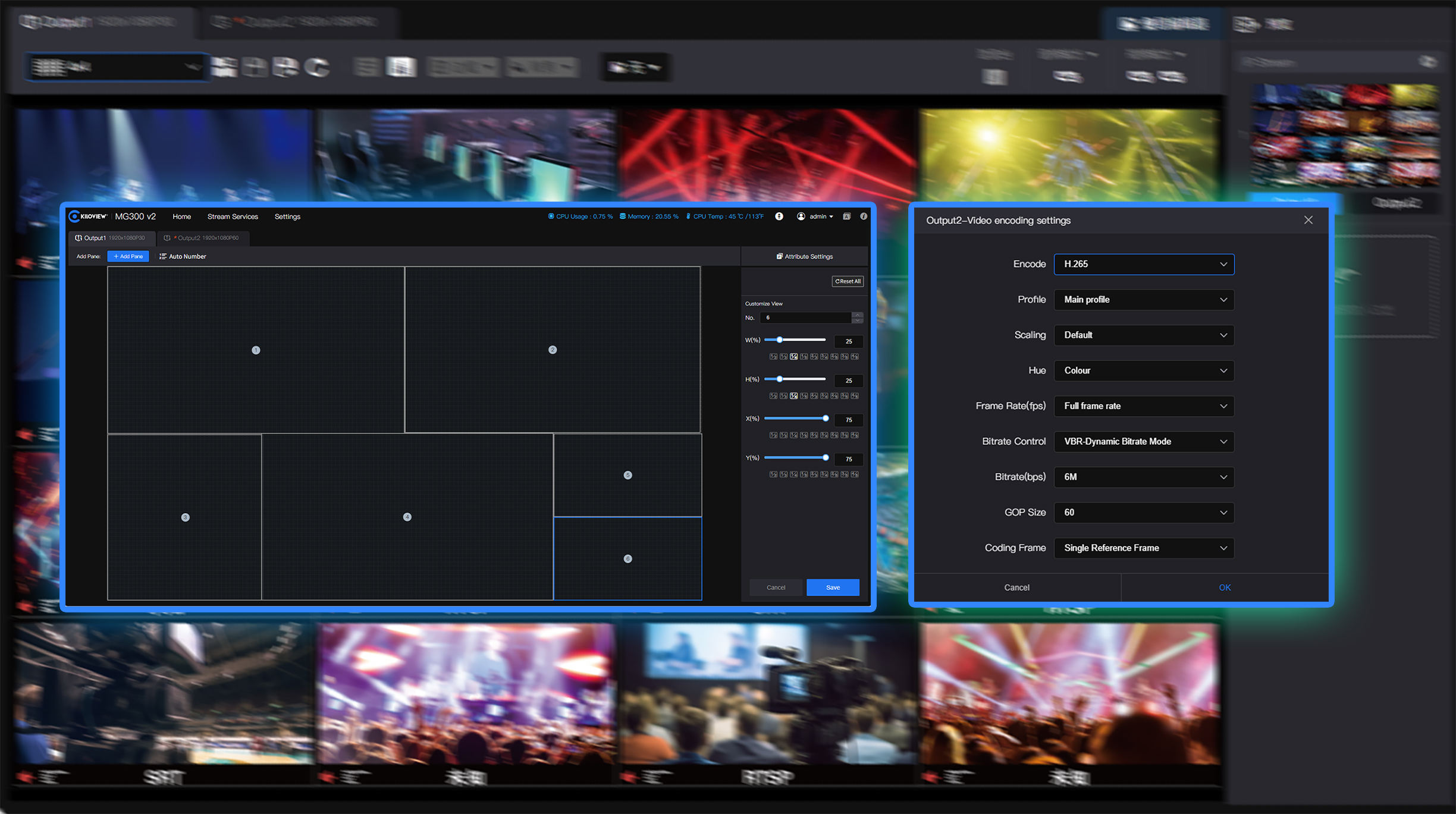

Free Layout: The output Layout can be either in grids or a free layout with customized de-sign, PIP, PBP, POP, all as you wish.Free Resolution: The output resolution is adjustable, de-interlace, frame rate adjustableFree output background and OSD supported.

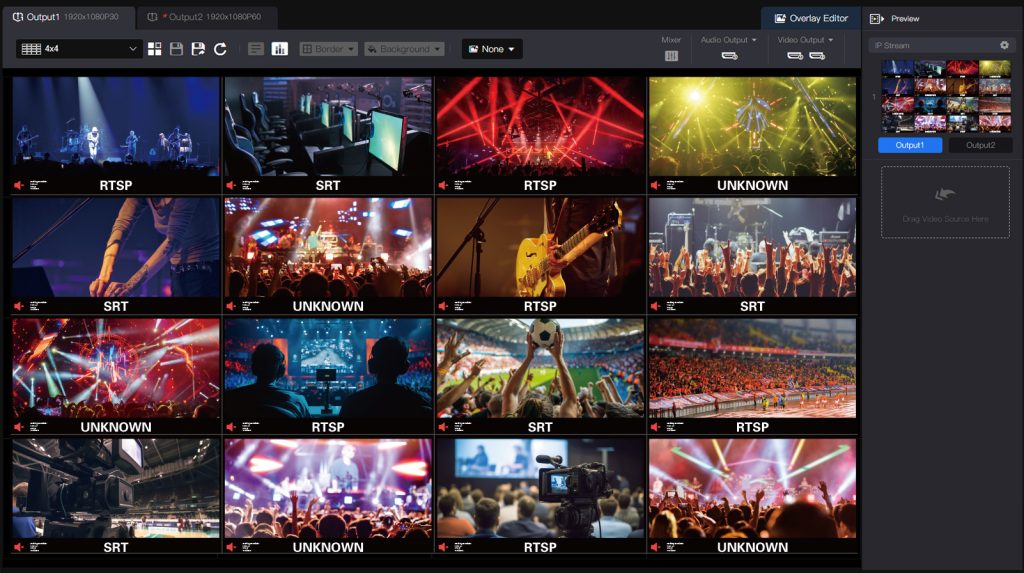

With updated feature, you can preview 16 streams of real-time video streams or images on its web page, from which you can choose 9 of the streams for output on displaying screen.

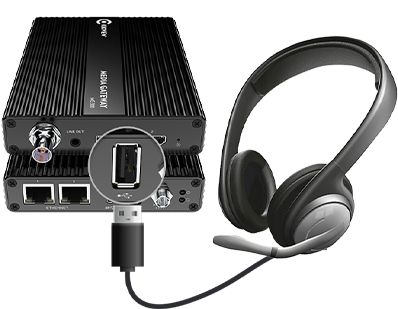

Supports external USB headsets and enables multi-party voice communication through the Kiloview Intercom Server (KIS).
MG300v2 seamlessly integrates with KiloLink Server, optimizing media transmission across all Kiloview products using any available network links. It enables efficient management, monitoring, and control of all devices throughout the process.

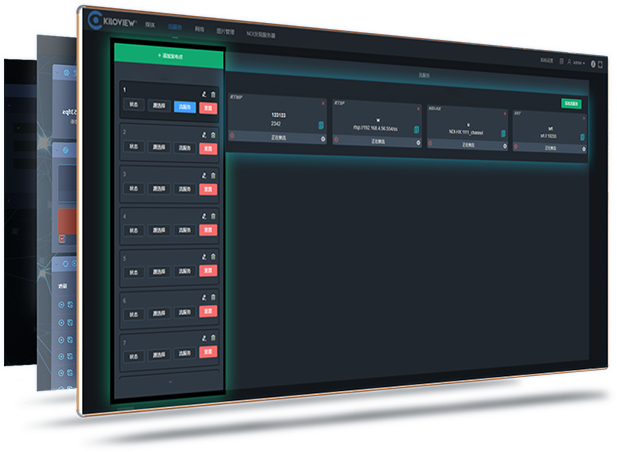

With optimized API, MG300v2 offers a more convenient interface for video stream functionality development. Utilizing the included demo program, developers can quickly integrate and call features, streamlining the development process and improving efficiency.
