CUBE R1 NDI Recording System

A Turnkey Solution for Reliable NDI Recording

The Kiloview CUBE R1 is an easy-to-use professional recorder for NDI videos. It enables to captures multiple streams at once​ – up to 4 streams of 4K or 9 streams of 1080P – working with all NDI sources (NDI High Bandwidth/NDI HX2/NDI HX3).

The 5.5-inch touchscreen shows 1/4/9 split views for instant playback control (slow/fast motion, frame-by-step). Its smart design lets you swap dual SSD drives during recording, with automatic backup to network storage. Perfect for instant replay in sports broadcasts, archiving reality show footage, and other on-site production needs.

The Kiloview CUBE R1 is an easy-to-use professional recorder for NDI videos. It enables to captures multiple streams at once​ – up to 4 streams of 4K or 9 streams of 1080P – working with all NDI sources (NDI High Bandwidth/NDI HX2/NDI HX3).

The 5.5-inch touchscreen shows 1/4/9 split views for instant playback control (slow/fast motion, frame-by-step). Its smart design lets you swap dual SSD drives during recording, with automatic backup to network storage. Perfect for instant replay in sports broadcasts, archiving reality show footage, and other on-site production needs.

Up to 9CH NDI Sources Recording,
Any Resolution, Any Format

CUBE R1 offers impressive capabilities for NDI source recording, supporting up to 9 channels of NDI sources with any resolution and format. You can synchronize video previewing and recording on custom 1/4/9 grids, enhancing your monitoring experience. With an automatic discovery feature, NDI sources within the local network are easily identified, while the NDI Discovery Server extends this capability to NDI sources in external networks. The recorded files are stored in the .mov format, giving users the flexibility to choose between fixed-size or fixed-length options using SSD or NAS storage. Moreover, the CUBE R1 extends support to NDI High Bandwidth, NDI HX2/HX3, ensuring seamless integration with various NDI technologies for high-quality content.

Up to 9CH NDI Sources Recording,
Any Resolution, Any Format

CUBE R1 offers impressive capabilities for NDI source recording, supporting up to 9 channels of NDI sources with any resolution and format. You can synchronize video previewing and recording on custom 1/4/9 grids, enhancing your monitoring experience. With an automatic discovery feature, NDI sources within the local network are easily identified, while the NDI Discovery Server extends this capability to NDI sources in external networks. The recorded files are stored in the .mov format, giving users the flexibility to choose between fixed-size or fixed-length options using SSD or NAS storage. Moreover, the CUBE R1 extends support to NDI High Bandwidth, NDI HX2/HX3, ensuring seamless integration with various NDI technologies for high-quality content.

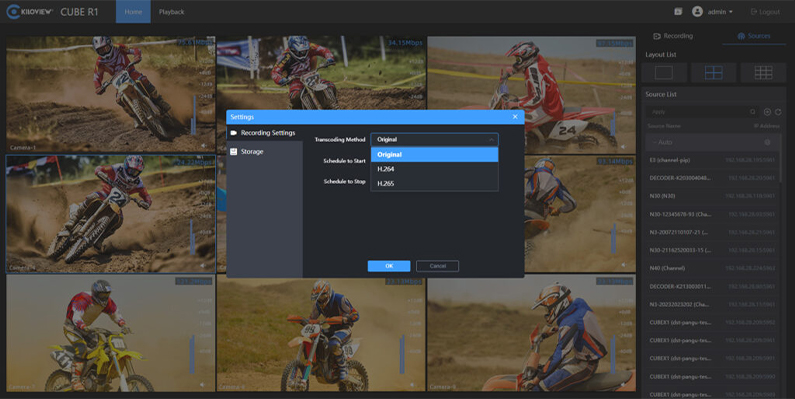

Flexible Recording Formats Selection

CUBE R1 offers flexible formats of recorded files. When working with uncompressed videos, you can keep all files in original NDI formats to keep your content intact. CUBE R1 also supports popular codecs such as H.265 and H.264, so you can transcode your recorded files to make the most of your space with amazing video quality.
CUBE R1 directly records in MOV/MP4 formats natively compatible with professional editing suites,​​ massively simplifying post-production workflows. Furthermore, it delivers real-time editing during recording when using NAS storage –Just by using the NDI HB resource, a growing file will be available for real-time editing!

Flexible Recording Formats Selection

CUBE R1 offers flexible formats of recorded files. When working with uncompressed videos, you can keep all files in original NDI formats to keep your content intact. CUBE R1 also supports popular codecs such as H.265 and H.264, so you can transcode your recorded files to make the most of your space with amazing video quality.
CUBE R1 directly records in MOV/MP4 formats natively compatible with professional editing suites,​​ massively simplifying post-production workflows. Furthermore, it delivers real-time editing during recording when using NAS storage –Just by using the NDI HB resource, a growing file will be available for real-time editing!

Record and Playback

CUBE R1 provides seamless recording and playback functionality. Users can simultaneously record and playback 1 channel of video at resolutions of up to 4Kp60. Additionally, the option to select a specific NDI source from the preview page for live streaming adds extra versatility. CUBE R1 further enhances the playback experience by offering custom playback speeds, including options such as 1/4x, 1/2x, 3/4x, 2x, 4x, and 8x, according to different needs. With the added convenience of a control knob, users can achieve precise frame-seeking playback, simplifying content review and editing.

Record and Playback

CUBE R1 provides seamless recording and playback functionality. Users can simultaneously record and playback 1 channel of video at resolutions of up to 4Kp60. Additionally, the option to select a specific NDI source from the preview page for live streaming adds extra versatility. CUBE R1 further enhances the playback experience by offering custom playback speeds, including options such as 1/4x, 1/2x, 3/4x, 2x, 4x, and 8x, according to different needs. With the added convenience of a control knob, users can achieve precise frame-seeking playback, simplifying content review and editing.

Record in Synchronization Status

CUBE R1 supports a self-defined NTP Server to make sure all the NDI sources are recorded in synchronized status.
One-click Recording is supported, with one single press, easy the way of recording.

Record in Synchronization Status

CUBE R1 supports a self-defined NTP Server to make sure all the NDI sources are recorded in synchronized status.
One-click Recording is supported, with one single press, easy the way of recording.

Touch Screen One-Button Operation

A built-in LCD touch-screen allows users to start/pause the recording and monitor the status of storage and performance information that might affect the recording quality and process. User-centred Buttons and control knob also delivers better interaction experiences.

Touch Screen One-Button Operation

A built-in LCD touch-screen allows users to start/pause the recording and monitor the status of storage and performance information that might affect the recording quality and process. User-centred Buttons and control knob also delivers better interaction experiences.

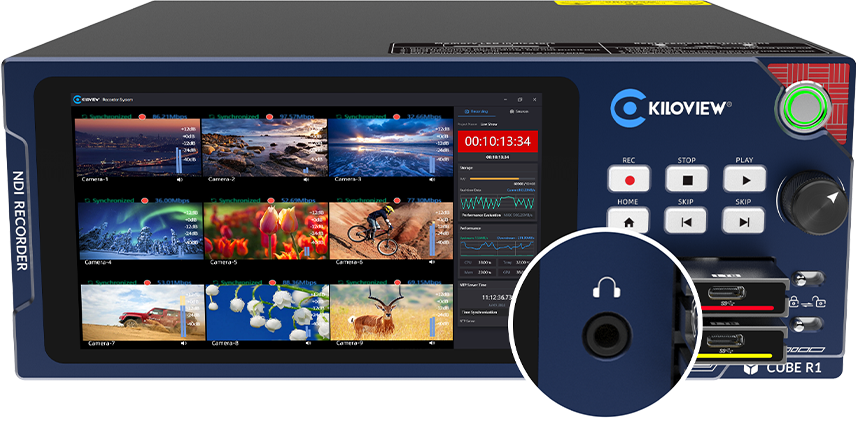

Flexible Audio Embedding

CUBE R1 integrates professional-grade audio embedding via its 3.5mm Line In interface. During multi-channel synchronous recording, this feature enables real-time audio injection to captured content, enriching recordings in real time while ensuring post-production flexibility and high fidelity.

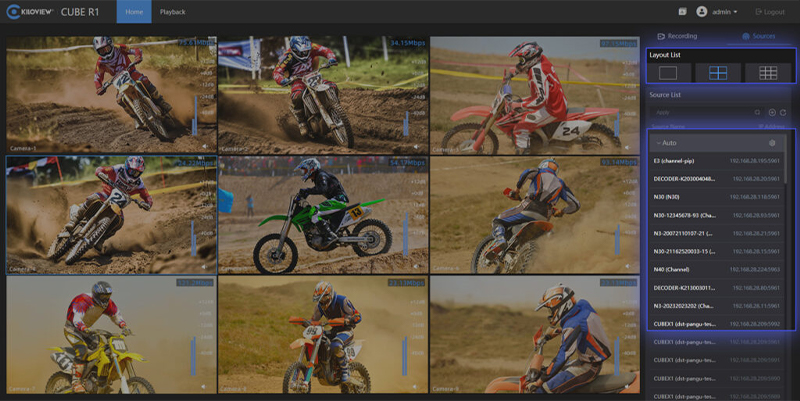

Various Multiview Layouts for Monitoring

1/4/9 multiview layouts are available for your choice. You can display/hide preview images/VU meters.
Customizable overlays for each window: Audio levels, Tally status, Current Bitrate, Synchronization Status, Source Names.

Flexible Audio Embedding

CUBE R1 integrates professional-grade audio embedding via its 3.5mm Line In interface. During multi-channel synchronous recording, this feature enables real-time audio injection to captured content, enriching recordings in real time while ensuring post-production flexibility and high fidelity.

Various Multiview Layouts for Monitoring

1/4/9 multiview layouts are available for your choice. You can display/hide preview images/VU meters.
Customizable overlays for each window: Audio levels, Tally status, Current Bitrate, Synchronization Status, Source Names.

​Flexible Independent Control​

You can assign unique names to ​each recording channel, with selecting any feed instantly displaying its ​independent runtime duration​ in real time. During multi-channel synchronized recording, ​any single feed can be independently started/stopped​ without interrupting the overall recording process—effectively eliminating any risk of accidentally halting mission-critical content.

​Flexible Independent Control​

You can assign unique names to ​each recording channel, with selecting any feed instantly displaying its ​independent runtime duration​ in real time. During multi-channel synchronized recording, ​any single feed can be independently started/stopped​ without interrupting the overall recording process—effectively eliminating any risk of accidentally halting mission-critical content.

Plug-and-Play, Non-stop Recording

CUBE R1 is a turnkey solution offering plug-and-play operation, it supports non-stop recording by being equipped with dual hot-swappable SSD slots. The safety lock switch ensures the whole process is safe and stable.

Plug-and-Play, Non-stop Recording

CUBE R1 is a turnkey solution offering plug-and-play operation, it supports non-stop recording by being equipped with dual hot-swappable SSD slots. The safety lock switch ensures the whole process is safe and stable.

Safety Guaranteed

• CUBE R1 is an independent recorder, we guarantee your videos are recorded continuously, correctly, completely, and independently.
• Recording Quality Safety: Once a file gets full, the recorder will record the next file automatically to avoid frames losing.
• Operation Safety: In order to avoid misoperation and missing valuable recording sources, the system will be LOCKED during recording. Once locked, the system needs DOUBLE confirmation to unlock and pause.

Safety Guaranteed

• CUBE R1 is an independent recorder, we guarantee your videos are recorded continuously, correctly, completely, and independently.
• Recording Quality Safety: Once a file gets full, the recorder will record the next file automatically to avoid frames losing.
• Operation Safety: In order to avoid misoperation and missing valuable recording sources, the system will be LOCKED during recording. Once locked, the system needs DOUBLE confirmation to unlock and pause.

More Features

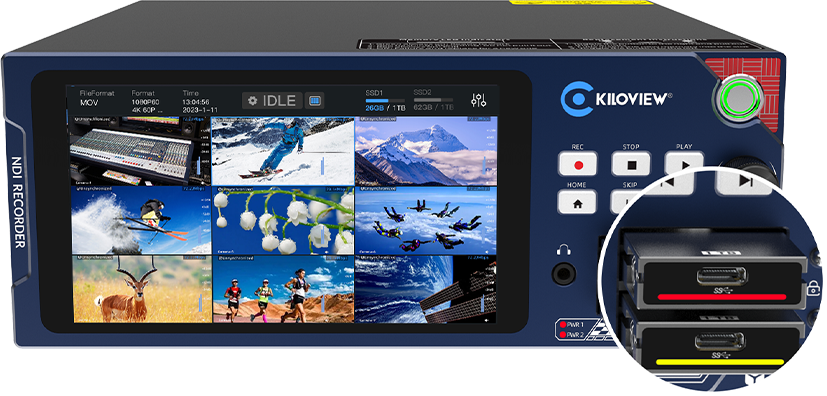

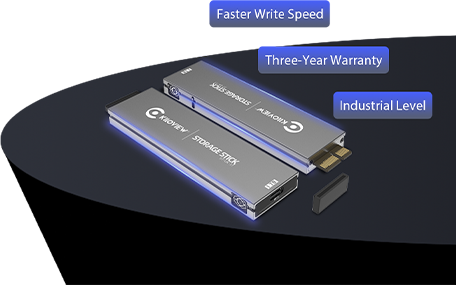

Reliable Kiloview Storage Stick

CUBE R1 records files to this reliable Kiloview storage Stick. It has two choices of capacities that best fit the needs of your production.

Kiloview Storage Stick is a high-capacity industrial-grade Solid State Drive encased in a protective shell to ensure stability, reliability and durability in a consistent working environment. Each Kiloview SSD has run its stress testing along with CUBE R1 to keep it stable and outstanding.

*For third-party SSDs, please refer to the KILOVIEW Storage Stick (ST-UX) SSD Compatibility & Selection Guide for supported specifications and recommended models.

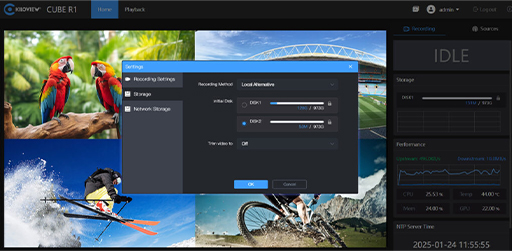

Record in Fixed Length or Size

You can choose to save the recording files in a fixed time length or a fixed file size.

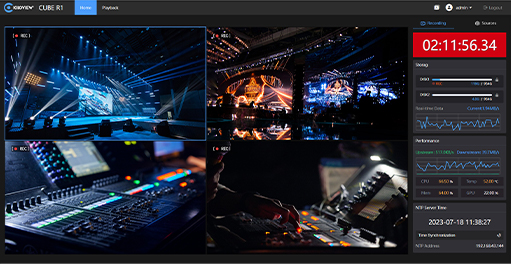

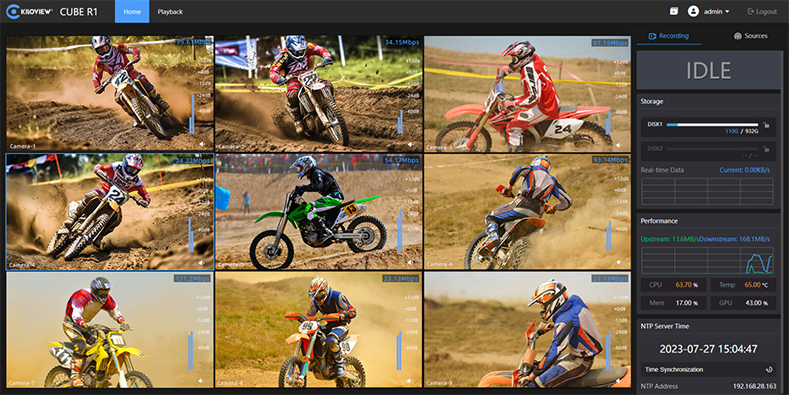

Real-Time Performance Monitoring​

Continuously tracks critical system metrics—storage status, CPU/memory utilization, temperature, and network bandwidth—ensuring recording reliability.

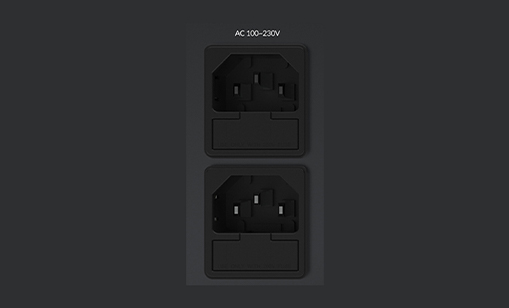

Dual Power Backup

Redundant power supply, better security.

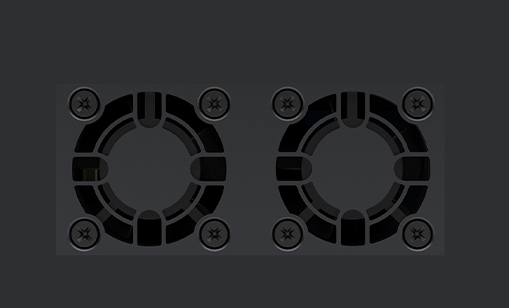

Cooling Fans

Dual built-in cooling fans with extensive ventilation mesh design, operating quietly 24/7.

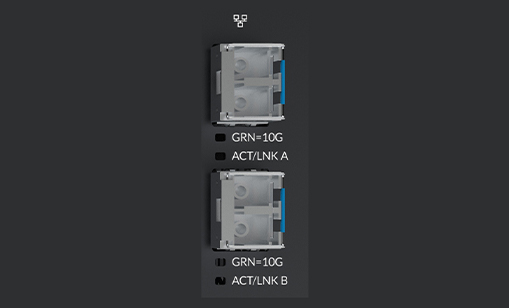

Dual 10GbE NIC

Equipped with dual 10GbE SFP+ fiber Ethernet ports and one 1GbE RJ45 Ethernet port, delivering reliable bandwidth for multi-channel HD video transmission.

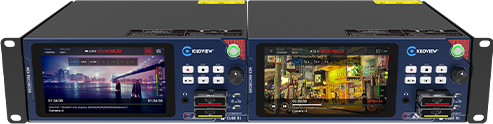

Compact 2U Design

Two Cube R1 units can seamlessly combine to form a complete 2U chassis. Recording capacity can be expanded as needed, effortlessly meeting personalized recording requirements. Tailored for the AV industry and encoder enthusiasts.

More Features

Reliable Kiloview Storage Stick

CUBE R1 records files to this reliable Kiloview storage Stick. It has two choices of capacities that best fit the needs of your production.

Kiloview Storage Stick is a high-capacity industrial-grade Solid State Drive encased in a protective shell to ensure stability, reliability and durability in a consistent working environment. Each Kiloview SSD has run its stress testing along with CUBE R1 to keep it stable and outstanding.

Record in Fixed Length or Size

You can choose to save the recording files in a fixed time length or a fixed file size.

Real-Time Performance Monitoring​

Continuously tracks critical system metrics—storage status, CPU/memory utilization, temperature, and network bandwidth—ensuring recording reliability.

Dual Power Backup

Redundant power supply, better security.

Cooling Fans

Dual built-in cooling fans with extensive ventilation mesh design, operating quietly 24/7.

Dual 10GbE NIC

Equipped with dual 10GbE SFP+ fiber Ethernet ports and one 1GbE RJ45 Ethernet port, delivering reliable bandwidth for multi-channel HD video transmission.

Compact 2U Design

Two Cube R1 units can seamlessly combine to form a complete 2U chassis. Recording capacity can be expanded as needed, effortlessly meeting personalized recording requirements. Tailored for the AV industry and encoder enthusiasts.

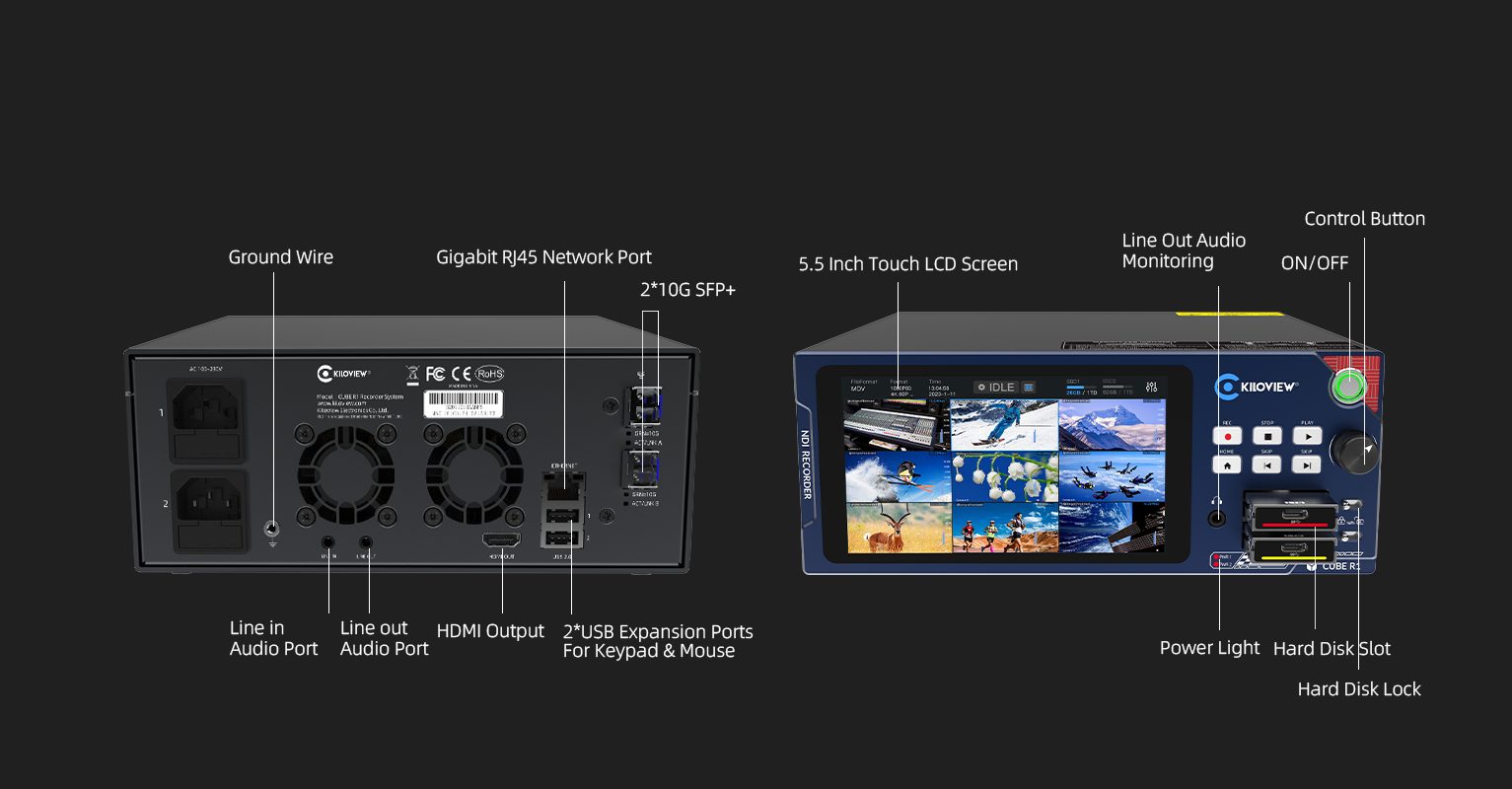

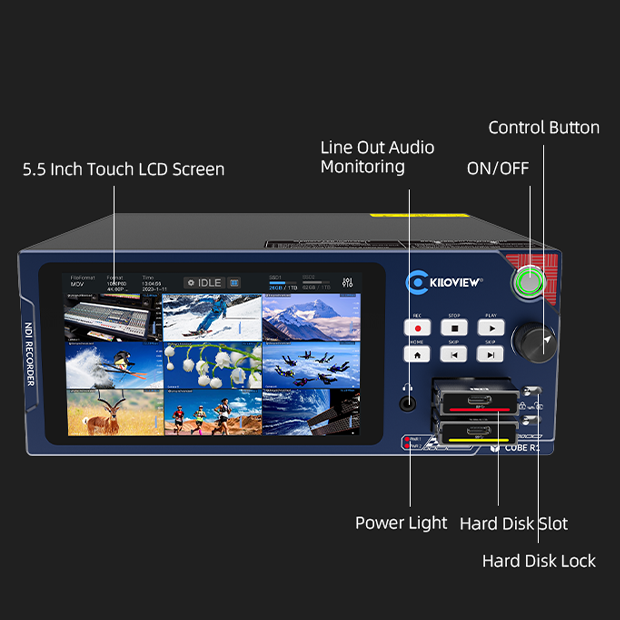

Interfaces

Interfaces

Specifications

ModelCUBE R1
Streaming ProtocolNDI High Bandwidth/NDI HX2/NDI HX3
File Encoding FormatVideo:
SpeedHQ SHQ0/SHQ2/SHQ7 formats
H.264/AVC encoding
H.265/HEVC encoding
Supports SpeedHQ to H.264/H.265 encoding format conversion

Audio:
FLT32 (Uncompressed)
AAC (MOV/MP4 compatible)
Max ResolutionUp to 4KP60
Storage2*Kiloview Storage Stick (Optional 1TB/2TB industry-grade NVMe SSD)
Screen5.5-inch LCD capacitive touchscreen
Display1/4/9 multi-screen video preview, recording status display, playback, etc.
Recording StrategyBy length or file size
Recording FormatMOV,MP4
Control Knob1: support Backward/Forward and press to Pause/Resume
Buttons6: support record, stop, play, home/return, backward skip, forward skip.
Ports2*10GbE SFP+ fiber Ethernet
1*1GbE RJ-45 Ethernet
1*HDMI 2.0 output (Mirrors the main display to an external screen)
2*USB 2.0 Type-A(Plug-in mouse and keyboard for switching input/output)
2*3.5mm TRS audio line out
1*3.5mm TRS audio line in/out
CoolingBuilt in dual cooling fans and large ventilation mesh design, the entire machine relies on active air cooling to dissipate heat
Network2*10GbE SFP+ Fiber Ethernet
1*1GbE RJ-45 Ethernet
CPU8 core 64-bit
RAM12GB
Power SupplyRedundant power, 100~230V AC
Operating SystemLinux
Power Consumption≤20W
Working Temperature-20~50°C / 14°F~131°F
Storage Temperature-20~50°C / -4°F~149°F
ManagementWeb
Dimension (mm)220*231.45*88mm, half width of 2U rackmount chassis
Weight1.88kg

Recording Capacity Comparison

Recording ModeScenarioResolutionNDI HBNDI HX2/3
Local Alternating RecordingRecording Only4Kp6049
Recording Only1080p6099
Record & Playback4Kp6014
Record & Playback1080p6014
Transcoding + Recording4Kp601-
Transcoding + Recording1080p603-
Transcoding + Record & Playback4Kp601-
Transcoding + Record & Playback1080p601-
Local Dual-Drive RecordingRecording Only4Kp6044
Recording Only1080p6044
Record & Playback4Kp6014
Record & Playback1080p6044
Transcoding + Recording4Kp601-
Transcoding + Recording1080p603-
Transcoding + Record & Playback4Kp601-
Transcoding + Record & Playback1080p601-
NAS RecordingRecording Only4Kp6014
Recording Only1080p6044
Record & Playback4Kp6011
Record & Playback1080p6041
Transcoding + Recording4Kp6014
Transcoding + Recording1080p6034
Transcoding + Record & Playback4Kp6011
Transcoding + Record & Playback1080p6011

Bitrate Reference

ProtocolsNDI High BandwidthNDI HXNDI HX2NDI HX 3
Bitrate100~250Mpbs8~20Mpbs1~50Mpbs~80Mpbs
one hour43~109GB3.5~8.7GB0.4~21GB~35GB
1TB
Single channel~24hours~105hours~43hours~26hours
4 channels~6hours~26hours~10hours~6.5hours
9 channels~2.5hours~12hours~5hours~3hours
2TB
Single channel~48hours~210hours~86hours~54hours
4 channels~12hours~52hours~20hours~13hours
9 channels~5hours~24hours~10hours~6hours

Recording Performance

Recording performance (Based on software version 0.01.0022)4KP601080P60
Original NDI Codec RecordingNDI High Bandwidth4-channel9-channel
NDI HX9-channel9-channel
Transcode while recordingTranscode NDI High Bandwidth format to NDI HX or H.264/H.265. 1-channel3-channel
