Professional IP Videos are everywhere
Meeting software still can't see them

IP Video Isn’t Meeting-Ready

Most UC platforms recognize USB cameras, not NDI, SRT, RTSP, or other IP video sources.

Software Isn’t Always the Answer

Virtual cameras and software decoding introduce additional setup, management, and compatibility considerations.

Displays Aren’t IP-Native

Projectors, monitors, and conference displays expect HDMI or DisplayPort — not IP streams.

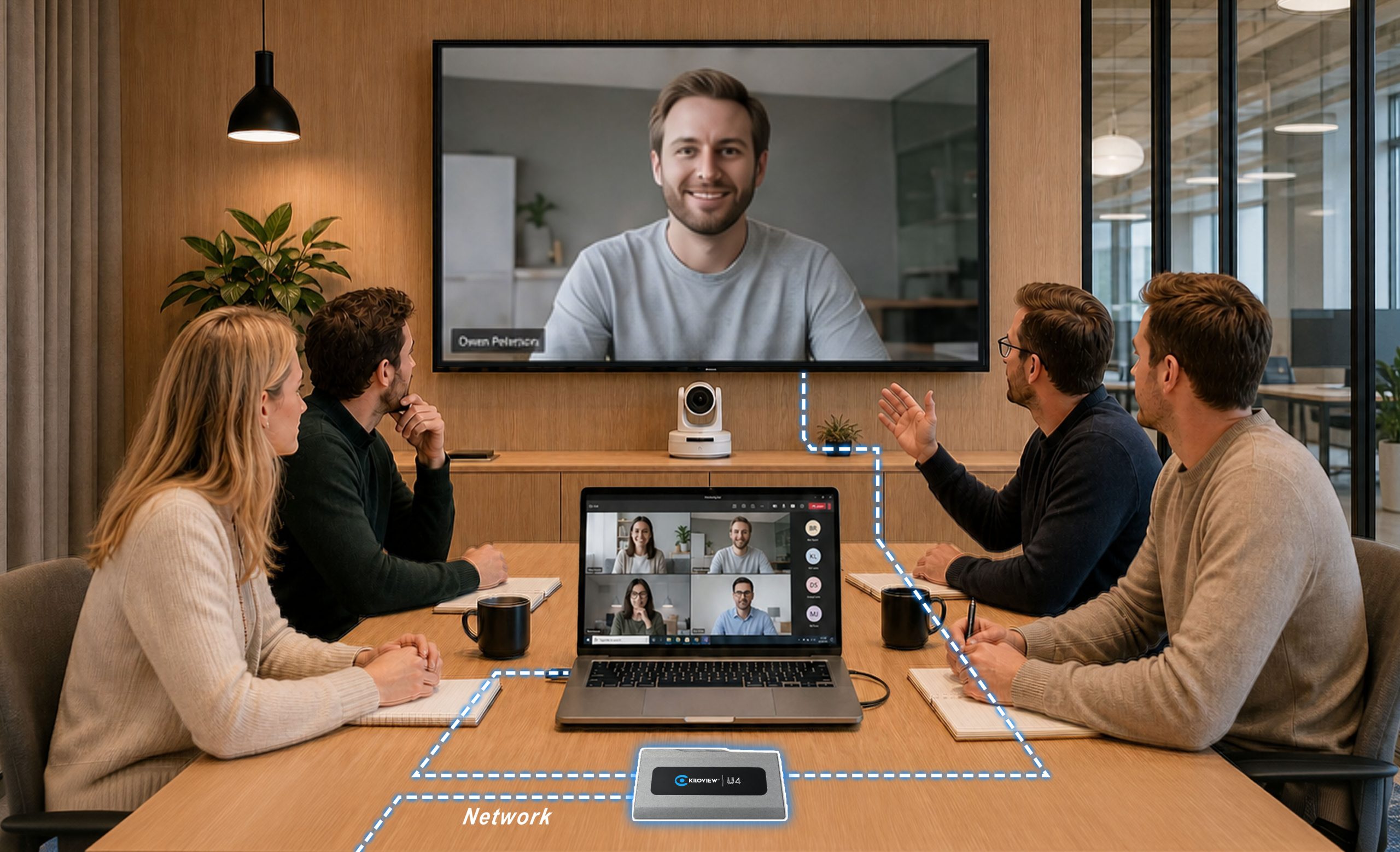

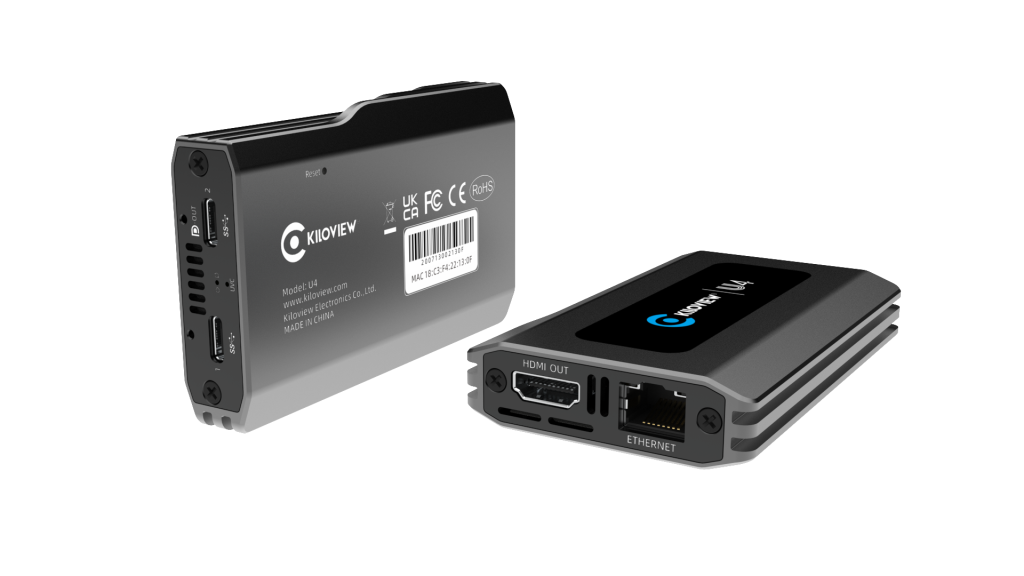

Kiloview U4 IP Video Dock is a compact IP video decoder and output dock. Designed for modern AV and UC environments, it bridges the gap between professional IP video and everyday meeting and display workflows.

Supporting NDI, SRT, RTSP, RTMP, UDP, RTP, and HLS, U4 converts IP video into USB UVC/UAC, HDMI, and DisplayPort outputs for UC platforms, room displays, and monitoring. HDMI and DisplayPort outputs support up to 4K60 video, while USB UVC/UAC enables plug-and-play integration with Zoom, Teams, Google Meet, OBS, and more.

By reducing the need for software-based workflows and multiple conversion devices, U4 simplifies IP video deployment across meeting rooms, classrooms, auditoriums, studios, and beyond.

Multi-Protocol Decoding

—— Ready for the IP Video Sources Already in Your Project

Designed for mixed IP video sources in today’s ProAV, UC, education, and production, U4 decodes mainstream protocols including: NDI High Bandwidth · NDI HX2 · NDI HX3 · SRT · RTSP · RTMP · UDP · RTP · HLS and brings different feeds into one compact hardware workflow.

Whether the feed comes from an IP PTZ camera, an NDI device, an encoder, a switcher, a media server, or a remote stream, U4 helps users stay flexible without being tied to a single protocol or device ecosystem.

All Your IP Video Protocols in One Dock

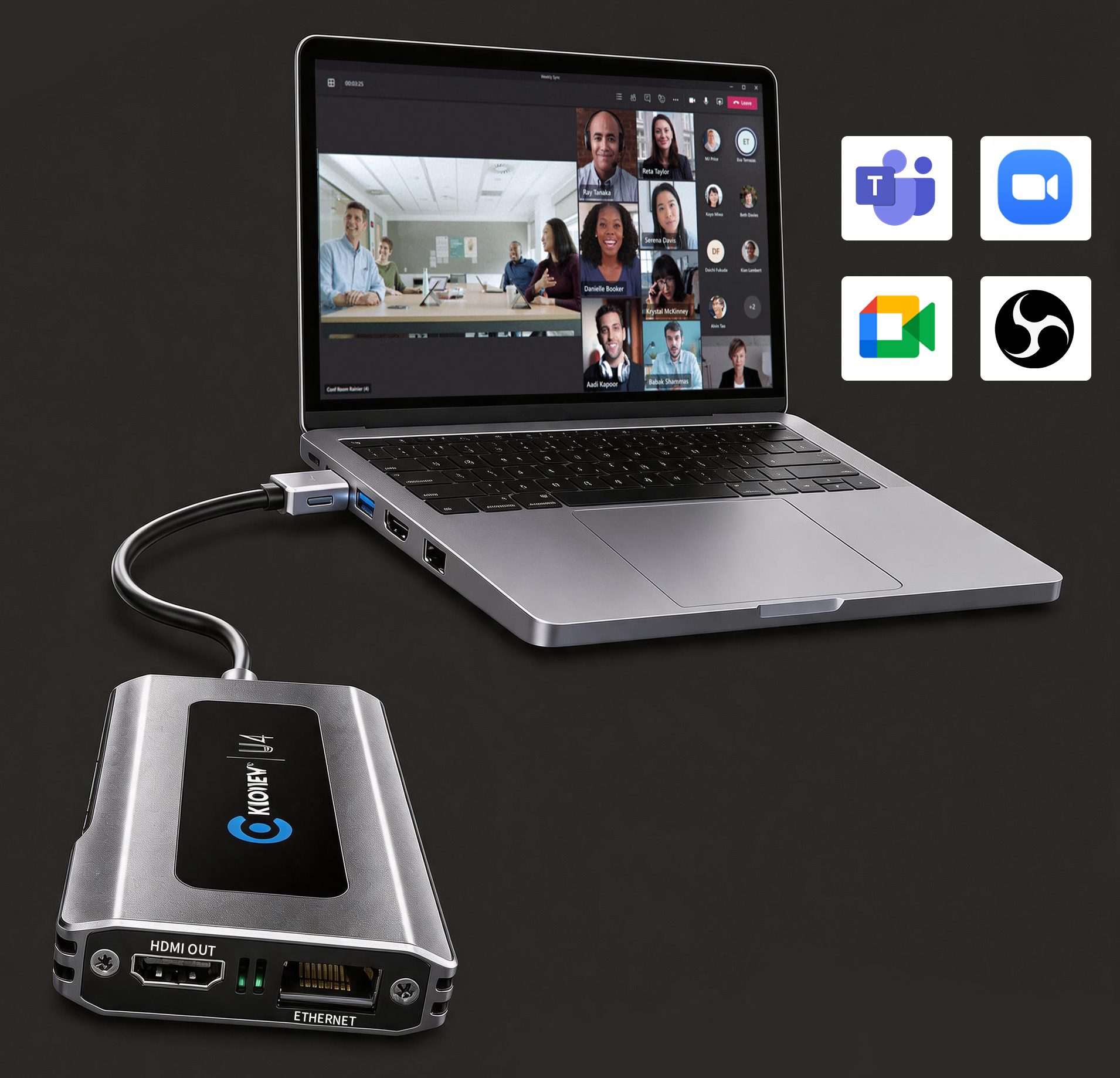

Bring IP Video into UC Meetings through USB-C

—— Standard USB Input, No More Software Workarounds

U4 converts professional IP video into a standard USB UVC/UAC device that meeting laptops recognize as a USB camera and audio source. Whether you’re using Zoom, Teams, Google Meet, OBS, or another UVC-compatible platform, IP video can be brought directly into the workflow.

No additional software, drivers, or virtual camera tools are required. A single USB-C connection delivers a clean, plug-and-play path from IP video to UC meetings.

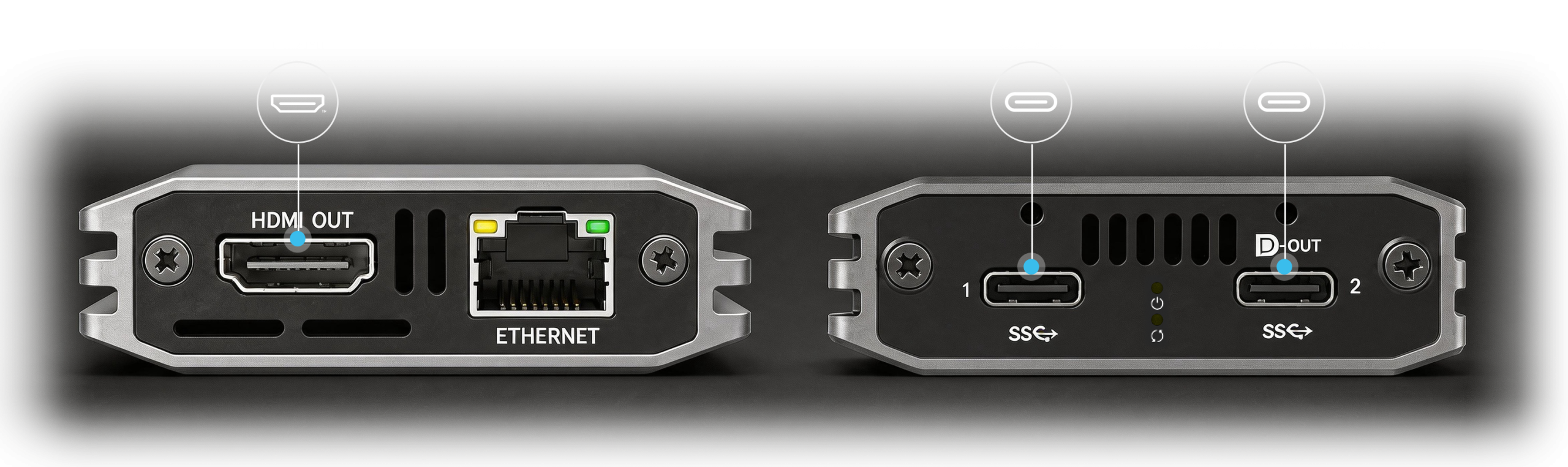

From IP Streams to USB, HDMI & DisplayPort Outputs2

IP Video Without Compromise
Crystal-Clear 4K60 for Any Display

Not every display is IP-native, but every audience expects a clear viewing experience. U4 converts IP video into HDMI and DisplayPort outputs with up to 4K60 resolution, making it easy to deliver professional-quality video to meeting room displays, classroom projectors, auditorium screens, and local monitoring stations.

Instead of running long dedicated HDMI cables or adding separate display conversion devices, integrators can bring IP video to the screen through the network and output it locally through U4.

Same-Source, Triple Output

Meetings, Displays, and Monitoring — All at Once

One IP source can be sent to USB, HDMI, and DisplayPort simultaneously, letting the same feed support meetings, displays, and monitoring without extra devices in between.

USB-C brings IP video into Zoom, Teams, Google Meet, OBS, and other UC apps.

HDMI sends IP video to room displays, projectors, lectern screens, or large monitors.

DisplayPort via USB-C Alt Mode provides confidence monitor or local preview screen to check the source in real time.

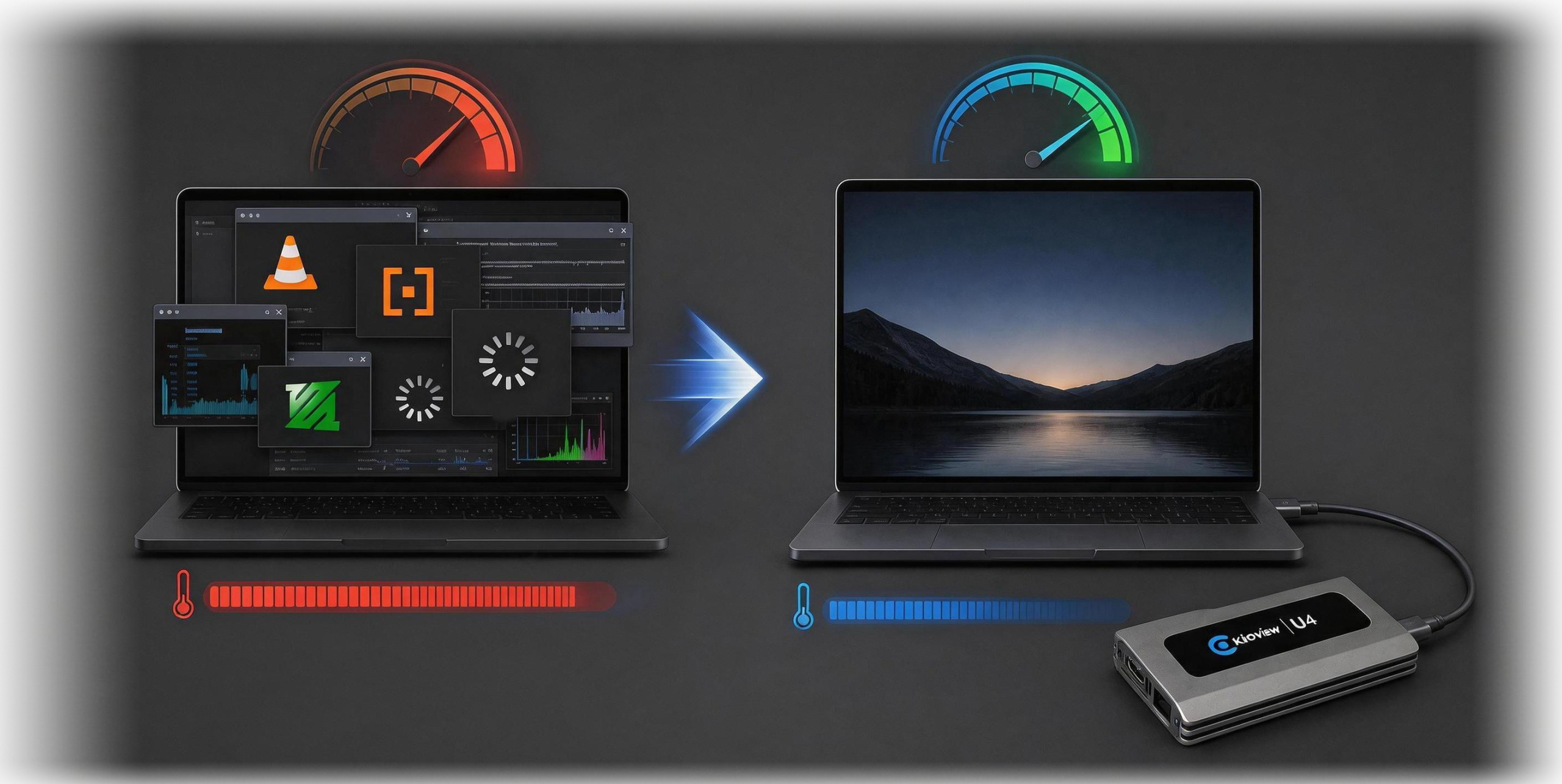

Hardware Decoding. Less Work for Your PC

U4 handles IP video decoding in dedicated hardware, so the meeting computer has more power left for what matters — running the meeting, sharing content, recording, and collaboration apps.

With less processing pressure on the host PC, users get smoother performance, fewer slowdowns, and a more reliable experience across UC meetings, displays, and monitoring.

Hardware-Decoding.-Software-Free-Simplicity11_03

More Features

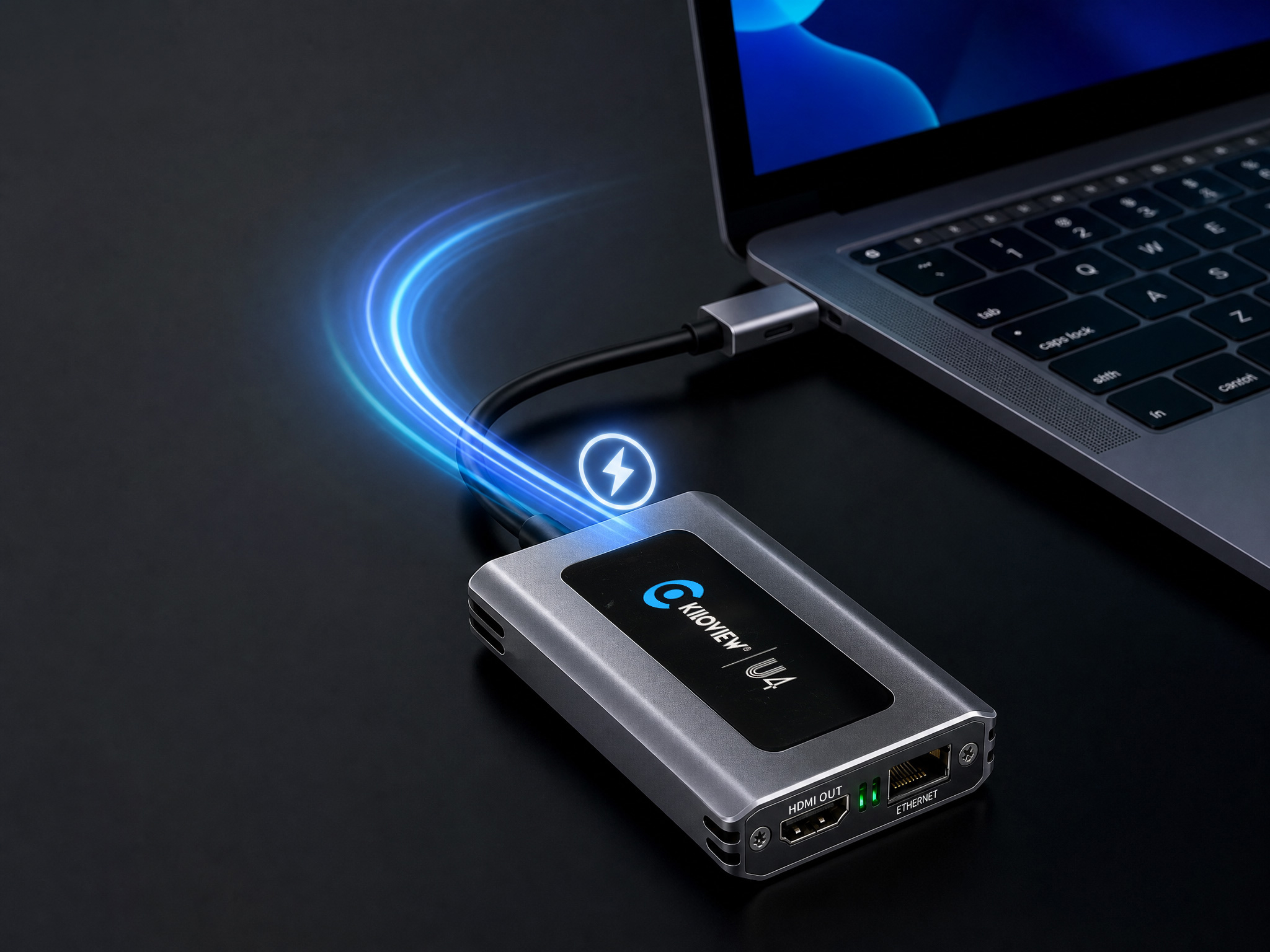

Easy to Connect. Flexible to Power

With Gigabit Ethernet and USB-C power, U4 keeps IP video setup reliable and easy to deploy. Powered by either a host computer or a PD adapter, it helps reduce cable clutter and simplifies installation.

Smarter AV Integration Easier Room Control

With up to 100 presets, USB keyboard shortcuts, API access, and third-party control support, U4 can be easily integrated into meeting rooms, classrooms, auditoriums, and ProAV systems.

Users can quickly recall common workflows, simplify daily operation, and connect U4 with existing room control setups.

Less Time Setting Up Centralized Control at Scale

U4 supports Web UI, USB NET, and KiloLink Server Pro for flexible setup and management. Users can configure the device locally through the Web UI, access settings quickly via USB NET, or manage multiple U4 devices centrally with KiloLink Server Pro.

Compact, Portable, Fits Anywhere

With a compact body of around 100 × 62 × 18 mm, U4 fits easily on meeting tables, behind displays, on classroom lecterns, beside auditorium equipment, or in mobile workflows — keeping AV setups clean, simple, and easy to adapt.

Professional IP Videos are everywhere. Meeting software still can't see them.

  • IP Video Isn’t Meeting-Ready: Most UC platforms recognize USB cameras, not NDI, SRT, RTSP, or other IP video sources.
  • Software Isn’t Always the Answer: Virtual cameras and software decoding introduce additional setup, management, and compatibility considerations.
  • Displays Aren’t IP-Native:Projectors, monitors, and conference displays expect HDMI or DisplayPort — not IP streams.

Multi-Protocol Decoding

Ready for the IP Video Sources Already in Your Project

Designed for mixed IP video sources in today’s ProAV, UC, education, and production, U4 decodes mainstream protocols including: NDI High Bandwidth · NDI HX2 · NDI HX3 · SRT · RTSP · RTMP · UDP · RTP · HLS and brings different feeds into one compact hardware workflow.

Whether the feed comes from an IP PTZ camera, an NDI device, an encoder, a switcher, a media server, or a remote stream, U4 helps users stay flexible without being tied to a single protocol or device ecosystem.

All Your IP Video Protocols in One Dock

Bring IP Video into UC Meetings through USB-C

Standard USB Input, No More Software Workarounds

U4 converts professional IP video into a standard USB UVC/UAC device that meeting laptops recognize as a USB camera and audio source. Whether you’re using Zoom, Teams, Google Meet, OBS, or another UVC-compatible platform, IP video can be brought directly into the workflow.

No additional software, drivers, or virtual camera tools are required. A single USB-C connection delivers a clean, plug-and-play path from IP video to UC meetings.

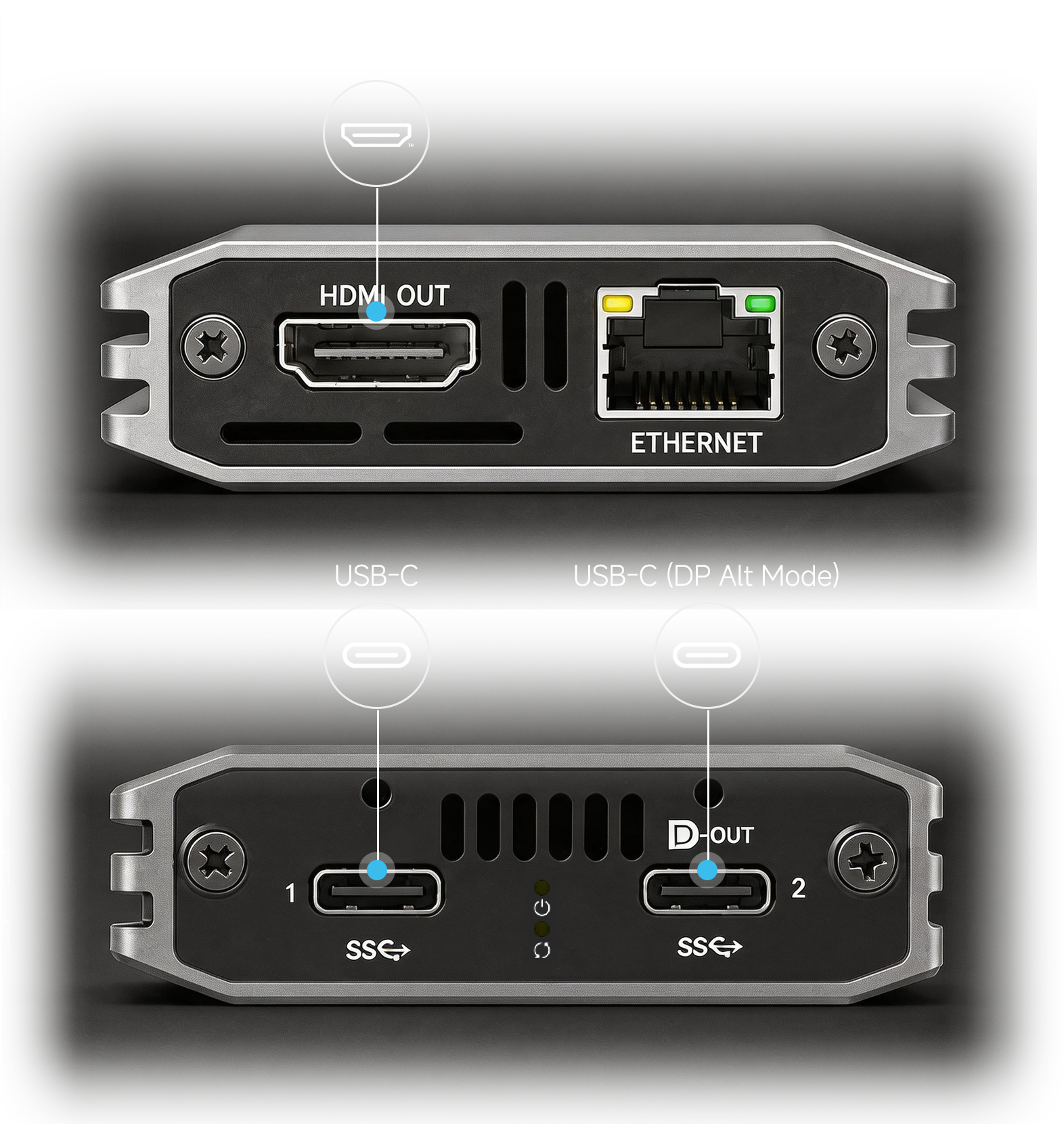

From IP Streams to USB, HDMI & DisplayPort Outputs mobile

IP Video Without Compromise
Crystal-Clear 4K60 for Any Display

Not every display is IP-native, but every audience expects a clear viewing experience. U4 converts IP video into HDMI and DisplayPort outputs with up to 4K60 resolution, making it easy to deliver professional-quality video to meeting room displays, classroom projectors, auditorium screens, and local monitoring stations.

Instead of running long dedicated HDMI cables or adding separate display conversion devices, integrators can bring IP video to the screen through the network and output it locally through U4.

4Kp60 mobile

Same-Source, Triple Output

Meetings, Displays, and Monitoring — All at Once

One IP source can be sent to USB, HDMI, and DisplayPort simultaneously, letting the same feed support meetings, displays, and monitoring without extra devices in between.

USB-C brings IP video into Zoom, Teams, Google Meet, OBS, and other UC apps.

HDMI sends IP video to room displays, projectors, lectern screens, or large monitors.

DisplayPort via USB-C Alt Mode provides confidence monitor or local preview screen to check the source in real time.

Hardware Decoding
Less Work for Your PC

U4 handles IP video decoding in dedicated hardware, so the meeting computer has more power left for what matters — running the meeting, sharing content, recording, and collaboration apps.

With less processing pressure on the host PC, users get smoother performance, fewer slowdowns, and a more reliable experience across UC meetings, displays, and monitoring.

Hardware-Decoding.-Software-Free-Simplicity11_03

More Features

Easy to Connect. Flexible to Power

With Gigabit Ethernet and USB-C power, U4 keeps IP video setup reliable and easy to deploy. Powered by either a host computer or a PD adapter, it helps reduce cable clutter and simplifies installation.

Smarter AV Integration Easier Room Control

With up to 100 presets, USB keyboard shortcuts, API access, and third-party control support, U4 can be easily integrated into meeting rooms, classrooms, auditoriums, and ProAV systems.

Users can quickly recall common workflows, simplify daily operation, and connect U4 with existing room control setups.

Less Time Setting Up Centralized Control at Scale

U4 supports Web UI, USB NET, and KiloLink Server Pro for flexible setup and management. Users can configure the device locally through the Web UI, access settings quickly via USB NET, or manage multiple U4 devices centrally with KiloLink Server Pro.

Compact, Portable, Fits Anywhere

With a compact body of around 100 × 62 × 18 mm, U4 fits easily on meeting tables, behind displays, on classroom lecterns, beside auditorium equipment, or in mobile workflows — keeping AV setups clean, simple, and easy to adapt.

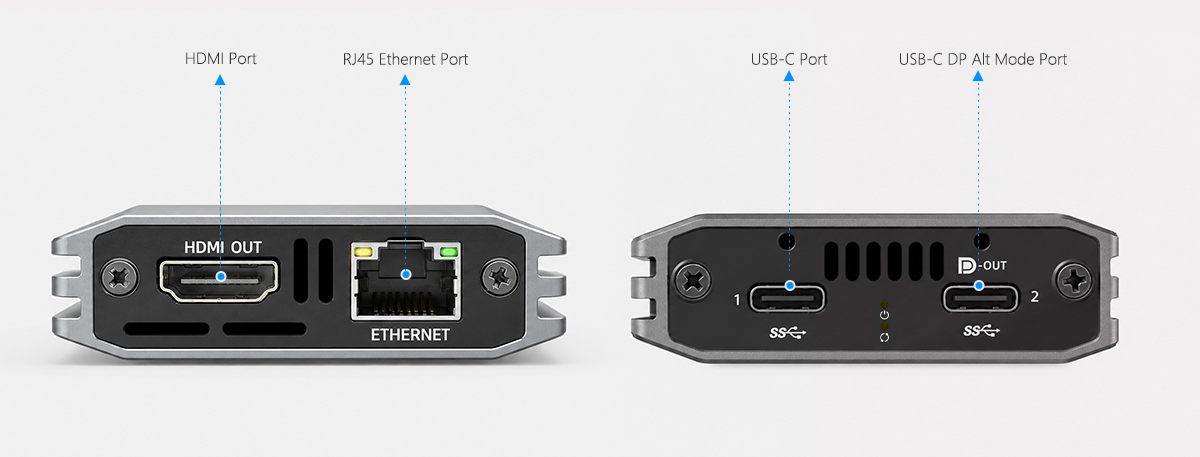

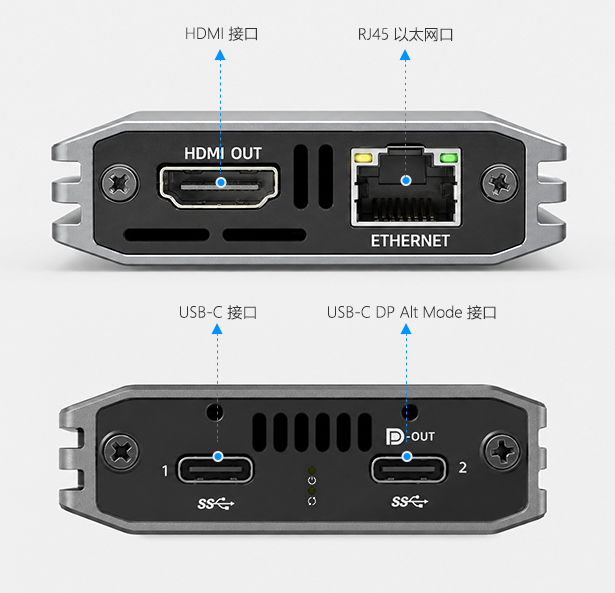

Interfaces

Interfaces

Applications

BYOD / BYOM

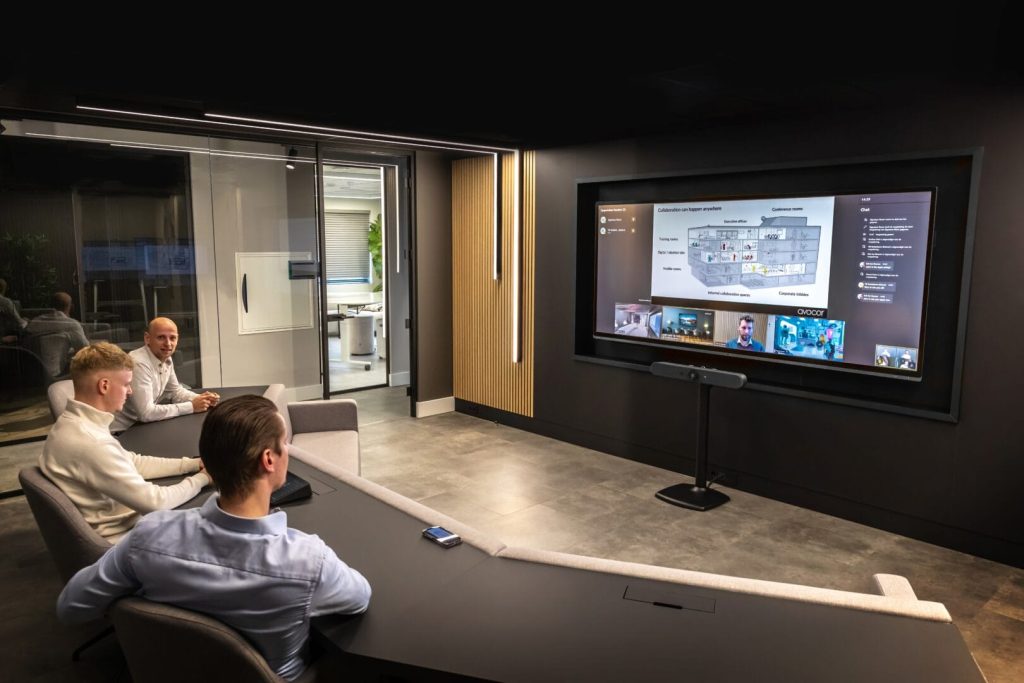

Displays & Monitoring

Classrooms & Lecture

Auditoriums & Town Halls

Applications

BYOD / BYOM

UC Meetings

Room Displays

Specifications

ModelU4
Supported ProtocolsNDI High Bandwidth, NDI HX2, NDI HX3, SRT, RTSP, RTMP, UDP, RTP, HLS, and more
Decoding CapabilityDecoding of NDI High Bandwidth, H.264, and H.265 video sources up to 4K60
Video OutputsSame-source output via USB, HDMI, and DisplayPort:
• USB UVC/UAC: up to 4K60
• HDMI / DisplayPort: up to 4K60
• HDMI and DP cannot output 4K60 simultaneously; only one 4K output is supported when both are connected.
Interfaces• 2 × USB 3.0 Type-C
• 1 × HDMI 2.1
• 1 × USB-C port supports DisplayPort Alt Mode output
ManagementWeb UI control and centralized management via KiloLink Server Pro
Firmware Upgrade• Web UI or remote upgrade via KiloLink Server Pro
• Forced USB flash drive upgrade supported for system recovery
DHCPSupported
Ethernet1 × RJ45, 10/100/1000 Mbps Base-T
USB NETSupports USB virtual network adapter
Power Supply• Dual USB Type-C power input supported
• USB PD power supported, up to 25W
Indicators1 × Power / running indicator
1 × Warning/Error LED
Dimensions100 mm × 62 mm × 18 mm
