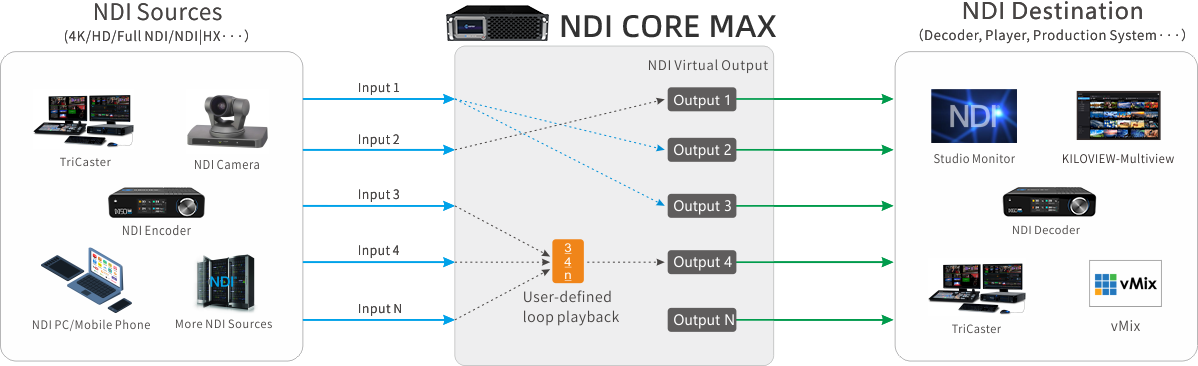

● All the NDI sources are connected one-to-one to the Distribution System for switching and distribution.● Enable Router Mode to let decoders pull NDI streams directly from sources, bypassing Distribution System. Cuts bandwidth usage and maximizes device performance.● Supports the creation of multiple virtual outputs internally, allows connection with any terminal device, and enables seamless input/output switching.
● All the NDI sources are connected one-to-one to the Distribution System for switching and distribution.● Enable Router Mode to let decoders pull NDI streams directly from sources, bypassing Distribution System. Cuts bandwidth usage and maximizes device performance.● Supports the creation of multiple virtual outputs internally, allows connection with any terminal device, and enables seamless input/output switching.

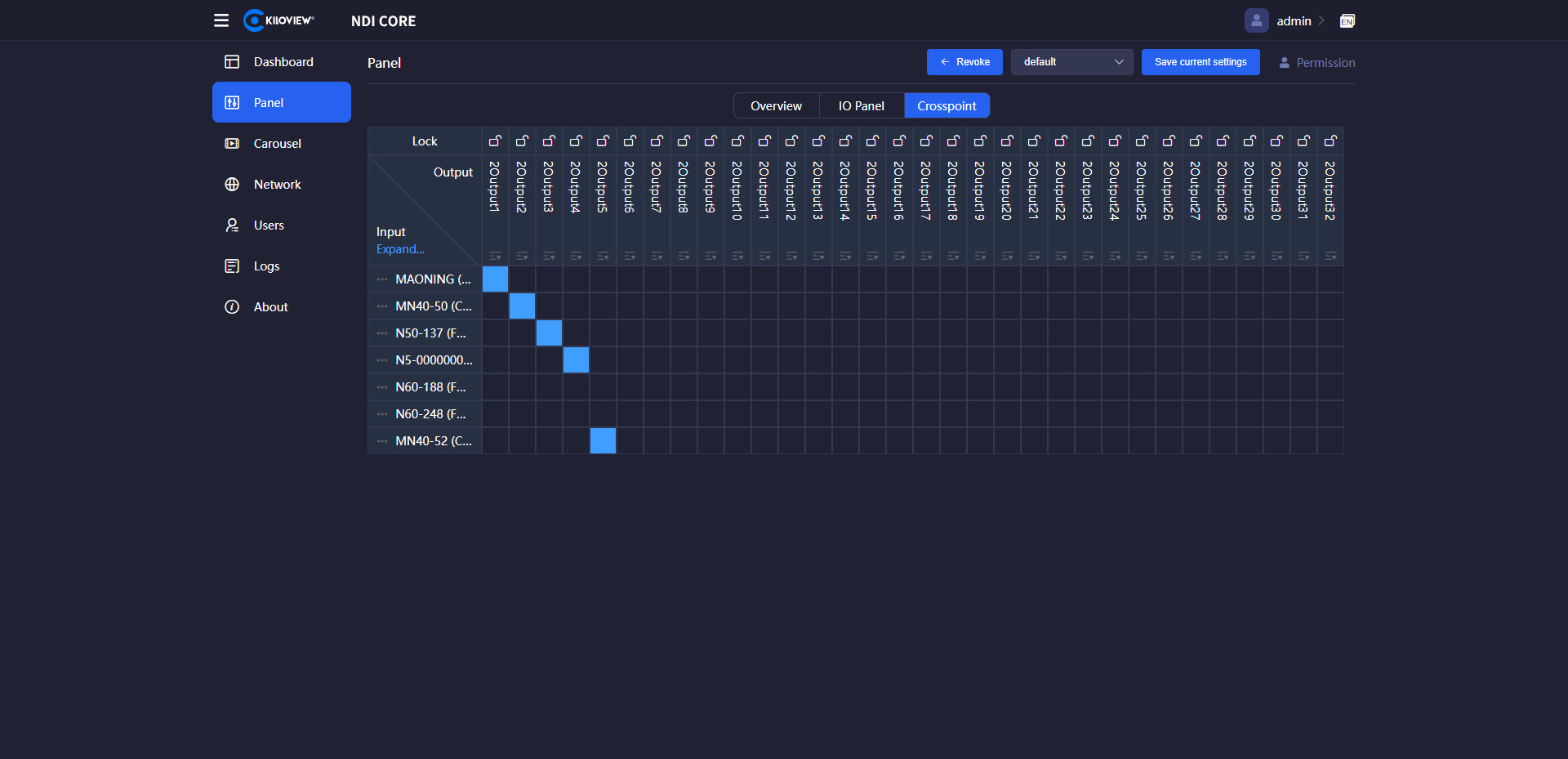

With an automatic discovery feature, NDI sources within the local network are easily identified by NDI CORE MAX, while the embedded NDI Discovery Server extends this capability to NDI sources in external networks. NDI CORE MAX supports up to 64CH of NDI signal inputs and 128CH of NDI signal outputs. It can achieve seamless switching of all NDI signals without lagging or black screen. There are two options for custom switching panels: the Crosspoint panel and the IO panel. Connection mode: It supports 1-to-1 input/output connection, 1 channel input + 1 channel output + multi-channel terminal, and 1 channel input + multi-channel output + multi-channel terminal.
With an automatic discovery feature, NDI sources within the local network are easily identified by NDI CORE MAX, while the embedded NDI Discovery Server extends this capability to NDI sources in external networks. NDI CORE MAX supports up to 64CH of NDI signal inputs and 128CH of NDI signal outputs. It can achieve seamless switching of all NDI signals without lagging or black screen. There are two options for custom switching panels: the Crosspoint panel and the IO panel.Connection mode: It supports 1-to-1 input/output connection, 1 channel input + 1 channel output + multi-channel terminal, and 1 channel input + multi-channel output + multi-channel terminal.

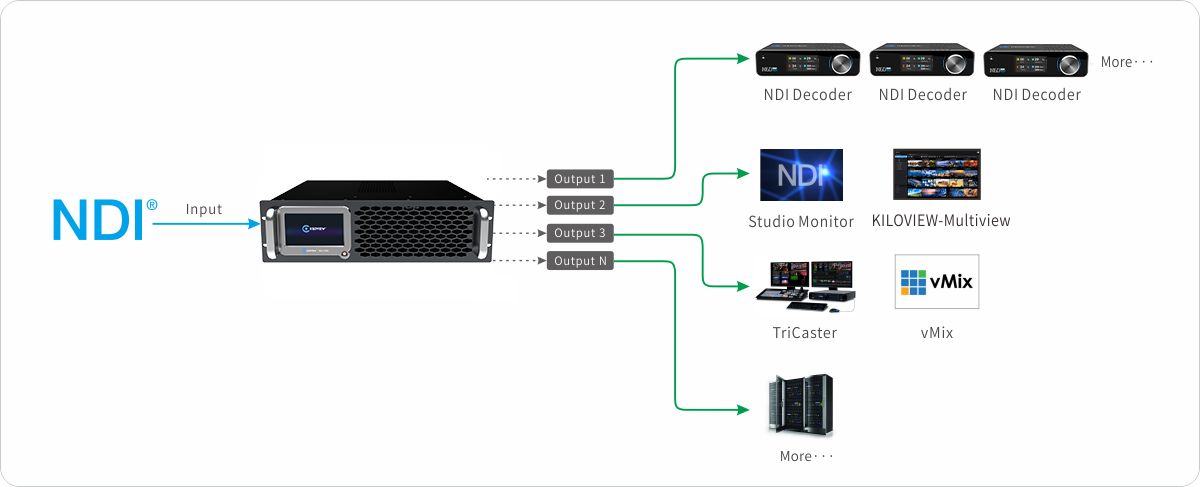

Unlike simple routing mechanisms, NDI CORE MAX supports access to all NDI data sources, enabling seamless switching and replicated distribution of NDI signals.When the same NDI video source needs to be used for multiple destinations, the system can create multiple active NDI outputs as needed, or allow a single output to be connected to multiple targets simultaneously.
Unlike simple routing mechanisms, NDI CORE MAX supports access to all NDI data sources, enabling seamless switching and replicated distribution of NDI signals.When the same NDI video source needs to be used for multiple destinations, the system can create multiple active NDI outputs as needed, or allow a single output to be connected to multiple targets simultaneously.
Unlike simple routing mechanisms, NDI CORE MAX supports access to all NDI data sources, enabling seamless switching and replicated distribution of NDI signals.When the same NDI video source needs to be used for multiple destinations, the system can create multiple active NDI outputs as needed, or allow a single output to be connected to multiple targets simultaneously.
Unlike simple routing mechanisms, NDI CORE MAX supports access to all NDI data sources, enabling seamless switching and replicated distribution of NDI signals.When the same NDI video source needs to be used for multiple destinations, the system can create multiple active NDI outputs as needed, or allow a single output to be connected to multiple targets simultaneously.

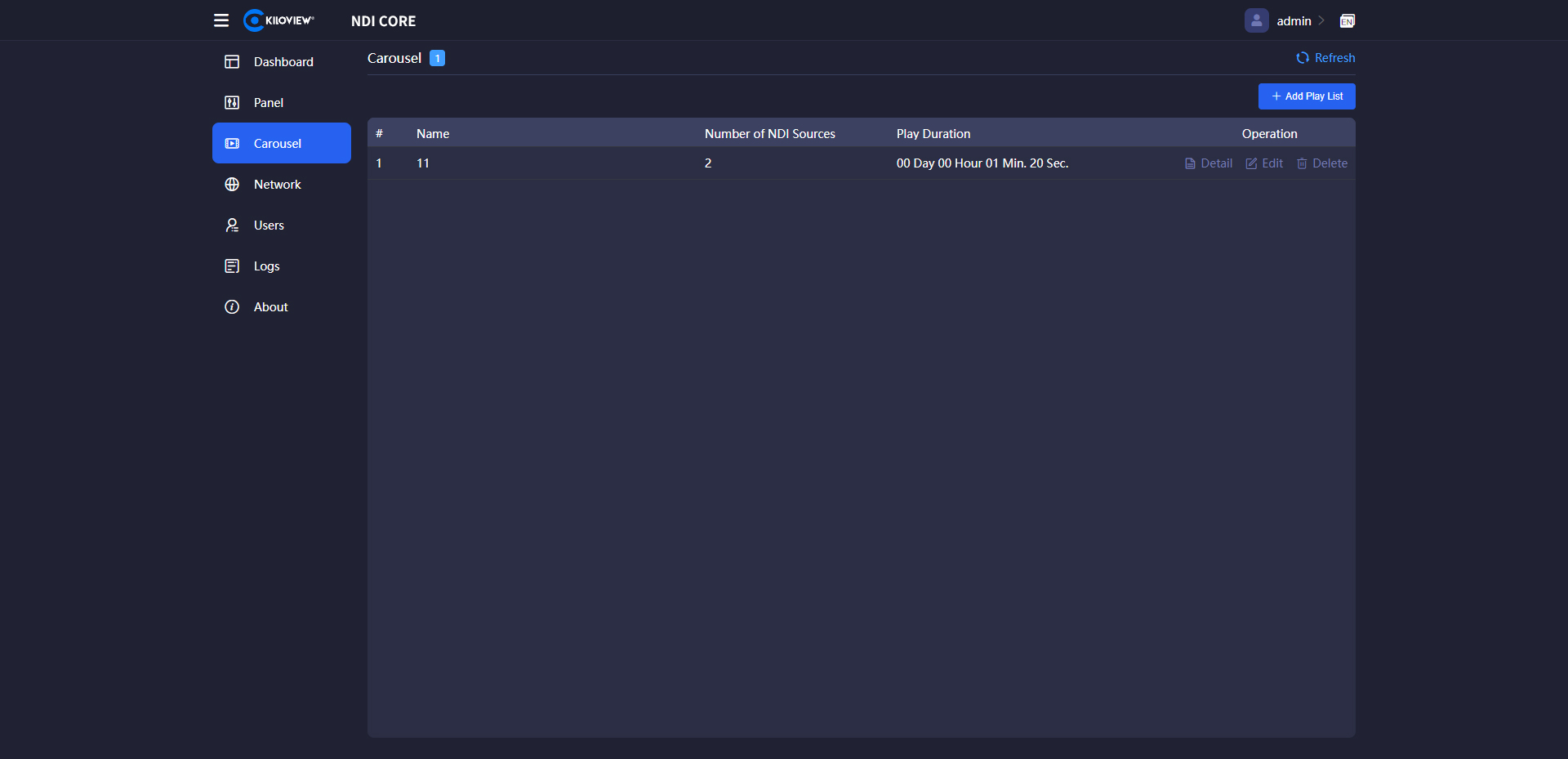

Users can separately set the program source, dynamically change the playback order, playback time, etc., and the playback supports NDI signal rotation. It supports multiple playback modes, such as looping and sequential play.It is appropriate for a variety of scenarios, including conferences and Digital Signage.
Users can separately set the program source, dynamically change the playback order, playback time, etc., and the playback supports NDI signal rotation. It supports multiple playback modes, such as looping and sequential play.It is appropriate for a variety of scenarios, including conferences and Digital Signage.
Users can separately set the program source, dynamically change the playback order, playback time, etc., and the playback supports NDI signal rotation. It supports multiple playback modes, such as looping and sequential play.It is appropriate for a variety of scenarios, including conferences and Digital Signage.
Users can separately set the program source, dynamically change the playback order, playback time, etc., and the playback supports NDI signal rotation.It supports multiple playback modes, such as looping and sequential play.It is appropriate for a variety of scenarios, including conferences and Digital Signage.
Users can separately set the program source, dynamically change the playback order, playback time, etc., and the playback supports NDI signal rotation.It supports multiple playback modes, such as looping and sequential play.It is appropriate for a variety of scenarios, including conferences and Digital Signage.
Users can separately set the program source, dynamically change the playback order, playback time, etc., and the playback supports NDI signal rotation.It supports multiple playback modes, such as looping and sequential play.It is appropriate for a variety of scenarios, including conferences and Digital Signage.
