N40 Plus

4K HDMI NDI Bi-directional Converter

All the NDI Power You Need for Stunning 4K Video

N40 Plus

4K HDMI NDI Bi-directional Converter

All the NDI Power You Need for Stunning 4K Video

N40 Plus is a compact HDMI-to-NDI bi-directional converter purpose-built for handling NDI High Bandwidth video workflows. It supports up to 4Kp60 resolution with HDMI input, output, and loop-through, while remaining fully compatible with lower-resolution sources.

Featuring Tally indicators, a high-visibility LCD screen, intercom support, PoE power supply, and PTZ camera control, it is the ideal tool for professionals seeking high-quality, high-bandwidth NDI transmission with no compromises.

Bi-directional HDMI ↔ NDI High Bandwidth Converter

The N40 Plus is purpose-built for high-quality, low-latency NDI High Bandwidth workflows over HDMI.

In encoding mode, it converts HDMI signals up to 4Kp60 into NDI High Bandwidth streams for seamless IP-based distribution.
In decoding mode, it receives NDI High Bandwidth streams from the network and outputs them via HDMI, with support for HDMI loop-through to simplify signal routing.

Bi-directional HDMI ↔ NDI High Bandwidth Converter

The N40 Plus is purpose-built for high-quality, low-latency NDI High Bandwidth workflows over HDMI.

In encoding mode, it converts HDMI signals up to 4Kp60 into NDI High Bandwidth streams for seamless IP-based distribution.
In decoding mode, it receives NDI High Bandwidth streams from the network and outputs them via HDMI, with support for HDMI loop-through to simplify signal routing.

Real 4K, Really Professional

Delivering up to 4Kp60 (UHD) video encoding and decoding, the N40 Plus ensures exceptional visual clarity. With YCbCr 4:2:2 color sampling, it guarantees accurate color reproduction and consistent, high-fidelity image quality.

Real 4K, Really Professional

Flexible Audio Options, Just the Way You Need

The N40 Plus offers comprehensive audio integration to suit a wide range of production scenarios:
• HDMI audio embedding & de-embedding for direct mixer connection
• Real-time analog audio embedding via 3.5mm input
• 2-channel synced audio, with support for mapping from up to 16 audio input channels

Flexible Audio Options, Just the Way You Need

The N40/N40 Plus offers comprehensive audio integration to suit a wide range of production scenarios:
• HDMI audio embedding & de-embedding for direct mixer connection
• Real-time analog audio embedding via 3.5mm input
• 2-channel synced audio, with support for mapping from up to 16 audio input channels

Versatile Tally Indicators and LCD Screen

The N40 Plus features bright, front-facing tally indicator for PVW/PGM, along with an additional rear tally light to support team coordination during production.
Exclusive to the N40 Plus, the 1.14” LCD screen complements the rear tally indicator by adding real-time status monitoring, mode switching, and an additional front-facing tally display—streamlining on-site operation and team communication.

Versatile Tally Indicators and LCD Screen

The N40 features bright, front-facing tally indicator for PVW/PGM, along with an additional rear tally light to support team coordination during production.
Exclusive to the N40 Plus, the 1.14” LCD screen complements the rear tally indicator by adding real-time status monitoring, mode switching, and an additional front-facing tally display—streamlining on-site operation and team communication.

Seamless NDI Switching,
Zero Disruptions

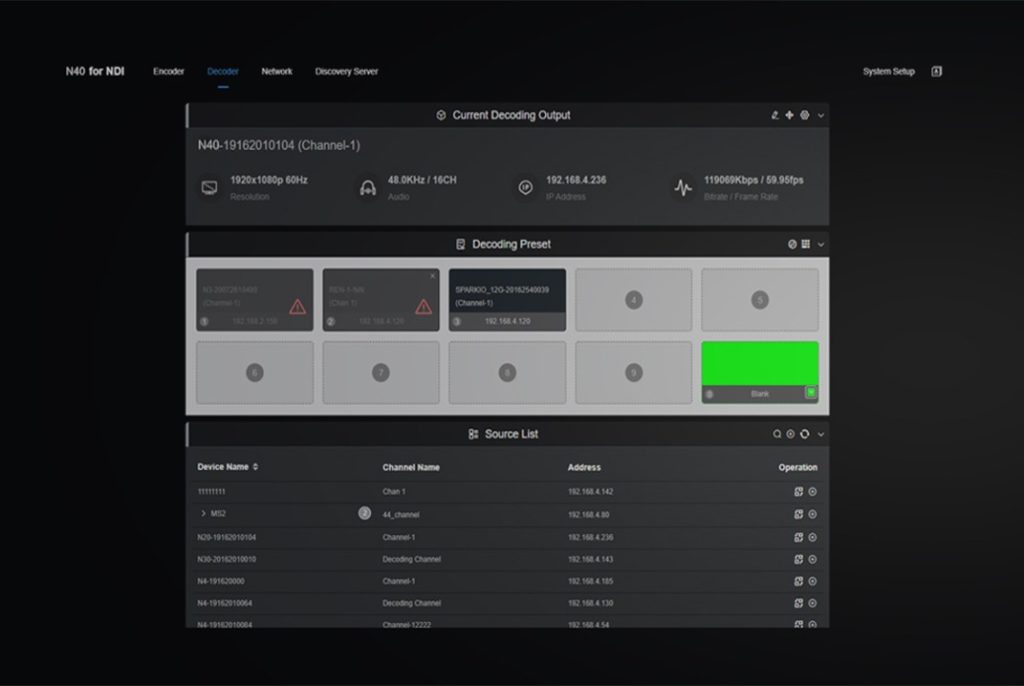

In decoding mode, you can preconfigure up to 9 NDI sources and switch between them directly via the web interface. Switching is instant and stable with no blackouts, stutter, or signal loss. It also allows you to fine-tune the transition timing to match the pace of your live production.

Seamless NDI Switching,
Zero Disruptions

More Features

PTZ Control for All-in-One Production

The N40 Plus enables flexible PTZ camera control without needing additional controllers. It supports serial connections (RS-232/RS-485/RS-422) via USB and mainstream network protocols. This allows precise pan, tilt, and zoom adjustments, enhancing multi-camera live streaming and conference setups with seamless integration and user-friendly operation.

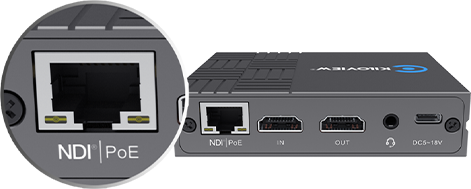

Power Flexibility with PoE and DC Input

The N40 Plus supports PoE, allowing power and data transmission over a single Ethernet cable. It also offers flexible power options, including USB PD fast charging, wide-range DC input (5V–18V), and support for camera batteries or other compatible sources.

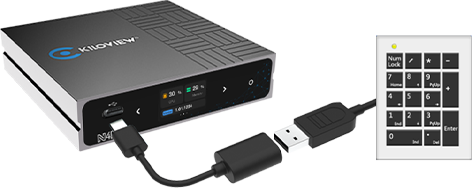

Control with a USB Keypad

In decoding mode, you can preset up to 10 NDI sources (0–9) and quickly switch outputs using a connected USB keypad.
You can even use the keypad to control a PTZ camera, making it the most affordable PTZ controller available.

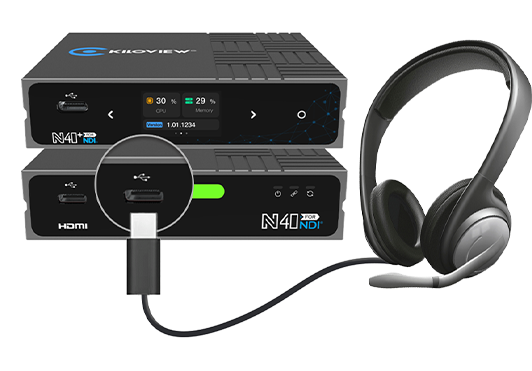

Audio Support with Real-Time Intercom

With USB headset support and integration with the Kiloview KIS Intercom System, the N40 Plus enables real-time voice communication for smooth team coordination during production.

Visual Input Loss Alerts for Instant Issue Identification

When a video source or network stream is interrupted, the system automatically displays a preset “No Video” screen or a custom PNG image (1920 × 1080 or 1280 × 720), instead of defaulting to a black or blue screen. This maintains a clean, professional output while helping users quickly pinpoint input-side issues—minimizing downtime and avoiding confusion.

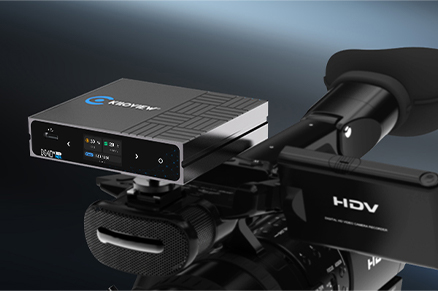

Compact Design with Easy Camera Mounting

The N40 Plus features a compact design and comes with a standard threaded cold shoe mount, making it easy to attach directly to a camera.

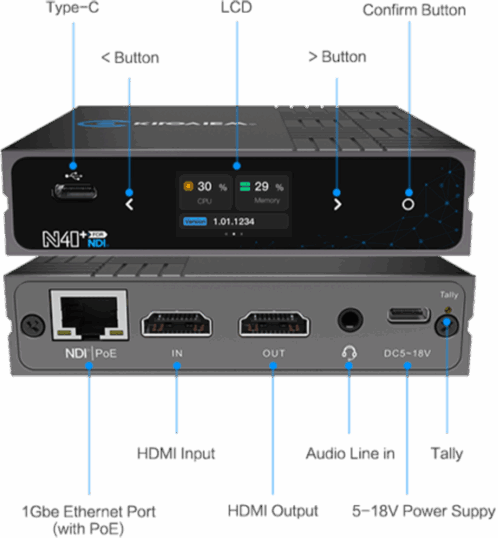

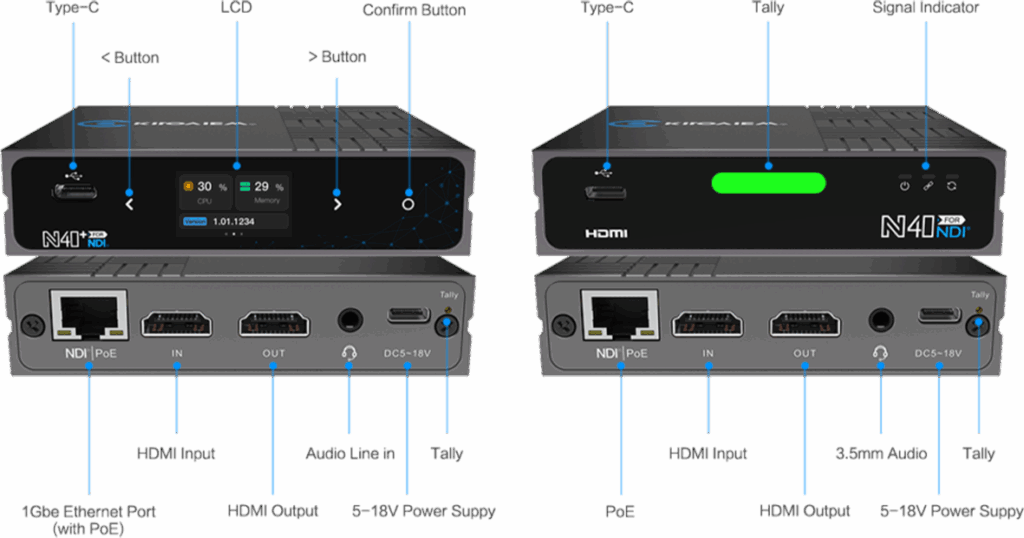

Interfaces

Specifications

Model	N40 Plus
Video Resolution	• Input support: 38402160p 60/59.94/50/30/29.97/25/24/23.98fps 19201080p 60/59.94/50/30/29.97/25/24/23.98fps 19201080i 60/59.94/50fps 1280720p 60/59.94/50/30/29.97/25/24/23.98fps • Output support: 38402160p 60/59.94/50/30/29.97/25/24/23.98fps 19201080p 60/59.94/50/30/29.97/25/24/23.98fps 19201080i 60/59.94/50fps 1280720p 60/59.94/50/30/29.97/25/24/23.98fps
Video Port	1 × 4Kp60 HDMI, input 1 × 4Kp60 HDMI, output for decoding/loop-out for encoding
Video Encoding and Decoding	SpeedHQ (NDI): SHQ0, SHQ2
Streaming Protocols	NDI HB
Interlaced Video Support	1080i60 interlaced input and 1080i60 interlaced output encoding
Color Space	• Encoding NDI HB: YCbCr 4:2:0, 4:2:2 • Decoding NDI HB: YCbCr 4:2:0, 4:2:2
Color Depth	8-bit
Audio Port	1 × 3.5mm Line in/Line out
Audio Encoding and Decoding	NDI Audio and more audio formats and channels available through custom development
Audio Channels	Encoding: 2 channels (selectable from up to 16 input channels) Decoding: 2 channels (selectable from up to 16 output channels)
Audio Sampling	Fixed at 48 kHz
Network Port	1 × 1000Mbps Ethernet port (support PoE)
Physical Controls	N40 Plus: 1.14'' LCD with touch buttons
Management	Web-based control or centralized management via KiloLink Server Pro
Tally	N40 Plus: An LCD screen as the tally indicator on the front panel, a Tally LED on the rear
Voice Intercom	USB headset expansion or group calls via Kiloview Intercom System (KIS)
Video Input Loss Alerts	• Default “NO INPUT SIGNAL” image on HDMI disconnect • Custom PNG (1920 × 1080 or 1280 × 720) display supported
PTZ Control	USB-to-serial (RS-232/RS-485/RS-422) and network protocols (Sony Visca, Pelco-D/P) for external PTZ control
USB Port	1 x USB 3.0 Type-C
Mounting	Cold shoe adapter
Power Supply	USB PD fast charging,5-18V wide range supported PoE
Power Consumption	6W(Max)
Weight	N40 Plus: 260g
Dimensions	N40 Plus: 100 x 95 x 23mm
Working Temperature	-20℃~55℃/-4℉ ~ 131℉
