Our priority is always providing the best and easiest user experience. With our newly designed UI, enjoy Multiview Pro’s flexible switching and production with fully customizable projects, programs, cameras, layouts, and more.
Menu
Multiview Pro is the upgraded professional version of Kiloview Multiview Player delivering centralized management of multiple NDI© streams with monitoring and real-time switching.
It allows adding unlimited NDI sources for monitoring through on-premise NDI servers or Discovery Server. Multiview Pro supports decoding multiple channels of NDI High Bandwidth, NDI HX2 & NDI HX3 video streams from any vendor in resolutions up to 4K 60p to your display (Max 20 channels per window), PC through HDMI port or via NDI.
Multiview Pro is now available on macOS.
Based on Web Technology, our brand new Multiview Pro is the only Multiviewer that can receive and output video sources virtually to achieve the functions of both server-based and cloud-based video monitoring and switching.
It allows any user on the same network access by scanning a QR code or via a browser URL, including mobile devices. It’s the perfect match for our new Panel Deck or any advanced application to make the impossible possible.
Our priority is always providing the best and easiest user experience. With our newly designed UI, enjoy Multiview Pro’s flexible switching and production with fully customizable projects, programs, cameras, layouts, and more.
Multiview Pro makes it easy to manage permissions and access. You’re in control with advanced permission control by user, group, or project.

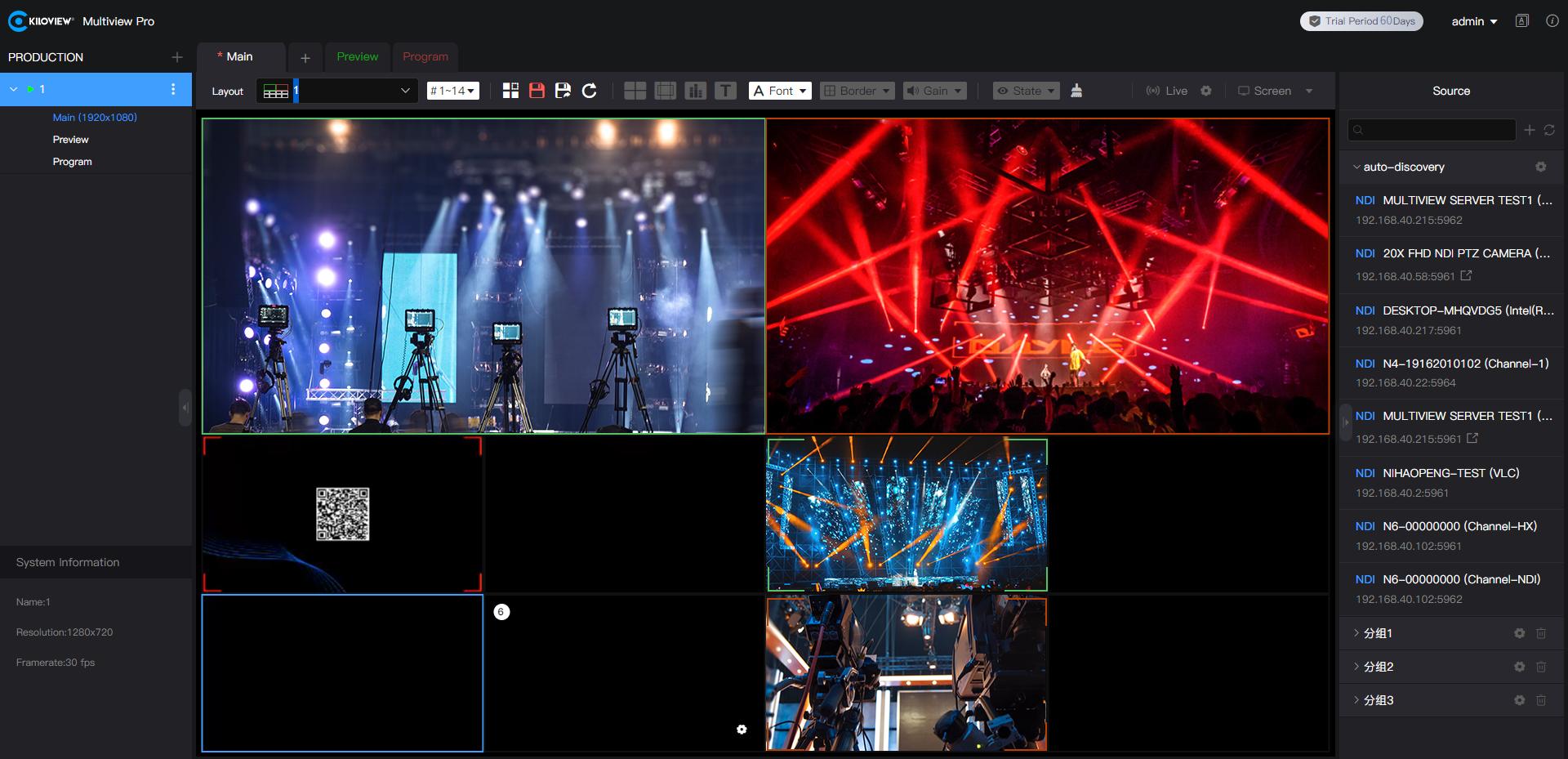

Easily set each screen in Preview (PVW) mode/ Program (PGM) mode to control the NDI streams’ tally status. Real-time switching between ‘Preview’ and ‘Program’ mode with tally signal helps to maximize the flexibility of the video production.

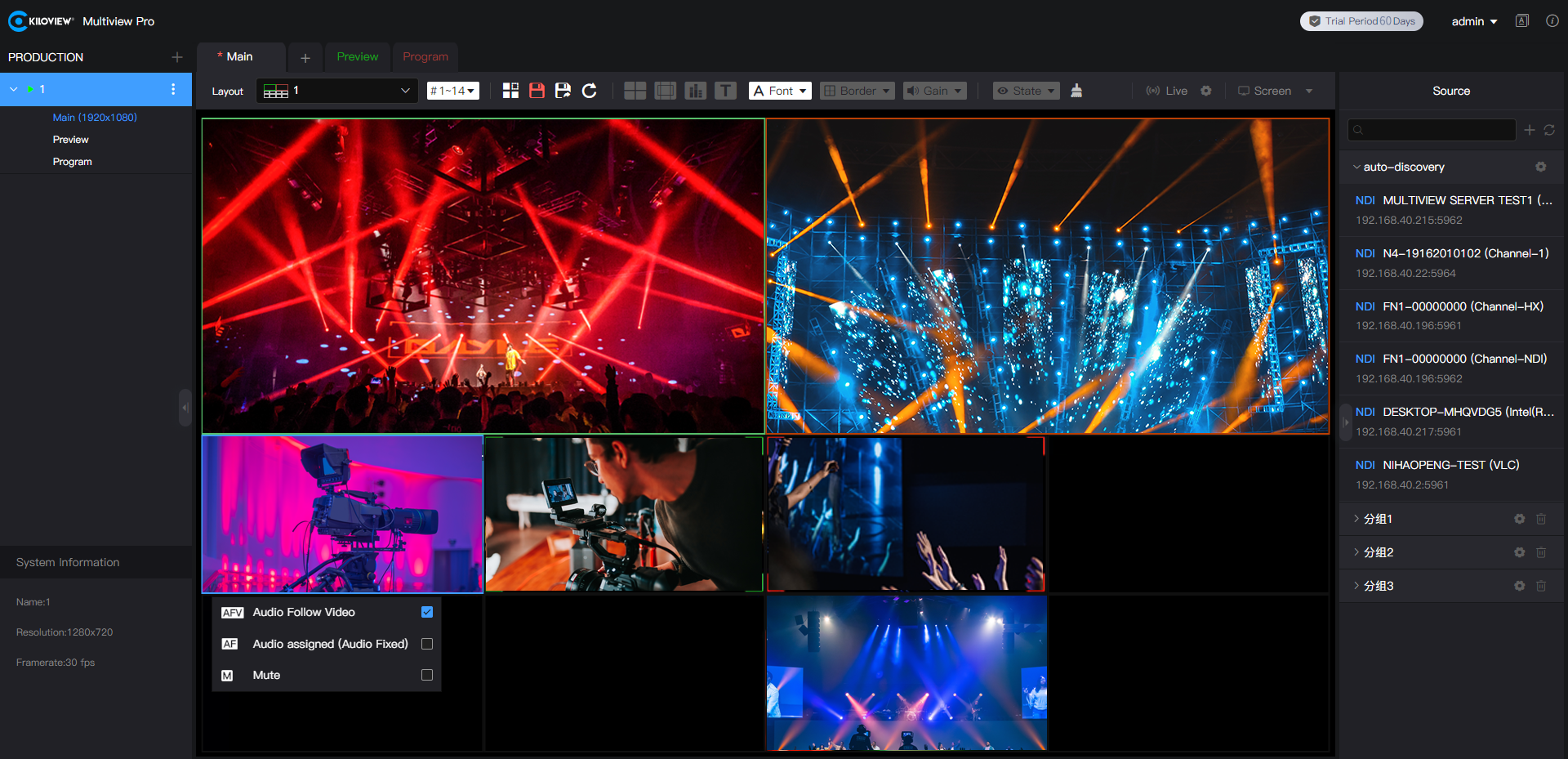

Multiview Pro supports switching among three modes for audio output: Audio follow video, Audio assigned or Mute.
Add up to 20 NDI streams per screen, and unlimited screens per Multiview Pro player in NDI HB, NDI HX2, NDI HX3, limited only by server performance. The system automatically adjusts the NDI input to either the main or sub stream.
Kiloview Multiview Pro can automatically discover NDI sources on your network with the integration of NDI Discovery server. Or add devices by IP address ensuring you don’t miss any NDI® sources.
Monitor multiple NDI High Bandwidth, NDI HX2 & NDI HX3 sources using Multiview Pro as a multi-window screen, with PIP (Picture in Picture), PBP (Picture by Picture) or 1/2/3/4/5/6/7/8/9/16/20 grids. Fully customizable layout by simple drag and drop with video thumbnail, name and resolution – width, height, horizontal and vertical alignment are all adjustable.
Kiloview Multiview Pro can mix the multi-window video flows into NDI streams as NDI sources to your local network with custom resolutions and frame rates. The selected Multiview Pro can also be displayed on any monitor through the HDMI port.
Multiview Pro allows you to switch videos among multiple screens remotely. You can send different videos from the main screen, or display them to another screen with one click, manually or automatically. Plus, every video can be output by NDI for transmission.
For professional video production, Multiview Pro features VU metering, safe areas, center cross, and custom names with control of screen border and name visibility.
TV Studio
Reality Show
TV Program Production Preview
PTZ Conference
On launch, Multiview Pro automatically recalls the settings from the last time it was closed.
| Features | Kiloview Multiview Pro |
|---|---|
| NDI compatibility | NDI High Bandwidth/NDI HX2/3 (both HD/4K supported) |
| Toolbar | Supported |
| Project Production | Supported |
| Multi-screen Split | Supported |
| PIP | Supported |
| Multi-screen Display | Supported |
| Main/Sub streams self-adaption | Supported |
| Tally Signal | Supported |
| VU Meters | Supported |
| Safe area, Center cross | Supported |
| NDI Discovery Server | Supported |
| Manual Adding NDI Source | Supported |
| Management | Web/KiloLink Server |
| Operating OS | Windows/Linux/macOS |
| Support Download | Docs & Firmware |
| System requirements | Recommended |
|---|---|
| Storage | 1TB SSD |
| CPU | i7-11700 or 8 cores 16 threads CPU |
| Memory | 32GB DDR4 RAM |
| Network Adapter | Intel X520-DA2 or 10G dual SFP+ NIC |
| GPU | RTX3060 or P5000 |
| Product Type | Product No. | NDI Codec Capability | Video I/O Connectivity | Resolution | Notes |
|---|---|---|---|---|---|
| NDI Bi-Directional Converter | N6 | NDI High Bandwidth/NDI|HX | HDMI | 1080P60 | |
| N5 | NDI High Bandwidth/NDI|HX | 3G-SDI | 1080P60 | ||
| N50 | NDI High Bandwidth/NDI|HX | 12G-SDI | 4KP60 | ||
| N60 | NDI High Bandwidth/NDI|HX | HDMI | 4KP60 | ||
| N3 | NDI High Bandwidth | 3G-SDI | 1080P60 | ||
| N30 | NDI High Bandwidth | 12G-SDI | 4KP60 | ||
| N40 | NDI High Bandwidth | HDMI | 4KP60 | ||
| NDI Wireless Encoder | N1 | NDI|HX | SDI | 1080P60 | WiFi supported, Battery Builld-in |
| N2 | NDI|HX | HDMI | 1080P60 | WiFi supported, Battery Builld-in | |
| NDI Encoder | E3 | NDI|HX | SDI+HDMI | 4KP30 in HDMI, 1080P60 in SDI | |
| U40 | NDI High Bandwidth/NDI|HX | HDMI | 4KP60 | ||
| E1 | NDI|HX | SDI | 1080P60 | ||
| E2 | NDI|HX | HDMI | 1080P60 | ||
| NDI Decoder | D350 | NDI High Bandwidth/NDI|HX | SDI+HDMI | 4KP60 | |
| D260 | NDI|HX | SDI+HDMI | 1080P60 |
