Kiloview N30 12G-SDI/NDI High Bandwidth converter is a bi-directional converter that supports 12G-SDI video input (encoder) to NDI High Bandwidth with 12G-SDI loop through for view on monitor, or 12G-SDI video output (decoder) from NDI High Bandwidth.
Featured with powerful functions such as PoE, built-in big tally light, PTZ control, 3.5mm audio line in/out, multi-channel audio, intercom functions, the N30 is your best choice to get access to the fabulous NDI world for professional broadcast-grade IP production.
The NDI protocol is a high-performance standard that enables anyone to use real-time, ultra-low-latency video on existing IP video networks.
The N30 supports up to 12G-SDI 4K video input to NDI High Bandwidth and loop through for monitoring, at the same time it supports NDI High Bandwidth to 12G-SDI output. It’s a real broadcast-grade NDI converter.

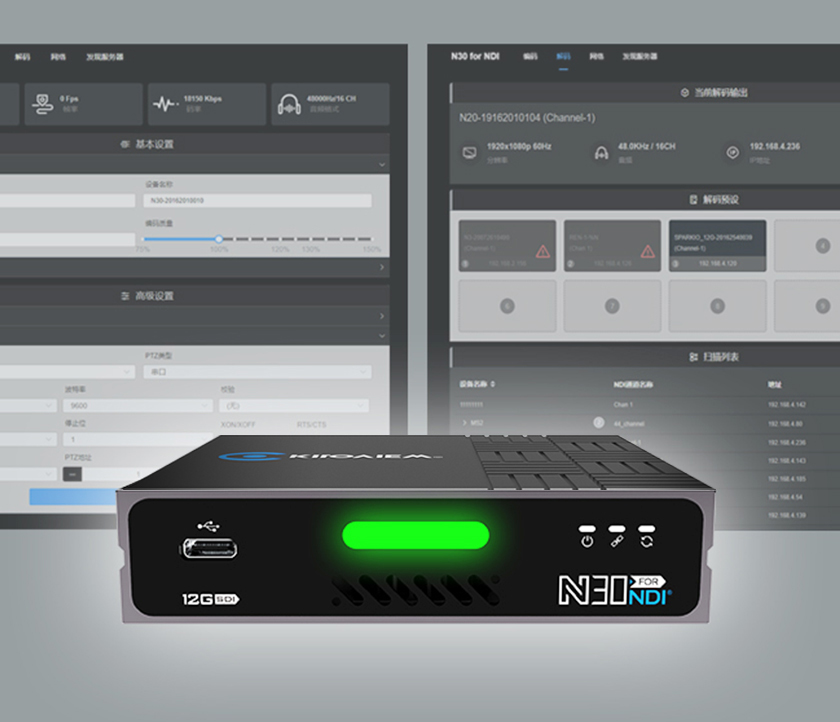

Both NDI encoding and decoding can work on this device, you got two in one. Switching the working mode on the UI to choose the mode you need; it can easily meet all your different workflows.
*N30’s encoding and decoding functions are mutually exclusive, and cannot be used at the same time
Both NDI encoding and decoding can work on this device, you got two in one. Switching the working mode on the UI to choose the mode you need; it can easily meet all your different workflows.
*N30’s encoding and decoding functions are mutually exclusive, and cannot be used at the same time
When decoding NDI sources, with Kiloview unique technology, there will be no lag when switching the output NDI videos.

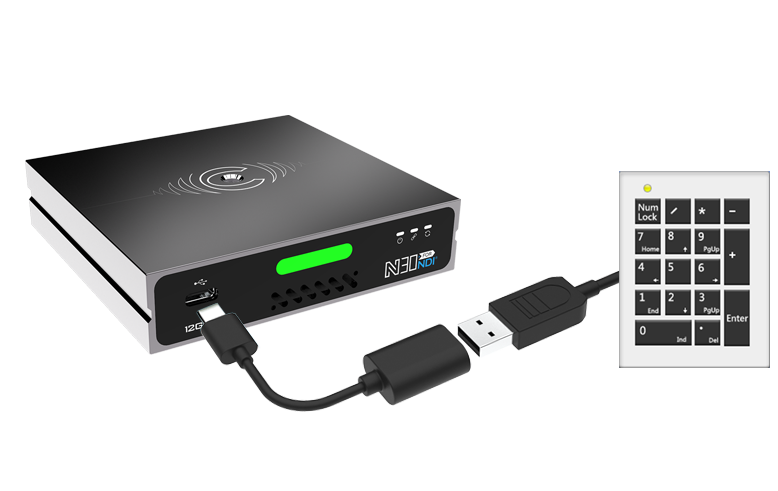

In decoder mode, you can preset the NDI sources from number 0~9. Connect the decoder with a USB keypad, you can easily choose the output source by a single press.
Or you can even use the USB Keypad to control a PTZ camera- the cheapest PTZ Keyboard you can get.
Kiloview N30 supports 3.5mm analog audio line in/out or embedded audio. Up to 16CH audio can be supported.
It also supports voice intercom by USB headset with Kiloview Intercom server.
Thanks to the NDI discovery server, your video can be easily found and connected by users from another network when registered to the designated server.
Kiloview N30 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP, no extra cable required.

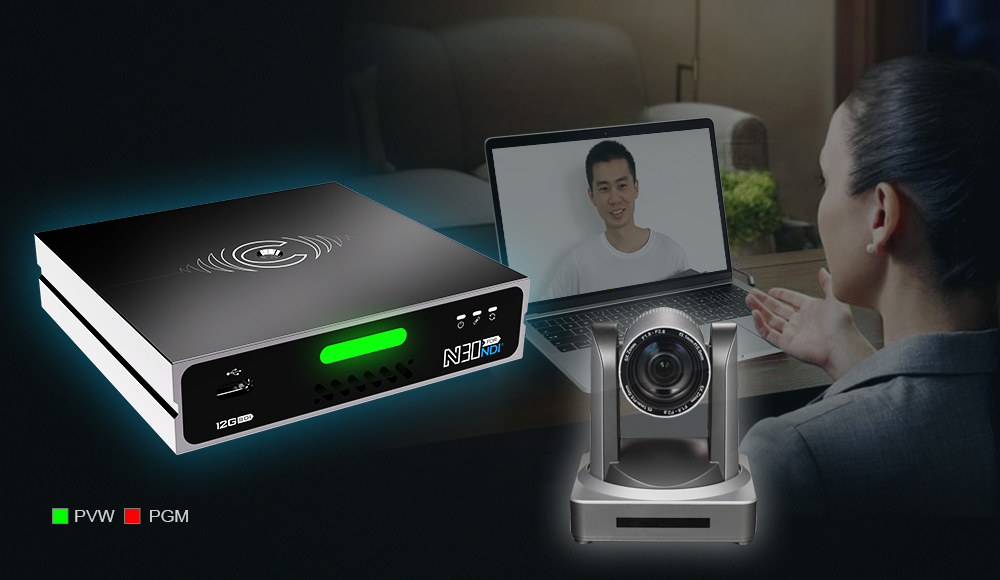

N30 has a big-sized while bright and distinct Tally for PVW/PGM indication – all is to make perfect cooperation for your team.

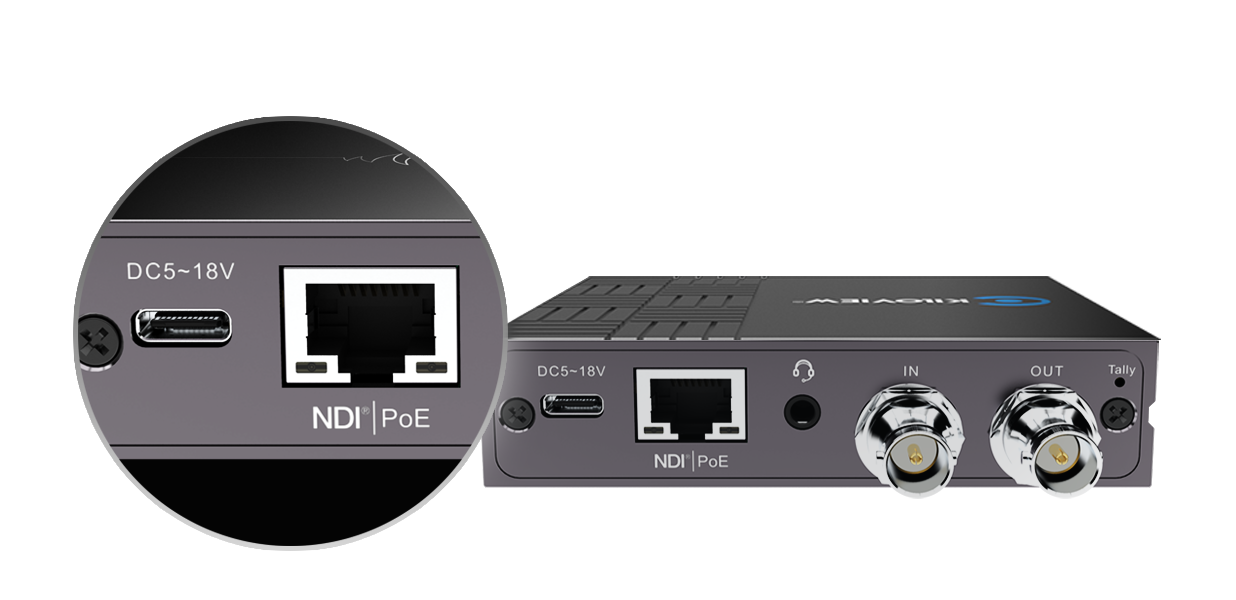

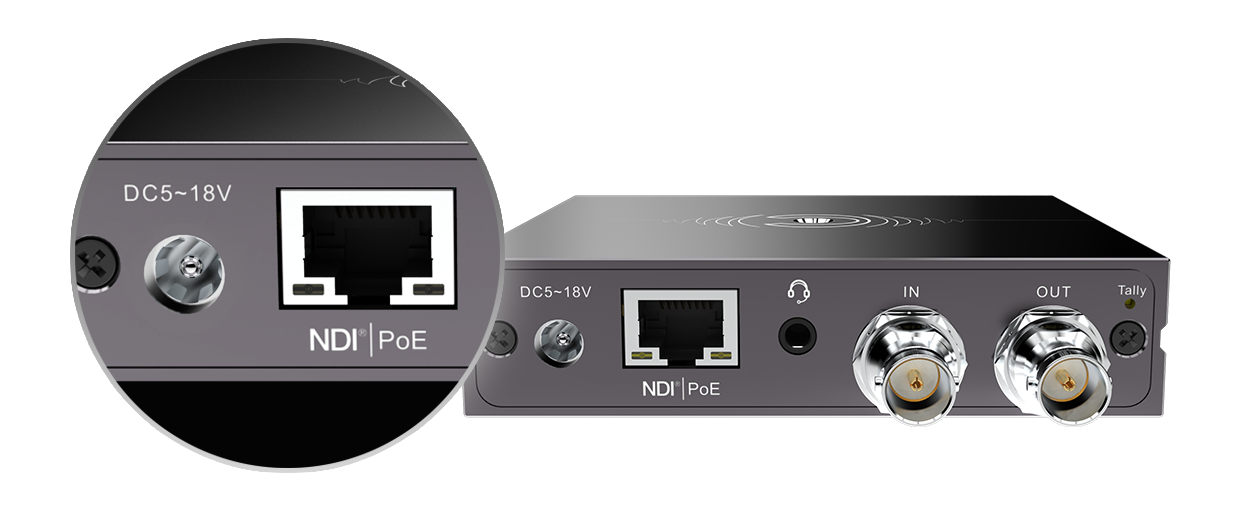

With PoE, the N30 can be powered with a single cable connection. With the design of wide DC input range from 5V to 18V, it can also be easily powered by USB power or camera battery.

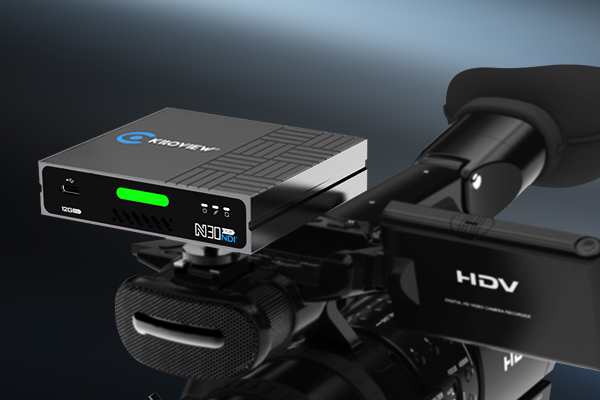

Exquisite design, small and light-weight, which can be easily attached to the camera by a threaded screw.
The groove design on both sides facilitates the rackmount installation in 1U/3U
| Resolution | 4KP60 | 4KP30 | 1080P60 | 720P60 |
|---|---|---|---|---|
| Default Bitrate | 250Mbps | 200Mbps | 125Mbps | 90Mbps |

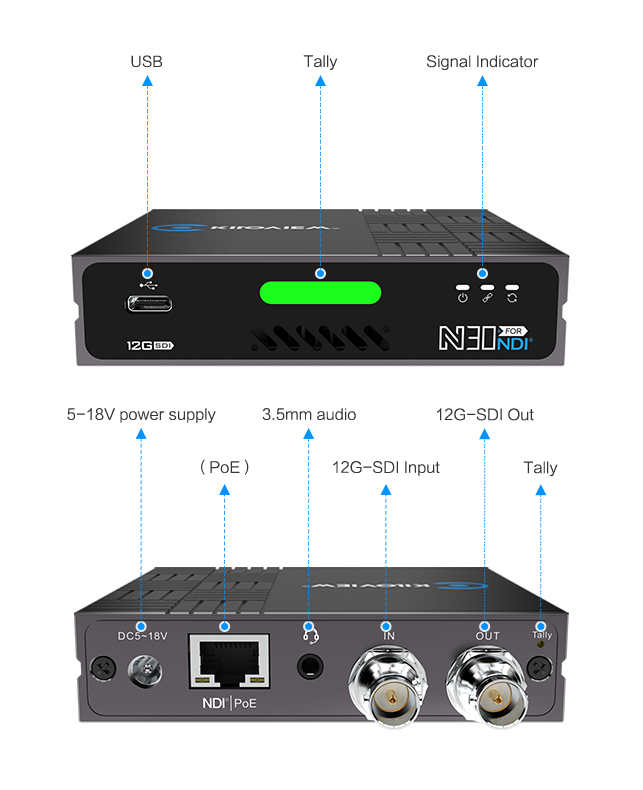

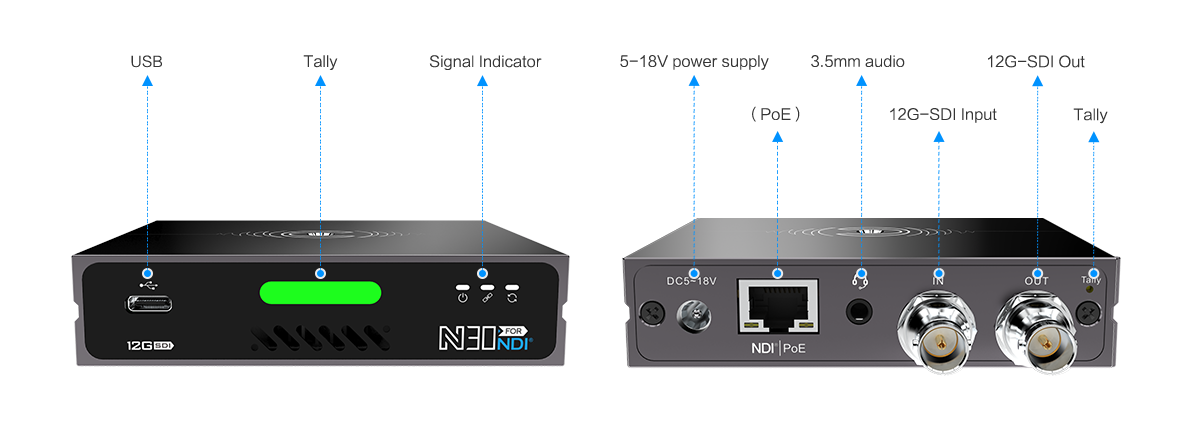

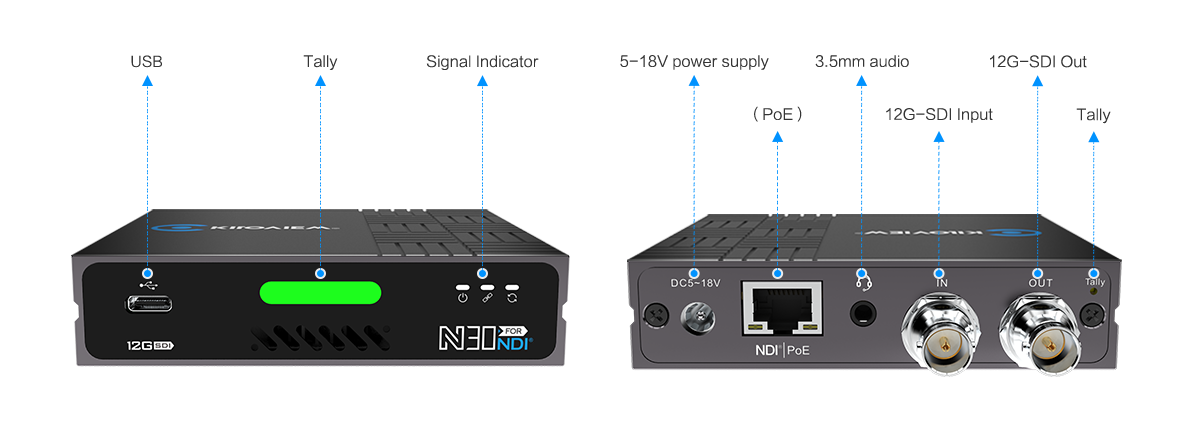

| Model | N30 |
|---|---|
| Video input | 1*12G-SDI |
| Video output | 1*12G-SDI（Loop or decoding output） |
| Audio port | 1*3.5mm |
| Network | 1*RJ45 1000Mbps Ethernet port (with PoE) |
| Video resolution | Up to 4Kp60 (backward compatible with SD/HD/VESA) |
| NDI® codec capacity | 1*NDI® encoding or 1x NDI® decoding |
| NDI®CODEC feature | NDI High Bandwidth HD encoding, typical bitrate: 250Mbps@4K60 ,125Mbps@1080p60 |
| LED indicator | Tally light, power light and status connection light |
| Power | PoE, DC, D-Tap (camera) optional. 5-18V wide range supported |
| Voice intercom | Customization |
| PTZ control | Network PTZ and Serial Port |
| DHCP | Support |
| Management | Web UI and remote management with KILOVIEW KiloLink Server |
| Power consumption | 6w |
| Operating temperature | -20~40℃ (Storage temperature: -20~70℃) |
| Dimension | 110*95*24 mm (4.33”*3.74”*0.91”) |
| Downloads | Docs & Firmware |
| Product Type | Product No. | NDI Codec Capability | Video I/O Connectivity | Resolution | Notes |
|---|---|---|---|---|---|
| NDI Bi-Directional Converter | N6 | NDI High Bandwidth/NDI|HX | HDMI | 1080P60 | |
| N5 | NDI High Bandwidth/NDI|HX | 3G-SDI | 1080P60 | ||
| N50 | NDI High Bandwidth/NDI|HX | 12G-SDI | 4KP60 | ||
| N60 | NDI High Bandwidth/NDI|HX | HDMI | 4KP60 | SRT Support | |
| N3 | NDI High Bandwidth | 3G-SDI | 1080P60 | ||
| N30 | NDI High Bandwidth | 12G-SDI | 4KP60 | ||
| N40 | NDI High Bandwidth | HDMI | 4KP60 | ||
| NDI Wireless Encoder | N1 | NDI|HX | SDI | 1080P60 | WiFi supported, Battery Builld-in |
| N2 | NDI|HX | HDMI | 1080P60 | WiFi supported, Battery Builld-in | |
| NDI Encoder | E3 | NDI|HX | SDI+HDMI | 4KP30 in HDMI, 1080P60 in SDI | |
| U40 | NDI High Bandwidth/NDI|HX | HDMI | 4KP60 | ||
| E1 | NDI|HX | SDI | 1080P60 | ||
| E2 | NDI|HX | HDMI | 1080P60 | ||
| NDI Decoder | D350 | NDI High Bandwidth/NDI|HX | SDI+HDMI | 4KP60 | |
| D260 | NDI|HX | SDI+HDMI | 1080P60 |
