NDI Core

NDI Core

NDI Core is a core system for your NDI sources to centralized Control, Organize, Route and Everything. There are three members in the NDI Core family: Basic, Pro, and customized hardware version. Basic and Pro are software version NDI Core with a 15 days free trial and users need to deploy the docker by themselves while the customized version is the hardware version of NDI Core without free trial period for users who want a turnkey solution.

With NDI Core, you can manage signal sources from dozens to thousands and build smooth and seamless switching for all signal sources. Besides, It supports various formats of NDI stream input, switch, copy, and output. Also, server hot standby, self-customized playlist, log, and user management are supported.

And all make it suitable for such applications as broadcast and TV program production, multi-channel NDI projection, multi-channel NDI conference.

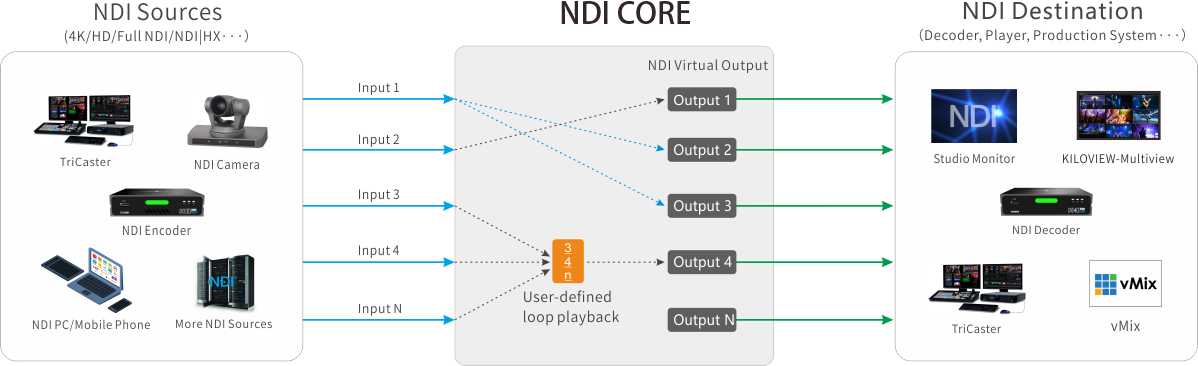

NDI Core application diagram

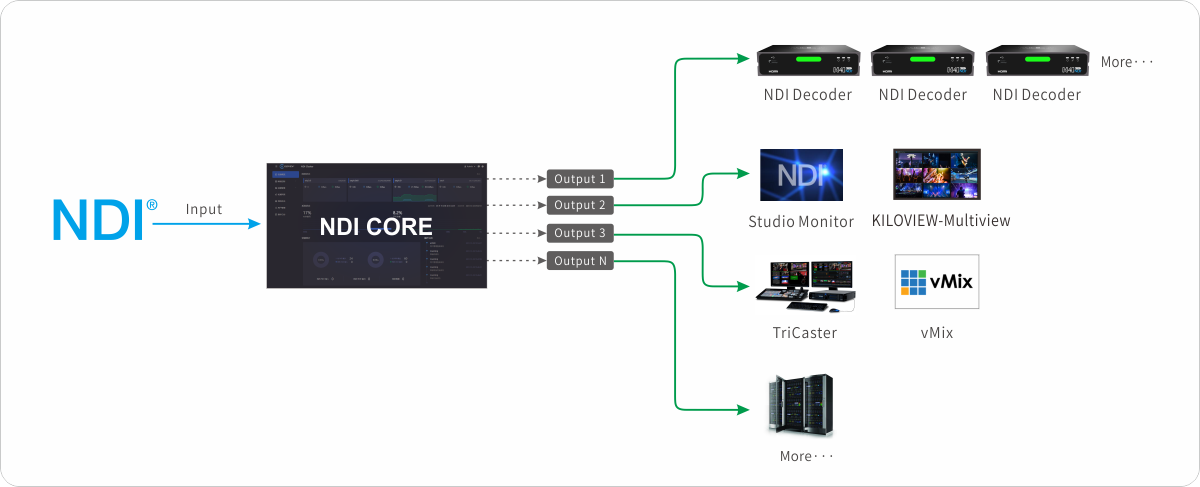

NDI Signal Relay and Amplification

When you need to use the same NDI video source for multiple destinations, direct streaming may be impossible due to limitations of network bandwidth, etc. With Kiloview NDI Core, based on powerful server performance, it can relay and amplify unlimited NDI signal and create as many NDI outputs as needed, or support any number of targets being connected to the same NDI output.

Note: NDI Core sets no limitations on the numbers of NDI signal input and output and the NDI signal processing capability is mainly related to the performance of your hardware server.

NDI Signal Seamless Switching

NDI signals can be discovered automatically or connected manually to the server, to ensure smooth and seamless switching, no frame synchronization device required, switching without blank screen, stagnation, and blurred. The signal switching delay at the switcher end is only about 1 frame.

High compatibility for unlimited NDI inputs of any format and any resolution

Both Full NDI and NDI|HX, UHD or HD, horizontal or vertical video sources are all supported. It can be seamlessly connected with NDI conference cameras, NDI mobile phones/computers, NDI codecs, NDI production system, and other NDI-enabled software and hardware systems. Tally/PTZ/Metadata reverse transparent transmission.

Unlimited NDI Inputs

Any NDI Versions

Diverse Resolutions

NDI source switching automatically with playlist for single or loop playback.

It supports NDI source polling or single loop playback. You can select any sources, dynamically set the playback sequences, duration and switch of the NDI source to realize the automatic NDI source switching which is suitable for such scenes as conferences, digital signage, etc.

Simple to use and good extension capability

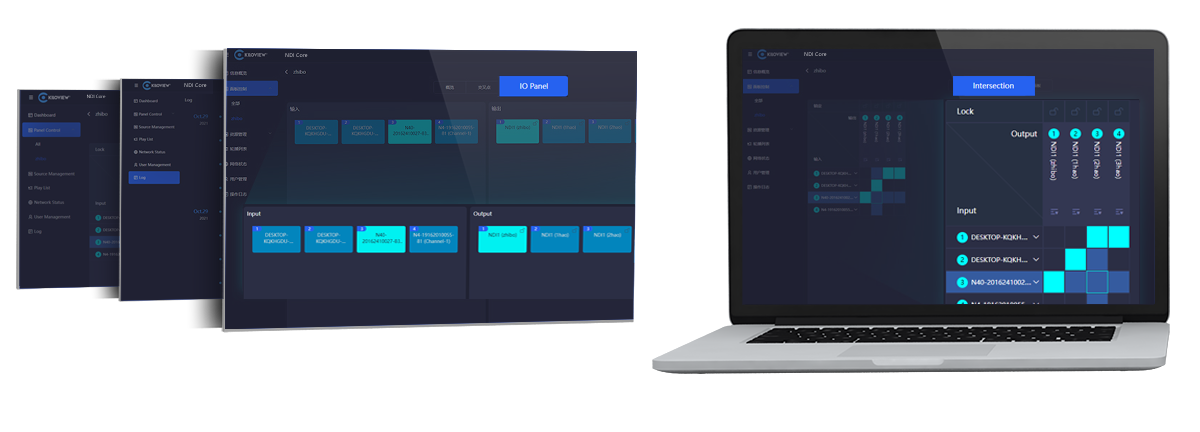

Two switch panels avaible, including IO panel and crosspoint panel for your choice.

Operation log review and management at any time is available.

Support users centraliazed management and role management.

HTTP API is available and it can be called by third-party systems to realize real-time NDI switching.

NDI Core customized hardware version: turnkey hardware to make all so easy

Reinforced frame design, repeated drop test verification, to ensure the stability of the overall structure.

Dual power supply backup to ensure 7*24h operation of the device.

Water-cooled radiator ventilation mesh and 4* cooling fan design provide a reliable guarantee for long-term stable operation of the equipment.

Free users from docker deployment, software, and hardware compatibility test, battery compatibility test, and offers users longer quality warranties and VIP after-sales service.

Previous
Next

Main Parameters

NDI Core
TypesBasicProCustomized version
Free Trail15-day free trial for limited 4 inputs and 4 outputs15-day free trial for limited 4 inputs and 4 outputsNo
Max NDI InputKiloview/NewTekUnlimitedUnlimitedUnlimited
Others16UnlimitedUnlimited
Max NDI Output16UnlimitedUnlimited
NDI Output ConnectionsUnlimited (Depends on bandwidth)Unlimited (Depends on bandwidth)Unlimited (Depends on bandwidth)
Number of Control PanelUnlimitedUnlimitedUnlimited
Max Input resolution4K P604K P604K P60
Max Output resolution4K P604K P604K P60
Input NDI VersionNDI/NDI|HXNDI/NDI|HXNDI/NDI|HX
Output NDI VersionSame as inputSame as inputSame as input
Switch PanelCrossponitIO panel and CrossponitIO panel and Crossponit
NDI Bridge SupportNoNoNo
RTMP/RTSP/SRT Input/OutputNoNoNo
Managed by Kiloview MultiviewNoNoNo
Voice IntercomNoNoNo
Server Redundant BackupNoNoNo
PTZ/TALLY/METADATA SupportYesYesYes
NDI Discovery Server SupportYesYesYes
APIYesYesYes
NDI DecodingYesYesYes
Auto Switching by Poll listNoYesYes
NDI RelayYesYesYes
Seamless SwitchYesYesYes
Switching Delay1 Frame1 Frame1 Frame
Role ManagementNoYesYes
Log ManagementYesYesYes
Server RequirementOSLinux
(supported by windows, but not recommended)
Linux
(supported by windows, but not recommended)
Linux
(supported by windows, but not recommended)
Deployment environmentDockerDockerDocker
CPUX86 / x86-64, not less than 4 cores, and the dominant frequency is not less than 1.5GHzX86 / x86-64, not less than 4 cores, and the dominant frequency is not less than 1.5GHzIntel i7-11700K, 8-core 16-thread, 3.6G dominant frequency
RAMNot less than 8GBNot less than 16GB32G dual channel DDR4 3200MHz
NetworkAt least Gigabit Ethernet; The rate of single network card shall not be lower than 4gbps or the total rate of multiple network cards shall not be lower than 4gbpsAt least Gigabit Ethernet (10GbE recommended); The rate of single network card shall not be lower than 10Gbps or the total rate of multiple network cards shall not be lower than 10GbpsIntel 82599 chip PCI-E 10 Gigabit SFP+ x2 Gigabit adaptive electrical port x1
ServiceResponse on questions via email/messageRemote online guidanceRemote online guidance
Note: Basic and Pro are software version NDI Core while the customized hardware version NDI Core is a turkey solution and it can free users from docker deployment,software and hardware compatibility test, battery compatibility test, and offers users a longer quality warranties and VIP after-sales service.

Related Products

U40 4K NDI Encoder
4KP60 HDMI to Full NDI Encoder
N40 NDI Converter
4KP60 HDMI to Full NDI Codec
N30 NDI Converter
12G-SDI to FULL NDI Codec
N3 NDI Converter
3G-SDI to FULL NDI Codec Go
N4 NDI Converter
1080p60 HDMI to NDI Codec
N1/N2 Wireless Encoder
SDI/HDMI Input, SRT Supported
E1/E2 NDI|HX Encoder
SDI/HDMI Input/Loop, SRT Supported
N6 NDI Converter
1080p60 HDMI to NDI Codec

Quick Comparison of our NDI Products

Product TypeProduct No.Input InterfaceData TransferResolutionRemark(s)
FULL NDI CodecN3012G-SDIEthernet4KP6012G-SDI Input & Loop Supported
N404K HDMIEthernet4KP60
N33G-SDIEthernet1080P60
N4HDMIEthernet1080P60
N6HDMIEthernet1080P60
NDI|HX Wireless EncoderN13G-SDIWiFi/Ethernet1080P60
N2HDMIWiFi/Ethernet1080P60
NDI|HX Wired EncoderE1 NDI3G-SDIEthernet1080P60
E2 NDIHDMIEthernet1080P60
NDI|HX DecoderD300SDI+HDMIEthernet4KP609 Channels of Video Simultaneous Decoding and Split-screen display Supported

NDI Core

Reminder: You can register to apply for the 15 days free trial of NDI Core Software and we will send them to you by email soon.
