Why do we need a KILOVIEW NDI Recording System

KILOVIEW NDI Recorder is an independent recording system to ensure ALL your NDI sources are recorded separately in synchronization status.

You can simply record any NDI High Bandwidth/NDI|HX resources in 4K/HD resolution at your choice.

This is the most reliable NDI recording system.

The only limitation of the max number of sources recorded is the CPU, bandwidth, disk spaces, and writing speed.

Manual Guide

Click Here to get the manual guide.

Up to 20 NDI sources recording, any resolution, any format

Auto-discovery of NDI sources in the same network, or any NDI sources in other networks by NDI Discovery Server.

Recording file in the format of .mov, with fixed-size or fixed length, locally by SSD or Thunderbolt, or NAS.

*Support for local NAS storage is under development.

Record in synchronization status, make your production so easy.

  • KILOVIEW NDI Recorder supports self-defined NTP Server to make sure all the NDI sources recorded in Synchronization status


  • Simply one-click synchronization if NDI sources coming from KILOVIEW devices.

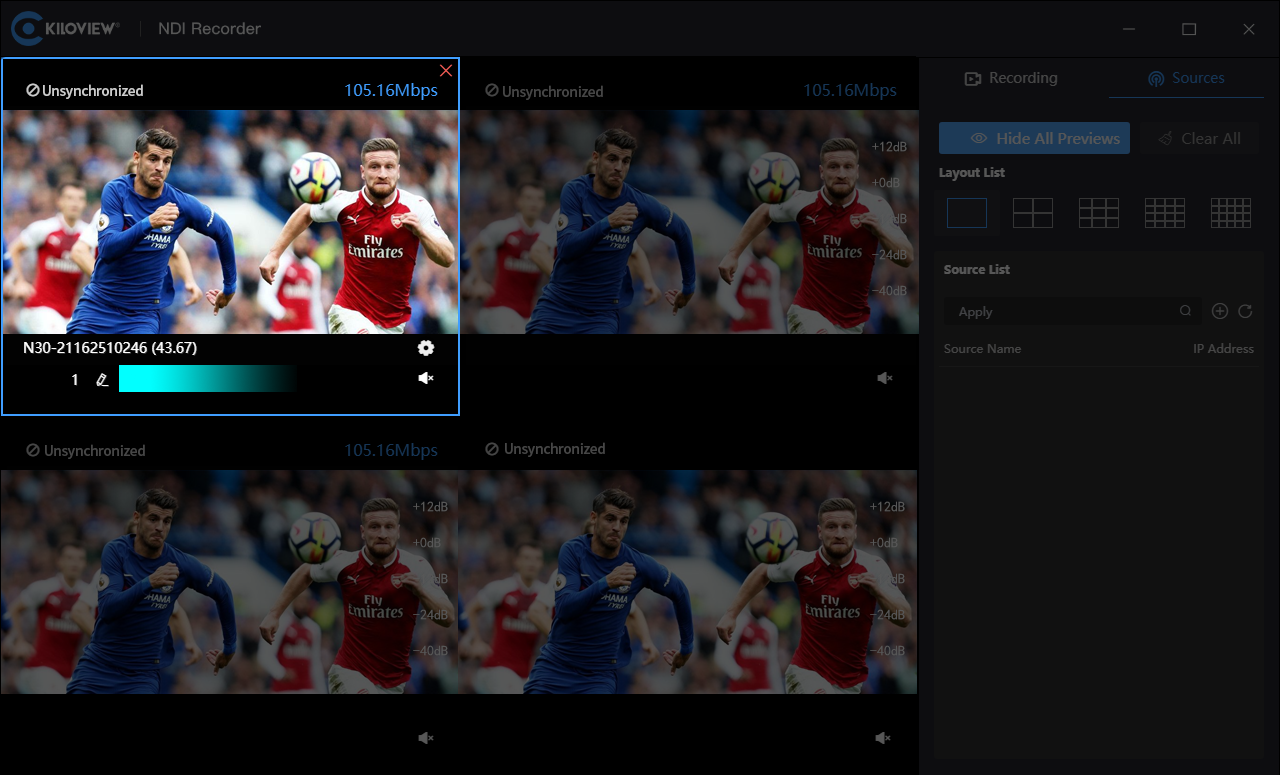

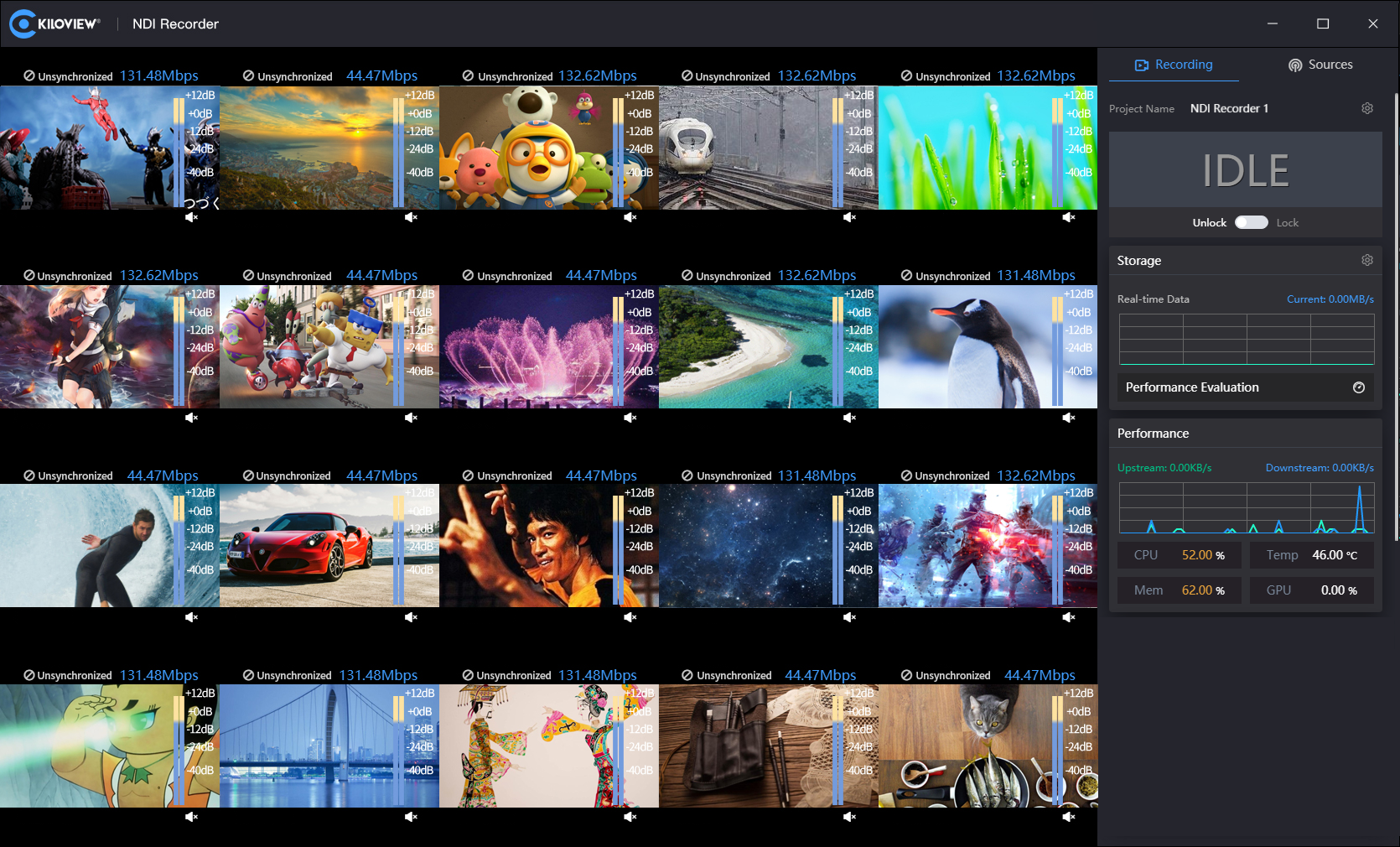

Various Multiview Layouts for Monitoring

1/4/9/16/20 multiview layouts are available for your choice. You can display/hide preview image/VU meter.

Simply drag the automatically detected sources into the multi-screen layout. Preview, and click to record.

Customizable overlays for each window: Audio levels, Tally status, Current Bitrate, Synchronization Status, Source Names.

Safety Guaranteed

System Safety: The KILOVIEW NDI Recording system is an independent recording system that does NOT rely on any other software. We guarantee your videos are recorded continuously, correctly, completely, and independently.

Recording Quality Safety: Once a file gets full, the recorder will record the next file automatically right away. No worries about losing frames.

Operation Safety: In order to avoid misoperation and missing valuable recording sources, the system will be LOCKED during recording. Once locked, the system needs DOUBLE confirmation to unlock and pause.

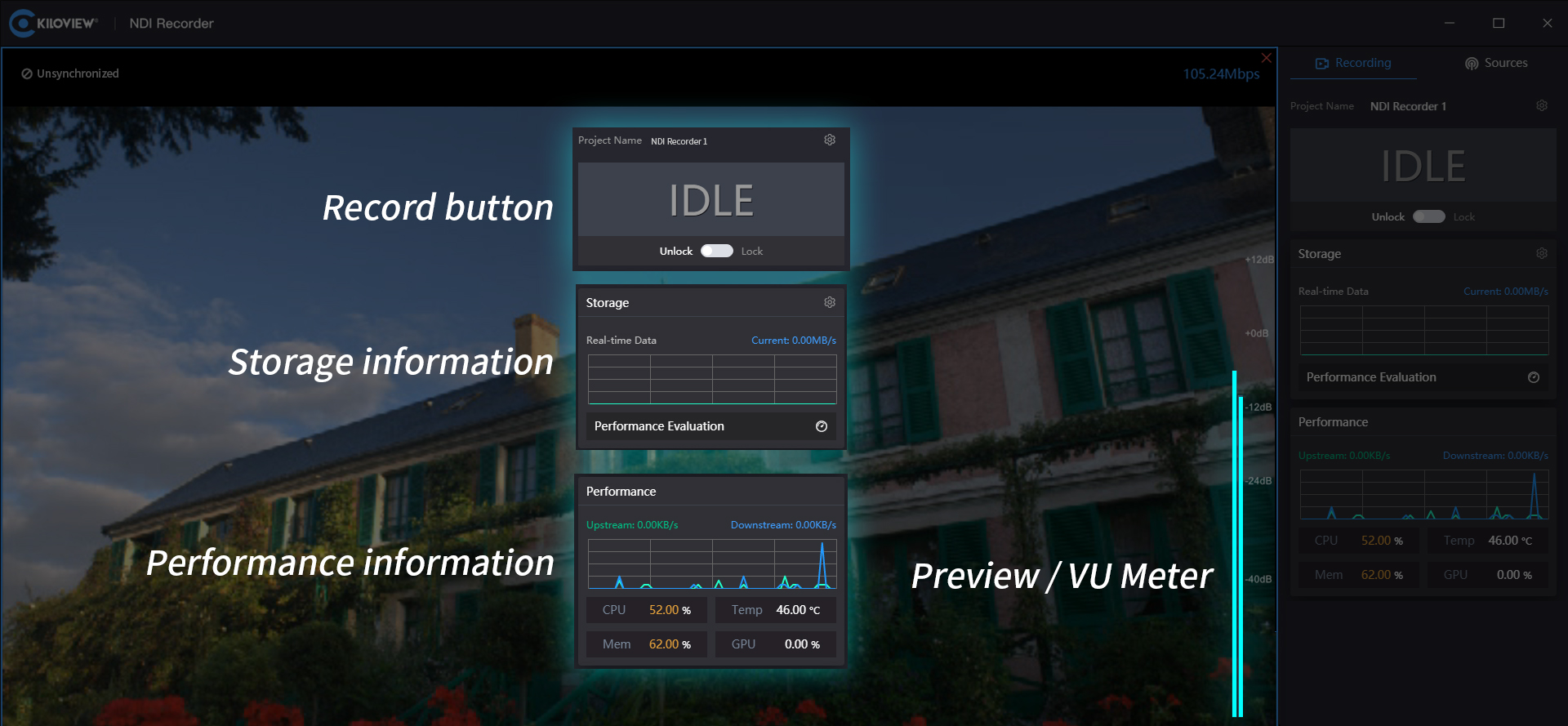

Hardware Performance, We're Monitoring for You.

The monitoring windows present the status of Disk Storage, CPU, Temperature, Bandwidth & other crucial parameters that might affect the recording quality and process.

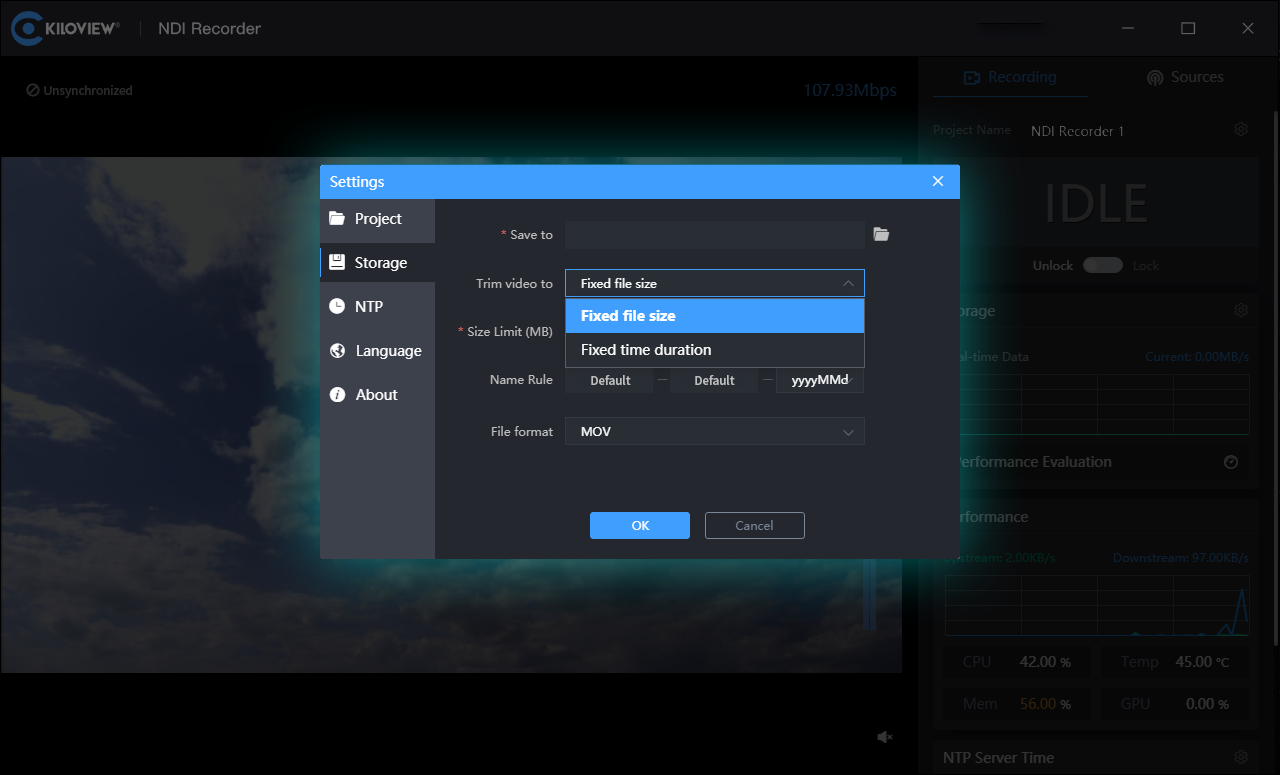

Record in the Fixed Length / Size

You can choose to save the recording files in a fixed time length or a fixed file size.

Once a file gets full, the recorder will immediately record to the next file automatically.

No worries about losing frames.

Lable Your Sources

Freely lable your video/audio sources to identify each of them.

Why NDI?

Lower Latency  |  Higher Quality  |  Less Coils


NDI Recorder Parameters

Parameter/VersionTrialFull Version
Max CH of RecordingKILOVIEW Products420
Other Products2
Max Resolution4KP604KP60
Stream Type(preview)Sub StreamSub Stream
Frame RateDepend on Video SourceDepend on Video Source
Recording & StorageSSD/TF Local RecordingSSD/TF Local Recording
One-Click NTP SynchronizationKILOVIEW Device OnlyKILOVIEW Device Only
One-Click RecordingYesYes
VU MeterYesYes
Trim Recording File AutomaticallyYesYes
Free LayoutYesYes
Bulk ClearYesYes
License ActivationYesYes
ManagementWeb/KiloLink ServerWeb/KiloLink Server
Operating SystemWindowsWindows
Support DownloadDocs & Firmware

Recommended Hardware Parameters

ContentRecommended Parameters
NIC10G X520-DA 2 fiber optic network card 10G dual optical port SFP+
CPUi7-11700/K 8-core 16-thread boxed CPU processor
Hard Disk256GB SSD
Storage32GB(16G×2) DDR4 3200 Desktop Memory Module


Related products


4K HDMI to NDI Converter


H.265 5G Bonding Encoder


4K HDMI/NDI Bi-Directional Converter


4K P60 HDMI to NDI Encoder


12G-SDI/NDI Bi-Directional Converter


N1/N2 Wireless NDI Encoder


3G-SDI/NDI Bi-Directional Converter


H.264 HD SDI/HDMI Encoder

Quick Comparison of our NDI Series

Product TypeProduct No.NDI Codec CapabilityVideo I/O ConnectivityResolutionNotes
N6NDI High Bandwidth/NDI|HXHDMI1080P60
N5NDI High Bandwidth/NDI|HX3G-SDI1080P60
N50NDI High Bandwidth/NDI|HX12G-SDI4KP60
N60NDI High Bandwidth/NDI|HXHDMI4KP60SRT Support
N3NDI High Bandwidth3G-SDI1080P60
N30NDI High Bandwidth12G-SDI4KP60
N40NDI High BandwidthHDMI4KP60
NDI Wireless EncoderN1NDI|HXSDI1080P60WiFi supported, Battery Builld-in
N2NDI|HXHDMI1080P60WiFi supported, Battery Builld-in
NDI EncoderE3NDI|HXSDI+HDMI4KP30 in HDMI, 1080P60 in SDI
U40NDI High Bandwidth/NDI|HXHDMI4KP60
NDI DecoderD350NDI High Bandwidth/NDI|HXSDI+HDMI4KP60
