Kiloview N5 is a compact, cost-effective NDI converter that supports both NDI High Bandwidth and NDI HX2/HX3 formats. With 3G-SDI input and loop-through, it encodes SDI signals into high-quality NDI streams and can also decode them back for SDI output—it’s your most affordable way into the world of NDI.Additionally, the N5 can be connected to cameras via a USB port to convert USB video outputs into NDI streams. This capability is perfect for a variety of applications such as video conferencing, live streaming, and training sessions.
The N5 supports both NDI High Bandwidth and NDI HX2/ HX3 formats in a single, compact unit. It features 3G-SDI input with loop-through and decoding output, supporting resolutions up to 1080p60.● In encoding mode: the N5 can simultaneously output both NDI High Bandwidth and NDI HX2/HX3 streams from a 3G-SDI source.● In decoding mode: it decodes any NDI High Bandwidth, NDI HX2, or HX3 stream and outputs directly to baseband 3G-SDI for on-screen monitoring.
The N5 allows direct input from USB video devices such as webcams, UVC cameras, and built-in laptop cameras—instantly converting them into NDI streams at up to 1080p60. With no need for external capture cards or complex setup, it offers a fast and efficient way to integrate lightweight video sources into professional NDI workflows.

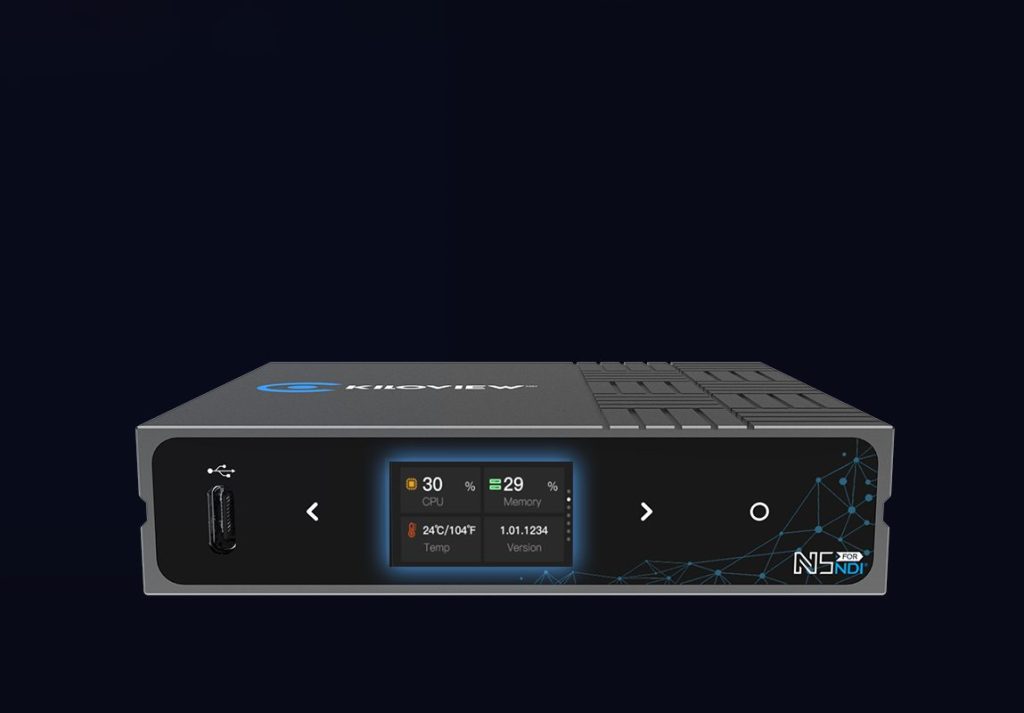

• Clear status display with touch buttons: Real-time display of network connection, operating mode, and device information keeps you fully informed, while the touch buttons allow quick navigation and precise adjustment of key settings.• Tally Indicators: Front panel LCD and rear Tally LEDs provide clear red/green indicators for PGM (program) and PVW (preview) status. (It also supports external Tally through USB expansion.)
• Clear status display with touch buttons: Real-time display of network connection, operating mode, and device information keeps you fully informed, while the touch buttons allow quick navigation and precise adjustment of key settings.• Tally Indicators: Front panel LCD and rear Tally LEDs provide clear red/green indicators for PGM (program) and PVW (preview) status.
The N5 seamlessly connects to the KiloLink Server Pro once registered, enabling centralized remote management with real-time monitoring of device status, including connectivity, video preview, bandwidth, and IP address—all in one interface for streamlined oversight.

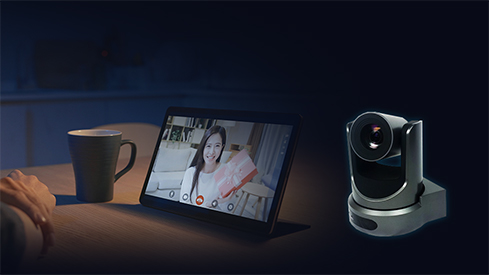

The N5 enables flexible PTZ camera control without needing additional controllers. It supports serial connections (RS-232/RS-485/RS-422) via USB and mainstream network protocols. This allows precise pan, tilt, and zoom adjustments, enhancing multi-camera live streaming and conference setups with seamless integration and user-friendly operation.

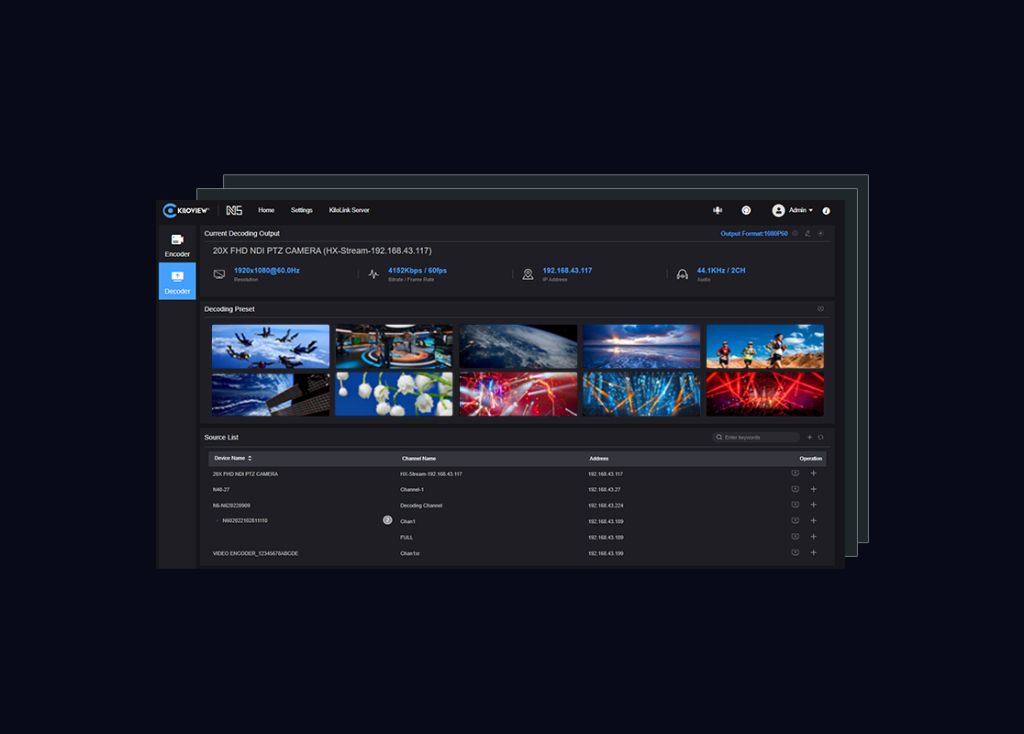

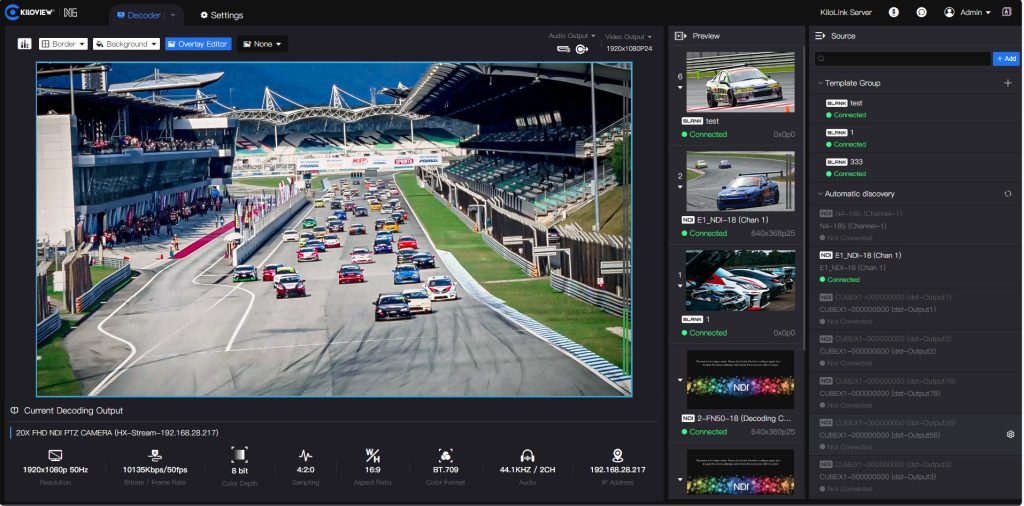

N5 offers real-time preview of up to 10 video sources, allowing quick signal verification and issue detection before going live for smooth, reliable multi-camera production.
In addition, it supports flexible OSD tools, including real-time VU meter display, customizable border overlays, and full graphics and text overlays, enabling visually engaging, branded outputs while saving time and streamlining the overall workflow.

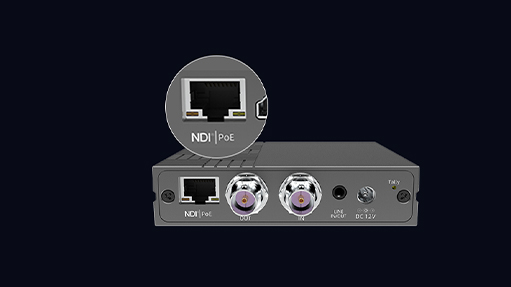

The N5 supports PoE for single-cable power and data transmission. With a 12V–18V DC input range, it can also be powered via USB or camera batteries for flexible deployment.
In decoding mode, you can preset up to 10 NDI sources (0–9) and quickly switch outputs using a connected USB keypad.You can even use the keypad to control a PTZ camera, making it the most affordable PTZ controller available.
When a video source or network stream is interrupted, the system automatically displays a preset “No Video” screen or a custom PNG image (1920 × 1080 or 1280 × 720), instead of defaulting to a black or blue screen. This maintains a clean, professional output while helping users quickly pinpoint input-side issues—minimizing downtime and avoiding confusion.
The N5 fully supports USB headset connectivity. When paired with the Kiloview Intercom System (KIS), the N5 supports real-time voice intercom, enabling seamless talkback during production workflows.

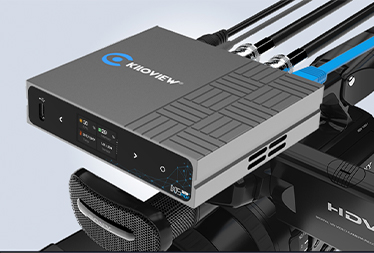

The N5 features a compact design and comes with a standard threaded cold shoe mount, making it easy to attach directly to a camera.
