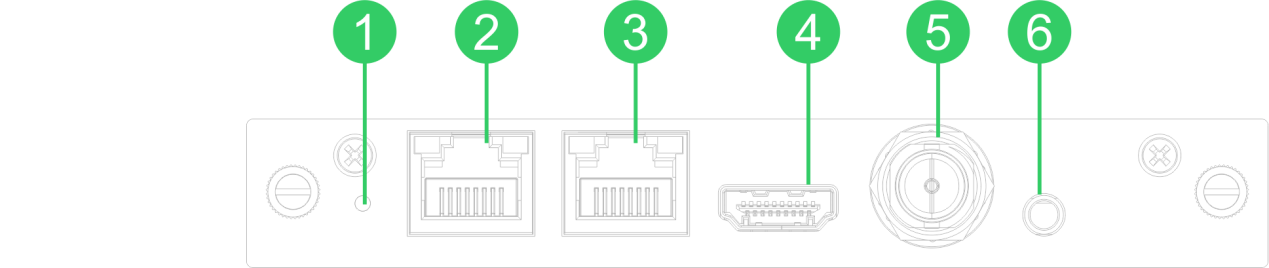

Interfaces description


1.Reset Button Press and hold for 5 seconds to restore the factory settings
2.Ethernet Port1 1*RJ-45,100/1000Mbps
3.Ethernet port2 1*RJ-45,100/1000Mbps
4.HDMI output HDMI output interface
5.SDI output SDI output interface
6. Audio output 3.5mm audio output interface
