Multi-split-screen layout settings

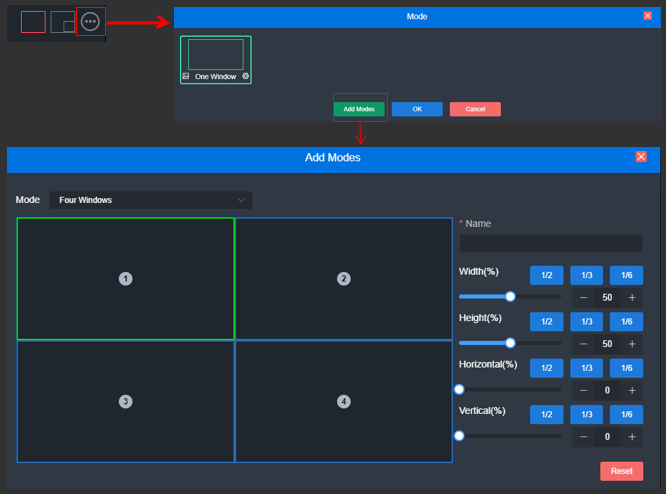

Click Settings, go to the layout page, click "Add layout" and go to the layout editing page. The decoding device can be configured up to 9 split screens, dragging multi-screen window sizes and overlaying picture-in-picture with the mouse. When multi-screen overlays, the smaller the window number, the lowest the overlay will be.
