P3

5G Wireless Bonding Encoder
Experience uninterupted audio and audio tranmission with Our latest Bonding device

Unlock Seamless 5G Streaming with P3 Anytime, Anywhere!

Kiloview P3 is the next-gen of 5G wireless bonding encoder based on KiloLink technology, leading the way in the era of video and audio transmission across the internet. It supports six network connections: 4-channel 5G cellular, WiFi (2.4G/5G dual-band) and Gigabit Ethernet, ensuring 24/7 seamless live streaming. With a 3300mAh built-in battery and a 6600mAh external battery, it can guarantee your all-day use.

The P3 features 3G-SDI/4K HDMI/USB multiple inputs with H.265/H.264 encoding, compatible with multiple streaming protocols such as RTSP, RTMP, SRT, HLS, WHIP, and NDI HX. It can stream directly to external platforms without the need for a relaying server, or provide an unlimited bonding and seamless streaming experience with the permanently free or self-hosted KiloLink Server Pro.

Kiloview P3 is the next-gen of 5G wireless bonding encoder based on KiloLink technology, leading the way in the era of video and audio transmission across the internet. It supports six network connections: 4-channel 5G cellular, WiFi (2.4G/5G dual-band) and Gigabit Ethernet, ensuring 24/7 seamless live streaming. With a 3300mAh built-in battery and a 6600mAh external battery, it can guarantee your all-day use.

The P3 features 3G-SDI/4K HDMI/USB multiple inputs with H.265/H.264 encoding, compatible with multiple streaming protocols such as RTSP, RTMP, SRT, HLS, and NDI HX. It can stream directly to external platforms without the need for a relaying server, or provide an unlimited bonding and seamless streaming experience with the permanently free or self-hosted KiloLink Server Pro.

HDMI+SDI+UBS Inputs, 4KP30 Image Quality

Whether you’re using a pro-grade HDMI/SDI camera or a USB handheld camera—no matter the device, the P3 connects them all. And with support for up to 4Kp30 resolution, every frame the P3 captures pops with lifelike detail.

*4KP30 only applicable for HDMI input interface.

HDMI

SDI

USB

HDMI+SDI+UBS Inputs, 4KP30 Image Quality

Whether you’re using a pro-grade HDMI/SDI camera or a USB handheld camera—no matter the device, the P3 connects them all. And with support for up to 4Kp30 resolution, every frame the P3 captures pops with lifelike detail.

*4KP30 only applicable for HDMI input interface.

HDMI

SDI

USB

Supports HEVC and NDI HX

High Quality/Low Bandwidth
a Cost-effective Live Streaming Solution

P3 supports H.265/H.264 encoding format. H.265 encoding technology can not only achieve better image quality at lower bit rates but also achieve efficient data transmission with low bandwidth consumption. Meanwhile, you can always set your own video encoding rate (within 40 Mbps) and adjust it according to actual network conditions and video quality requirements, ensuring perfect flexibility.

Effortless On-site Production with Lightning
Fast Efficiency

Exclusive NDI HX protocol ensures tier-1 production efficiency in your studio or production centre. NDI has become the preferred choice for IP production due to its high image quality/low latency transmission characteristics. When you choose P3, it not only means that you don’t need to purchase other NDI converters to start efficient production, but also allows your workflow to be fully compatible with third-party production software such as Tricaster and vMix.

*Currently, it only supports NDI HX2, and NDI HX3 will be available through upcoming firmware updates.

Supports HEVC and NDI HX

High Quality/Low Bandwidth
a Cost-effective Live Streaming Solution

P3 supports H.265/H.264 encoding format. H.265 encoding technology can not only achieve better image quality at lower bit rates but also achieve efficient data transmission with low bandwidth consumption. Meanwhile, you can always set your own video encoding rate (within 40 Mbps) and adjust it according to actual network conditions and video quality requirements, ensuring perfect flexibility.

Effortless On-site Production with Lightning
Fast Efficiency

Exclusive NDI HX protocol ensures tier-1 production efficiency in your studio or production centre. NDI has become the preferred choice for IP production due to its high image quality/low latency transmission characteristics. When you choose P3, it not only means that you don’t need to purchase other NDI converters to start efficient production, but also allows your workflow to be fully compatible with third-party production software such as Tricaster and vMix.

*Currently, it only supports NDI HX2, and NDI HX3 will be available through upcoming firmware updates.

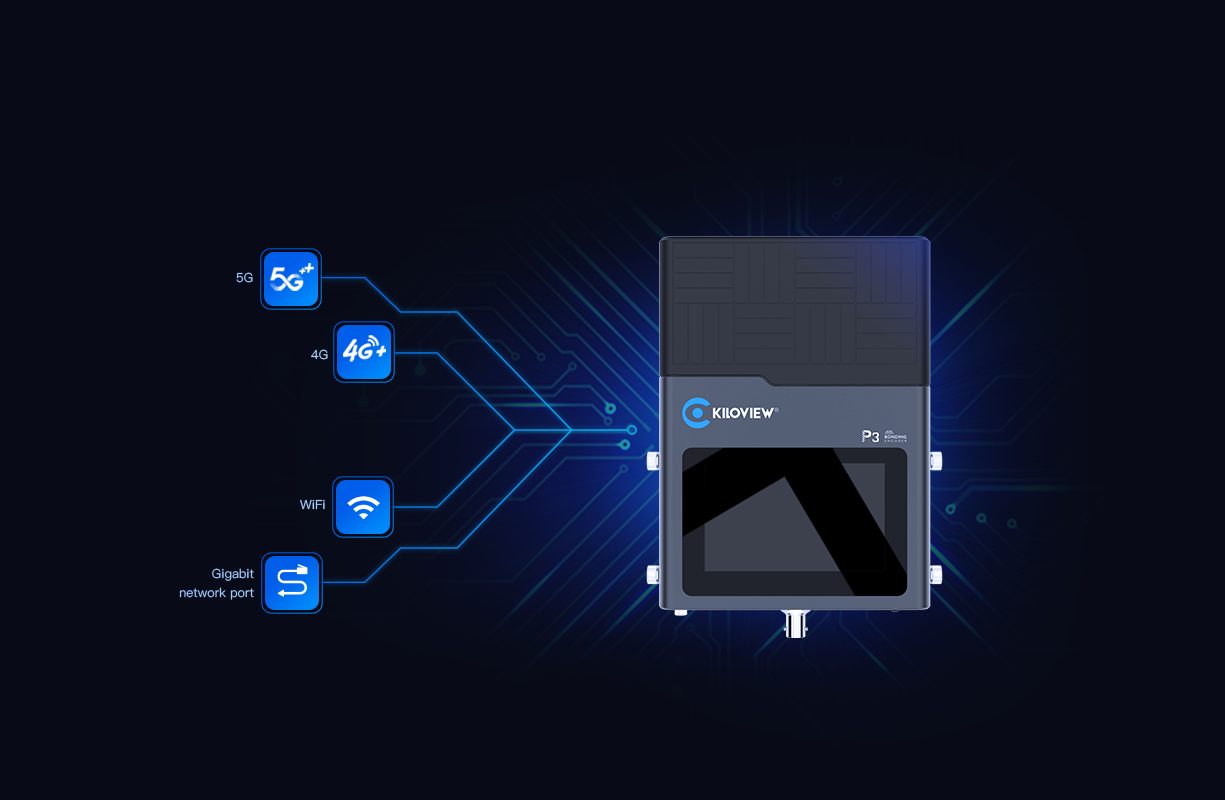

6-Channel Bonding, 5G Transmission
Go Live – Anytime, Anywhere

P3 can be equipped with four 5G/4G modules of your choice, achieving 6-channel bonding transmission of 5G + 4G + WiFi + Ethernet. It fully utilizes patented KiloLink technology to realize strategies such as Automatic load balance & dynamic adaptive bitrate through encryption algorithms, to realize tier-1 reliability in streaming. At the same time, through unique customized buffering time and dynamic bitrate adjustment, it ensures that users can efficiently transmit streams with top stability even in complex and ever-changing network environments. Additionally, it provides traffic statistics to help users monitor their data card usage.

6-Channel Bonding,
5G Transmission
Go Live Anytime, Anywhere

P3 can be equipped with four 5G/4G modules of your choice, achieving 6-channel bonding transmission of 5G + 4G + WiFi + Ethernet. It fully utilizes patented KiloLink technology to realize strategies such as Automatic load balance & dynamic adaptive bitrate through encryption algorithms, to realize tier-1 reliability in streaming. At the same time, through unique customized buffering time and dynamic bitrate adjustment, it ensures that users can efficiently transmit streams with top stability even in complex and ever-changing network environments. Additionally, it provides traffic statistics to help users monitor their data card usage.

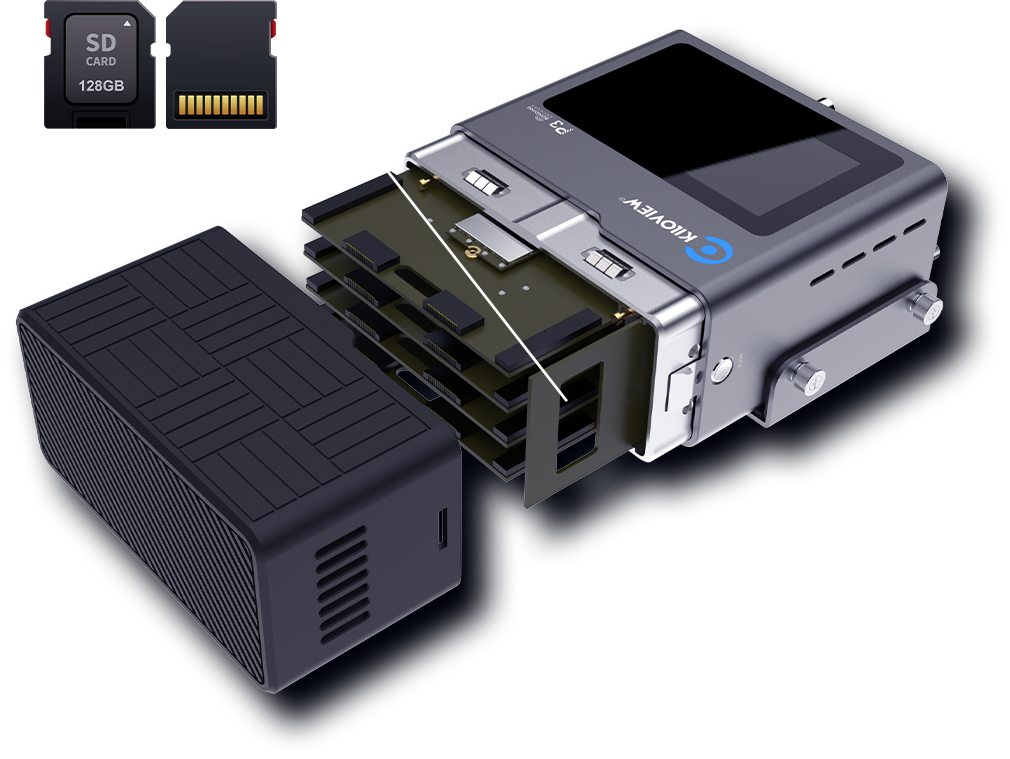

Modular Design
Create your Streaming Workflow

To adapt to a wide range of use cases, the P3 features a flexible modular design. You can mix and match 5G/4G network modules and battery modules to build a cost-effective setup tailored to your needs.

The device comes standard with a WiFi module (including an SD storage module), so you can easily customize your configuration based on your location, usage scenarios, and network conditions.

Modular Design
Create your Streaming Workflow

To adapt to a wide range of use cases, the P3 features a flexible modular design. You can mix and match 5G/4G network modules and battery modules to build a cost-effective setup tailored to your needs.

The device comes standard with a WiFi module (including an SD storage module), so you can easily customize your configuration based on your location, usage scenarios, and network conditions.

Innovative Interactive Design
One-touch for Everything

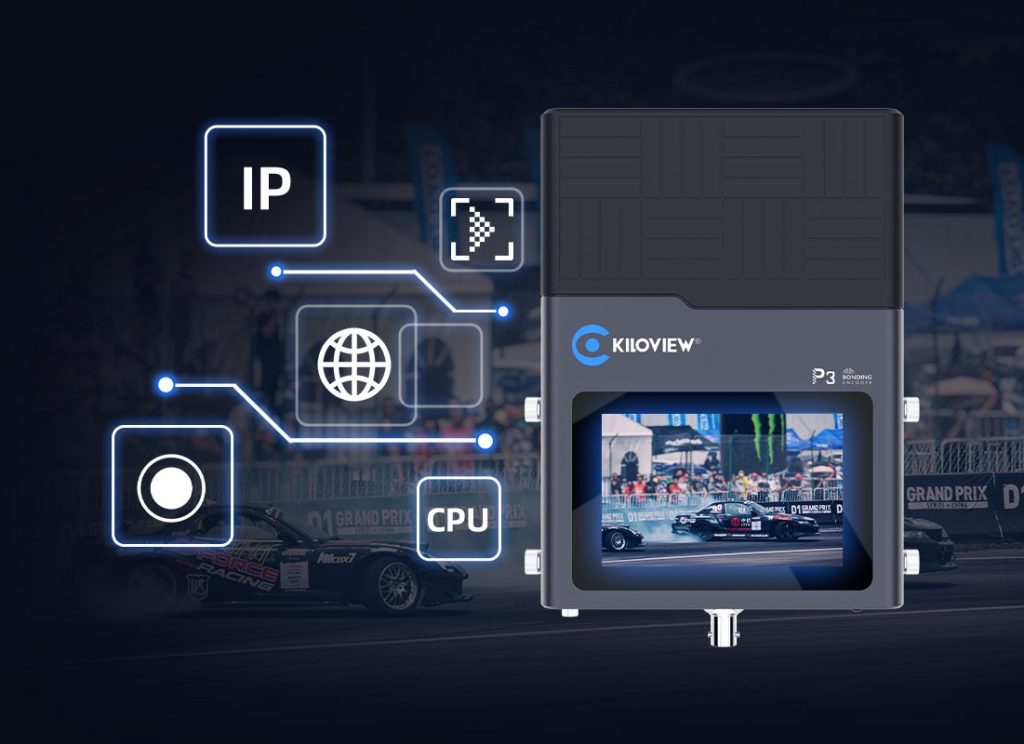

Large-size LCD:

Easy Device Monitoring/ Quick Operation

P3 features a 4.3-inch touch LCD screen for previewing input images of the camera in real-time. Through the screen, users can view information in real-time, such as device IP address, network status, video resolution, Tally status, device CPU, temperature, as well as the encoding status of video and audio.

Innovative Interactive Design
One-touch for Everything

Large-size LCD:

Easy Device Monitoring/ Quick Operation

P3 is equipped with a 4.3-inch touch LCD screen, which is used for previewing input images of the camera in real-time. Through the screen, users can view information in real-time, such as device IP address, network status, video resolution, Tally status, device CPU, temperature, as well as the encoding status of video and audio.

Dual Battery Modules for Your Uninterrupted Live Streaming

The P3 is equipped with a 6600mAh external battery and a 3500mAh built-in battery. The external battery can last for 6+hours when the 4-channel 5G module is operating at full load, while the built-in battery can provide a stable use of 3 hours. When the external battery turns to low battery mode, the system will switch to the internal battery automatically for power supply to ensure uninterrupted operation all-day. Meanwhile, the DC interface can also support external power input.

Dual Battery Modules for Your Uninterrupted Live Streaming

The P3 is equipped with a 6600mAh external battery and a 3500mAh built-in battery. The external battery can last for 6+hours when the 4-channel 5G module is operating at full load, while the built-in battery can provide a stable use of 3 hours. When the external battery turns to low battery mode, the system will switch to the internal battery automatically for power supply to ensure uninterrupted operation all-day. Meanwhile, the DC interface can also support external power input.

More Features

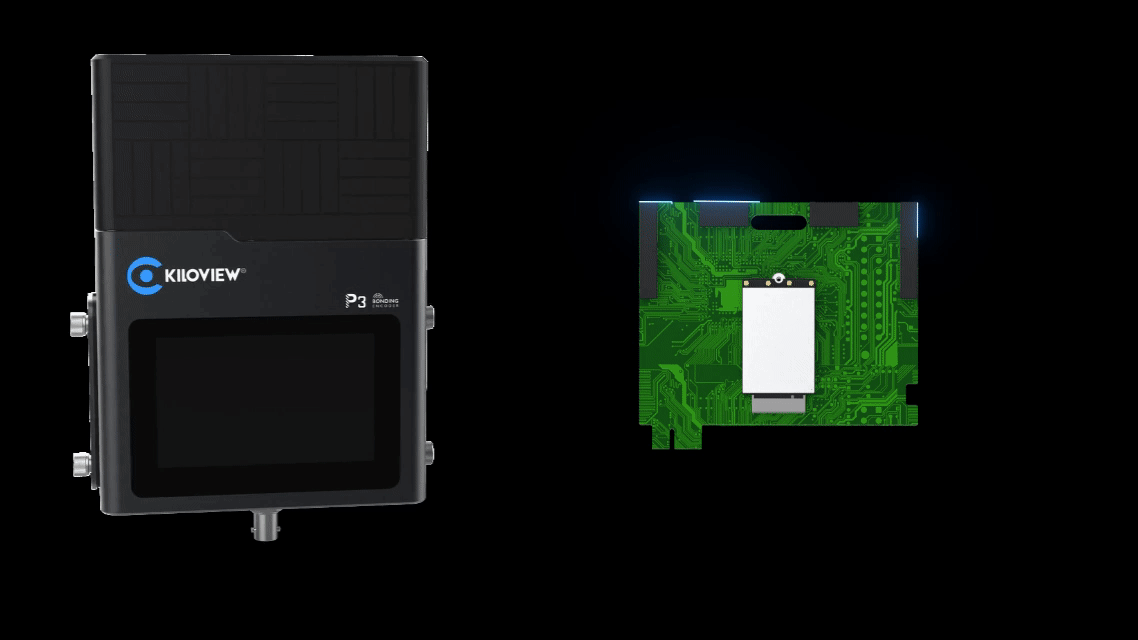

Antenna Isolation Design: Excellent Anti-Interference Performance

The P3 uses an internal antenna design and ensures sufficient isolation by setting the best distinguishing angle between different antennas. The internal antenna can fully resist external electromagnetic interference, while the isolation design effectively avoids the mutual interference phenomenon caused by redundant antenna stacking. In your actual live streaming work, whether in a weak network environment or signal blind spots, P3 can always guarantee you the maximum signal strength.

Multiple Storage Strategy Recording while Streaming

Capturing & Recording every moment: The P3’s standard Wi-Fi module includes an SD card slot, so users can choose on different recording options, either on SD, USB, or NAS. Monitor videos while recording, with file formats supporting MOV, MP4. Through the device’s LCD display screen, users would be able to view the recording status in real-time.

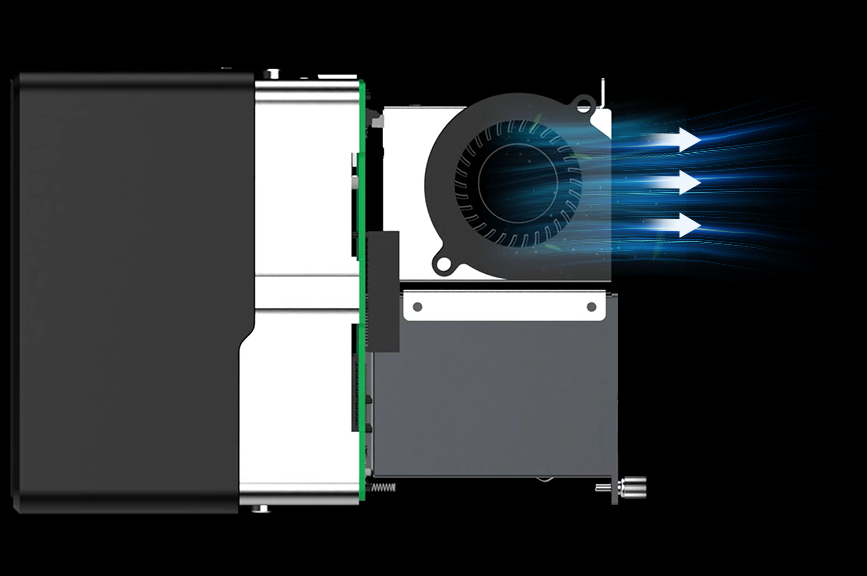

Intelligent Cooling System, Essential for Outdoor Use

Self-adjustable four-speed fan: To ensure stable performance of the equipment under extreme weather, P3 is equipped with a temperature-controlled fan that can be adjusted automatically. The P3’s intelligent fan ensures the cooling of the CPU timely manner while using the lowest energy consumption, ensuring continuous stable operation.

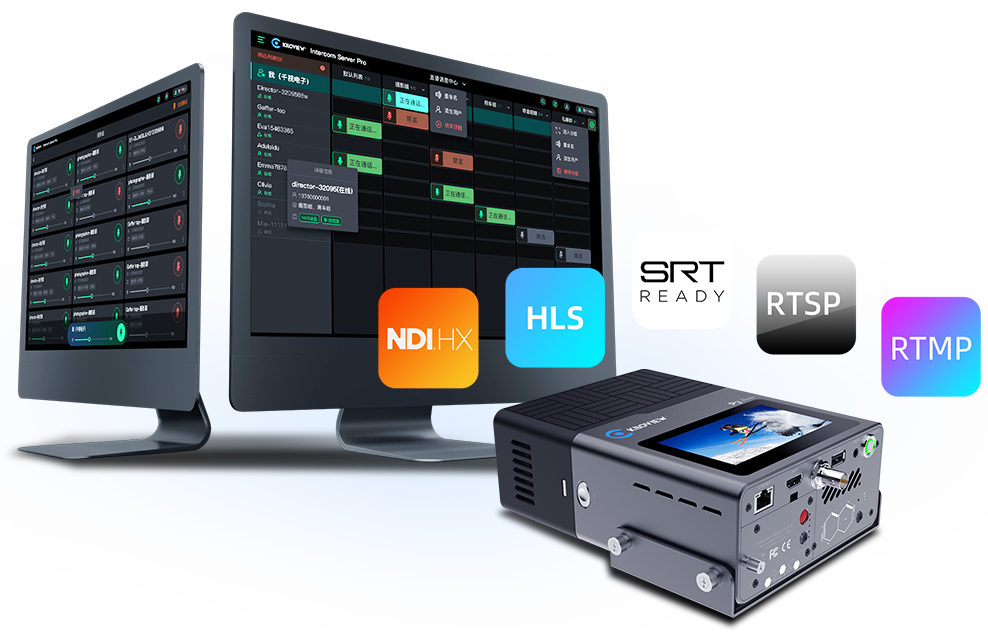

Open Compatibility, KIS Pro and Personal Hotspot

All mainstream transmission protocols support:

You can transmit signals in various formats freely, such as NDI HX/SRT/RTMP/RTMPS/RTSP/RTP/HLS/WHIP/TS-UDP, etc. When the signal reaches the studio or production center, you don’t need to purchase a receiving server additionally, by just using any brand/model decoder to complete monitoring work.

KIS Pro Intercom System:

Synchronous voice intercom allows your seamlessly communicate with anyone connected within the KIS intercom solutions. The bonding device would act as an interface connected to the KIS intercom server. Since the deployment is a web application, user can join and create Intercom service right at their fingertips.

Personal hotspot supported:

Now, you can easily open P3’s personal hotspot function with just one click, achieving the most efficient remote management of devices.

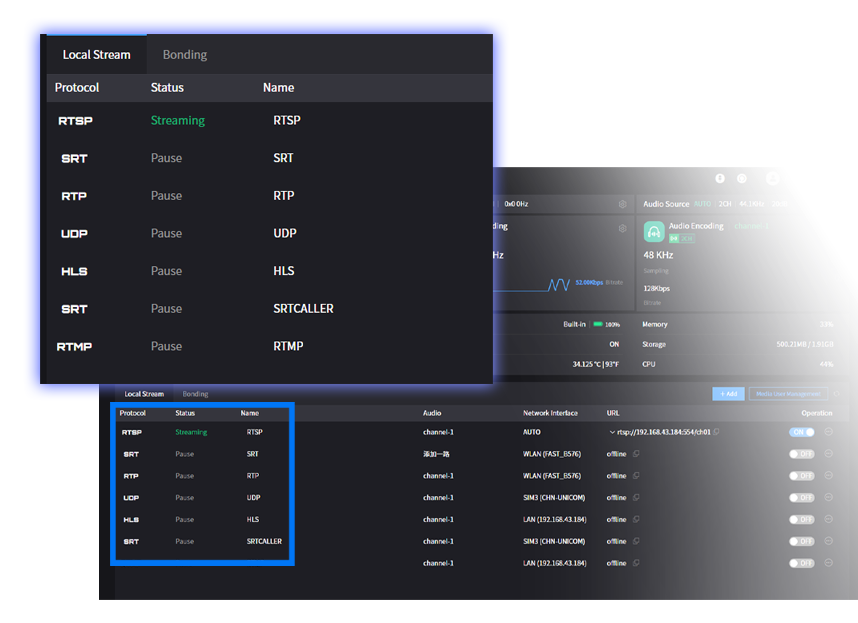

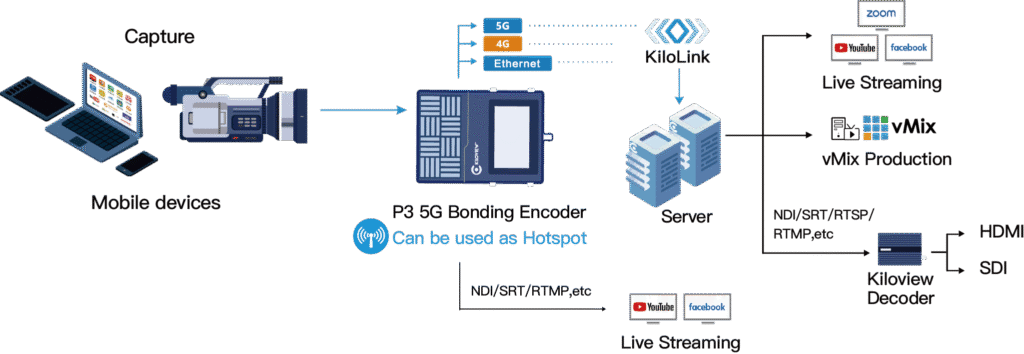

P3 Multi-Streaming Mode: Cost-effective Wireless Encoder for Live Streaming

In local streaming mode, the P3 cuts out the need for bonding platforms. Instead, it smartly picks the best available network link (WiFi, Ethernet, or SIM card) to stream to 4 video streams straight to your live platform. It works with major streaming protocols and easily handles various live streaming scenarios.

When P3 is combined with the KiloLink Server Pro , the bonding technology enables P3 to maintain high-quality and high-stability live streaming transmission even in complex and variable network environments.

Equip with simple video processing functionality

With features like video cropping, rotation, and support vertical streaming, P3 caters to a variety of live streaming needs. Live streaming is made easy with functions like volume gain adjustment, mirror effects, safety borders, center lines, color adjustments, logo/text overlays, and VU meter, ensuring your stream is both clear and smooth.

Portable Backpack Design

Your Convenient Live Streaming Assistant for All Scenarios, this compact and portable backpack design not only has rain protection, sun protection, and shock proof, but also can adapt to various live streaming scenarios such as in the shed, on the street, and outdoors (limited time only, get it free for every purchased of P3*) terms and conditions apply.

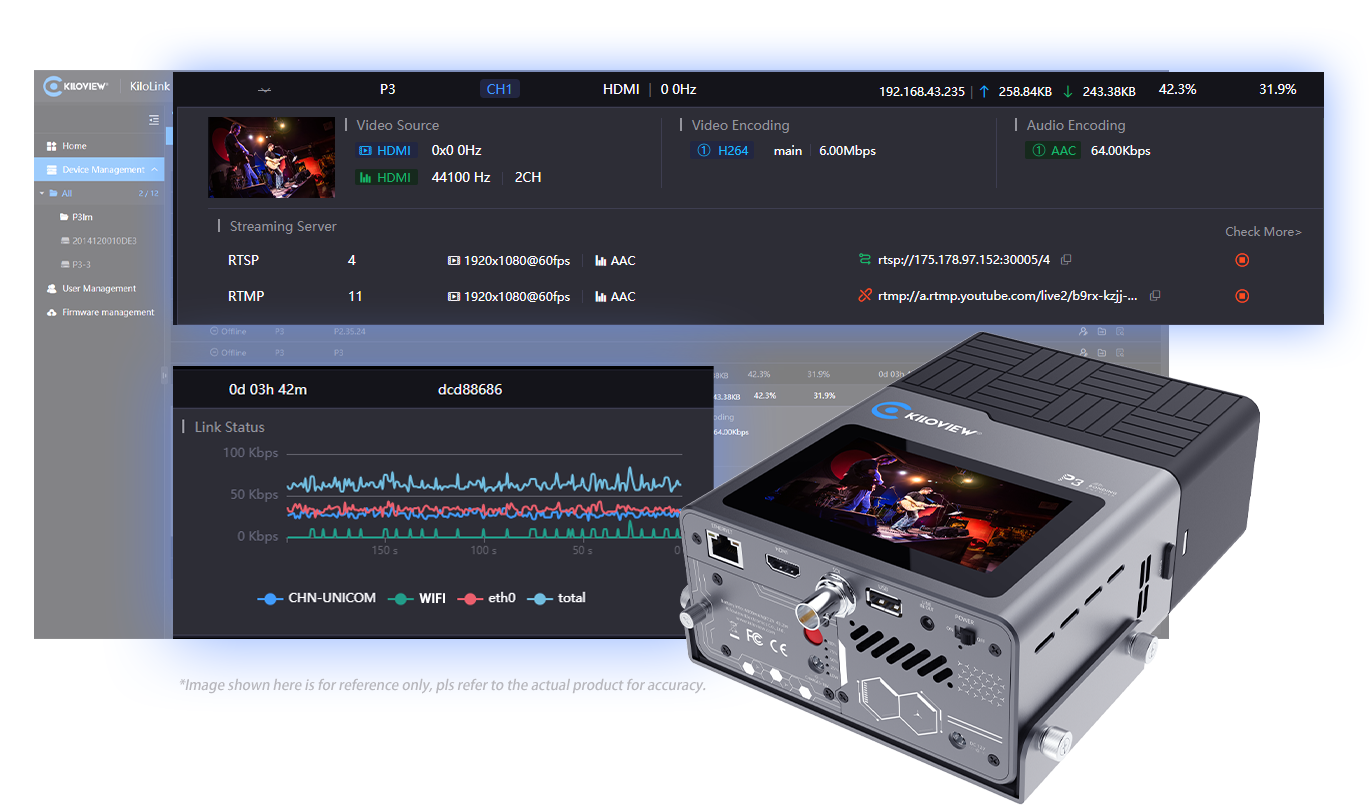

KiloLink Server Pro

Free Bonding Service Platform for your P3 bonding device. Yes, you read it right. KLSP has no licensing fee for every installation or channel created from our video stream. Not only that, KiloLink Server Pro integrates centralized management and bonding services all in a single platform. Its main functions include image containing deployment (quick and easy deployment), automatic bandwidth load balance, centralized visualization of device management, & No restriction on the number or stream channel from KLSP. Since the server is completely software-based, you would not need any physical hardware to run bonding software. These unique features enable users to enjoy a stable and reliable bonding service, and with zero cost.

One-stop Centralized Device Management Platform

KiloLink Server Pro serves not only bonding service, but also integrates all* Kiloview products into one platform. It enables centralized online management, real-time status monitoring, remote parameter configuration, batch firmware management & upgrades. After deploying the server, users can complete unlimited device management and operations through the Web. It is compatible with mainstream browsers such as Chrome, Edge, and Safari, allowing users to intuitively access device backends, check bonding link statuses, and manage streaming services anytime, anywhere.

*Do check on the compatibility page and latest firmware for further information.

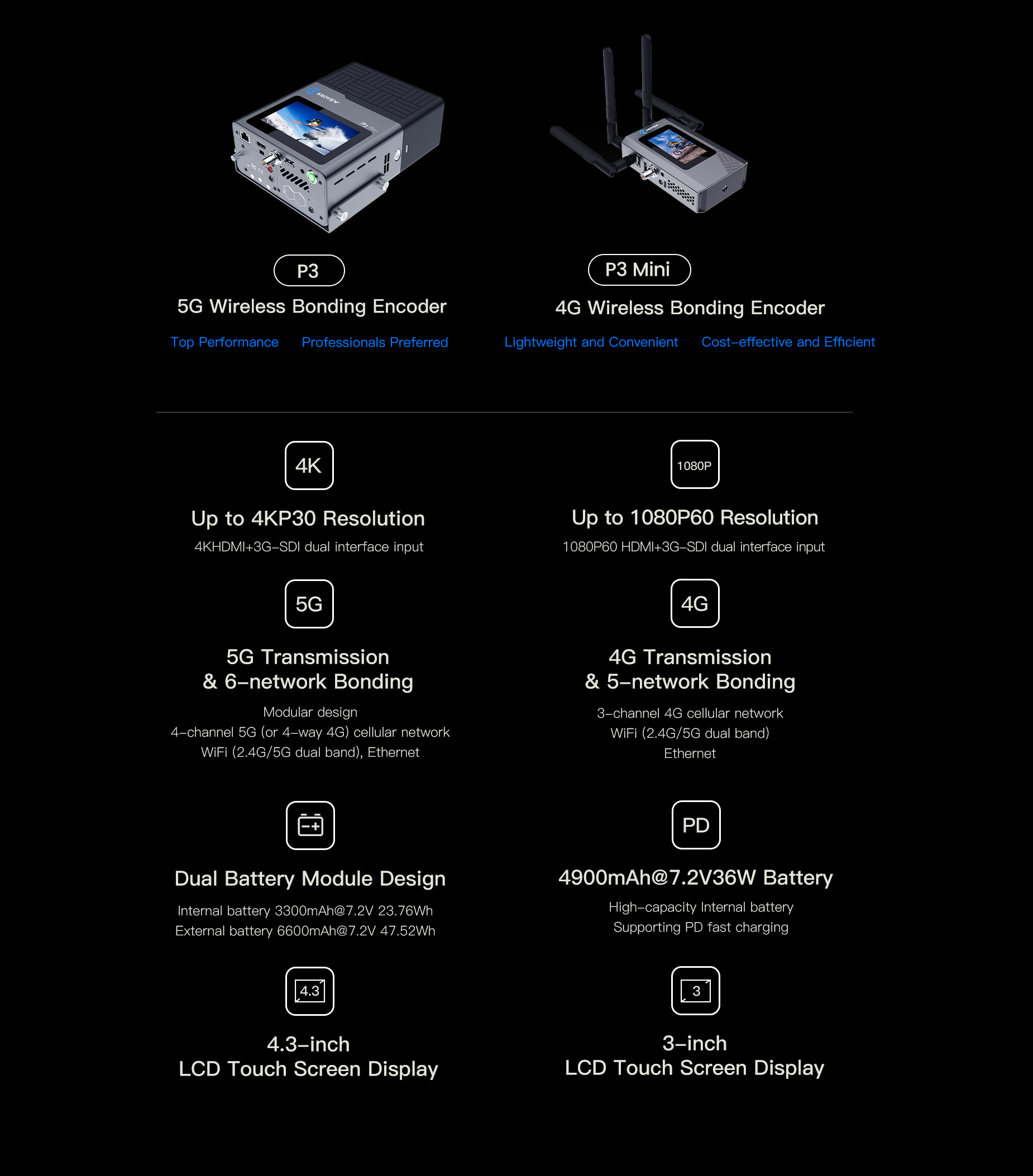

Find the Right Live-streaming Assistant for You

More Features

Antenna Isolation Design: Excellent Anti-Interference Performance

The P3 uses an internal antenna design and ensures sufficient isolation by setting the best distinguishing angle between different antennas. The internal antenna can fully resist external electromagnetic interference, while the isolation design effectively avoids the mutual interference phenomenon caused by redundant antenna stacking. In your actual live streaming work, whether in a weak network environment or signal blind spots, P3 can always guarantee you the maximum signal strength.

Multiple Storage Strategy Recording while Streaming

Capturing & Recording every moment: The P3’s standard Wi-Fi module includes an SD card slot, so users can choose on different recording options, either on SD, USB, or NAS. Monitor videos while recording, with file formats supporting MOV, MP4. Through the device’s LCD display screen, users would be able to view the recording status in real-time.

Intelligent Cooling System, Essential for Outdoor Use

Self-adjustable four-speed fan: To ensure stable performance of the equipment under extreme weather, P3 is equipped with a temperature-controlled fan that can be adjusted automatically. The P3’s intelligent fan ensures the cooling of the CPU timely manner while using the lowest energy consumption, ensuring continuous stable operation.

Open Compatibility, KIS Pro and Personal Hotspot

All mainstream transmission protocols support:

You can transmit signals in various formats freely, such as NDI HX/SRT/RTMP/RTMPS/RTSP/RTP/HLS/TS-UDP, etc. When the signal reaches the studio or production centre, you don’t need to purchase a receiving server additionally, by just using any brand/model decoder to complete monitoring work.

KIS Pro Intercom System:

Synchronous voice intercom allows your seamlessly communicate with anyone connected within the KIS intercom solutions. The bonding device would act as an interface connected to the KIS intercom server. Since the deployment is a web application, user can join and create Intercom service right at their fingertips.

Personal hotspot supported:

Now, you can easily open P3’s personal hotspot function with just one click, achieving the most efficient remote management of devices.

P3 Multi-Streaming Mode: Cost-effective Wireless Encoder for Live Streaming

In local streaming mode, the P3 cuts out the need for bonding platforms. Instead, it smartly picks the best available network link (WiFi, Ethernet, or SIM card) to stream to 4 video streams straight to your live platform. It works with major streaming protocols and easily handles various live streaming scenarios.

When P3 is combined with the KiloLink Server Pro , the bonding technology enables P3 to maintain high-quality and high-stability live streaming transmission even in complex and variable network environments.

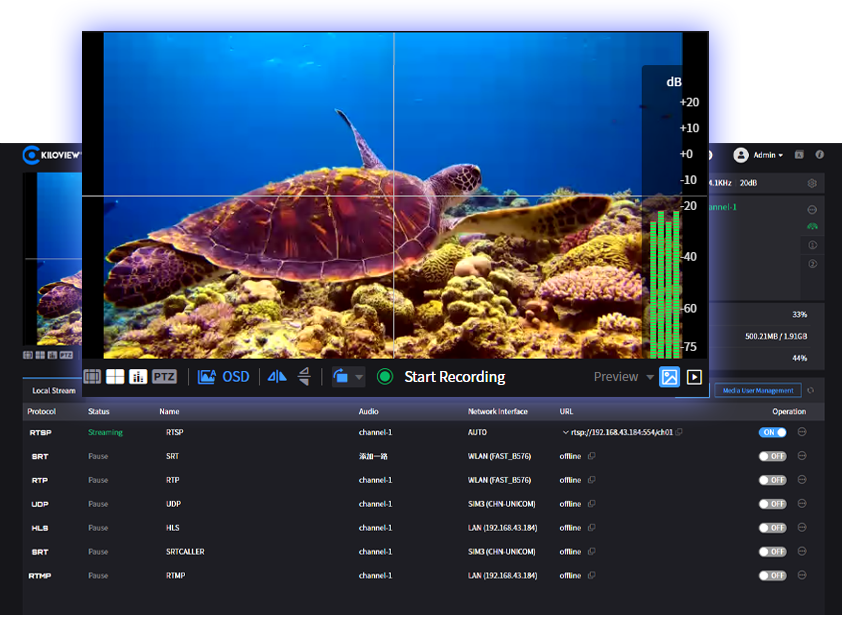

Equip with simple video processing functionality

With features like video cropping, rotation, and support vertical streaming, P3 caters to a variety of live streaming needs. Live streaming is made easy with functions like volume gain adjustment, mirror effects, safety borders, center lines, color adjustments, logo/text overlays, and VU meter, ensuring your stream is both clear and smooth.

Portable Backpack Design

Your Convenient Live Streaming Assistant for All Scenarios, this compact and portable backpack design not only has rain protection, sun protection, and shock proof, but also can adapt to various live streaming scenarios such as in the shed, on the street, and outdoors (limited time only, get it free for every purchased of P3*) terms and conditions apply.

KiloLink Server Pro

Free Bonding Service Platform for your P3 bonding device. Yes, you read it right. KLSP has no licensing fee for every installation or channel created from our video stream. Not only that, KiloLink Server Pro integrates centralized management and bonding services all in a single platform. Its main functions include image containing deployment (quick and easy deployment), automatic bandwidth load balance, centralized visualization of device management, & No restriction on the number or stream channel from KLSP. Since the server is completely software-based, you would not need any physical hardware to run bonding software. These unique features enable users to enjoy a stable and reliable bonding service, and with zero cost.

One-stop Centralized Device Management Platform

KiloLink Server Pro serves not only bonding service, but also integrates all* Kiloview products into one platform. It enables centralized online management, real-time status monitoring, remote parameter configuration, batch firmware management & upgrades. After deploying the server, users can complete unlimited device management and operations through the Web. It is compatible with mainstream browsers such as Chrome, Edge, and Safari, allowing users to intuitively access device backends, check bonding link statuses, and manage streaming services anytime, anywhere.

*Do check on the compatibility page and latest firmware for further information.

Find the Right Live-streaming Assistant for You

Applications

Outdoor live streaming, outdoor program production, news reporting, emergency command, vehicle-mounted mobile video transmission, multi-media project engineering, hospital external network video transmission, and other scenarios requiring wireless video transmission.

Marathon

Wedding

House of Worship

Outdoor

Package Contents

Applications

Outdoor live streaming, outdoor program production, news reporting, emergency command, vehicle-mounted mobile video transmission, multi-media project engineering, hospital external network video transmission, and other scenarios requiring wireless video transmission.

Marathon

Wedding

House of Worship

Outdoor

Package Contents

Specifications

ModelP3
Video Resolution• HDMI Input/Loop out:
3840×2160p 30fps
1920×1080p 23.98/24/25/29.97/30/50/59.94/60fps
1920×1080i 50/59.94/60fps
1280×720p 29.97/30/50/59.94/60fps
720×576i 50fps (PAL SD)
720×480i 59.94fps (NTSC SD)

• SDI
Input/Loop out:
1920×1080p 23.98/24/25/29.97/30/50/59.94/60fps
1920×1080i 50/59.94/60fps
1280×720p 25/29.97/30/50/59.94/60fps
720×576i 50fps (PAL SD)
720×480i 59.94fps (NTSC SD)

• USB Input:
1920×1080p 24/25/30/50/60fps
1280×720p 30/50/60fps

Video Port1× 3G-SDI

1× HDMI 1.4b

1*USB-A
Video EncodingH.265(HEVC),H.264(AVC),M-JPEG
Streaming ProtocolsNDI HX2/NDI HX3/SRT/RTMP/ RTMPS/ HLS/WHIP/TS over UDP/RTSP
Audio Port1*3.5mm Line in
Audio EncodingAAC,G.711
Audio Channels• 4-channel SDI embedded audio
• 4-channel HDMI embedded audio
• 4-channel USB embedded audio
• 1*3.5mm Line in 2-channel audio
Bonding

Performance
4 channels of 5G/4G cellular network, WiFi (2.4G/5G), Ethernet
Network Port1 × 1000Mbps Ethernet Ports
​Wireless Connectivity• 4× 4G/5G cellular modules
• 1× Wi-Fi 5 module
Physical Controls4.3" LCD touchscreen
Pre-encoding ProcessingRotation, Mirroring, Cropping
SEI TimecodeSynchronized to NTP or system time
Camera Start/Stop SynchronizationSDI Interface supports REC-RUN mode
OSD/Graphics OverlayCustom images can be added
ManagementWeb-based UI or centralized management via Kilolink Server Pro
Voice IntercomSupports USB headsets and communicate via Kiloview Intercom System (KIS)
Recording and StorageSD card, External USB storage or NAS
Recording FormatsMP4,MOV, TS
PTZ Control• External PTZ control via USB-to-Serial converters (RS-232/RS-485/RS-422)

• Network protocol support (e.g. Sony VISCA, Pelco-D, Pelco-P)

• UVC PTZ control compatibility
Battery• 1× Built-in Battery Module (Non-removable) / Capacity: 3300mAh

• 1× Removable Battery Module / Capacity: 6600mAh
Battery Life≥5 hours (without battery replacement)
Power SupplyDC 12V/3A
Weight2000g (Main unit only)
Dimensions211*143*68mm
Working Temperature-15℃~45℃
