SDI to HDMI (and VGA/AV/CVBS) Converter

Frame/Resolution Conversion - Kiloview CV180

SDI to HDMI (and VGA/AV/CVBS) Converter

Frame/Resolution Conversion - Kiloview CV180

Powerful SDI/BNC to HDMI Video Converter

Kiloview CV180 SDI multi-function converter can convert SDI-based coaxial signals into HDMI, VGA and AV (CVBS) signal output, and has both frame rate/resolution conversion, color adjustment, image enlargement/reduction and other editing management functions. It supports one input and two output modes as well.

Greatly Compatible with Protocols

  • SD/HD/3G SDI input together with built-in SDI clock recovery circuit and line equalizer, it can recover attenuation and distortion SDI signal after long-distance transmission;
  • HDMI/VGA/AV(CVBS) output simultaneously supported with self-defined resolution, independent audio output available (either two of them can output at the same time);
  • HDMI/ VGA DDC function supported, it can self-adaptively output the best mode of HDMI/ VGA;
  • OSD menu operation interface supported;
kiloview-cv180-sdi-to-hdmi-converter

Video Conversion & Enhancement

CV180 highlights professional color adjustment, 3D noise reduction, interlace/ progressive video conversion, video scaling up/down conversion and frame rate conversion etc., which can guarantee the professional image conversion quality.

kiloview-cv180-cv190-converter-high-definition

High Quality10bit YUV 4:2:2

icon-bitrate-exchange

Bitrate Exchange

icon-interlace-progressive-conversion

Interlace/Progressive Conversion

icon-scaling-up-down

scaling up/down

icon-undistorted-color

Undistorted Color

icon-3d-noise-reduction

3D Noise Reduction

icon-color-adjustment

Color Adjustment

Analog Audio

Independent analog audio output is available for Kiloview CV180, which is convenient for your video production.

Applications

Our CV180 are suitable for all scenarios that need to convert SDI signals to SDI, HDMI, VGA, or AV (CVBS) signal output, such as broadcast and television program editing, video teaching and training, high-definition video information release, high-definition video long-distance transmission, Video conferencing, multimedia advertising and video security monitoring and other fields.

kiloview-product-application-Multimedia-Splicing-Playing

Multimedia Splicing Playing

kiloview-product-application-remote-teaching

Remote Teaching

kiloview-product-application-Network-Program

Network Program

kiloview-product-application-Video-Conference

Video Conference

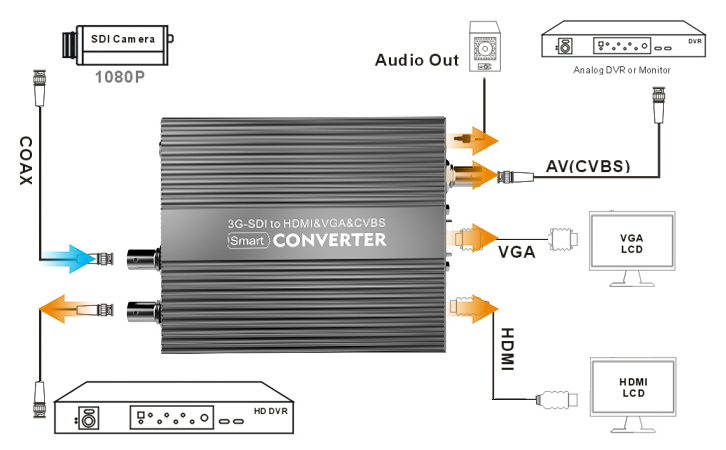

kiloview-cv180-sdi-to-hdmi-converter-connection-chart

More Highlights

High-end Chip

Dual Output

Self-defined Resolution

Real-time Signal Notice

SDK/API Available

PC Configurable

7*24h Running

Color Adjustment

Parameters

ModelCV180
Input1*BNC SDI (SD/HD/3G SDI)
Output1*SDI, 1*HDMI, 1*BNC AV(CVBS), 1*VGA (Either two signals output simultaneously)
Input format525i 59.94,625i 50;
720p 23.98/24/25/29.97/30/50/59.94/60;
1080i 50/59.94/60;
1080p 23.98/24/25/29.97/30/50/59.94/60.

Loop out1*BNC SDI
SDI transmitting distanceBelden 1694A: SD-SDI 400m, HD-SDI 200m, 3G-SDI 120m;
Note: different cables have different transmission distances.

Framerate/resolution conversionSupport
Audio de-embeddingSupport
ManagementRemote control/PC connection with USB
Power supply12V, 1A
Consumption4w
Operation temperature-20~60°C
Dimension120*100*26mm (4.72”*3.94”*1.02”)
Weight315g (11.1oz)
Support DownloadsDocs & Firmware

Docs & Firmware Download

Related Products

CV180
SDI to HDMI/VGA/CVBS
CV190
HDMI/VGA/CVBS to SDI
C1 Mini
Single Channel SDI to HDMI

Quick Comparison of our Converters

Product TypeProduct ModelInput InterfaceOutput InterfaceResolutionRemark(s)
HD Video ConverterCV1803G-SDIHDMI/VGA/AV(CVBS)
Output on any 2 Interfaces
1080P60Image Scale up/down Conversion Supported
CV190HDMI/VGA/AV(CVBS)3G-SDI*2
Output on any 2 Interfaces
1080P60Image Scale up/down Conversion Supported
C1 mini3G-SDIHDMI1080P60Direct Conversion
