Applications

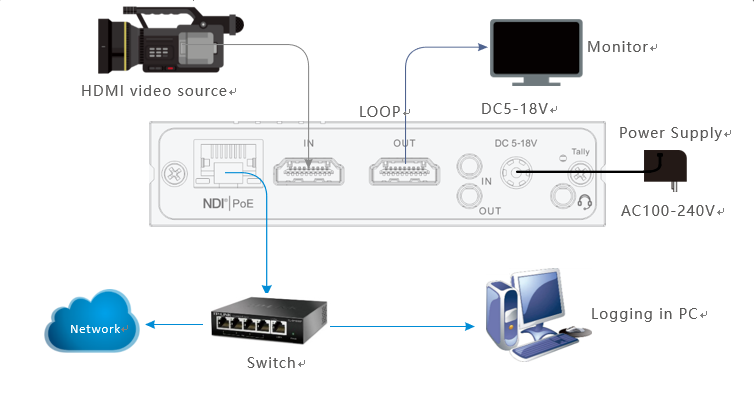

Making connection under encoding mode.


NOTE:

(1) Please use the standard power adapter equipped in the package. Likewise, other unqualified power adaptor may damage the device.

(2) Under encoding mode，please make sure the camera is connected to the HDMI IN connector.

(3) If you wish, you can connect N6 to your monitor for realtime review by HDMI OUT port.

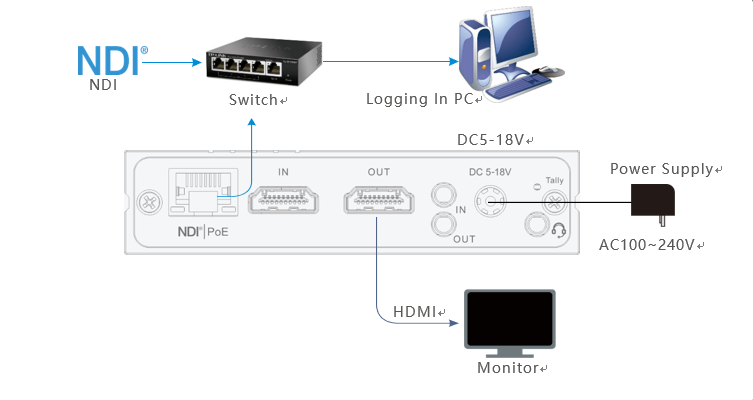

Making connection under decoding mode


NOTE:

(1) Please use the standard power adapter equipped in the package. Likewise, other unqualified power adaptor may damage the device.

(2) N6 cannot do encoding and decoding simultaneously at present.

(3) Under decoding mode, make sure the monitor is connected to the HDMI output connector.
