(1) Encoding Mode

The device is under encoding mode by default.

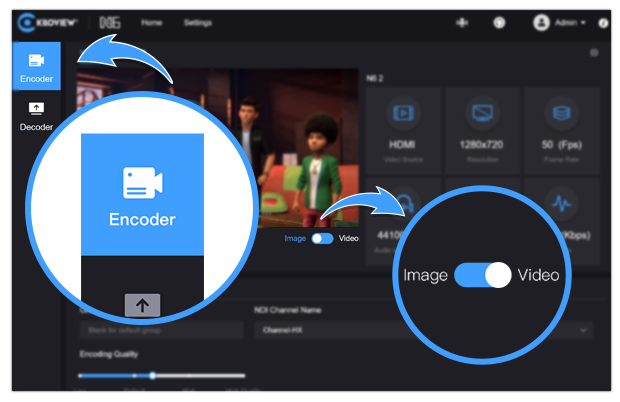

The video preview window is under “image” mode by default, and it is refreshed every 3 seconds. If your computer’s CPU performance is good, you can click the mouse to switch to the “video” mode, and the smoothness of the preview will be improved.

For more configurations, please check《N6 for NDI@ User Manual》at our website:

https://www.kiloview.com/cn/support/docs/.

（2）Decoding Mode

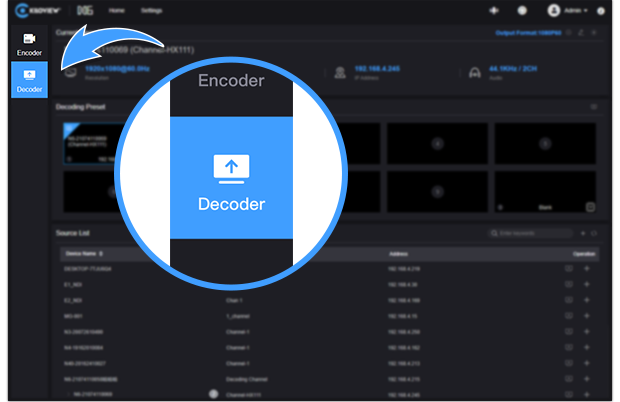

Please choose “Decoder” at the left side.

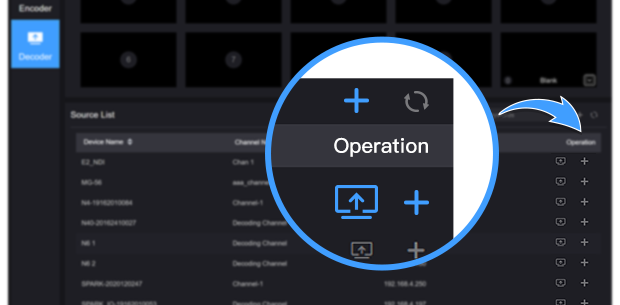

Under the same network segment, all NDI sources can be discovered automatically and be shown in the discovery list. Click “+” to add NDI sources in the other segments. Decode output by click . Preset by click .

NOTE:

"Preset" is to facilitate real-time view of frequently used sources for quick selection and switching.
