Introduction
NDI Core mainly solves the issue that the NDI encoder cannot be pulled by multiple back-ends at the same time. The video source is virtualized into multiple NDI channels for output by NDI Core, and more functions such as video source switching and video play list are integrated.
By creating a play list, users can freely set the program source, dynamically adjust the playback sequence, playback time to achieve the sequence, loop, and switch playback of video sources.

• NDI video sources support NDI and NDI|HX input compatible with any other software/hardware output NDI to the NDI Core system.
• When the Switcher receives NDI|HX, the virtual output is also NDI|HX. If the video source is NDI, the output is also NDI.
• Due to compatibility, it is recommended that the optical module used for the optical port of the device and the switch be of the same brand and type. If the actual transmission distance is less than 500 meters, you can choose a multi-mode optical module. For the transmission distance greater than 500 meters, it is recommended to choose a single-mode optical module.
• The device comes with two redundant power supplies. If only one power supply is connected, it will beep all the time, and hot-swap replacement is supported.

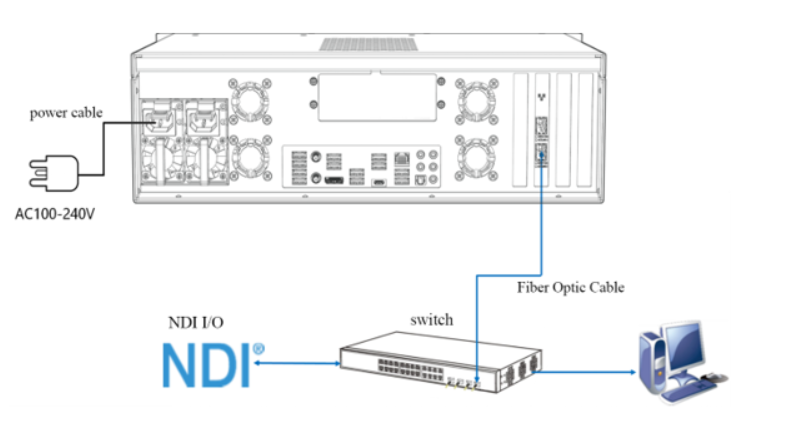

• The device comes with two 40G optical ports, which can be connected to the network for NDI input and output.
