M2 H.264 HDMI+VGA Video Encoder

A 2-in-1 Video Encoder

M2 H.264 HDMI+VGA Video Encoder

A 2-in-1 Video Encoder

Dual Input Video Encoder

M2 HDMI+VGA dual interface video encoder is a professional video encoding hardware, which encodes VGA or HDMI video source into IP streams for video transmission over the Internet WAN or LAN through a wired network.

Higher Compatibility

VGA+HDMI dual interface design, compatible with various VGA video sources or HDMI video sources. One device, two functions.

(VGA interface is compatible with VGA, XGA, UVGA, SVGA, SXGA, SXGA+, WXGA, WXGA+, WSXGA, WUXGA; HDMI interface is compatible with HDMI1.4 and below)

kiloview-HDMI-VGA-Video-Encoder-m2-dual-interface

Low Latency, High-Quality Image

M2 series adopt standard H.264 coding algorithm, so they ensure high-quality image and smooth live streaming. They provide you superior video with low-latency, low bitrate and low bandwidth.

icon-low-latency

Encoding delay ≤ 67ms

icon-adjustable-bitrate

Adjustable bitrate 64kbps~40Mbps

M2-low-bandwidth

Low bandwidth 1.5Mbps@1080p

Note: the actual delay condition is also related to your Internet status

Real HD 1080P60

M2 supports video resolution up to 1920*1080P@60FPS to ensure that the image quality is perfect.

kiloview-M2-1080p-foreground
Wireless-NDI-Video-Encoder-kiloview-n1-n2-multiple-protocols

All protocols All at the same time

M2 supports full range of protocols including RTSP/ RTMP/ RTMPS/ SRT/ HLS/ TS-UDP/ Onvif, that means live stream with RTMP/RTMPS, while remote production with SRT, all can be handled at the same time. It also supports ONVIF 1.1/2.0 for easy Access To Security Protection System / NVR System.

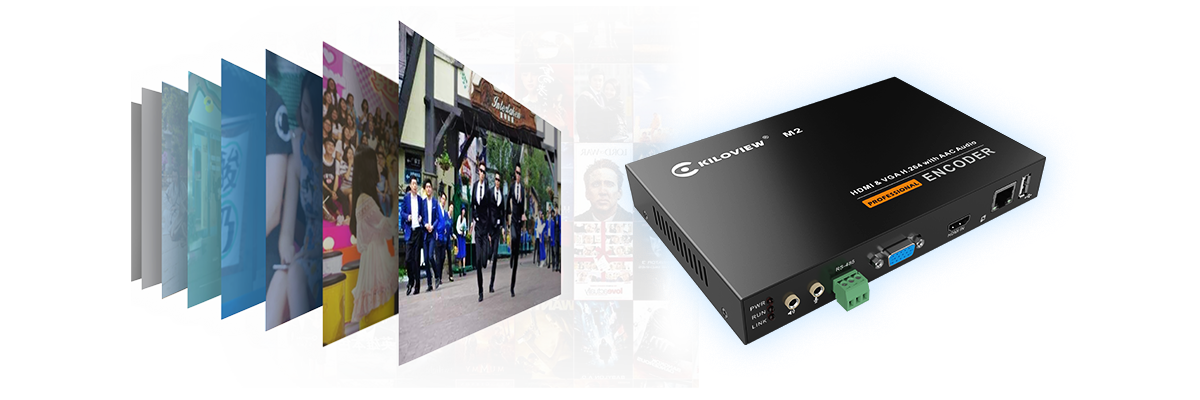

Multiple Platform Live

Kiloview M2 supports dual stream output. The main code rate up to 1080p60Hz video encoding, and the sub-stream up to 720p 60Hz; Both the main and sub stream can open 8 stream services at the same time (can be pushed to 16 live broadcast platforms at the same time).

LOGO/ Image/ Text Overlay

With FPGA processing unit, it can easily realize the functions of rotating and cropping for vertical/horizontal video which makes it social media friendly.

Voice Intercom

M2 supports embedded and 3.5mm analog audio encoding, so you can use KILOVIEW voice intercom software to realize real-time calls. >Learn more

RS-485 Ready for PTZ

M2 comes with RS-485 interface and supports PTZ control, making your PTZ live broadcast more convenient and controllable.

More Highlights

Embedded Audio

SDK/API Development

3.5mm Analog Audio Input

High-end Chip

Dual Interfaces

Web-Based Interface

USB-extended PTZ

7 * 24h Operation

Applications

TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports

Parameters

Model M2
Video interface1*VGA+1*HDMI
Analog audio interface2*3.5mm audio
USB interface1*USB 2.0 Type-A
Network supportWired/Satellite
Video resolution
Up to 1080p60Hz, details as below:
1080P/1080i/720P/480P/576P/480i/576i (up to 60Hz)
Compatible with VESA display resolution, up to 1920*1200@60Hz
Video encodingH264/AVC, Motion-JPEG
Audio encodingAAC/G.711
Encoding latency<67ms
Media transmission protocolsSRT/RTMP/RTP/HLS/TS over UDP/RTSP /Onvif
ManagementAPP/ Web
Power supplyDC 12V 1A
Power Consumption4w
Operating temperature-20℃~60℃
Size182*122*36 mm (7.16”*4.80”*1.42”)
Weight600g (21.2oz)
Support DownloadsDocs & Firmware

Docs & Firmware Download

Related Products

S2 H.265 4K Encoder
HDMI 2.0 SRT/NDI|HX, with Intercom
G1/G2 H.264 Wireless Encoder
Wi-Fi/USB Extended 4G / Wired Transmission
P1/P2 H.264 4G Bonding Encoder
SDI/HDMI Input, 4x4G Network Bonding
E1/E2 H.264 Wired Encoder
SDI/HDMI Input/Loop, SRT Supported
SDI/HDMI Rackmount Encoder/Decoder
Mixed Insertion 4/8/16 Channels, Dual Power
M2 H.264 Dual Port Encoder
HDMI+VGA Input, 1080P 60Hz Supported

Quick Comparison of our Encoders

Product TypeModel No. Input InterfaceNetwork ConnectionsResolutionRemark(s)
H.265 4K EncoderS2HDMIEthernet/Satellite4KP60
H.264 4G EncoderP13G-SDI4G/WiFi/Ethernet/Satellite1080P60Built-in Battery, Cold-shoe Installation, Compatible with Outdoor Activities
P2HD HDMI4G/WiFi/Ethernet/Satellite1080P60Built-in Battery, Cold-shoe Installation, Compatible with Outdoor Activities
Rackmount Encoder/Decoder1U-1/2/3/43G-SDI +HDMIEthernet/Satellite1080P60Mixed Insertion of 1-4 Channels of Encoder/Decoder Modules, Dual Power
3U-1/8/163G-SDI +HDMIEthernet/Satellite1080P60Mixed Insertion of 8/16 Channels of Encoder/Decoder Modules, Dual Power
H.264 Wireless EncoderG13G-SDIWiFi/Ethernet/Satellite1080P60
G2HD HDMIWiFi/Ethernet/Satellite1080P60
H.264 Wired EncoderE13G-SDIEthernet/Satellite1080P60
E2HDMIEthernet/Satellite1080P60
M2VGA+HDMIEthernet/Satellite1080P60
