HDMI/SDI to NDI Wired Encoder

The Most Versatile and Cost-Effective Streaming Encoders

HDMI/SDI to NDI Wired Encoder

The Most Versatile and Cost-Effective Streaming Encoders

Professional & Affordable HD NDI Video Encoder

Kiloview E1/E2 NDI H.264 video encoder converts SDI or HDMI base-band video to various H.264 IP streams at the same time with SDI or HDMI loop for monitoring. The supported IP protocols includes NDI|HX/ RTSP/ RTMP/ RTMPS/ SRT/ HLS/TS-UDP/Onvif which can be used for low-latency professional live production, streaming, broadcasting, recording etc. across internet or over private network by broadcasters, churches, schools, hospitals, transportation hubs, enterprises, military etc..

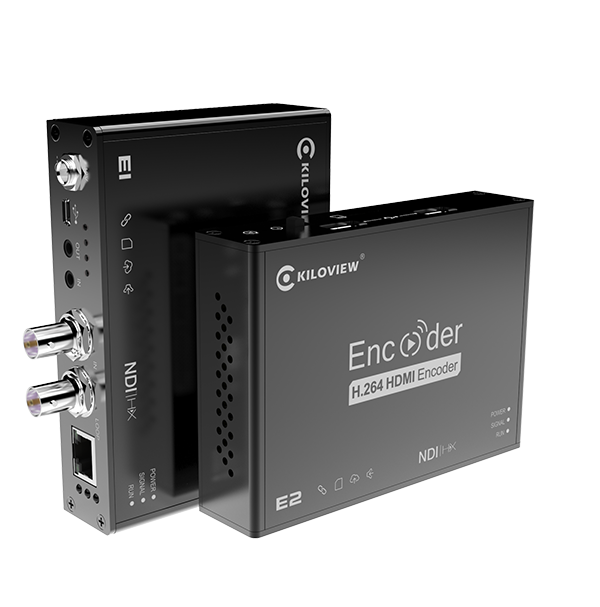

E1 NDI: SDI in/loop

E2 NDI: HDMI in/loop

Faster · Better · Easier

Why NDI?

The NDI protocol is a high-performance standard that enables anyone to use real-time, ultra-low-latency video on existing IP video networks.

NDI Webcam Input

Easily designate Kiloview NDI encoders as the video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, Teams and more using the free NDI® webcam input tool.

All Protocols All at the Same Time

It supports full range of protocols including NDI|HX/ RTSP/ RTMP/ RTMPS/ SRT/ HLS/ TS-UDP/ Onvif. That means live stream with RTMP/RTMPS, while live production with NDI|HX and remote production with SRT, all can be handled at the same time.

It supports ONVIF 1.1/2.0 for easy access to security protection system /NVR System.

Multi-Platform Live

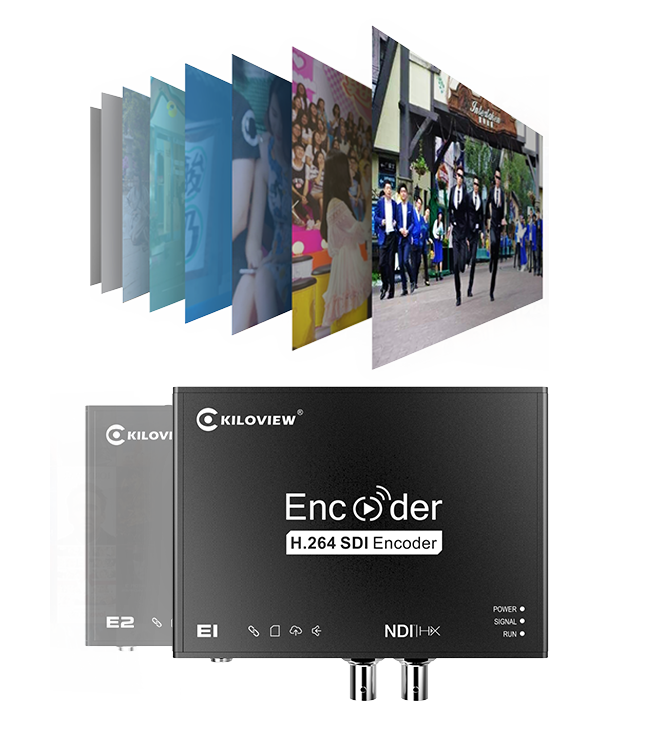

Dual-stream output (main-stream and sub stream), each stream can be used to up to 8 platforms with same or different protocols, altogether it can simultaneously live stream to up to 16 platform. (Main stream resolution up to 1080p60Hz, sub stream resolution up to 720p 60Hz.)

Multi-Platform Live

Faster while better

With optimized algorithm, the encoding latency is <67ms. With adjustable bitrate from 64Kbps up to 40Mbps, better video quality is available, typically even at 1Mbps@720p, 1.5Mbps@1080p network, video quality is good enough.

Encoding delay ≤ 67ms

Adjustable bitrate 64kbps～40Mbps

Low bandwidth 1.5Mbps@1080p

(Note: The actual delay is also related to your internet conditions)

Faster while better

Encoding delay ≤ 67ms

Adjustable bitrate 64kbps～40Mbps

Low bandwidth 1.5Mbps@1080p

(Note: The actual delay is also related to your internet conditions)

Let’s go Social

With FPGA processing unit, it can easily realize the functions of rotating and cropping for vertical/horizontal video which makes it social media friendly.

Let’s go Social

With FPGA processing unit, it can easily realize the functions of rotating and cropping for vertical/horizontal video which makes it social media friendly.

Let’s go Social

With FPGA processing unit, it can easily realize the functions of rotating and cropping for vertical/horizontal video which makes it social media friendly.

It's a recorder with OSD

E1/E2 NDI can provide simultaneous recording while you are doing live streaming to many media destinations. And redundant recording is realized with SD/TF/USB/NAS.

Add any self-defined text, time and image overlay at any position to announce your copyrights and have fun!

Real-time Intercom

Both embedded and analog audio encoding are supported. What’s more, with Kiloview voice intercom software (optional), it can realize multi-party voice intercom function. >Learn more

Real-time Intercom

Both embedded and analog audio encoding are supported. What’s more, with Kiloview voice intercom software (optional), it can realize multi-party voice intercom function. >Learn more

More Highlights

Embedded Audio

SDK/API Development

3.5mm Analog Audio Input

High-end Chip

Real-time Loop

Web-Based Interface

USB-extended PTZ

7 * 24h Operation

Applications

NDI Program Production, TV Programming, Lecture Capture, Online Courses, Remote Learning, Course Recording, Broadcast Meetings, Web Training, Remote Pathology, Telemedicine, Conferences, Concerts, Sports

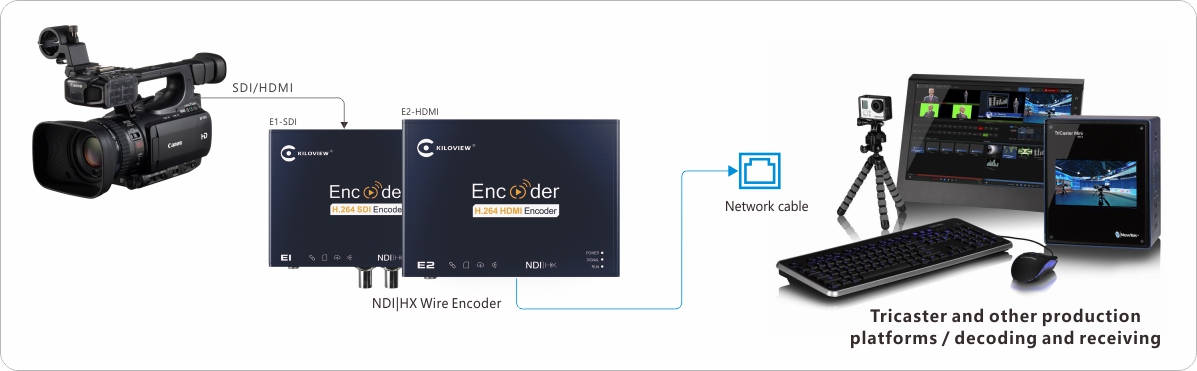

Compatible with TriCaster, vMix, OBS and other platforms, so your video production can be carried out anytime, anywhere.

Parameters

Model	E1 NDI(SDI)/E2 NDI(HDMI)
Video input	E1 NDI:1BNC SDI; E2 NDI:1HDMI
Analog audio	2*3.5mm
USB port	2*USB 2.0 Type-A
Micro SD	1*Micro SD/TF Card storage interface
Network	100M Ethernet
Video loop	E1 NDI:1BNC SDI; E2 NDI:1HDMI
Input video resolution	Up to 1080P60H, details as below: SDI: 1080P23.98/24/25/29.97/30Hz; 1080P50/59.94/60Hz; 1080i50/59.94/60Hz; 720P23.98/24/25/29.97/30Hz; 720P50/59.94/60Hz HDMI: 1080P23.98/24/25/29.97/30Hz; 1080P50/59.94/60Hz; 1080i50/59.94/60Hz; 720P30/50/59.94/60Hz; below 1920*1200.
Video encoding	H.264/AVC, Motion-JPEG
Audio encoding	AAC/G.711
Encoding latency	<67ms
Media transmission protocols	NDI｜HX/SRT/RTMP/ RTMPS/HLS/TS over UDP/RTSP, customize for SIP
Image and text overlay	Support
Record storage	Micro SD/TF card local recording, and NAS network storage
Management	Web UI and remote management with KILOVIEW KiloLink Server
Power supply/Consumption	DC 12V 1A/4W
Operating temperature	-20~60℃
Dimension	1258928mm (4.92”3.50”1.10”)
Weight	380g (13.4oz)
Support Downloads	Docs & Firmware

Docs & Firmware Download

1. Quick Start Guide

2. User Manual

3. Latest Firmware (E1-NDI)

4. Latest Firmware (E2-NDI)

5. Contact for Demo

Datasheet Download

Quick Comparison of our NDI Products

Product Type	Product No.	NDI Codec Capability	Video I/O Connectivity	Resolution	Notes
NDI Bi-Directional Converter	N6	NDI High Bandwidth/NDI\|HX	HDMI	1080P60
	N5	NDI High Bandwidth/NDI\|HX	3G-SDI	1080P60
	N50	NDI High Bandwidth/NDI\|HX	12G-SDI	4KP60
	N60	NDI High Bandwidth/NDI\|HX	HDMI	4KP60
	N3	NDI High Bandwidth	3G-SDI	1080P60
	N30	NDI High Bandwidth	12G-SDI	4KP60
	N40	NDI High Bandwidth	HDMI	4KP60
NDI Wireless Encoder	N1	NDI\|HX	SDI	1080P60	WiFi supported, Battery Builld-in
NDI Wireless Encoder	N2	NDI\|HX	HDMI	1080P60	WiFi supported, Battery Builld-in
NDI Encoder	E3	NDI\|HX	SDI+HDMI	4KP30 in HDMI, 1080P60 in SDI
	U40	NDI High Bandwidth/NDI\|HX	HDMI	4KP60
	E1	NDI\|HX	SDI	1080P60
	E2	NDI\|HX	HDMI	1080P60
NDI Decoder	D350	NDI High Bandwidth/NDI\|HX	SDI+HDMI	4KP60
NDI Decoder	D260	NDI\|HX	SDI+HDMI	1080P60
