Device Discovery

Use the free tool —ONVIF Device Manager

Download the ONVIF Device Manager for free Visit the website https://sourceforge.net/projects/onvifdm/ to download and install ONVIF Device Manager. Please follow the software operation guidelines for the download method/installation.

ONVIF Device Manager is a network video app for managing network video, network video storage and network video analysis. Realize services such as discovery device, media, imaging, analysis and PTZ.

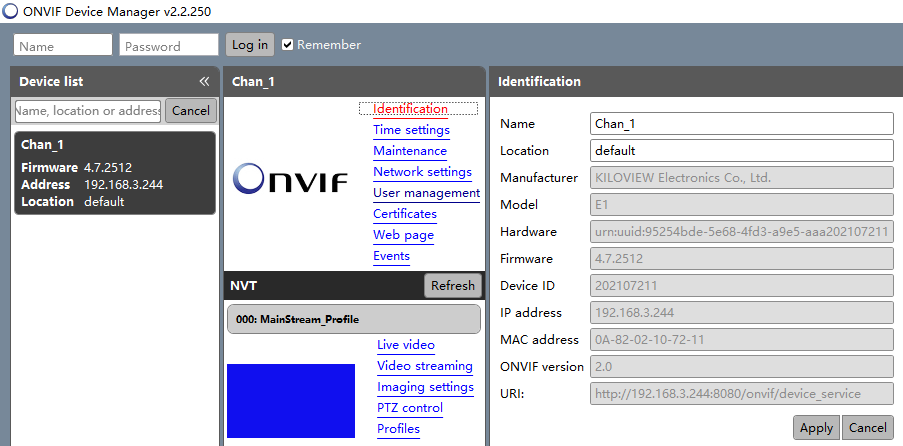

Step 1: Start ONVIF Device Manager, all devices in the network can be found in the left device list.

Step 2: Click the device in the device list, the device information will be displayed in the information bar.


Introduction：

Access method: Open a web browser and enter in the address bar: http://device IP address/ (the device IP address is the IP address of the G1-s displayed in the device list).

The working network that the device is connected needs to support automatic acquisition of IP (DHCP). After the device automatically acquires the IP, it can be discovered by the software through Onvif.

Solution for the device cannot be found.

If the device can’t be found in the network with the above two methods due to the network environment, please kindly try to access the device by its default IP address 192.168.1.168. That is to say, enter http://192.168.1.168/ in the browser to enter the Web UI.
