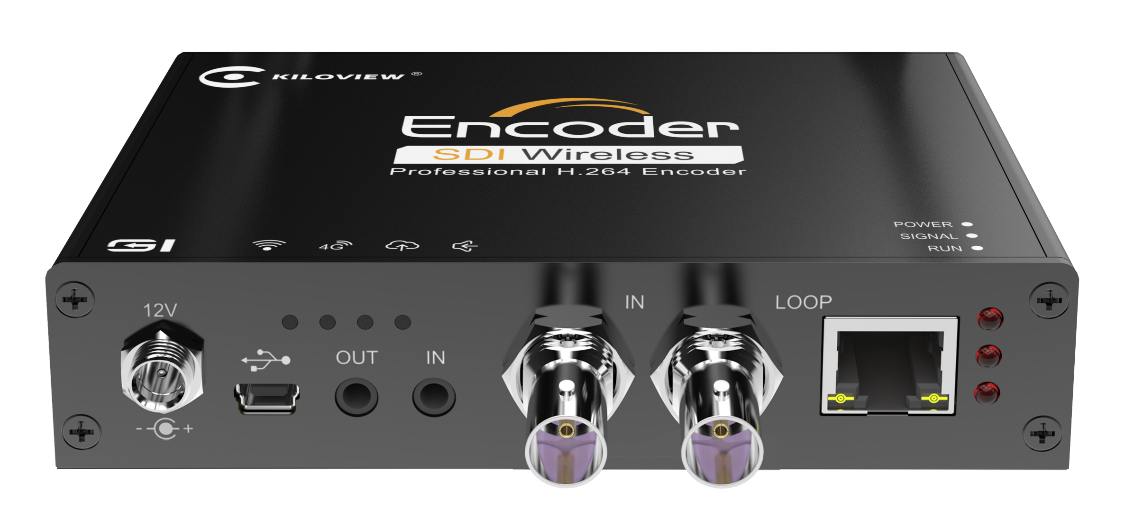

G1-s wireless video encoder
G1-s video encoder can encode SDI video source and compress into IP stream, to realize long-distance HD transmission/live broadcast over WAN or LAN network.
Advantages
Built-in WIFI module, wireless video transmission/live broadcast supported.
Built-in dual-band (2.4G/5.0GHz) WIFI module, it supports wireless transmission/ live broadcast of mobile video sources in local space;
Built-in self-adaptive Ethernet interface, wired network transmission is also supported;
Low power consumption, 24 hours continuous working available.
Powerful streaming media service function, supports RTSP/RTMP/TS/Onvif/SIP/SRT and some other protocols.
Dual stream output, the main code rate up to 1080p60Hz, and the sub-stream supports 720p 60Hz video encoding.
Capable with customized text and image overlay function, which can be at any position on the screen;
Audio embedding encoding supported, with voice intercom function (need to deploy voice intercom software);
Supports NAS network storage;
With video real-time loop function, there is no delay and convenient for live monitoring.
High bandwidth adaptability makes it possible to transmit high-definition, low-latency, non-padding image under low bit network.
With branded chips solution together with video dynamic noise reduction and image enhancement technology, it can realize good encoding image under low bit transmission;
Good video image can be achieved at 1Mbps@720p, 1.5Mbps@1080p network;
Advanced video buffering technology and FEC technology ensures video encoding delay ≤67msand stable transmission;
Adjustable bit rate from 64kbit/s～40Mbit/s.
Note: (≤67ms) refers to the delay of the encoder end, and the end-to-end delay also relates to network, decoding, etc.
Parameters
| Model No. | G1, |
|---|---|
| Input | 1*BNC SDI |
| Video Loop out | 1*BNC SDI |
| Analog audio input | 2*3.5mm |
| USB interface | 2*USB 2.0 Type-A |
| Network Support | Enhanced WIFI (Enhance 5.0GHz frequency), RJ-45 Ethernet |
| Media transmission protocols | RTMP/HLS/TS over UDP/RTSP /Onvif/SRT |
| Video resolution | Up to 1080P60Hz, resolutions supported: G1: 1080p23.98/24/25/29.97/30Hz, 1080p50/59.94/60Hz, 1080i50/59.94/60Hz, 720p23.98/24/25/29.97/30Hz, 720p50/59.94/60Hz G2: 1080p23.98/24/25/29.97/30Hz, 1080p50/59.94/60Hz, 1080i50/59.94/60Hz, 720p30/50/59.94/60Hz. |
| Video coding | H264/AVC, Motion-JPEG |
| Audio coding | AAC/G.711 |
| Encoding latency | ≤67ms |
| Image and text overlay | Custom text, image overlay function, can be superimposed to any position on the screen |
| Recording | Micro SD/TF card , local recording, NAS network storage |
| Management | WEB/Android APP |
| Power supply/consumption | DC 12V 1A / 4W |
| Size/Weight | 1258928mm / 380g |
| Operating temperature | -20℃~55℃ |
