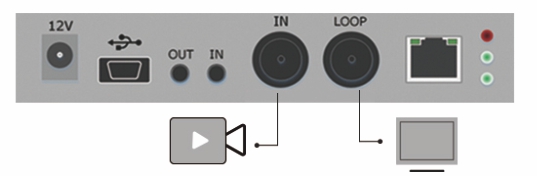

Connecting video signal

Connect the SDI/HDMI signal from the source (such as a camera) to the SDI/HDMI input port of the device via a cable.

NOTE: HDMI’s input interface is on the right

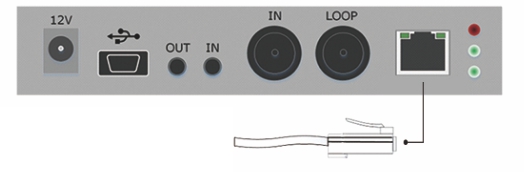

Connect Network

Connect the network cable to the Ethernet port of the device, and connect the other end to the network switch or directly to the network port of the computer.

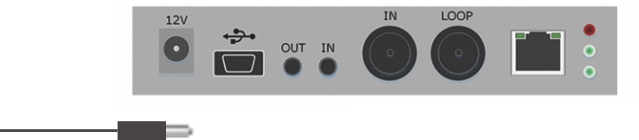

Connect the power supply

Using the power adapter (DC 12v) to connect to the power connector of the device. After connected, turn on the power switch (Interface No.12) on the device. After the device is powered on, it starts working.
