In the information status bar, you can check whether the input signal resolution and frame rate are correct, and the encoding bit rate is refreshed in real time.
It is a Full NDI encoding transmission device, supporting up to 4KP60 input. When video resolution is 4Kp60, the bitrate can be up to 250Mbps. When video resolution is 1080p60, the bitrate can be up to 125Mbps. Therefore, the device and the receiving port should be connected to gigabit network.

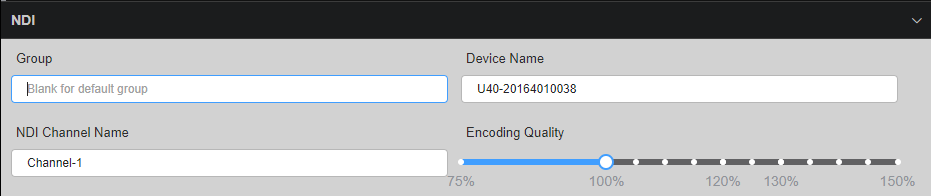

Coding quality settings
The encoding resolution is the resolution of the video source, it cannot be scaled.The encoding rate can be decreased or increased by adjusting the encoding quality.
Channel configuration
When there are multiple NDI sources under the same network, the device name and channel name can be modified to identify different devices.
Notes:There is no need to save the parameters after modification, since it will take effect immediately if click other locations of the page.
