NDI Decoding

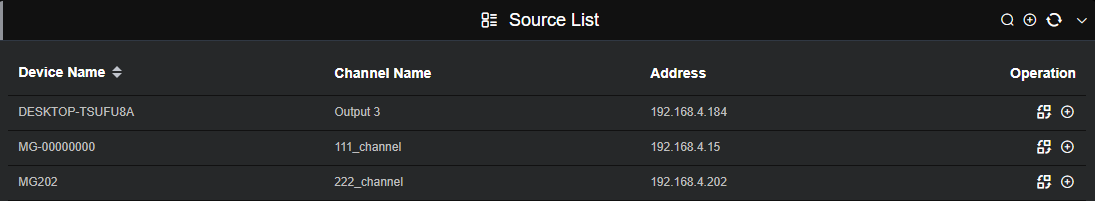

Discover NDI sources in the network

NDI sources can be detected automatically and will be listed at the same subnet , and you can renew the NDI sources by click18.png

Add target NDI source

Click 19.png to add the source to the decoding presupposition.

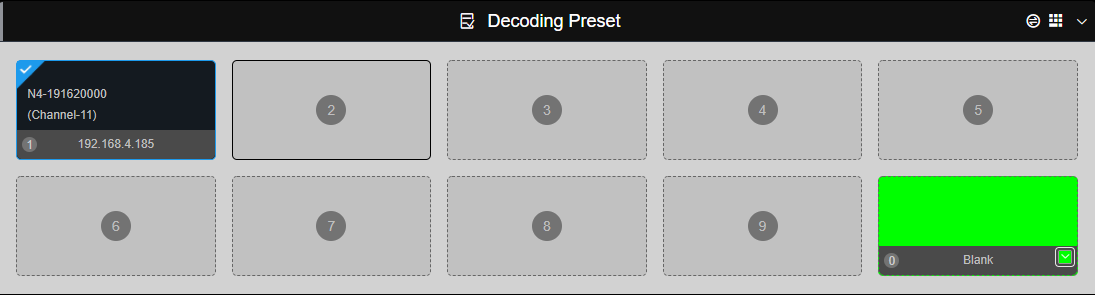

Switch output NDI source

You can add up to 9 NDI sources in the decoding preset and click the corresponding source to decode. Decoding output can be quickly switched by clicking different NDI sources. NDI-1 6) NDI Decoding Discover NDI sources in the network Add target NDI source Switch output NDI sources.

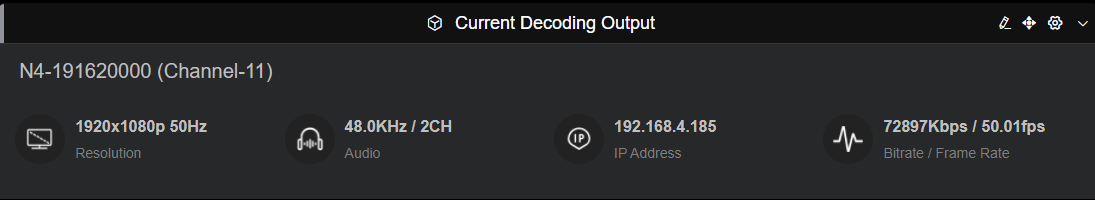

Decoding Parameter Settings

Some information such as resolution, audio parameters, IP address and bit rate of the decoding source will be displayed in “Current Decoding” zone. Please enter into Web page and set the decoding resolution & framerate by clicking 22.png


Note: This NDI Converter cannot conduct encoding and decoding at the same time, >encoding will stop if you enable the decoding function.
