It is a Full NDI encoding transmission device. When video resolution is 1080p60, the bitrate of the device can be up to 125Mbps. Therefore, the device and the receiving port should be connected to gigabit network.

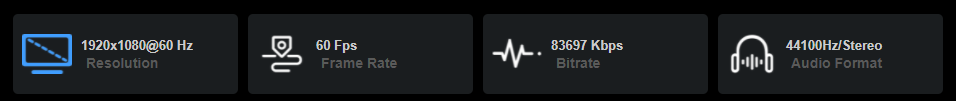

Status Column

Here it will display the resolution, frame rate, bit rate and audio format parameters of the video source.

Coding quality settings

The encoding resolution is the resolution that output from the video source, which cannot be configured for scaled encoding.

Encoding bitrate can be appropriately lowered or increased by adjusting encoding quality. The default encoding quality is 100%.

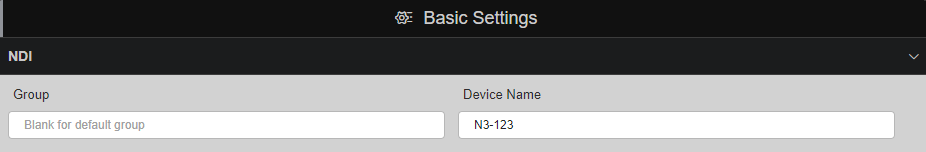

Encoder channel settings

When there are multi NDI sources in the same network, channel names need to be modified to identify different devices because the default channel names are the same.

Note: There is no need to save the parameters after modified, since the modification will >take effect immediately if click other locations of the page.

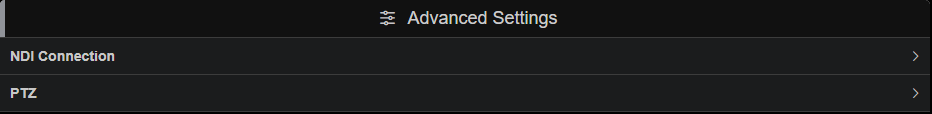

Advanced settings

In advanced settings, you can set the connection mode of NDI stream, which can be unicast or multicast. Here you can also set the PTZ control function.
