HDMI (VGA/CVBS) to SDI Converter

Professional Video Converting Hardware - Kiloview CV190
kiloview-cv190-hdmi-to-sdi-converter-product-portrait-1

Broadcast-Grade HDMI to SDI Video Converter

Kiloview KV-CV190 is a broadcast level multifunctional video converter which can convert HDMI, VGA and AV(CVBS) to SDI-based coax signal with functions of frame conversion, resolution conversion, image scale up/down, color conditioning, image enhancement and adjustment.

High Interface Compatibility

  • HDMI, VGA and AV (CVBS) signals can be manually specified or automatically identified;
  • It supports HDMI audio un-embedded/ analog audio input, and making audio embedded into SDI signal;
  • SD/HD/3G SDI output supported; supports 2 channels SDI output simultaneously;
  • Integrated with enhanced SDI line driver, it can ensure SD SDI transmission distance up to 400m, HD SDI transmission distance 200 m, 3G SDI transmission distance 120 m, under Belden 1694A and same cable quality conditions;
  • Advanced settings or firmware upgrading is available by connecting PC via USB;

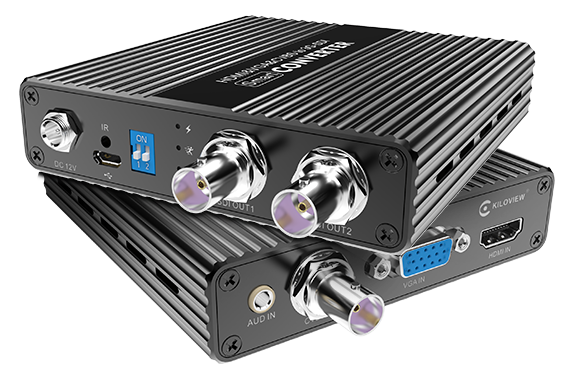

kiloview-cv190-hdmi-to-sdi-converter-product-portrait-1

High Quality Conversion

CV190 highlights professional color adjustment, 3D noise reduction, interlace/ progressive video conversion, video scaling up/down conversion and frame rate conversion etc., which can guarantee the professional image conversion quality.

kiloview-cv180-cv190-converter-high-definition

High Quality10bit YUV 4:2:2

icon-bitrate-exchange

Bitrate Exchange

icon-interlace-progressive-conversion

Interlace/Progressive Conversion

icon-scaling-up-down

scaling up/down

icon-undistorted-color

Undistorted Color

icon-3d-noise-reduction

3D Noise Reduction

icon-color-adjustment

Color Adjustment

Analog Audio

CV190 supports HDMI audio separation or analog audio input (one at a time), and can embed audio into SDI signal.

Applications

CV190 is suitable for all scenarios where HDMI, VGA, or AV (CVBS) signals need to be converted into SDI signal output, such as broadcast and television program editing, video teaching and training, high-definition video information release, high-definition video long-distance transmission, video conferencing, multimedia Advertising and video security monitoring and other fields.

kiloview-product-application-Multimedia-Splicing-Playing

Multimedia Splicing Playing

kiloview-product-application-remote-teaching

Remote Teaching

kiloview-product-application-Network-Program

Network Program

kiloview-product-application-Video-Conference

Video Conference

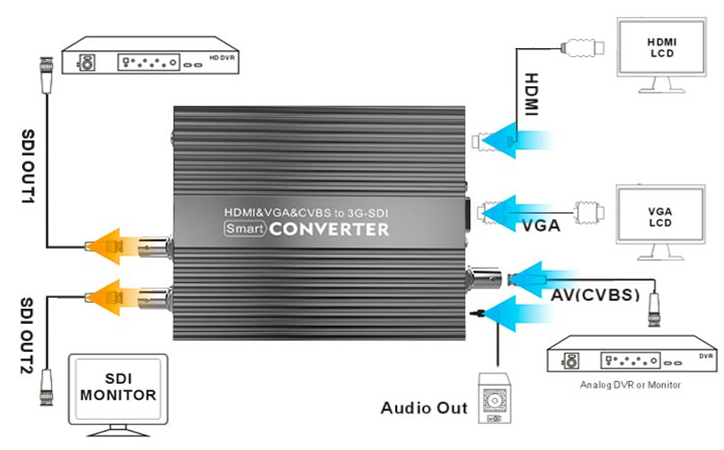

kiloview-cv190-hdmi-to-sdi-converter-connection-chart

More Highlights

SDK/API Available

Color Adjustment

High-end Chip

Real-time Signal Notice

Self-defined Resolution

Dual Output

7*24h Running

PC Configurable

Parameters

ModelCV190
Input Interface1*HDMI, 1*VGA, 1*BNC AV(CVBS), 1*3.5mm dual-channel analog audio (1Vp-p)
Output2*BNC-SDI (SD/HD/3G)
Input formatHDMI: 480i,576i,480p, 576p, [email protected]/59.94/60,[email protected]/59.94/60,
[email protected]/25/29.97/30, 1080p50/59.94/60, compatible with VGA format, up to [email protected];
VGA: up to [email protected], support all VESA standard resolution and common non-vesa resolution;
YPbPr: (using VGA-YPbPr), support 720p50/59.94/60,1080i50/59.94/60 and 1080p24/25/29.97/30/50/59.94/60;
AV(CVBS): PAL (576i)/NTSC (480i).
SDI transmitting distanceSDI transmitting distance Belden 1694A: SD-SDI 400m, HD-SDI 200m, 3G-SDI 120m.
Framerate/resolution conversionSupport
Audio embeddingSupport
ManagementRemote control/ PC connection with USB
Power supply12V, 1A
Consumption4w
Operation temperature-20℃~60℃
Dimension120*100*26mm(4.72”*3.94”*1.02”)
Weight315g(11.1oz)
DownloadsDocs & Firmware
