N50

The Best 12G-SDI/USB to NDI Bi-Directional Converter

NDI & NDI|HX

Encoding & Decoding

All In One

Full-functional NDI&NDI|HX Converter

Kiloview N50 is a full-functional NDI converter that uses the leading FPGA technologies, advanced-level AVC/HEVC algorithm, and NDI algorithm. It supports encoding/decoding within one unit which meets all your demands regarding IP-based video transmission.

N50 supports 12G-SDI format encoding/decoding of both NDI High-bandwidth and NDI|HX2/3 by H.264/H.265.

Encoding & Decoding with Ultra-low Latency

In the encoding mode, the N50 easily converts a 4K 12G-SDI video signal into an NDI or NDI|HX stream.

While in decoding mode, it will automatically adapt the NDI and NDI|HX format as your end needs.

N50 handles your NDI transmission easily with low latency of less than 80ms.

Pro-level Color Performance

N50 supports a professional YCbCr 4:2:2 color space and a 10-bit color depth (the common 8-bit color depth is also available).

N50 provides higher color and image quality to match the high standard in the broadcast and medical industries.

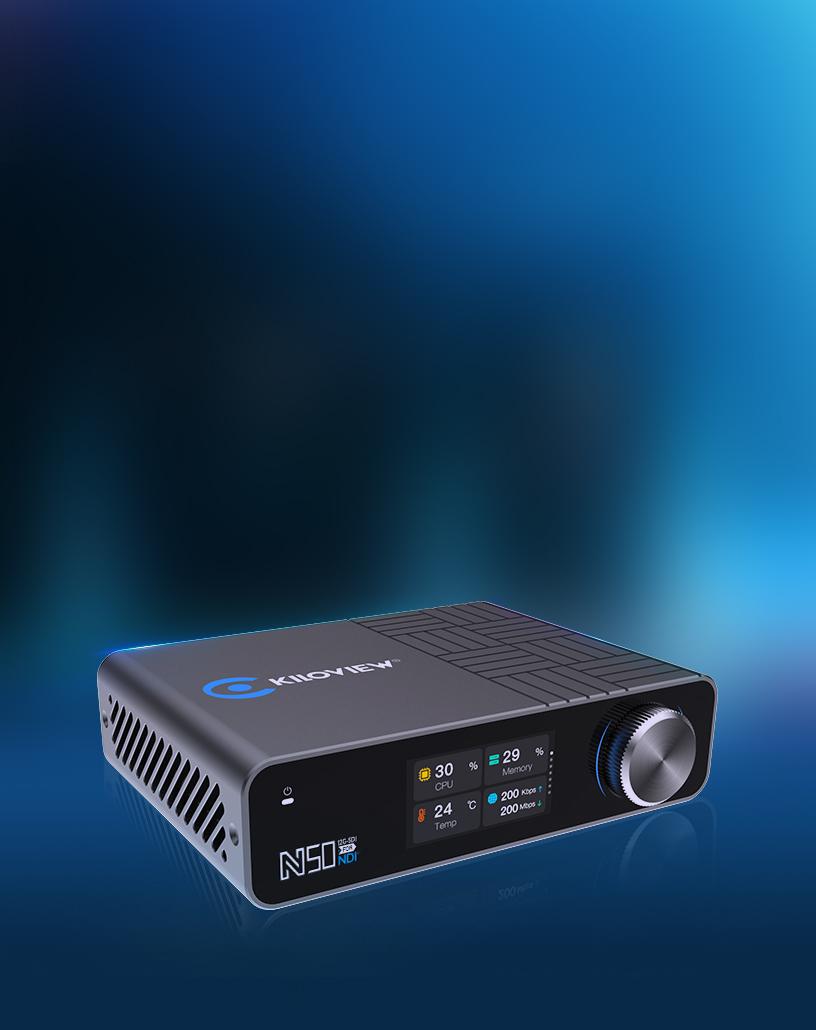

Built-in LCD Screen and Scroll Wheel

As a 12G-SDI version of Kiloview N60, the N50 cares about user experiences the same way.

The N50 is equipped with a  big color LCD screen for users to check the unit parameters anytime, anywhere. It can also be used as a big tally and works in conjunction with the small tally on the back panel, making it easy for all personnel in the field to check the PVW or PGM status in real-time.

The scroll wheel enables users to customize settings, switch on/off, set quick shortcuts, and control all video sources with preeminent ease.

USB Extension

N50 has both USB 3.0 Type-A and USB 3.0 Type-C interfaces for users to :

  • Access a Web Camera via USB 3.0 Type-A as a video input source for encoding;
  • Connect to PC via USB 3.0 Type-C as a USB video input;
  • Control PTZ Camera via USB expansion.


Users can achieve unlimited possibilities with USB extensions by seamlessly bringing NDI technology to such applications as video conferencing, image processing, and PTZ camera control.

Audio and Intercom

N50 supports 12G-SDI embedded audio and 3.5mm analog audio encoding/decoding.

It supports an extended USB audio interface (e.g., USB headset), to realize an end-to-end real-time intercom among the Kiloview devices operators and the associated Kiloview Intercom System (KIS) group.

PTZ Control

N50 supports PTZ control through USB to serial RS-232/RS-485/RS-422.

It also adopts network control protocols (such as Sony Visca/PELCO-D/PELCO-P) for external PTZ control.

Power Supply: PoE and DC

N50 has 2 interfaces of Ethernet, one of which supports the PoE(IEEE 802.3AT)power supply.

Just plug in a network cable, and you can easily access both the power supply and network transmission.

It also supports DC 12V power supply and can easily power the device with a portable charger or camera battery.

TF Storage

N50 offers a TF storage extension that eases your recording of encoding NDI video directly into a TF card (local recording supports MOV. format).

TF storage prevents your recording process from losing video frames caused by network delay, network interruption, or fluctuation.

Central Management with Kilolink Server

N50 can connect to KiloLink Server seamlessly which optimizes media transmission by any Kiloview products using any available network links.

It helps to manage, monitor and control all the devices throughout the process.

Learn More>>>

Compatible with TriCaster, vMix, OBS, and other commonly used tools.
Carry out your video production anytime, anywhere.

Supported Apps of Kiloview NDI products
campatible with multiple video production software

NDI® is a registered trademark of NewTek Inc.

NDI Bandwidth Requirement

Resolution4KP604KP301080P60720P60
Default Bitrate250Mbps200Mbps125Mbps90Mbps

Parameters

ModelN50
Video input1*4Kp60 12G-SDI 2.0
Video output1*4Kp60 12G-SDI 2.0(Loop or decoding output)
Audio port1*3.5mm Line in
1*3.5mm Line out
Network2*RJ45 1000Mbps Ethernet port
Ethernet 1 with PoE (IEEE 802.3AT, 24W Max)
Video resolutionInput: up to 3840x2160 60fps (4Kp60), lowest 720p50
Output (decoding or loop out): up to 3840x2160 60fps (4Kp60), lowest 720p50
NDI® codec capacity1x NDI® FB/HX encoding or 1x NDI® FB/HX decoding
NDI®CODEC featureSpeedHQ (NDI CODEC): SHQ0, SHQ2
ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
ISO MPEG-H Part 2: High-Efficiency Video Coding (HEVC)/ITU H.265
AVC (H.264): Baseline, Main, High, High10, High 4:2:2 up to 5.2 level
HEVC (H.265): Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier
Audio encoding and decodingNDI Audio; AAC-LC, Opus, G.711 a-Law/u-Law; other software expansion
USB1*USB3.0 (type A)
1*USB3.0 (type C)
Human-computer interaction1.96〞LCD screen, KILOVIEW Magic Rotor
TF storageSupport TF card for recording, capacity up to 2TB
TallyBuilt-in OLED panel available as front/rear Tally
PowerDC 12V (5.5/2.5)or PoE
NDISupport both NDI and NDI|HX 2.0 (Note: It will support NDI|HX 3.0 in the near future)
Typical BitratesSpeedHQ (NDI CODEC):
4Kp60: 250Mbps, 1080p60: 132Mbps, 1080p30/1080i60: 112Mbps, 720p60: 105Mbps
480i60: 62.5Mbps

AVC (H.264):
Adjustable from 1Mbpsto 120Mbps. >24Mbps (4Kp60); >10Mbps(1080p60).

HEVC (H.265):
Adjustable from 1Mbps to 120Mbps. >15Mbps (4Kp60); >6Mbps(1080p60).
RecordingTF card available for local storage to .mov filles.
Support remote recording with KILOVIEW Recorder System, ensuring reliable recording together with Kiloview Smart Recording technology (TF card required).
Voice intercomSupport voice intercom by USB headset between devices directly, or with KILOVIEW Intercom server.
PTZSupport PTZ control through USB to serial RS232/485/422;
or PTZ control over IP with different protocols, no extra cable required
Input with Web Cam via USBSupport video input from Web Cam via USB 3.0 (Note: license required)
Connection with PC via USBSupport connection with PC via USB Type-C, as a video capture device (Note: license required)
ManagementWeb UI and remote management with KILOVIEW KiloLink Server
Firmware updateFirmware upload by Web UI and remote upgrade with KILOVIEW Kilolink Server
MountingSupport cold-shoe mounting and V-mounting
Power Consumption16W Max
CertificatesCE/ FCC/ROHS
Dimension135.00*123.60*35.00mm

Related Products

U40 4K NDI Encoder
4KP60 HDMI to Full NDI Encoder
N4 NDI Converter
1080p60 HDMI to NDI Codec
N40 NDI Converter
4KP60 HDMI to Full NDI Codec
N1/N2 Wireless Encoder
SDI/HDMI Input, SRT Supported
N30 NDI Converter
12G-SDI to FULL NDI Codec
E1/E2 NDI|HX Encoder
SDI/HDMI Input/Loop, SRT Supported
N3 NDI Converter
3G-SDI to FULL NDI Codec
N60 NDI Converter
4K HDMI/USB to NDI Codec

Quick Comparison of our NDI Products

Product TypeProduct No.Input InterfaceData TransferResolutionRemark(s)
FULL NDI CodecN3012G-SDIEthernet4KP6012G-SDI Input & Loop Supported
N404K HDMIEthernet4KP60
N33G-SDIEthernet1080P60
N4HDMIEthernet1080P60
NDI|HX Wireless EncoderN13G-SDIWiFi/Ethernet1080P60
N2HDMIWiFi/Ethernet1080P60
NDI|HX Wired EncoderE1 NDI3G-SDIEthernet1080P60
E2 NDIHDMIEthernet1080P60
NDI|HX DecoderD300SDI+HDMIEthernet4KP609 Channels of Video Simultaneous Decoding and Split-screen display Supported
