H.265/H.264

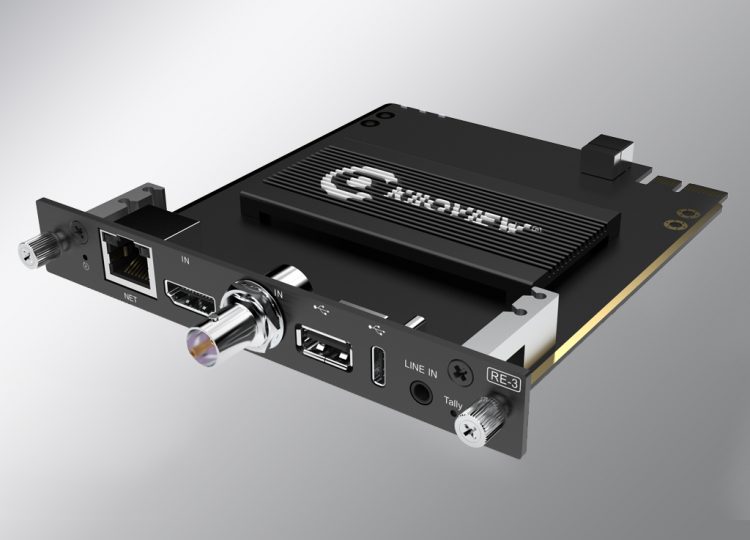

RE-3 Dual-channel 4K Rackmount Encoding Card

Kiloview RE-3 is the latest version of our Cradle series rackmount encoding card, which enhances the capabilities of our previous RE-1 V2 and RE-2. RE-3 has all the same great features of the original RE series rackmount encoding card, but now it gets the same encoding performance as our E3 including 4K and dual video inputs support. With the upgraded encoding capabilities of RE-3, you can now encode 4K video at up to 30 frames per second or HD video at up to 60 frames per second. Dual-channel video inputs provide users with the highest level of flexibility, allowing them to encode both videos in multiple ways. HEVC technology also enables users to live stream to up to 8 destinations simultaneously. RE-3 is a versatile and cost-effective solution for video encoding in various industries. It can be used for live production, live streaming, remote transmission, and post-production.

lQDPJwt0DyrCD3zNBADNBACw_tgyL1k0tMwEzlP6jcAQAA_1024_1024

   Features:

  • HDMI encoding and 3G-SDI encoding up to 4Kp30 / 1080p60
  • HDMI input with 4-channel embedded audio
  • 3G-SDI input with 8-channel embedded audio
  • H.265/H.264 codec and multiple IP streaming protocols support including NDI|HX2, NDI|HX3, SRT, RTMP/ RTMPS, HLS, TS over UDP, RTP/RTSP
  • Mix both video inputs as one output or simultaneously encode both video inputs in 1080p
  • Up to 8 destinations live streaming available
  • High-quality video deinterlacing
  • Multiple audio encoding formats support including AAC/MPEG-4/MPEG-3/MPEG-2/Opus/G.711
  • Low capture/encoding latency
  • Local and NAS recording
  • KiloLink Server
  • Kiloview Intercom System (KIS)

Encoding Cards

Kiloview H.265/H.264 Encoding Cards support 4K HDMI and 3G-SDI encoding capabilities.

RE-1 V2
3G-SDI Encoding Card
Rackmount card version of E1.
RE-2
HD HDMI Encoding Card
Rackmount card version of E2.
RE-3
Dual-channel 4K HDMI&3G-SDI Encoding Card
Rackmount card version of E3.
RE-100
 Dual-channel 3G-SDI Encoding Card
REN-100
Dual-channel 3G-SDI Encoding Card
REN-1 V2
 3G-SDI Encoding Card
Rackmount card version of E1-NDI.
REN-2
HD HDMI Encoding Card
Rackmount card version of E2-NDI.

Tech Specs

ModelRE-1 V2RE-2RE-100REN-1 V2(NDI)REN-100REN-2(NDI)RE-3
Input1*BNC SDI1*HDMI2*BNC SDI1*BNC SDI2*BNC SDI1*HDMI1*3G-SDI
1*4K HDMI
Loop1*BNC SDI1*HDMI2*BNC SDI1*BNC SDI2*BNC SDI1*HDMI/
Applicable frameRU01, RU03, RU03SRU01, RU03, RU03SRU03SRU01, RU03, RU03SRU03SRU01, RU03, RU03SRU01, RU03, RU03S
Analog audio port1*3.5mm1*3.5mm/1*3.5mm/1*3.5mm1*3.5mm
NDI|HX/ NDI|HX 1.0 and 2.0NDI|HX2/NDI|HX3
ProtocolsSRT/RTMP/RTMPS/HLS/TS over UDP/RTP/RTSP/OnvifNDI|HX2/NDI|HX3/SRT/RTMP/RTMPS/HLS/TS over UDP/RTP/RTSP Onvif (Extensible for SIP/GB-T2818)
Video codecH264/AVC, Motion-JPEGH.265(HEVC)/H.264(AVC)
ResolutionUp to 1080p60HDMI: up to 4Kp30
3G-SDI: up to 1080p60
Network1*100M RJ45 Ethernet1*10/100M/1000M RJ45 Ethernet Port
Audio encodingAAC/G.711
Image and text overlayUser-defined text and image overlay
Video rotation and croppingSupport
Management PortalWeb UI and remote management with KILOVIEW KiloLink Server

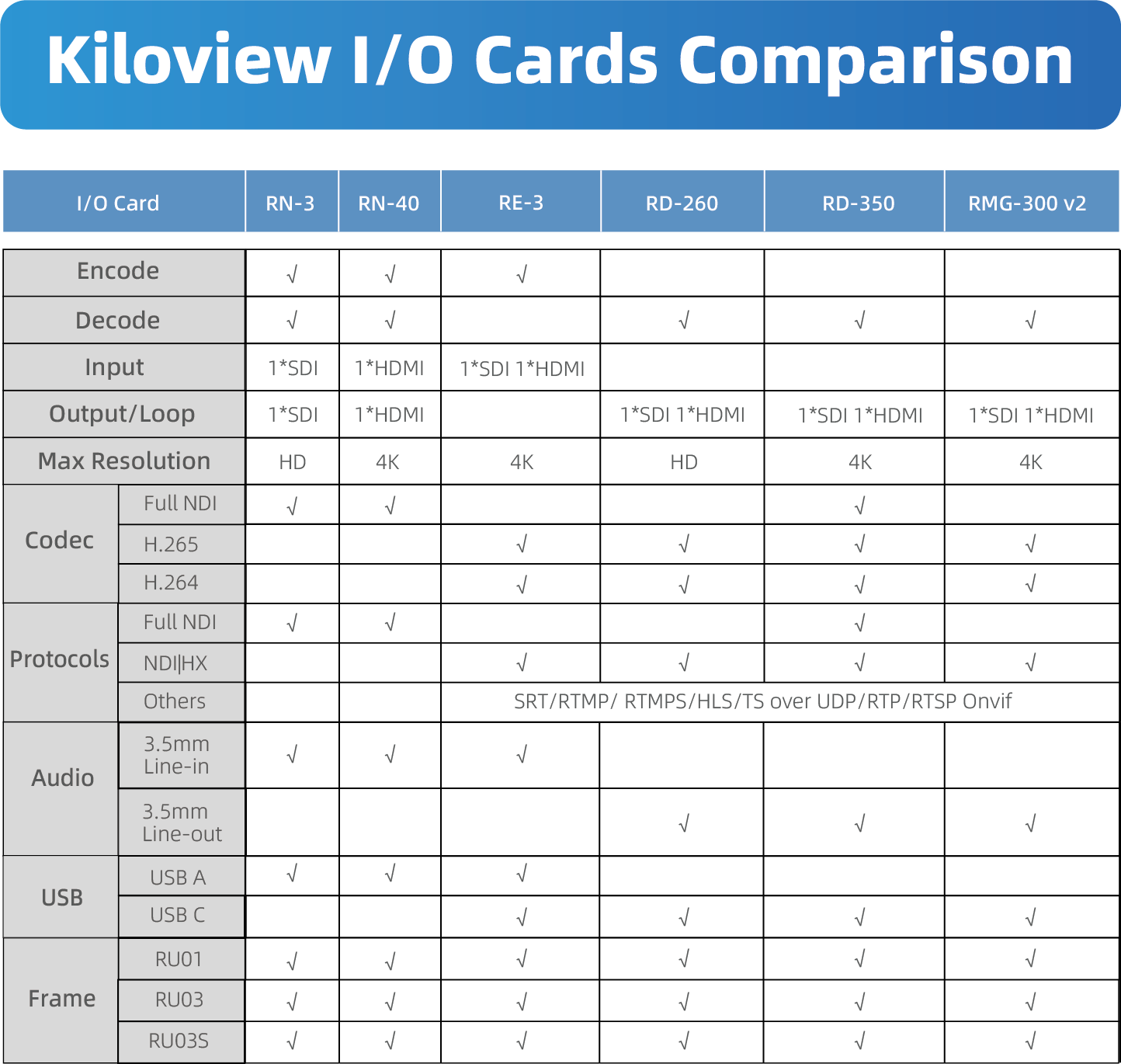

Do you find it hard to pick the right one in our I/O Card Family to fit your workflow?

Here is the chart for your better understanding:
