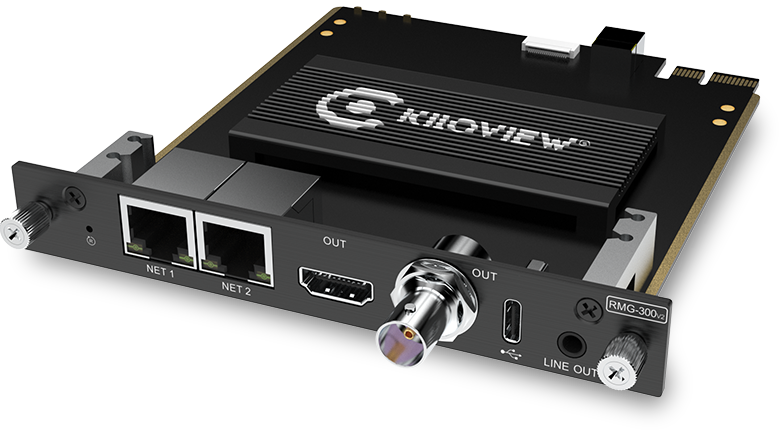

Kiloview Media Gateway Card support dual-channel 4K resolution.
| Model | RMG300 V2 |
|---|---|
| Network | 2*100M/1000M RJ45 adaptive Ethernets |
| Decoding output | 1*SD/HD/3G-SDI, up to 1080P 60Hz 1*HDMI, up to 3840*2160@60Hz |
| Applicable frame | RU01, RU03, RU03S |
| Analog audio output | 1*3.5mm Line out |
| Analog audio input | 1*3.5mm Line in |
| USB | 1*USB 3.0 Type-C |
| Access protocol | NDI-HX/SRT/RTSP/RTMP/TS-UDP/HTTP, (NDI|HX means NDI|HX Version 2.0, SIP/ONVIF (customize) |
| Output protocol | NDI|HX 2.0/SRT/RTSP/RTMP/TS-UDP |
| Protocol conversion | 9 channels1080P video conversion |
| Streaming distribution | 50 channels of RTSP, 36 channels of RTMP/SRT (Not more than 800Mbps) |
| Streaming distribution capability | 9 channels*4 channel 1080P |
| Number of decoding | 4K 30Hz H.264/H.265: up to 4 simultaneous channels 1080P 50Hz/60Hz H.264/H.265: up to 8 simultaneous channels 1080P 30, 1080i 50/60Hz, 720P and below H.264/H.265：up to 9 channels simultaneously |
| Video decoding standard | H.264, H.265 |
| SDI output format | 1080P60/59.94/50,1080P30/29.97/25/24/23.98,1080i60/59.94/50.720P60/ 59.94/50, 576i50, 480i60 |
| HDMI output format | 4K 3840x2160@60/30, 1080p60/50, 1080p24/25/30, 1080i60/50, 720p60/50 Compatible with VESA standard format |
| Video rate range | 128Kbps ~ 40Mbps |
| Audio decoding | AAC G.711 (aLaw/uLaw) |
| Audio rate range | AAC: 8Kbps ~ 320Kbps G.711: 64Kbps |
| Decoding delay | ≤200ms |
| Split display style | Support 1/2/3/4/5/6/7/8/9 splitting; Support re-encoding the splitted and recombined video for live streaming/ transmission. The image supports up to 1080P60 H.264 encoding. |
| Management interface | Web |
| Remote management | Support |
| Remote firmware upgrade | Support |
| Operating temperature | -25 ~ 60°C |
| Dimension & weight | 140*105*28mm (5.5”*4.1”*1.1”/380g/13.4oz) |
| Power consumption | ≤6W |
| Power supply | 12V/1A |
| Remark | NDI|HX means NDI|HX Version 2.0 |
| Downloads | Firmware |
