DC220 supports SDI+DVI dual interface output, while DVI is compatible with HDMI and VGA signals; and SDI+DVI dual interface can output the same content at the same time.
Adopting intelligent delay control technology, it can achieve a decoding delay of less than 200ms;
FPGA processing + H.264 algorithm optimization is used to resist 10% network packet loss, ensuring clear, smooth, and high color reproduction;

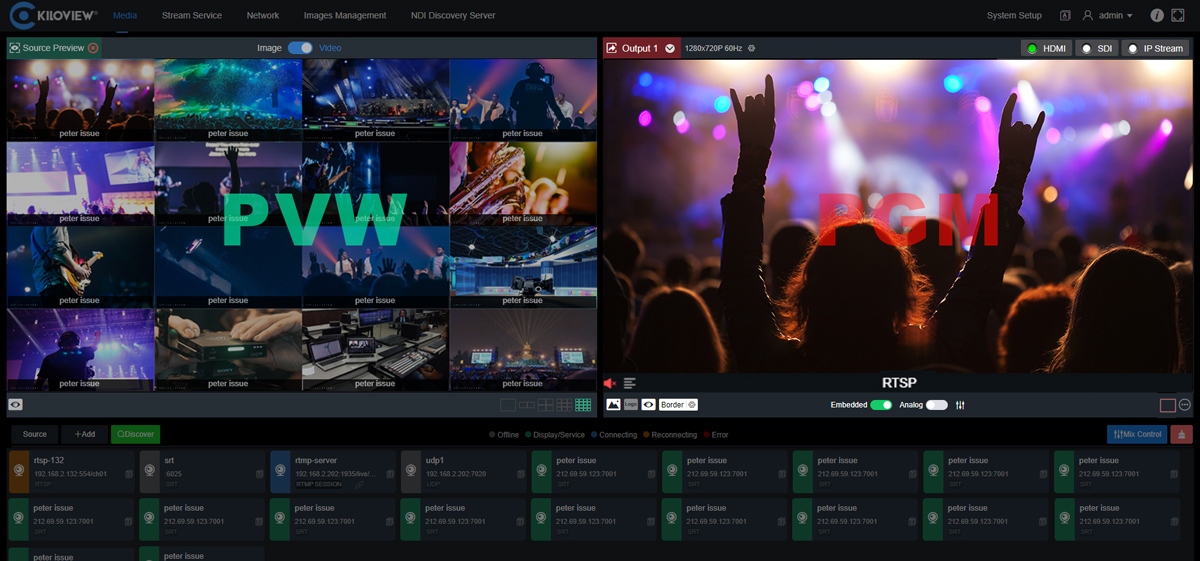

DC220 supports “preview + output” mode, in which you can preview 16 real-time video streams on the web console, and select 1 of them to display on the screen for output simultaneously.
DC220 features up to 1080p60 SDI/DVI high-definition video output, and the output resolution and frame rate can be adjusted freely.
The output display can be customized on video bitrate and resolution, with logo and osd overlay available.
TV programming, Lecture capture, Online courses, Distance learning, Course recording, Broadcast meetings, Web training, and so on.
Multimedia Splicing Playing
Network Program
Remote Teaching
Video Conference
Model | DC220 |
---|---|
Input | 1*100M/1000M RJ-45 Ethernet |
USB port | 1*USB 2.0 Type-A |
Video output | 1*SDI, compatible SD-SDI(270M), HD-SDI(1.485G), 3G-SDI(2.97G); 1*DVI-I, compatible HDMI1.4/DVI 1.0/VGA |
Output formats | 1*SDI: Up to 1080P60Hz; VGA: Up to UXGA, SDI: 1080P60/50/30/25/24, 1080i60/50, 720P60/50, 576i50, 480i60; DVI: 1080p60/50,1080p24/25/30,1080i60/50,720p60/50, VESA standard formats; VGA: 1080p, 720p, UXGA (1600x1200), SXGA (1280x1024), XGA (1024x768), SVGA (800x600), VGA (640x480) and other VESA formats; Note: DC220 doesn’t support SDI 1080p 59.94/29.97/23.98, 1080i 59.94, 720p59.94, DC230 supports. |
Audio output | SDI embedded, 3.5mm output |
SDI Transmission Distance | Belden 1694A: SD SDI ≥ 350m; HD SDI ≥ 180m; 3D SDI ≥ 100m |
Media protocol | SRT/RTMP/HLS/TS over UDP/RTSP protocol etc. |
Video decoding | H.264 |
Audio decoding | AAC/G.711 |
Decoding delay | <200ms (Adjustable) |
Decoding ability | Support single channel video decoding |
Management | Web operation |
Power Supply | 12V, 1A/5w |
Power supply/ Consumption | 5w |
Operation temperature | -20℃~60℃ |
Dimension | 138*105*27mm(5.43”*4.13”*1.06”) |
Weight | 380g(13.4oz) |
Support Downloads | Docs & Firmware |
Product Type | Product Model | Output Interface | Resolution | Decoding Performance |
---|---|---|---|---|
H.265 4K Video Decoder | D350 | 3G-SDI + HDMI 2.0*2 | SDI: up to 1920×1080@60Hz; HDMI: up to 3840×2160@60Hz | Up to 12 Video Streams Simultaneously Decoding. 1/2/3/4/5/6 ~ 16 Splitting Screens and Dynamic Switching Supported. |
4-Channel H.265 Video Decoder | D260 | 3G-SDI + HDMI 2.0*2 | SDI: up to 1920×1080@60Hz; HDMI: up to 1920×1080@60Hz | Up to 4 Video Streams Simultaneously Decoding. 1/2/3/4 Splitting Screen and Dynamic Switching Supported. |
