Kiloview N3-s 3G-SDI/NDI High Bandwidth converter is a bi-directional converter that supports 3G-SDI video input (encoder) to NDI High Bandwidth with 3G-SDI loop through for view on monitor, or 3G-SDI video output (decoder) from NDI High Bandwidth.
Featured with powerful functions such as PoE, built-in big tally light, PTZ control, 3.5mm audio line in/out, multi-channel audio, intercom functions, Kiloview N3-s is your best choice to get access to the fabulous NDI world for professional broadcast-grade IP production.
The NDI protocol is a high-performance standard that enables anyone to use real-time, ultra-low-latency video on existing IP video networks.
The N3-s supports up to 3G-SDI HD video input to NDI High Bandwidth and loop through for monitoring, at the same time it supports NDI High Bandwidth to 3G-SDI output. It’s a versatile NDI converter.
The N3-s supports up to 3G-SDI HD video input to NDI High Bandwidth and loop through for monitoring, at the same time it supports NDI High Bandwidth to 3G-SDI output. It’s a versatile NDI converter.
*N3’s encoding and decoding functions are mutually exclusive, and cannot be used at the same time
*N3-s encoding and decoding functions are mutually exclusive, and cannot be used at the same time
*N3’s encoding and decoding functions are mutually exclusive, and cannot be used at the same time
Kiloview N3-s supports 3.5mm analog audio line in/out or embedded audio, up to 16CH audio supported.
It also supports voice intercom by USB headset with Kiloview Intercom server. >Learn more

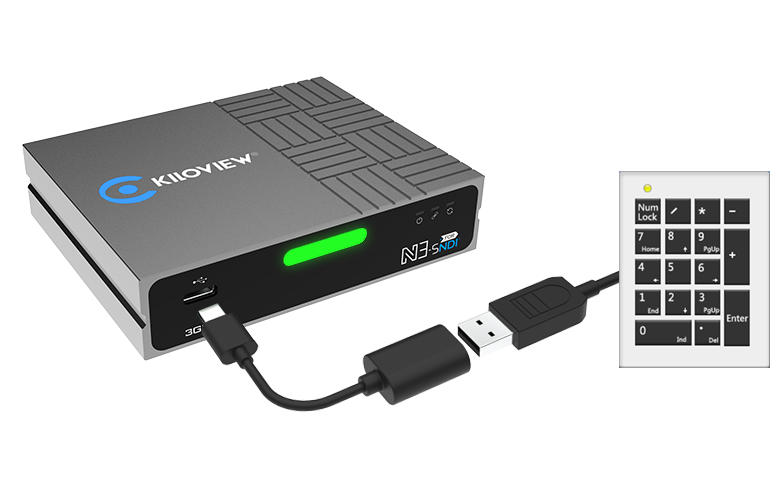

In decoder mode, you can preset the NDI sources from number 0-9. Connect the decoder with a USB keypad, you can easily choose the output source with a single press.
Or you can even use the USB Keypad to control a PTZ camera- the cheapest PTZ Keyboard you can get.
Kiloview N3-s supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP, no extra cable required
N3-s has a big-sized while bright and distinct Tally for PVW/PGM indication – all is to make perfect cooperation for your team.
With PoE, the N3-s can be powered with a single cable connection. With the design of wide DC input range from 5V to 18V, it can also be easily powered by USB power or camera battery.
It has an exquisite design, small and light-weight, which can be easily attached to the camera by a threaded screw.
The groove design on both sides facilitates the rackmount installation in 1U/3U
Resolution | 4KP60 | 4KP30 | 1080P60 | 720P60 |
---|---|---|---|---|
Default Bitrate | 250Mbps | 200Mbps | 125Mbps | 90Mbps |

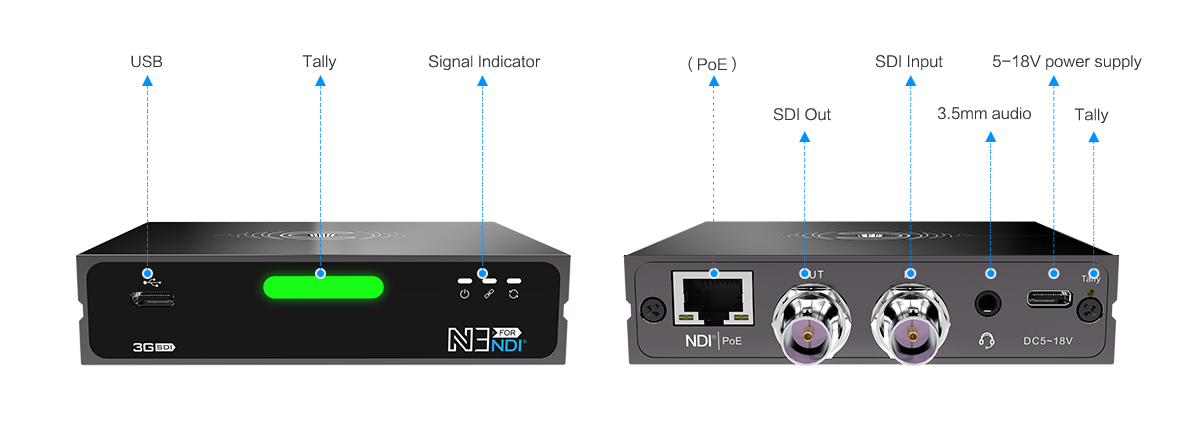

Model | N3-s |
---|---|
Video input | 1*3G-SDI |
Video output | 1*3G-SDI(Loop or decoding output) |
Audio port | 1*3.5mm |
Network | 1*RJ45 1000Mbps Ethernet port (with PoE) |
Video resolution | Up to 1080p60 (backward compatible with SD/HD/VESA) |
NDI® codec capacity | 1*NDI® encoding or 1*NDI® decoding |
NDI® codec feature | NDI High Bandwidth HD encoding, typical bitrate: 125Mbps@1080p60 |
LED indicator | Tally light, power light and status connection light |
Power | PoE, DC, D-Tap (camera) optional. 5-18V wide range supported |
Voice intercom | Customization |
PTZ Control | Network PTZ and Serial Port |
DHCP | Support |
Management | Web UI and remote management with KILOVIEW KiloLink Server |
Power consumption | 6w |
Working Temperature | -20~45℃ (Storage temperature: -20~70℃) |
Dimension | 100*80*24mm (3.94”*3.15”*0.94”)/0.2 kg |
Support Downloads | Docs & Firmware |
Product Type | Product No. | NDI Codec Capability | Video I/O Connectivity | Resolution | Notes |
---|---|---|---|---|---|
NDI Bi-Directional Converter | N6 | NDI High Bandwidth/NDI HX | HDMI | 1080P60 | |
N5 | NDI High Bandwidth/NDI HX | 3G-SDI | 1080P60 | ||
N50 | NDI High Bandwidth/NDI HX | 12G-SDI | 4KP60 | ||
N60 | NDI High Bandwidth/NDI HX | HDMI | 4KP60 | SRT Support | |
N3-s | NDI High Bandwidth | 3G-SDI | 1080P60 | ||
N30 | NDI High Bandwidth | 12G-SDI | 4KP60 | ||
N40/N40 Plus | NDI High Bandwidth | HDMI | 4KP60 | ||
NDI Wireless Encoder | N1 | NDI HX | SDI | 1080P60 | WiFi supported, Battery Builld-in |
N2 | NDI HX | HDMI | 1080P60 | WiFi supported, Battery Builld-in | |
NDI Encoder | E3 | NDI HX | SDI+HDMI | 4KP30 in HDMI, 1080P60 in SDI | |
U40 | NDI High Bandwidth/NDI HX | HDMI | 4KP60 | ||
E1 | NDI HX | SDI | 1080P60 | ||
E2 | NDI HX | HDMI | 1080P60 | ||
NDI Decoder | D350 | NDI High Bandwidth/NDI HX | SDI+HDMI | 4KP60 | |
D260 | NDI HX | SDI+HDMI | 1080P60 |
