Not only a Decoder
D350 4K Ultra HD Decoder is an all-in-one video processing device that supports decoding various network video stream formats, including NDI HB, NDI HX/HX3, SRT, RTMP, UDP, RTP, and RTSP, with stable audio and video synchronization via 3G-SDI and HDMI. It can decode up to 12 simultaneous 1080P60 video streams and features hardware-based Multiview monitoring for real-time preview switching.
The D350 also offers customizable layouts, dynamic switching, and background/LOGO overlays, along with audio bar monitoring and reverse PTZ control. Its LCD screen displays the IP address and output status, providing easy monitoring for users.
It supports 4K H.265/H.264 IP stream decoding, capable of simultaneously decoding and outputting up to 12 video streams, including 12 channels of 1080P30, 12 channels of 1080P60, 3 channels of 4KP30, and 2 channels of 4KP60. Additionally, the device supports SpeedHQ (NDI HB) decoding format, enabling simultaneous decoding and output of up to 4 video streams, including 4 channels of 1080P30, 4 channels of 1080P60, and 1 channel of 4KP30.
D350 also offers flexible audio output options, supporting output via embedded SDI/HDMI or 3.5mm Line out, with the capability to decode up to 2 HDMI and 4 SDI audio channels. It is compatible with AAC, G.711, Opus, and LPCM audio formats and can be expanded to support additional formats and channels. Thanks to its powerful multi-channel audio mixing and gain adjustment capabilities, users can freely toggle between multiple audio channels, mix audio, and adjust the audio gain flexibly.

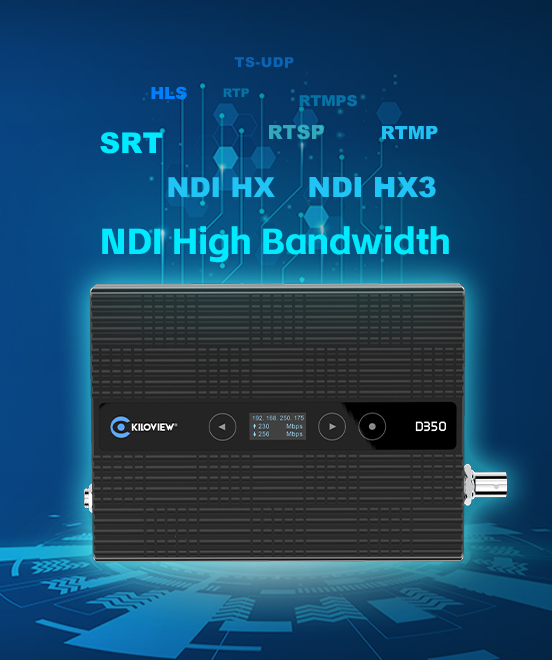

To accommodate your various workflows, D350 is compatible with all protocols, including NDI High Bandwidth, ND HX, NDI HX3, SRT, RTMP, RTMPS, HLS, TS over UDP, RTP, and RTSP.
To accommodate your various workflows, D350 is compatible with all protocols, including NDI High Bandwidth, ND HX, NDI HX3, SRT, RTMP, RTMPS, HLS, TS over UDP, RTP and RTSP.
D350 supports customizable output display screens, allowing users to freely choose between single-screen or various split-screen and picture-in-picture modes. You can dynamically select custom layouts ranging from 1/2/3/4/5/6/7/8/9 to 16 screens based on your needs, easily achieving dynamic output switching. All layout parameters, including position, size, and dimensions, are 100% customizable. You can also save custom multi-screen layouts, including the position and size settings of different video panes, as templates for future use.

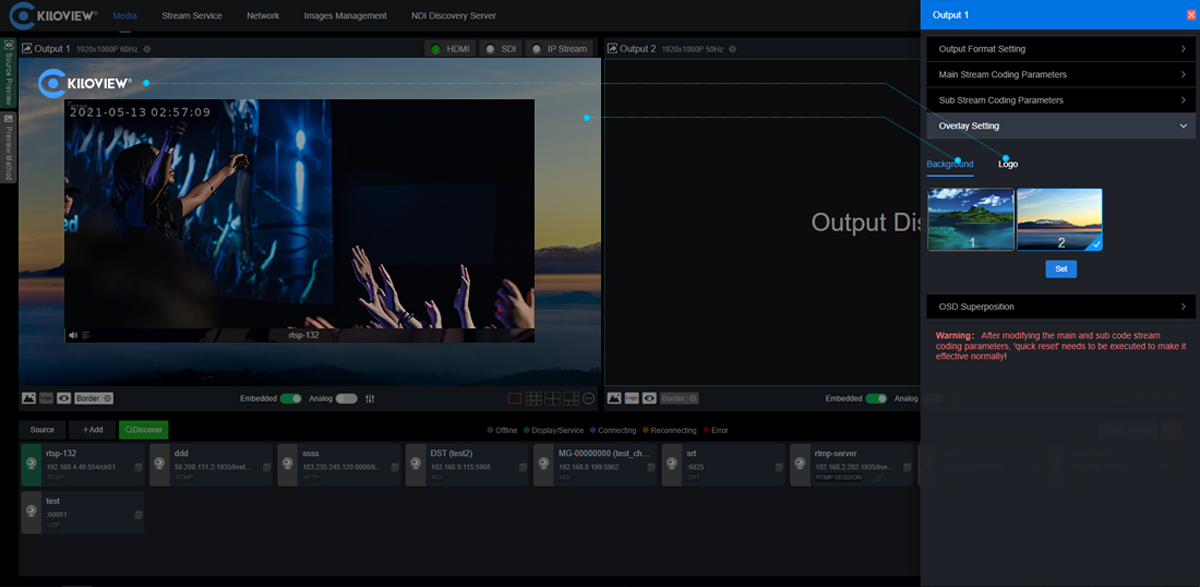

The newly added overlay editor feature of the D350 provides you with an unprecedented personalized output experience. You can freely create rich and colorful overlay templates for the output screen, incorporating various elements such as images, text, colors, and more (e.g., LOGO, borders, image-text overlays). The designed templates can be directly applied to the corresponding output screens, making the output more vibrant and personalized.

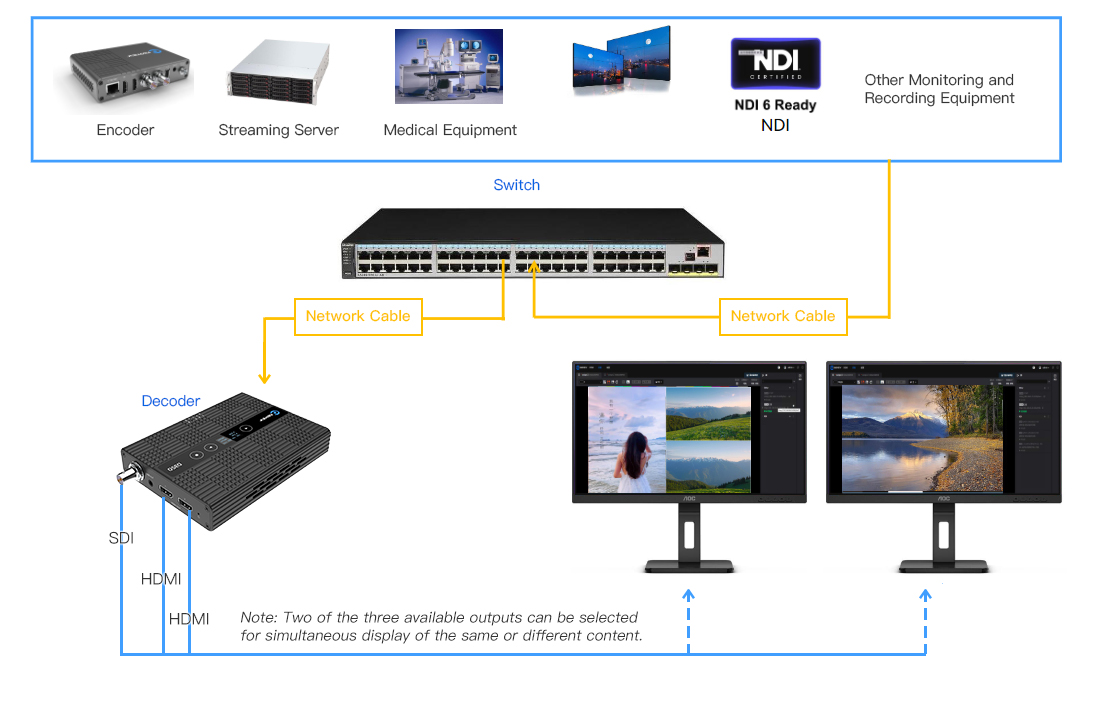

D350 supports multi-interface output via 3G-SDI and 2*HDMI 2.0, enabling synchronous decoding and the display of identical or different images. The HDMI output supports resolutions up to 4KP60, while the SDI output reaches up to 1080P60. Both the output resolution, scan type (progressive or interlaced), and frame rate are fully adjustable. Additionally, D350 supports specific frame rates (such as SDI with 59.94/29.97), allowing for tailored performance to suit your needs.
Note: It supports three video source inputs, from which two can be selected for image output.
D350 guarantees outstanding image quality and low transmission latency with a decoding delay of around 150 ms and a packet loss rate of less than 10%.
The D350 guarantees outstanding image quality and low transmission latency with a decoding delay of less than 200 ms and a packet loss rate of less than 10%.

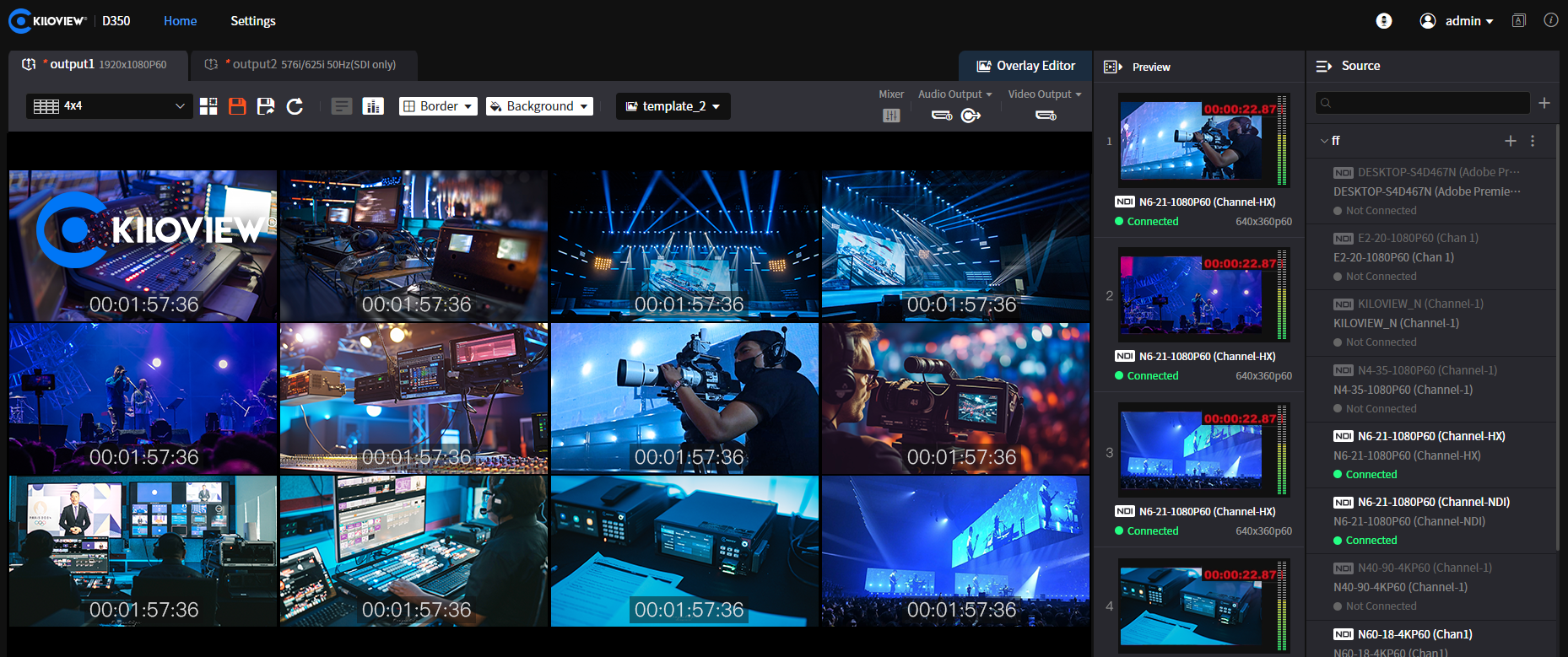

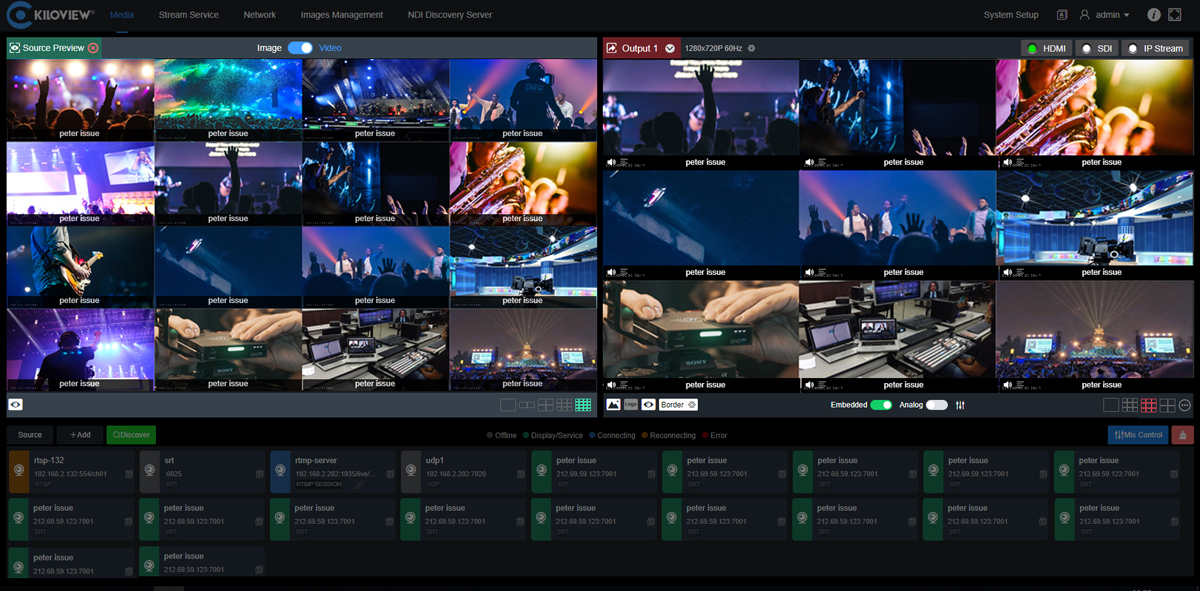

The brand-new UI interface is simple and intuitive. The perfect combination of the main screen and sidebar preview layout allows for easy previewing of multiple full-format video streams. With just a drag, users can seamlessly switch between real-time preview and corresponding output. All functions are integrated on the web page, making them clear and easy to access.

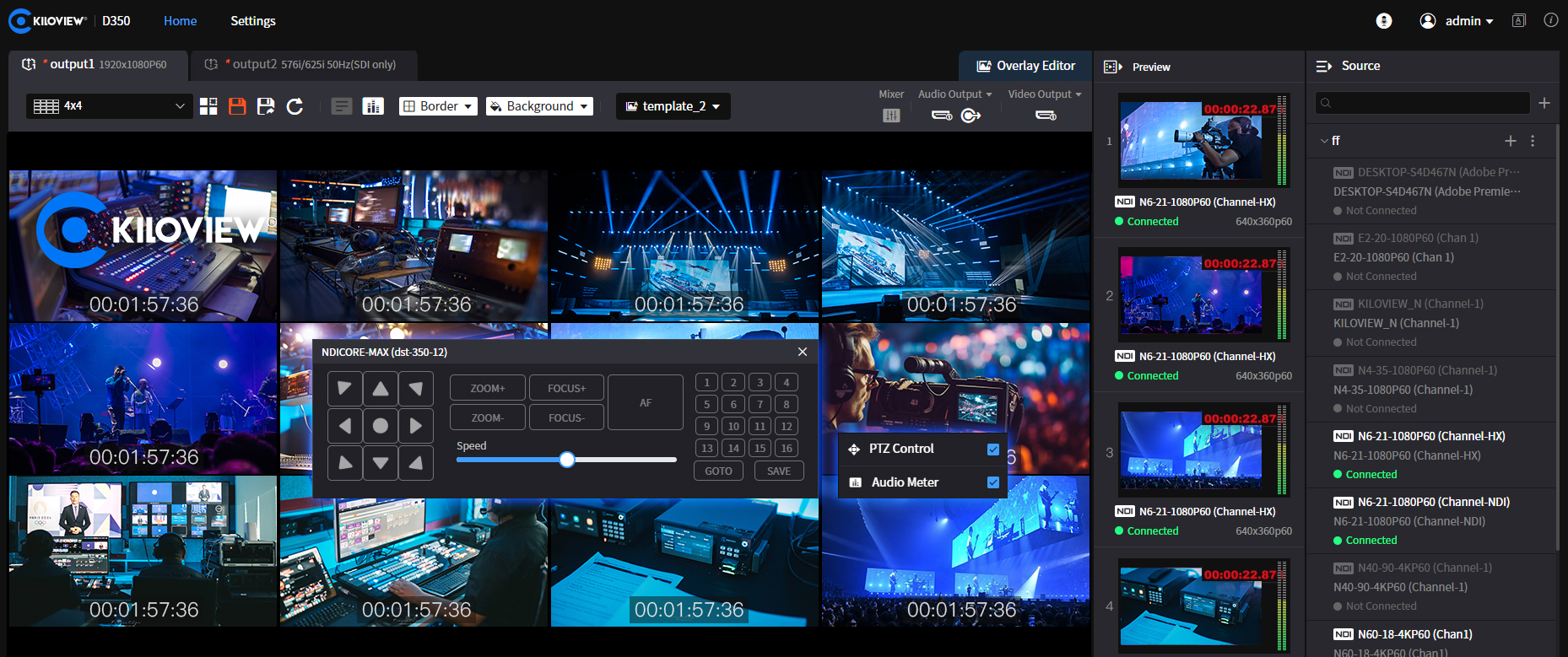

Additionally, the interface supports VU meter monitoring and reverse PTZ control, making monitoring even more efficient. Whether it’s monitoring audio or controlling cameras, the system ensures smooth and easy operation.

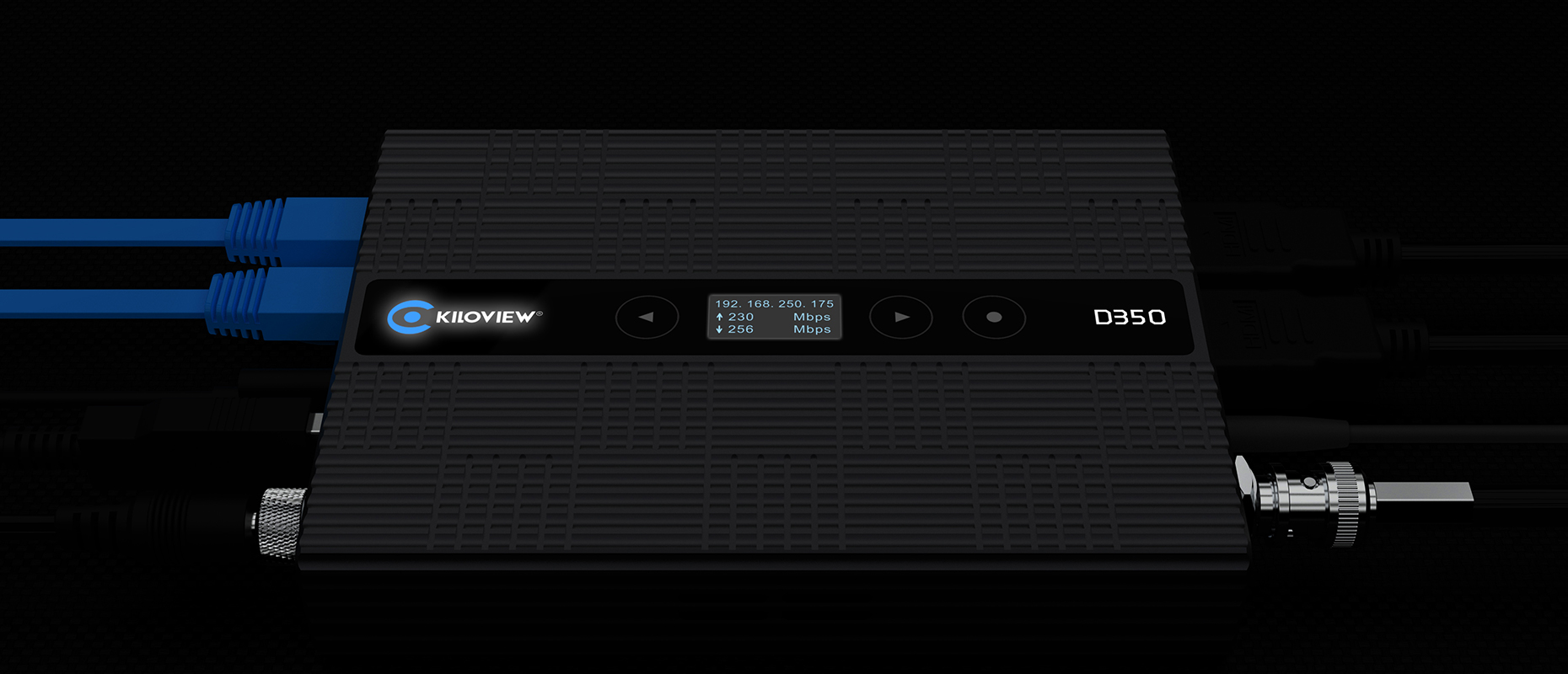

As an update to the D300, D350 is equipped with a 0.9-inch LCD screen for a better user experience. With the built-in LCD screen, users can easily check the IP and decoding status in real-time.
With RTMP Server, D350 can simplify the video decoding workflow by directly accessing a video encoder and outputting video streams through RTMP without any relay platform.
You will be able to pick 12 of the streams for output on the displaying screen from the umlimited real-time video streams (based on your hardware performance) or images previewed on the web page. You can add video sources, select any video source for decoding, and perform dynamic switching.
D350 comes with dual USB ports, allowing you to extend to USB headsets for multi-party voice communication. By implementing Kiloview Intercom Server (KIS) , you can easily integrate a variety of devices, including Kiloview codecs, computers, smartphones, iPads/tablets, and custom Kiloview portable devices.

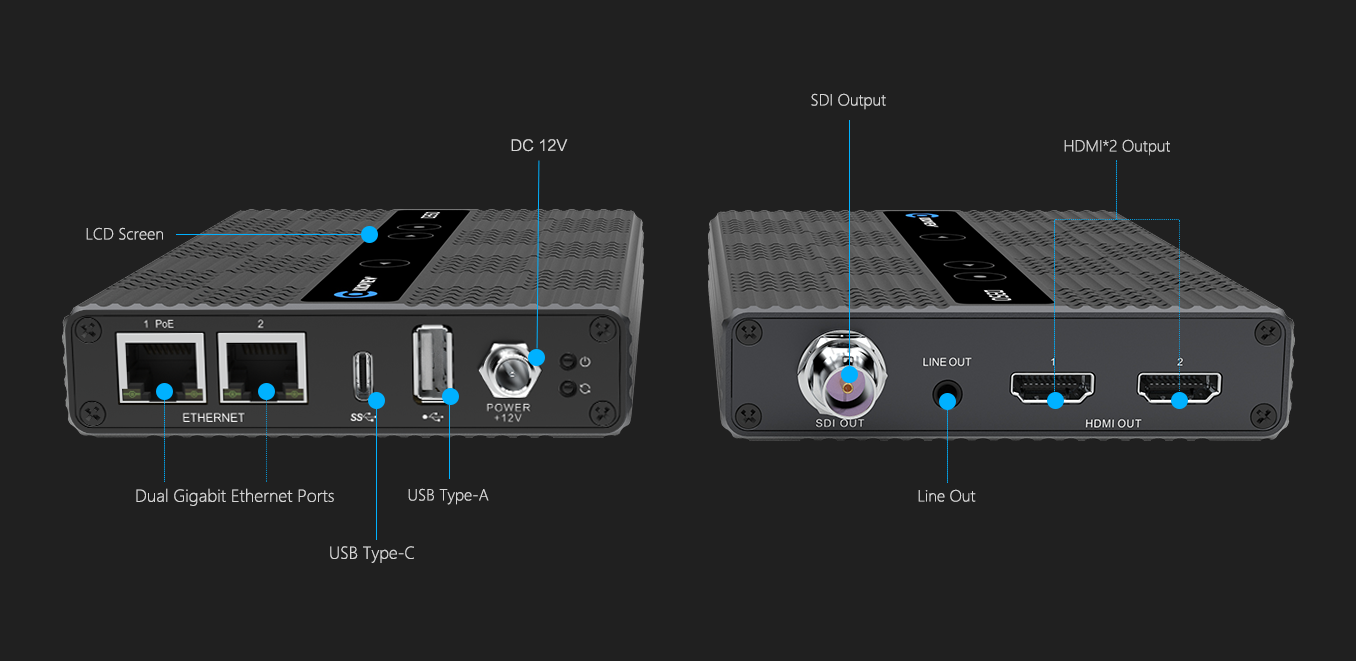

D350 is equipped with dual Gigabit Ethernet ports with one PoE power supply and redundancy protection, ensuring uninterrupted network connectivity. With just one cable, it simultaneously supports power, video IP transmission, and intercom functions, simplifying wiring and improving system efficiency.

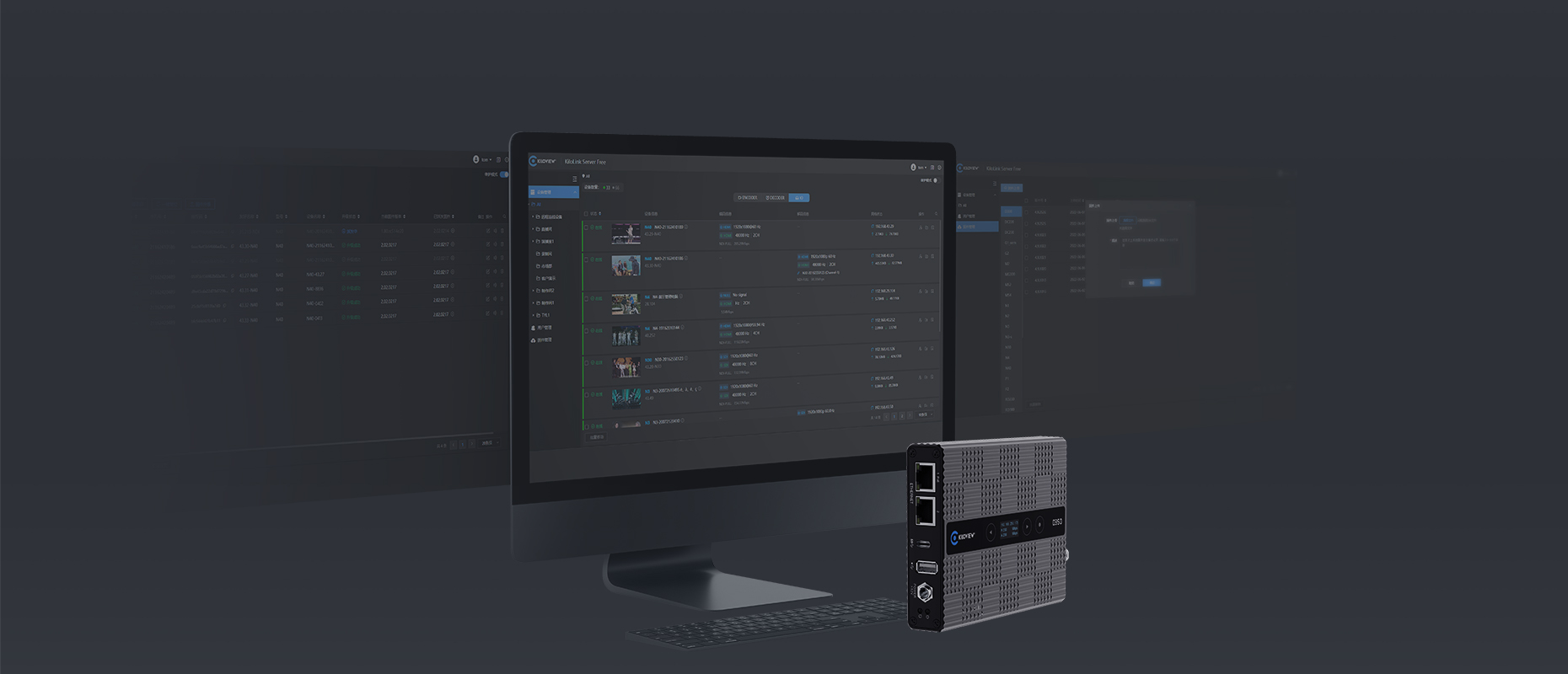

D350 seamlessly integrates with KiloLink Server, optimizing media transmission across all Kiloview products using any available network links. It enables efficient management, monitoring, and control of all devices throughout the process.
With optimized API, D350 offers a more convenient interface for video stream functionality development. Utilizing the included demo program, developers can quickly integrate and call features, streamlining the development process and improving efficiency.

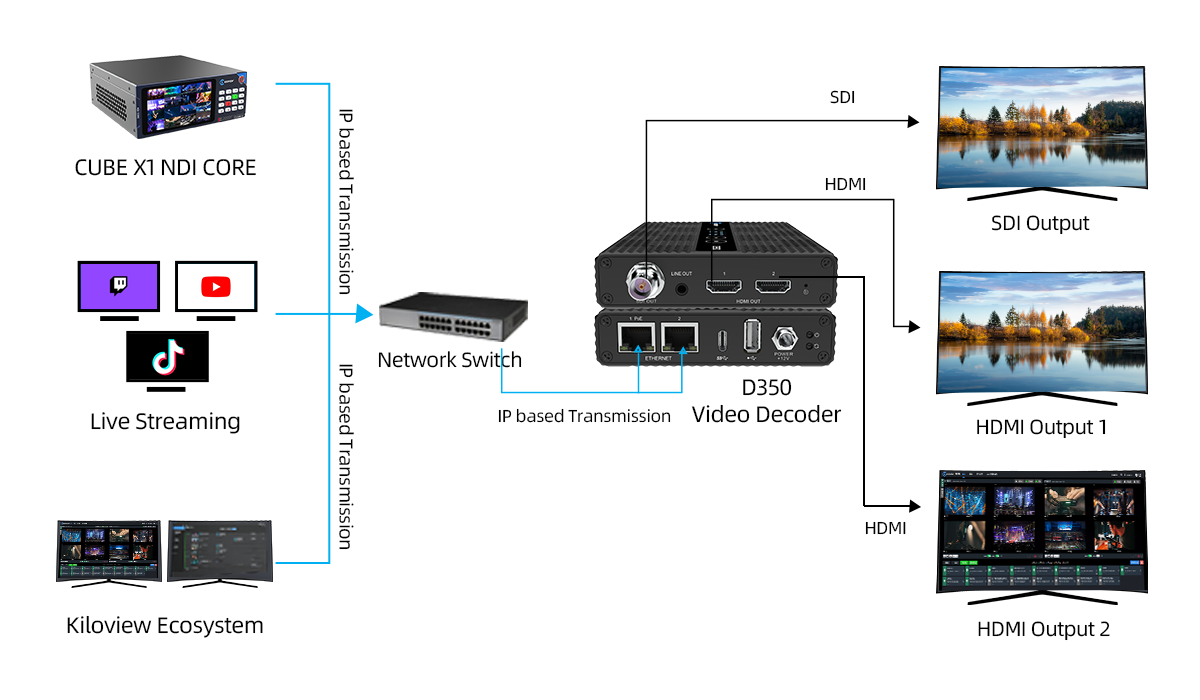

It supports simultaneous decoding and multi-screen output of network streams, seamless network stream pulling for display or control room switching, point-to-point SRT video transmission (on the receiver side), live program monitoring (on the receiver side), wall-mounted monitoring, and integration of AV and conference systems.
IP TV Production
SRT for Remote Transmission
Audio/Video Engineering
| Decoding Formats | H.264(AVC) | H.265(HEVC) | SpeedHQ(NDI High Bandwidth) | H.264(AVC)/H.265(HEVC)+SpeedHQ(NDI High Bandwidth) |
|---|---|---|---|---|
| 4KP60 | 2 | / | / | / |
| 4KP30 | 3 | 1 | 1 | 3+1 |
| 1080P60 | 12 | 3 | 3 | 7+1 |
| 1080P30 | 12 | 4 | 4 | 8+2 4+3 |
| Model No. | D350 |
|---|---|
| Video Output | 1*3G-SDI, up to1080P60 2*HDMI2.0, up to 4KP60 (Backward compatible) |
| Audio Output | Embedded SDI/HDMI channels or 3.5mm Line out |
| Video Formats | H.264(AVC) compatible with Baseline/Main/High Profile, up to Level 5.2； H.265(HEVC) compatible with Main Profile, up to Level 5.1； SpeedHQ(NDI High-bandwidth) |
| Video Decoding Capability | H.264(AVC)/H.265(HEVC): Up to 12 channels in 1080P30, 12 channels in 1080P60, 3 channels of 4KP30, or 2 channels in 4KP60 Speed HQ (NDI High Bandwidth): Up to 4 channels in 1080P30, 3 channels in 1080P60 or 1 channel in 4KP60 |
| Audio Formats | AAC/G.711/Opus/LPCM with expanding support to additional formats and channels |
| Latency | NDI High Bandwidth&NDI HX：around 150ms； Others：100~200ms(Adjustable) |
| Streaming Protocols | NDI High Bandwidth/NDI HX/NDI HX3/SRT/RTMP/RTMPS/ HLS/TS over UDP/RTP/ RTSP |
| Layouts | 1/2/3/4/5/6/7/8/9~16 with adjustable screen sizes for each display |
| Intercom | Yes |
| Display | LCD Screen |
| OSD | Yes |
| Network | 2×100M/1000M RJ-45 Ethernet ports |
| USB | 1*USB Type-A, 1*USB Type-C |
| Management | Web UI/Kiloview KiloLink Server |
| Firmware Upgrade | Web UI/Kiloview KiloLink Server |
| Power Consumption | 12V, 1A /8W |
| Dimension | 140*104*25mm (5.51*4.09*0.98”) |
| Weight | 360g |
| Operating Temperature | -20~60°C |
| Support Download | Docs & Firmware |
| Product Type | Product Model | Output Interface | Resolution | Decoding Performance |
|---|---|---|---|---|
| H.265 4K Video Decoder | D350 | 3G-SDI + HDMI 2.0*2 | SDI: up to 1920×1080@60Hz; HDMI: up to 3840×2160@60Hz | Up to 12 Video Streams Simultaneously Decoding. 1/2/3/4/5/6 ~ 16 Splitting Screens and Dynamic Switching Supported. |
| 4-Channel H.265 Video Decoder | D260 | 3G-SDI + HDMI 2.0*2 | SDI: up to 1920×1080@60Hz; HDMI: up to 1920×1080@60Hz | Up to 4 Video Streams Simultaneously Decoding. 1/2/3/4 Splitting Screen and Dynamic Switching Supported. |
