Thanks to NDI network interconnection, traditional SDI/HDMI video signals can be reliably transmitted to IP-based on-site production equipment, such as various software and hardware production equipment, video mixers, image systems, etc.
The video is running on ethernet, no need for extra infrastructures. You will not be annoyed by complicated equipment deployment and maintenance costs.
NDI is working via multi-channel transmission. Namely, when you are taking a video and encoding it into an NDI stream, everyone in the same local network is able to check it on their end devices individually.
What’s more, when they are taking different videos and encode them, you can check those videos all at once. The encoded video stream is compatible for all common production systems.
NDI sends the encoded video data through ethernet rapidly. At the same time, it’s working well for encoding the raw data from your camera due to its high efficiency. Generally, the transmission latency from end to end is around 100ms.
What you see is what your camera takes. Using NDI, you will have good experience in local production, media interaction, and real-time playback, etc.

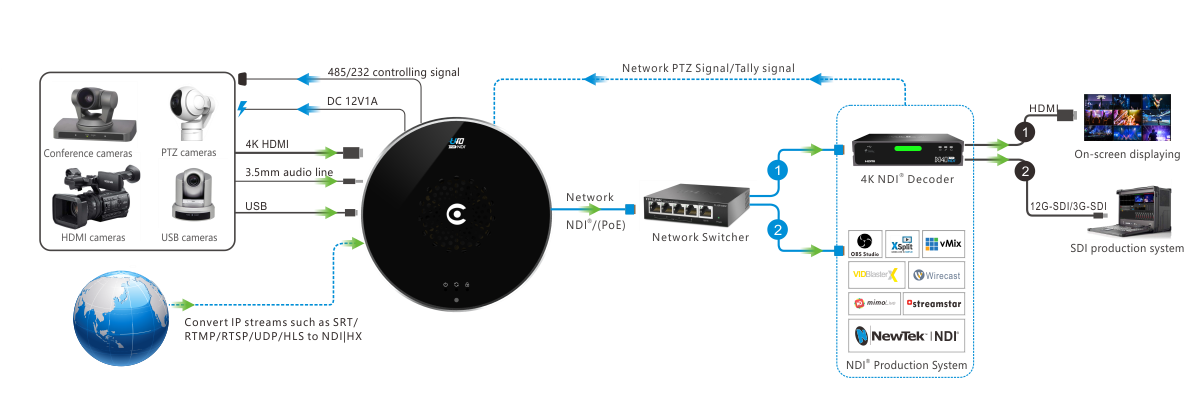

Kiloview U40 4K NDI encoder receives 4K P60 HDMI or USB input, and convert it to full NDI stream effectively.
As it is trasmitted via Ethernet, updating to NDI local production procedure will be easy and convenient as no wires are needed.
Our U40 is not only a encoder but a streaming hub that converts video data of another protocols such as RTMP or SRT into NDI|HX.
In the U40 web panel, you can capture the incoming video stream in the media gateway and enter the world of NDI easily.

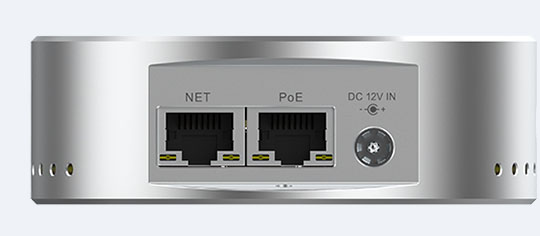

Our PoE and DC out functions power the device itself as well as output no less than 15W power to power your monitor, recorder, or even your camera.
This makes installation simpler and less expensive, especially when new devices or connection are added to the video system.

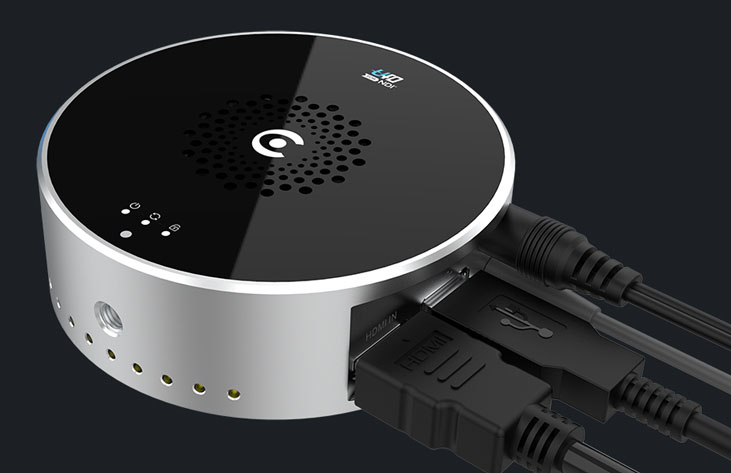

A bigger fan (35*35*6mm) built-in ensures more air volume (4.3 cfm) and lower noise (18.3 DB) for 24 hours of working.
With an aluminum alloy cover, our U40 has better thermal conductivity. Meanwhile, it is designed with heat dissipation holes.
U40 supports PTZ control thus it is able to control the PTZ camera through the serial port (232/485, etc.) or network.
It is useful when receiving the PTZ signal sent by the NDI production system or NDI decoder. The control is quick and accurate.
With U40, we have a batch of bright and distinct Tally lights for PVW/PGM indication– all is to make perfect cooperation for your team.

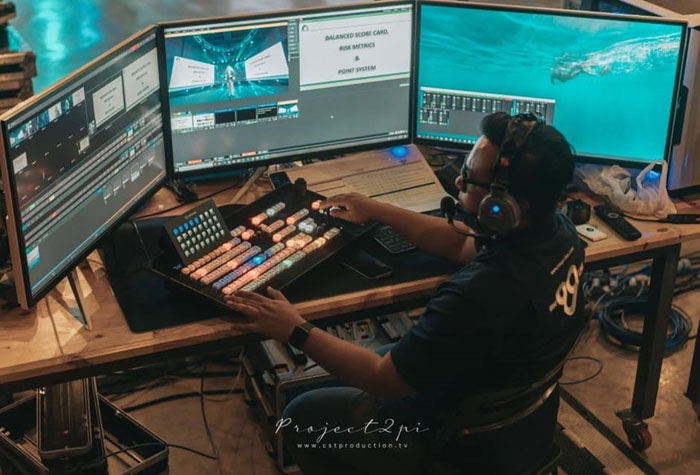

In a professional studio, our tally light which is built in U40 encoder will help you fulfil complicated tasks or go through the intricate workflow.

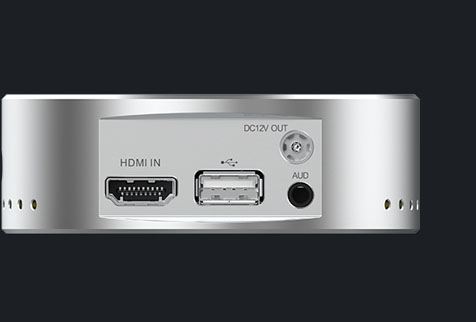

| Model | U40 |
| Interface | HDMI 2.0 |
| Video resolution | 4K60, compatible with HD |
| Ethernet port | 2*1000M Ethernet port |
| USB interface | 1*USB2.0 |
| Analog audio interface | 1*3.5mm analog audio |
| NDI performance | Support HDMI to NDI High Bandwidth® Support 3.5mm analog audio embedded in NDI® Support other IP streams to NDI®|HX |
| Tally light | Built-in |
| PTZ control | Support Sony Visca/Visca (Laia)/Visca (Kato)/PELCO-D/PELCO-P |
| PoE | Support |
| Size | Φ: 90mm, H:30mm; Φ3.54’’, H:1.18’’ |
| Power/power consumption | DC 12V1A |
| Weight | 310g (10.9oz) |
| Downloads | Docs & Firmware |
| Product Type | Product No. | NDI Codec Capability | Video I/O Connectivity | Resolution | Notes |
|---|---|---|---|---|---|
| NDI Bi-Directional Converter | N6 | NDI High Bandwidth/NDI HX | HDMI | 1080P60 | |
| N5 | NDI High Bandwidth/NDI HX | 3G-SDI | 1080P60 | ||
| N50 | NDI High Bandwidth/NDI HX | 12G-SDI | 4KP60 | ||
| N60 | NDI High Bandwidth/NDI HX | HDMI | 4KP60 | SRT Support | |
| N3-s | NDI High Bandwidth | 3G-SDI | 1080P60 | ||
| N30 | NDI High Bandwidth | 12G-SDI | 4KP60 | ||
| N40/N40 Plus | NDI High Bandwidth | HDMI | 4KP60 | ||
| NDI Wireless Encoder | N1 | NDI HX | SDI | 1080P60 | WiFi supported, Battery Builld-in |
| N2 | NDI HX | HDMI | 1080P60 | WiFi supported, Battery Builld-in | |
| NDI Encoder | E3 | NDI HX | SDI+HDMI | 4KP30 in HDMI, 1080P60 in SDI | |
| U40 | NDI High Bandwidth/NDI HX | HDMI | 4KP60 | ||
| E1 | NDI HX | SDI | 1080P60 | ||
| E2 | NDI HX | HDMI | 1080P60 | ||
| NDI Decoder | D350 | NDI High Bandwidth/NDI HX | SDI+HDMI | 4KP60 | |
| D260 | NDI HX | SDI+HDMI | 1080P60 |
